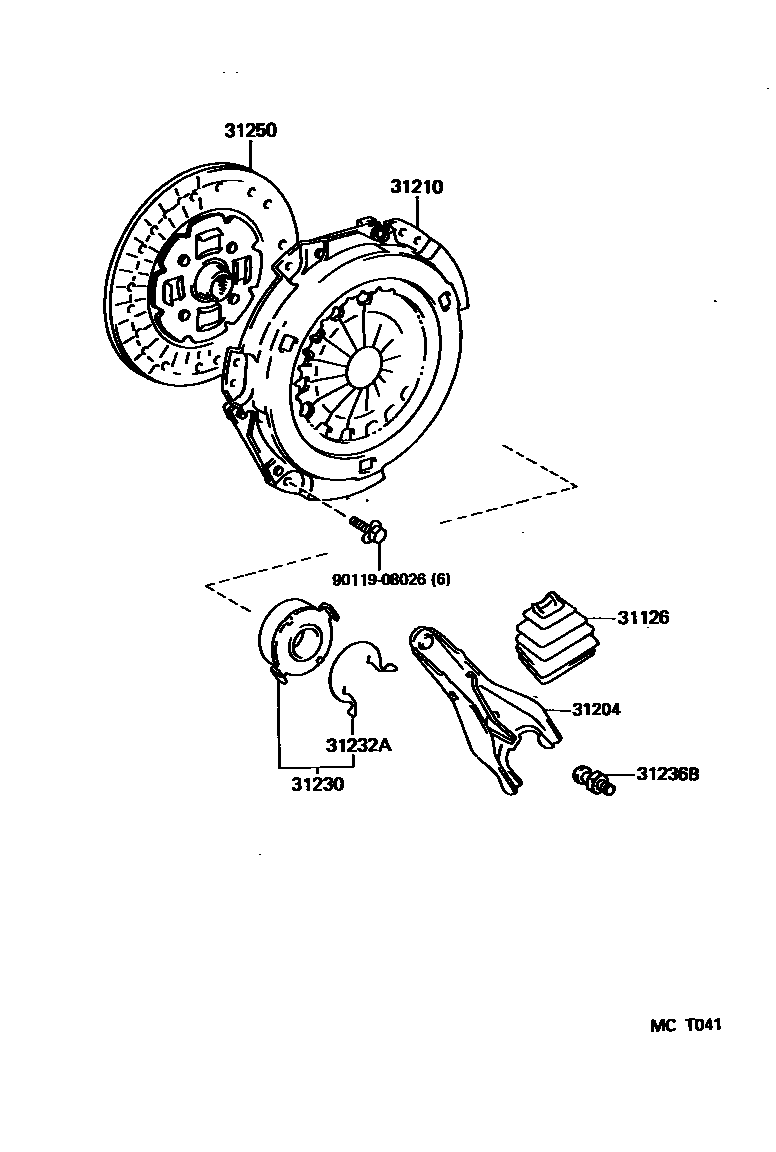

Toyota COROLLA 离合器和分离叉 — Figure 3101
Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-12051 |
| 31204 | Clutch release fork assembly | 31204-12050 · 31204-17010 |
| 31210 | Clutch cover assembly | 31210-12152 · 31210-12180 · 31210-12201 |
| 31230 | Clutch release bearing assembly | 31230-12140 · 31230-12170 · 31230-12171 · 31230-52010 |

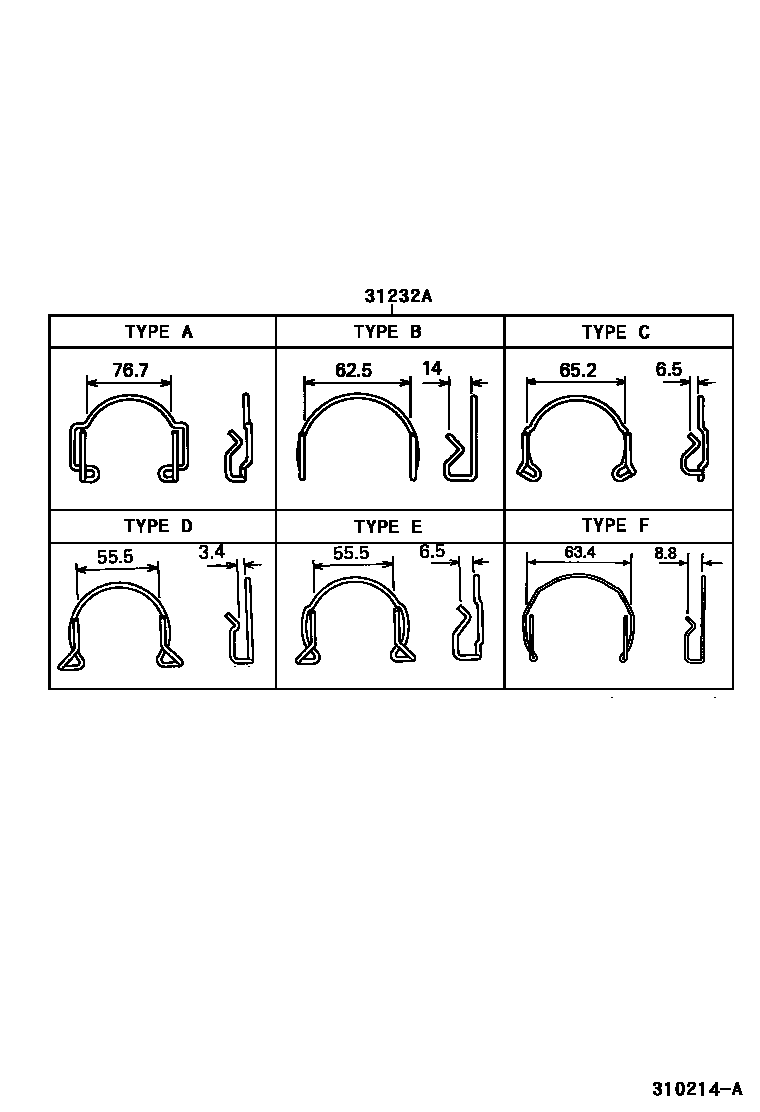

| 31232A | Release bearing hub clip | 31232-12040 · 31232-12070 · 31232-16031 · 31232-52010 |
| 31236B | Split fork bracket | 31236-12011 · 31236-12020 |
| 31250 | Clutch disc assembly | 31250-12360 · 31250-12370 · 31250-12390 · 31250-12391 · 31250-20280 |
