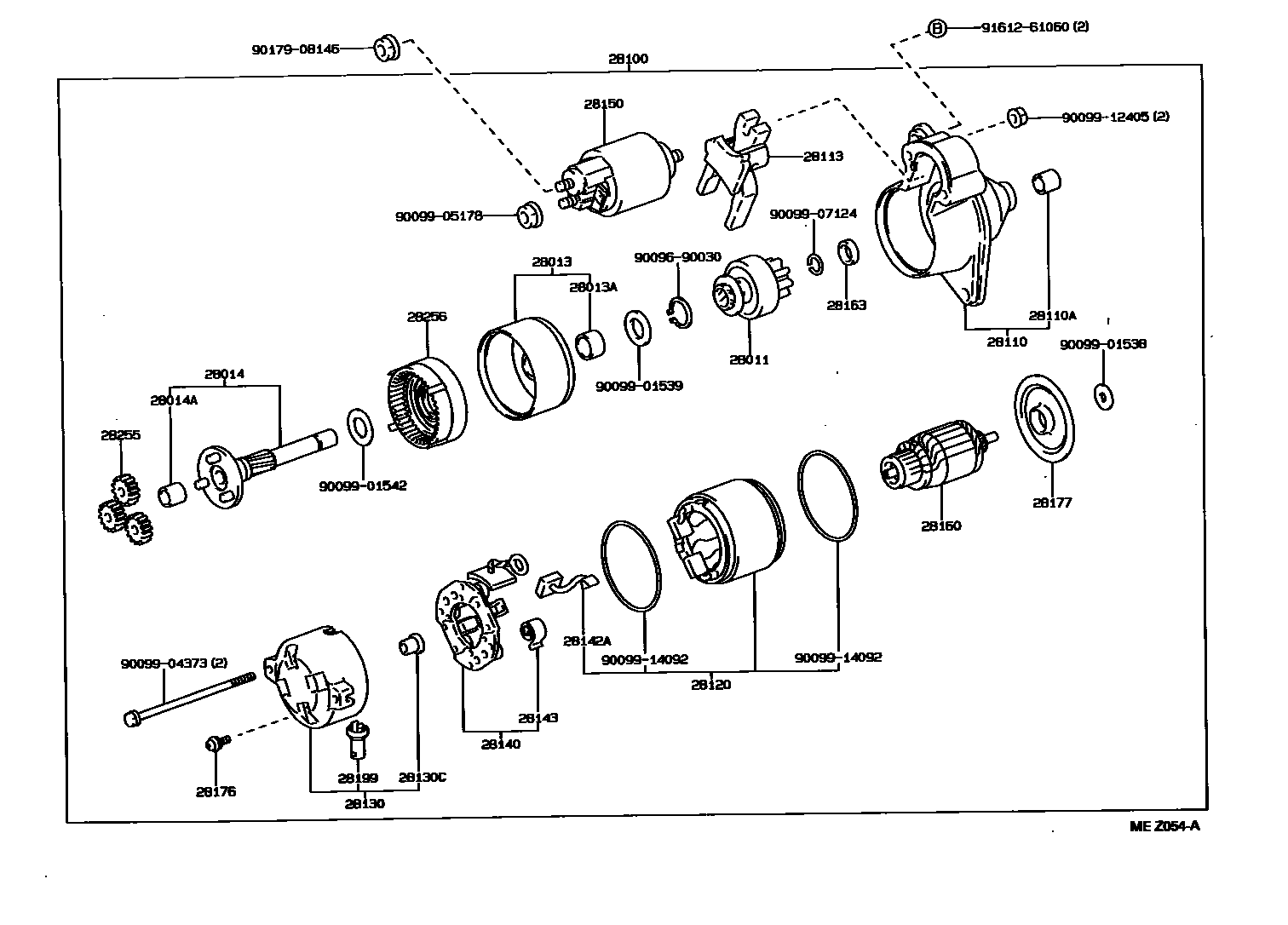

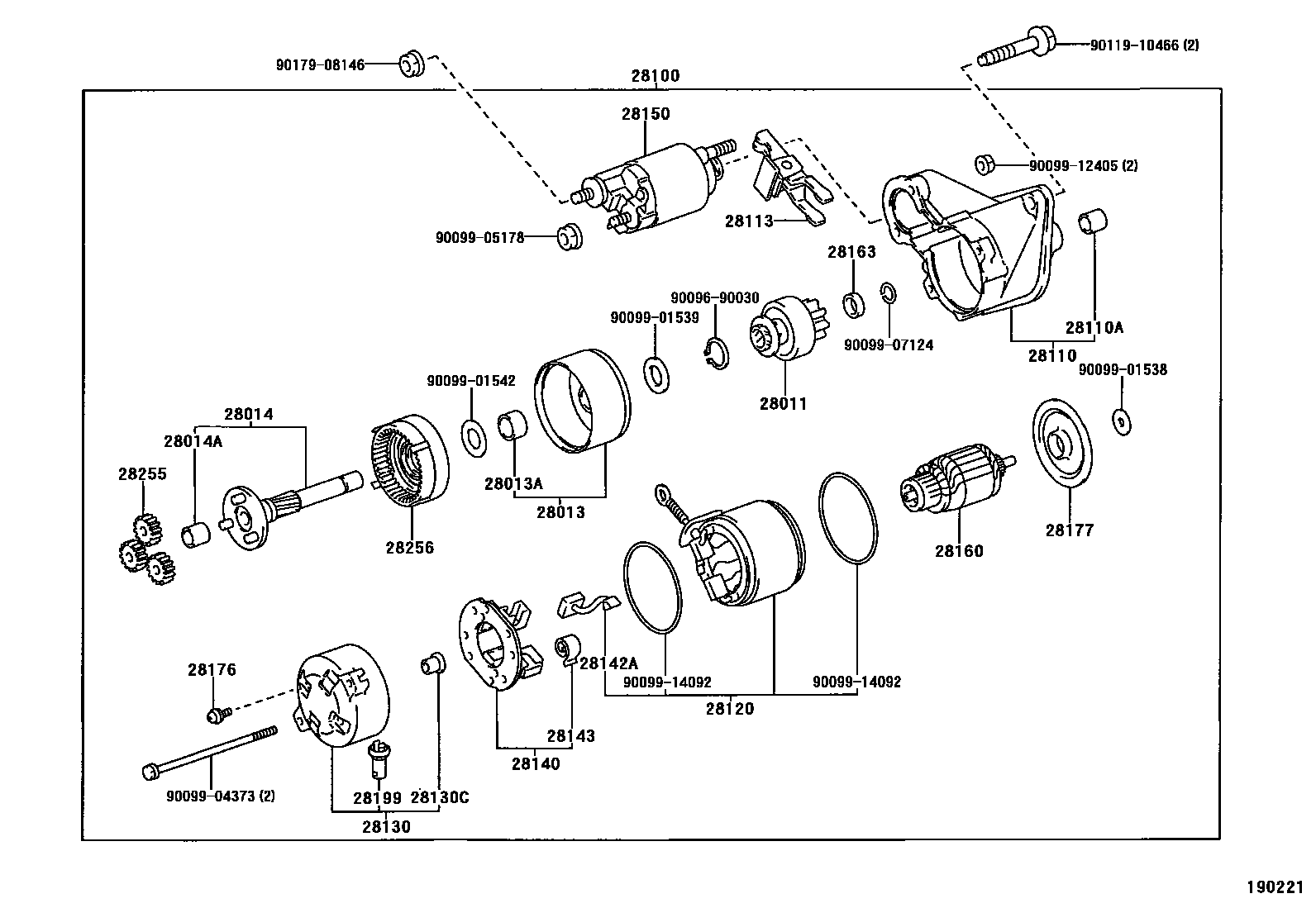

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-70020 |
| 28013 | No. 1 starter intermediate bearing and shock absorber | 28013-70020 · 28013-70030 |
| 28013A | No. 2 starter intermediate bearing and shock absorber | 90099-10181 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-70020 |
| 28014A | Planet gear carrier shaft bushing or bearing | 90099-10180 |
| 28100 | Starter assembly | 28100-11140 · 28100-16230 |
| 28110 | Starter drive end housing assembly | 28110-11010 · 28110-16071 |
| 28110A | Bearings (for starter housing) | 90099-10171 |
| 28113 | starter pinion drive rod | 28113-16070 |
| 28120 | Starter yoke assembly | 28120-70020 |
| 28130 | Starter commutator end frame assembly | 28130-11010 · 28130-16070 |
| 28130C | Starter flange bearing | 90099-10183 |
| 28140 | Starter brush holder assembly | 28140-70020 |
| 28142A | starter components | 28142-70020 |
| 28143 | starter brush spring | 28143-70020 |
| 28150 | Starter electromagnetic switch assembly | 28150-16160 |
| 28160 | Starter armature assembly | 28160-70021 |
| 28163 | Starter pinion snap nut or snap ring | 28163-70020 |
| 28176 | starter screw | 90099-00270 |
| 28177 | Plate (for starter armature) | 28177-70020 |
| 28199 | starter cover | 28199-46080 |
| 28255 | Planetary gear | 28255-70020 |
| 28256 | Starter internal gear | 28256-70020 |
