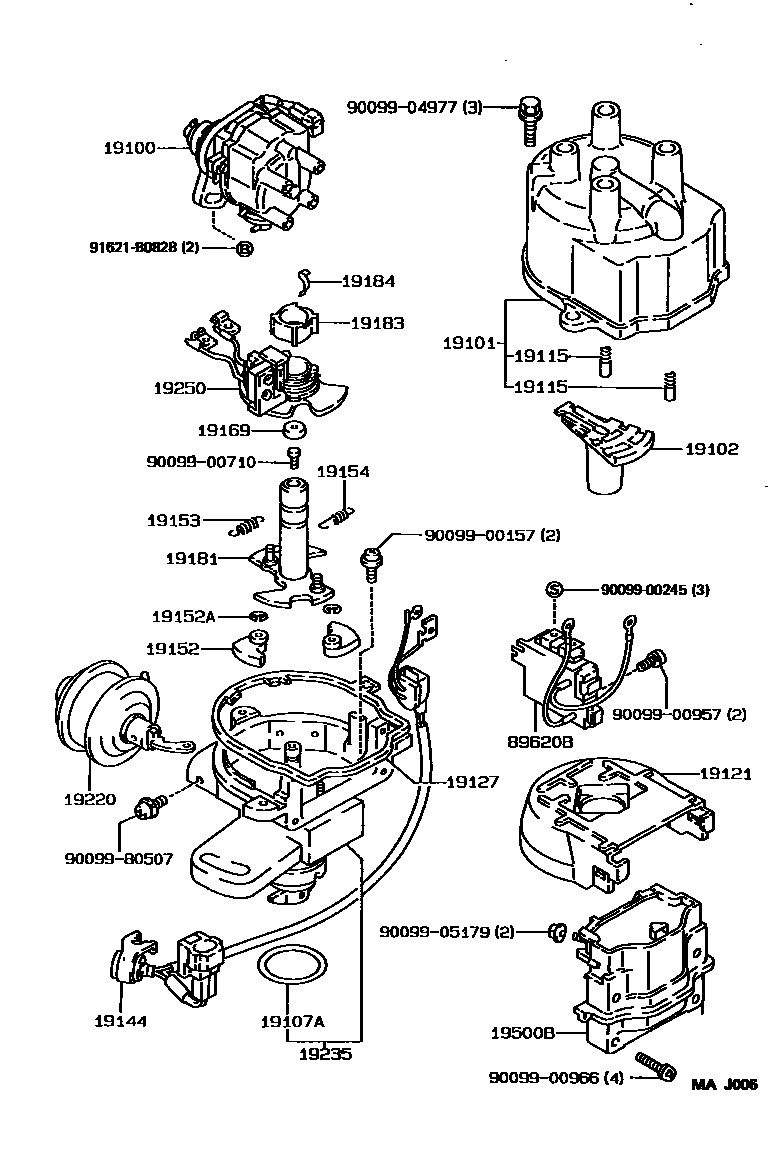

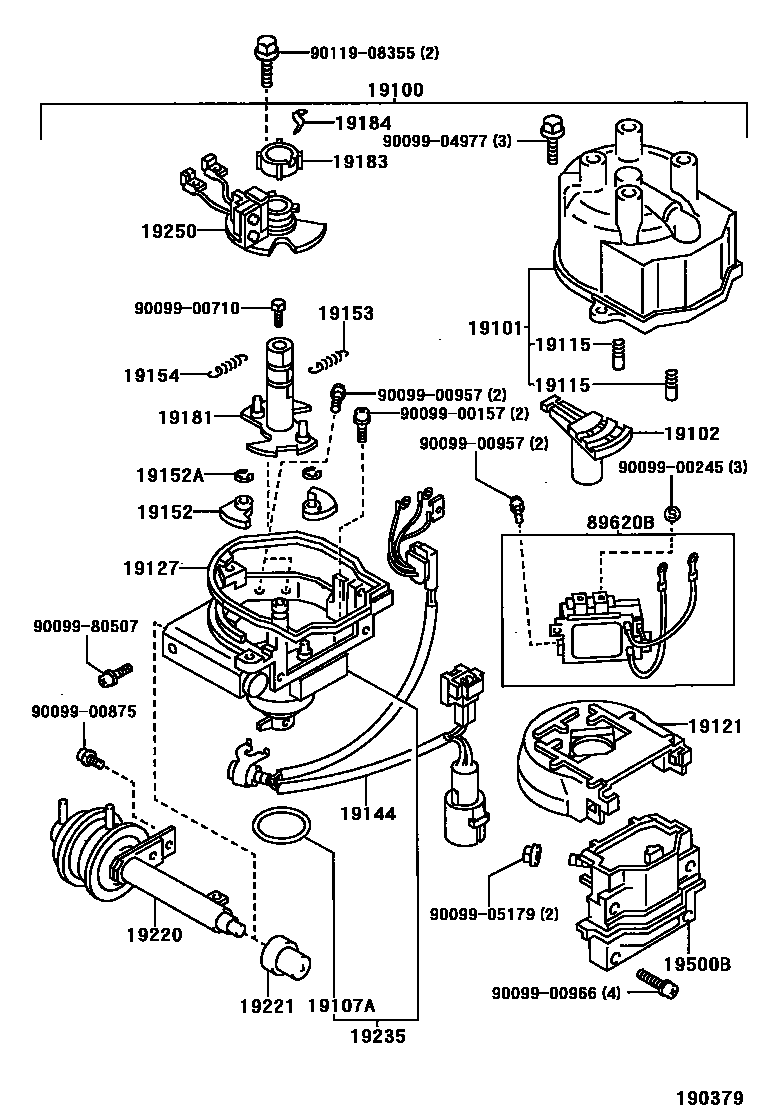

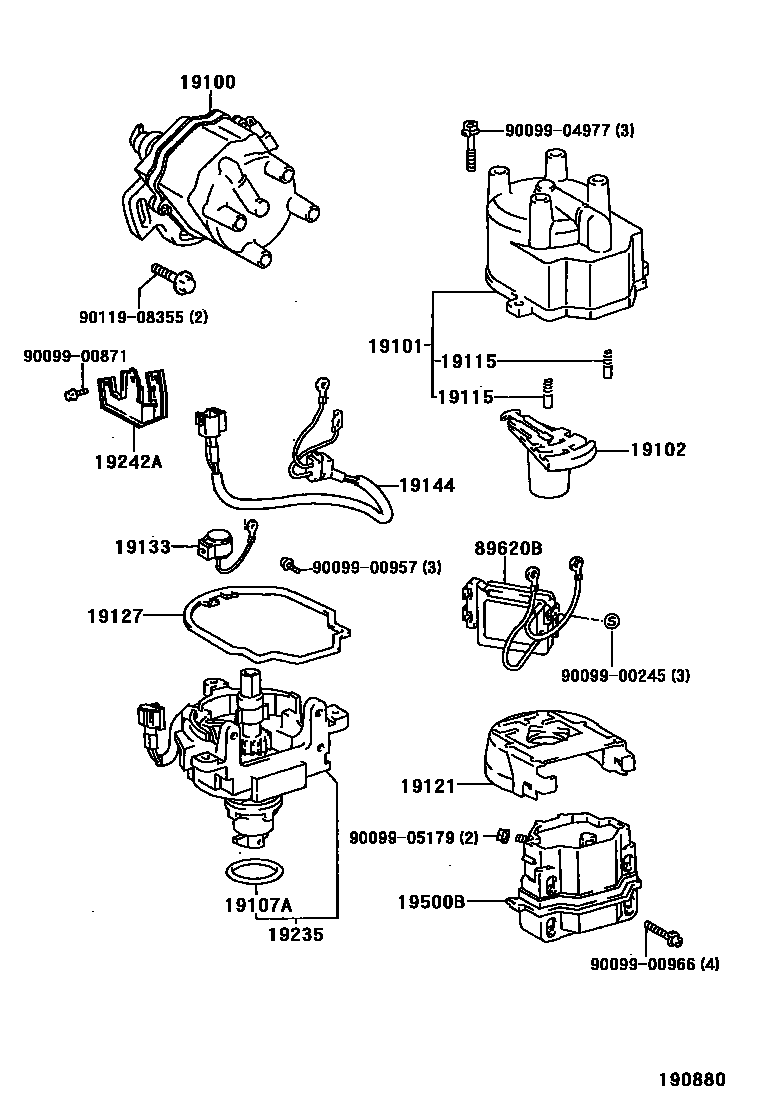

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19020-11320 · 19020-16111 · 19020-16260 |
| 19101 | Distributor cover sub-assembly | 19101-11060 · 19101-11300 · 19101-15120 |
| 19102 | Distributor flame head sub-assembly | 19102-11031 · 19102-11370 |
| 19107A | Distributor housing O-ring | 90099-14127 |
| 19115 | Distributor cover center piece | 19115-63010 |
| 19121 | dust cover | 19121-11080 |
| 19127 | Dust seal | 19127-15120 |
| 19133 | Distributor capacitor | 19133-16240 |
| 19144 | Distributor breaker lead | 19144-11120 · 19144-16020 · 19144-16040 |
| 19152 | Speed regulator weight | 19152-15160 |
| 19152A | Snap ring (for governor weight) | 90099-07122 |
| 19153 | A governor spring | 19153-11030 · 19153-16220 |
| 19154 | B governor spring | 19153-16220 · 19154-11030 |
| 19169 | Cam grease stop | 19169-63011 |
| 19181 | Distributor signal distributor | 19181-11066 · 19181-16110 |
| 19183 | Signal splitter | 19183-15010 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19220 | Distributor vacuum advance device assembly | 19220-11320 · 19220-16241 |
| 19221 | Distributor regulator cover | 19221-60040 |
| 19235 | Distributor housing | 19235-11080 · 19235-16110 · 19235-16270 |
| 19242A | Cable No. 2 | 19242-15180 |
| 19250 | Signal generator assembly | 19251-16100 |
| 19500B | Ignition coil assembly | 90919-02164 |
| 89620B | Ignition assembly | 89620-10120 · 89620-12340 · 89620-12440 · 89620-16260 |
