Toyota COROLLA 点火线圈和火花塞 /电热塞 — Figure 1901

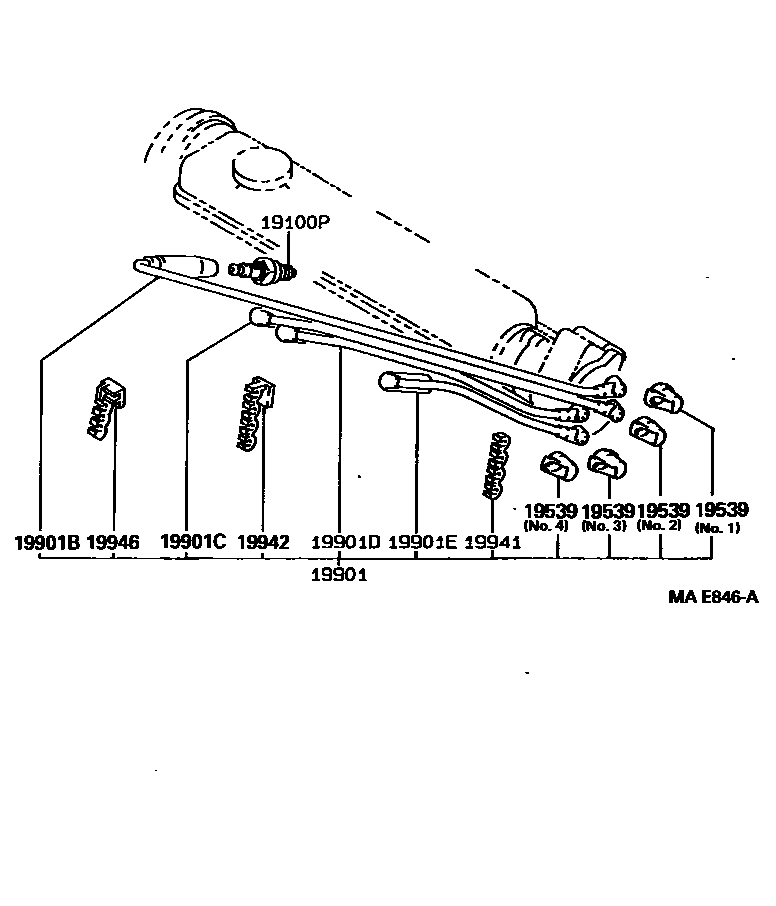

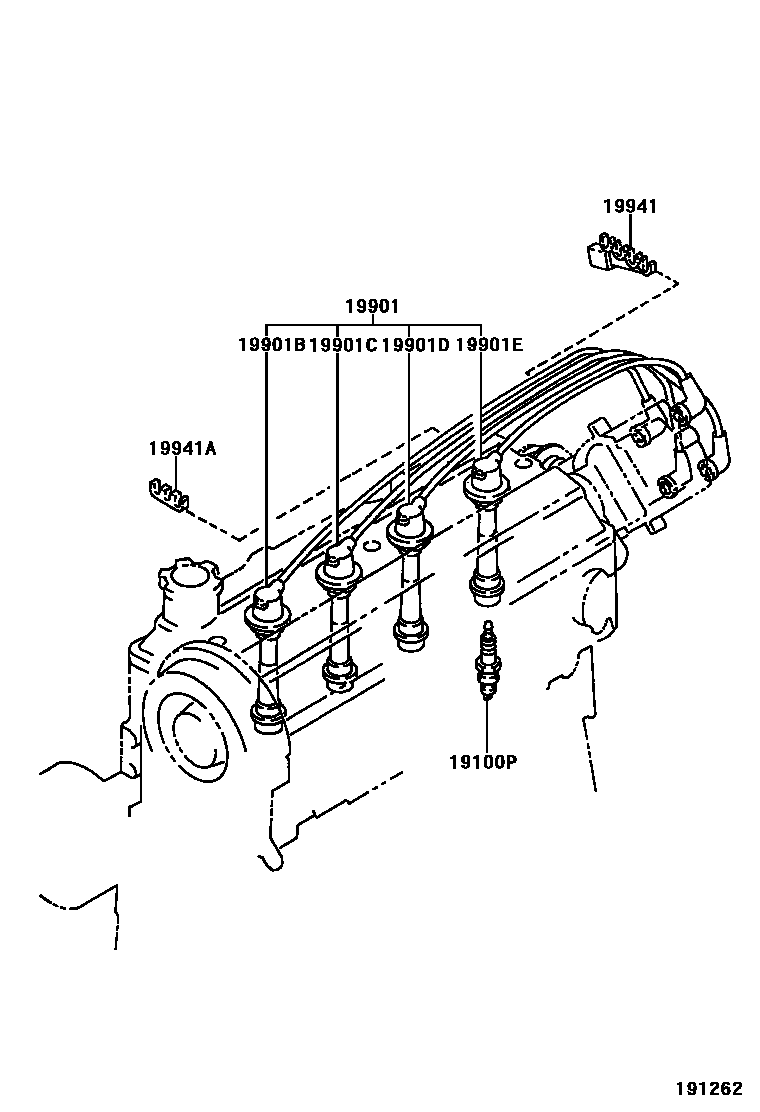

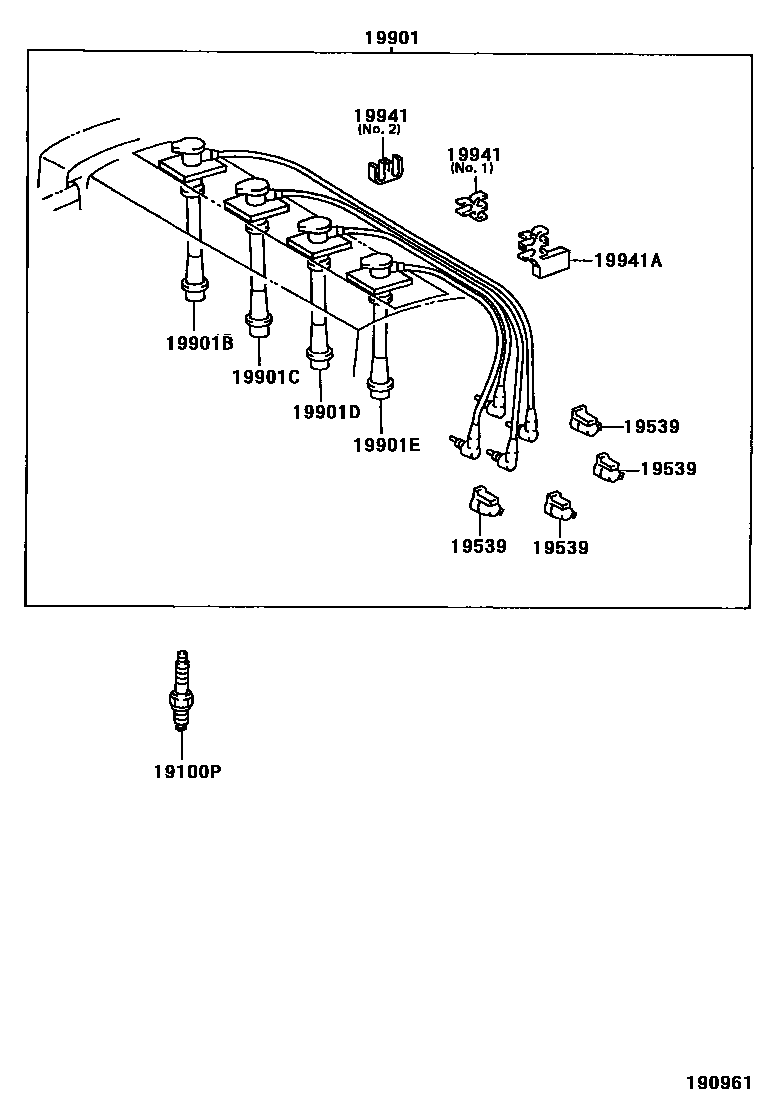

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01084 · 90919-01098 · 90919-01155 · 90919-01166 |
| 19539 | No. 4 damping wire fixing piece | 19532-50010 · 19539-11010 · 19539-46010 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-22211 · 90919-22327 · 90919-22329 |
| 19901B | No. 1 spark plug damper wire | 90919-12779 · 90919-15211 · 90919-15216 |
| 19901C | No. 2 spark plug damper wire | 90919-12780 · 90919-15210 · 90919-15217 |
| 19901D | No. 3 spark plug damper wire | 90919-12781 · 90919-15209 · 90919-15218 |
| 19901E | No. 4 spark plug damper wire | 90919-12782 · 90919-15208 · 90919-15219 |
| 19941 | No. 1 damping wire clip | 90464-00561 · 90464-00637 · 90464-00655 · 90929-01274 |
| 19941A | Clamp (for damping wire) | 90464-00287 · 90929-01273 |
| 19942 | No. 2 damping wire clip | 90464-00639 |
| 19946 | No. 3 impedance wire clip | 90464-00638 |
