Toyota COROLLA vacuum tube — Figure 1708

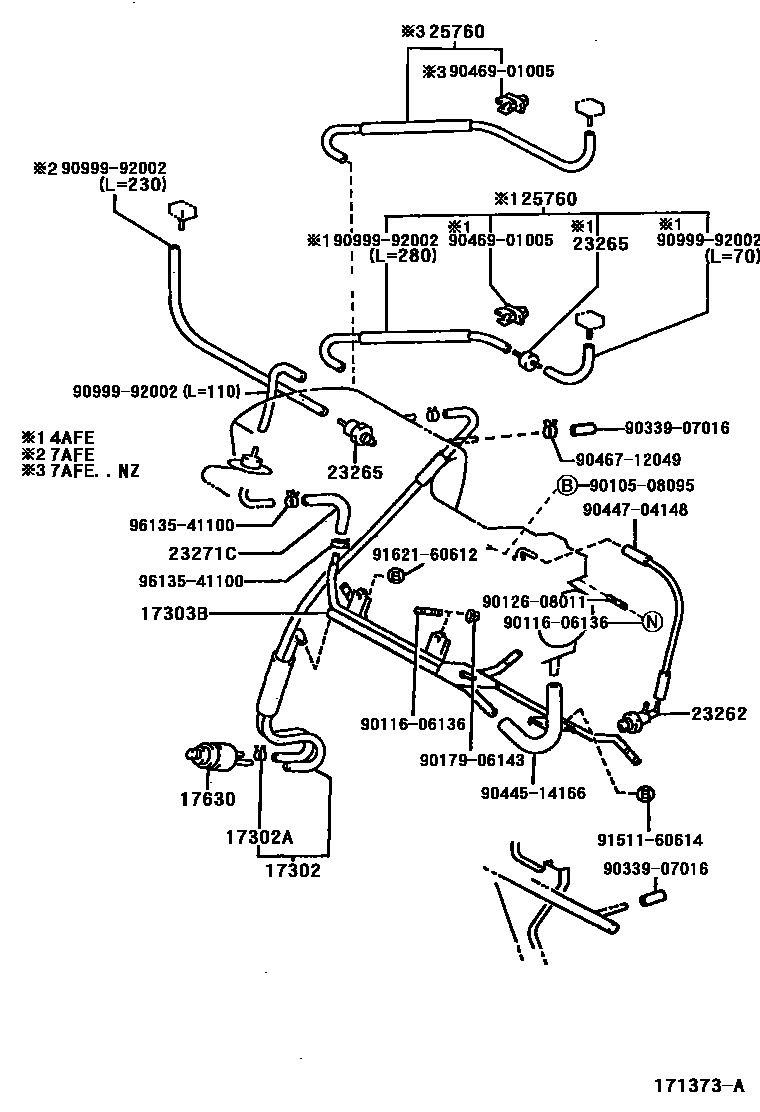

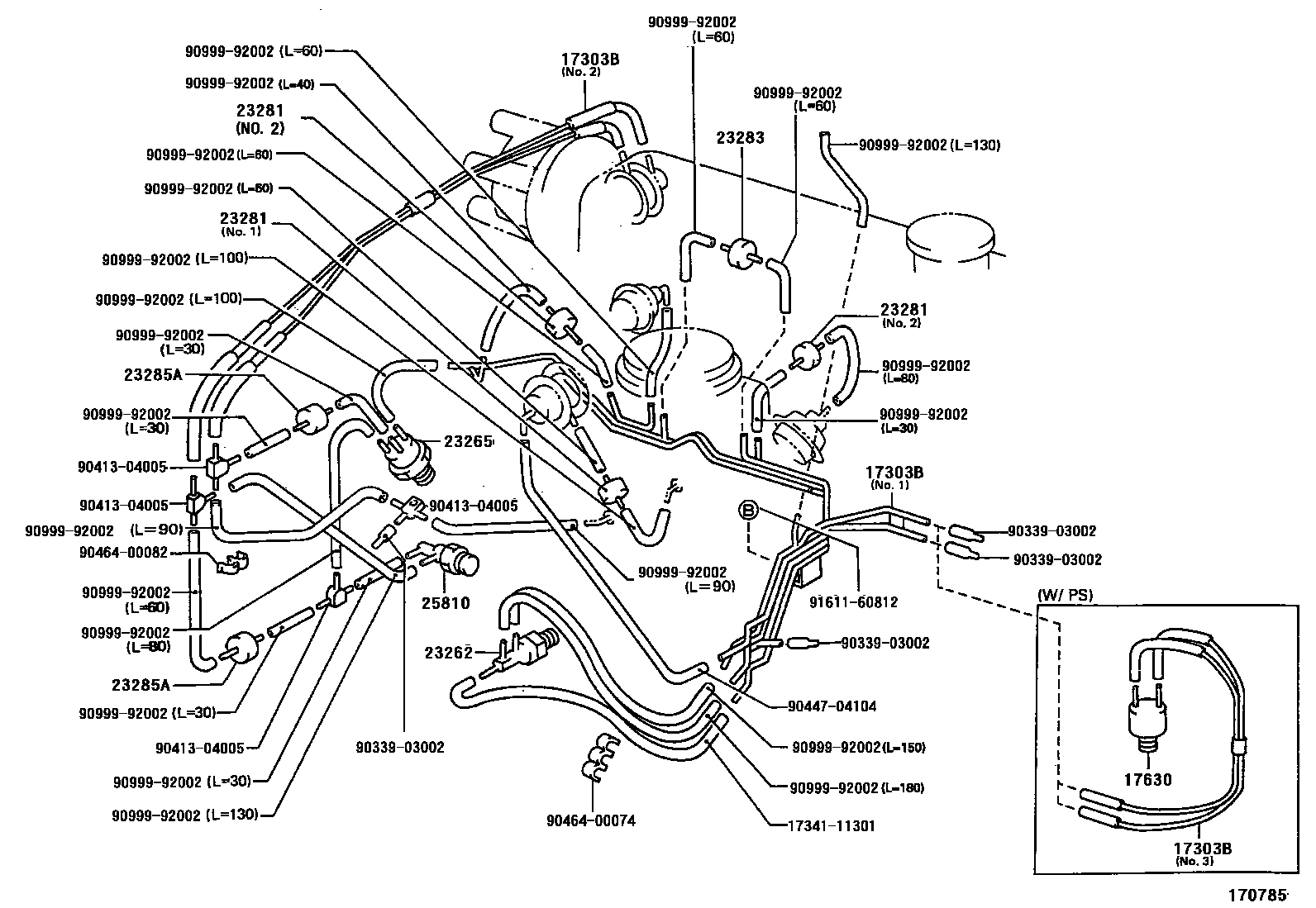

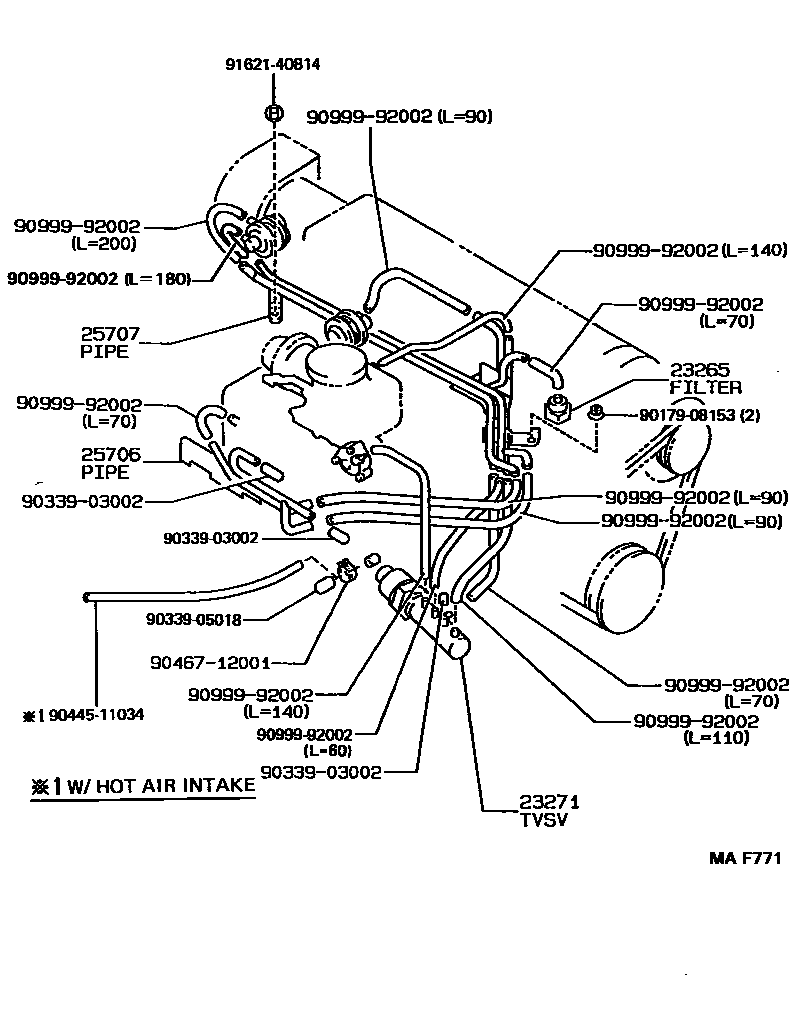

Toyota COROLLA EPC diagram 1708, vacuum tube, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-15010 |
| 17302A | Hose clip | 96132-51000 |
| 17303B | No. 1 air pipe sub-assembly | 17303-11460 · 17303-11550 · 17303-11690 · 17303-15060 · 17303-15090 |
| 17630 | Air control valve assembly | 17630-15030 · 17630-15080 |
| 23262 | No. 1 bimetallic vacuum switch valve | 25820-11040 · 90925-05068 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11027 · 90917-11030 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 |
| 23271C | fuel hose | 90910-05214 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01100 · 90925-01101 |
| 23283 | Vacuum Transfer Valve No. 3 | 90925-01091 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-16210 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-16061 |
| 25760 | Vacuum transfer hose assembly | 25760-15020 · 25760-16010 |
| 25810 | Bimetal valve assembly | 25810-11080 |
