Toyota COROLLA Exhaust Pipe — Figure 1702

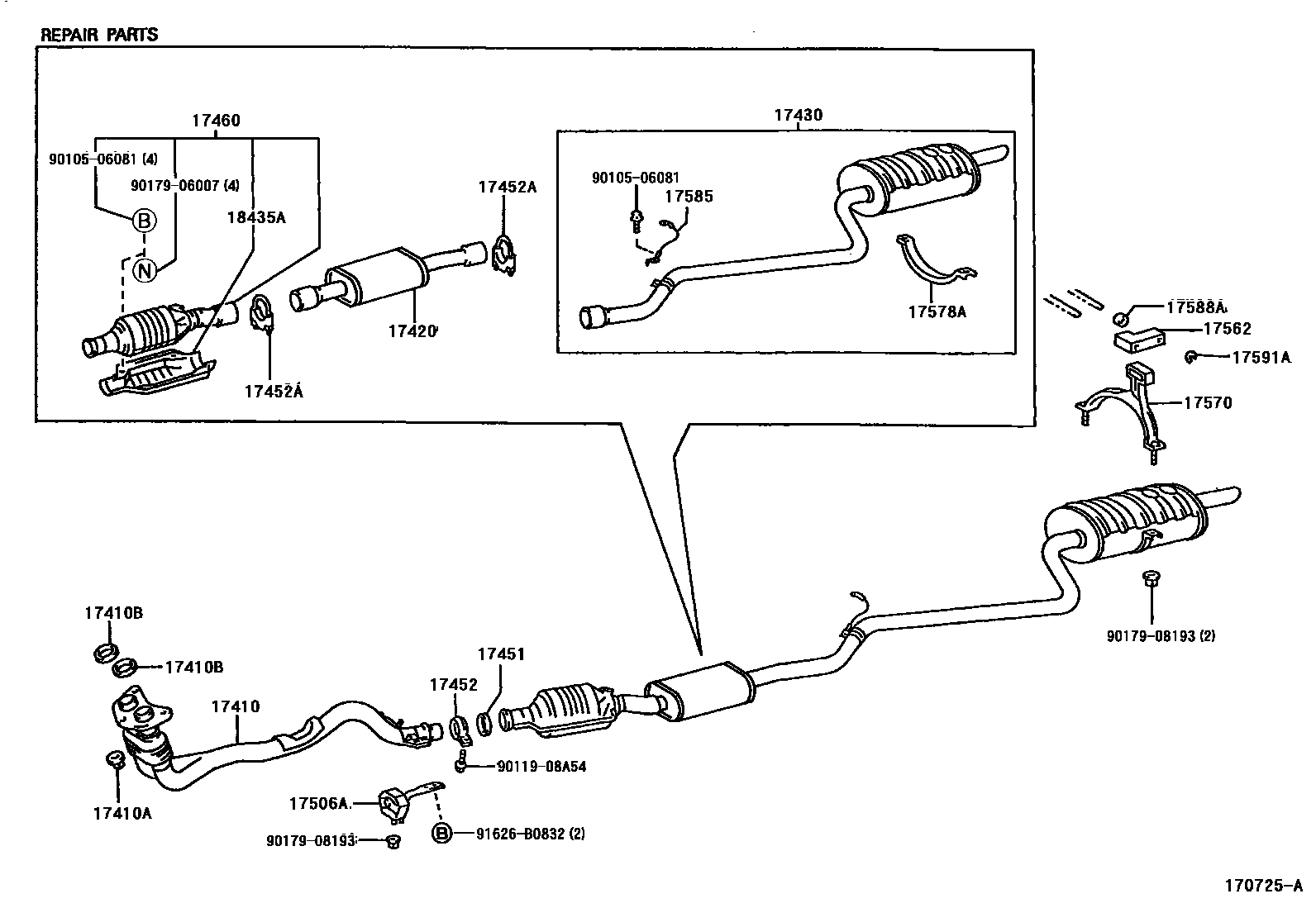

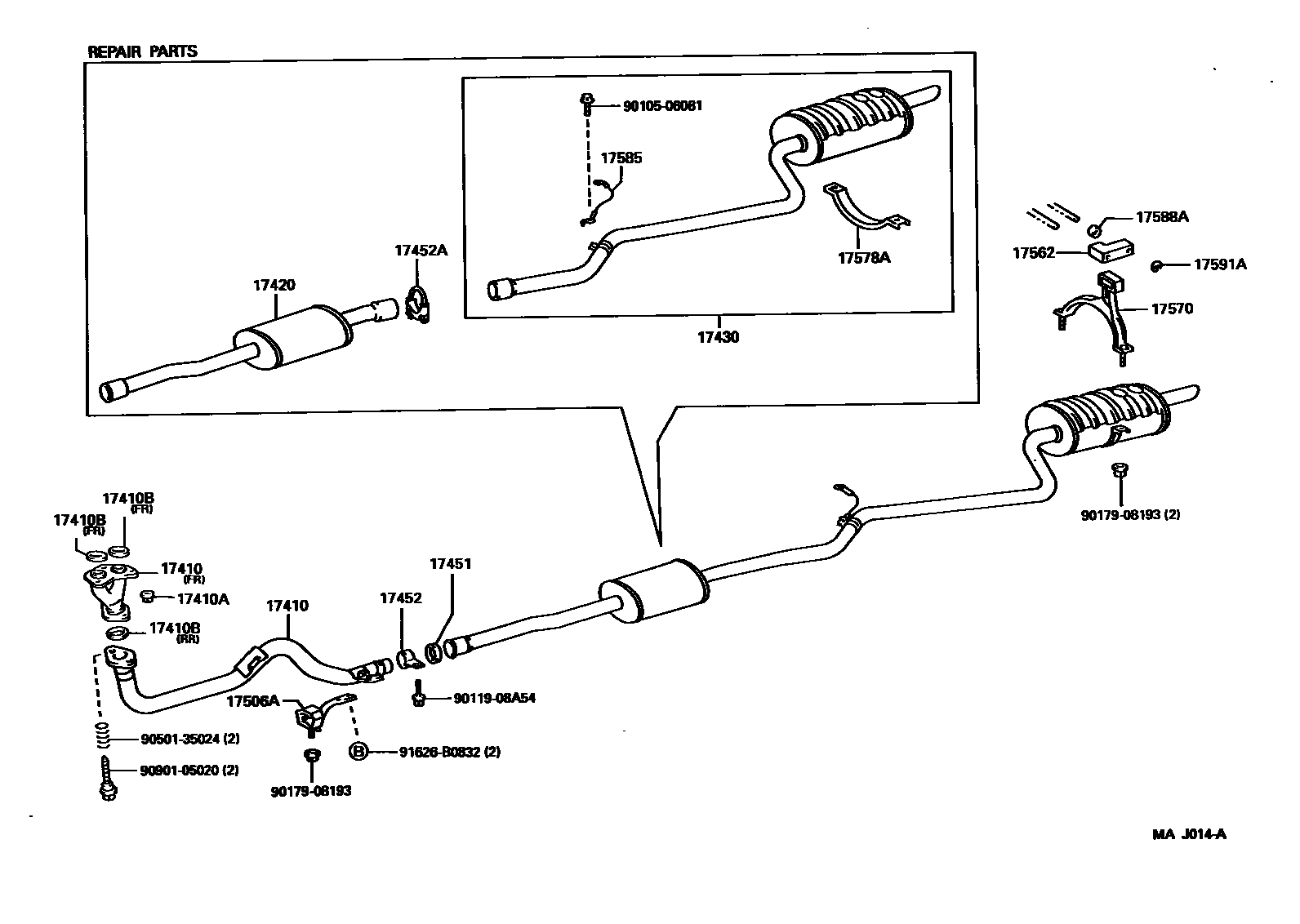

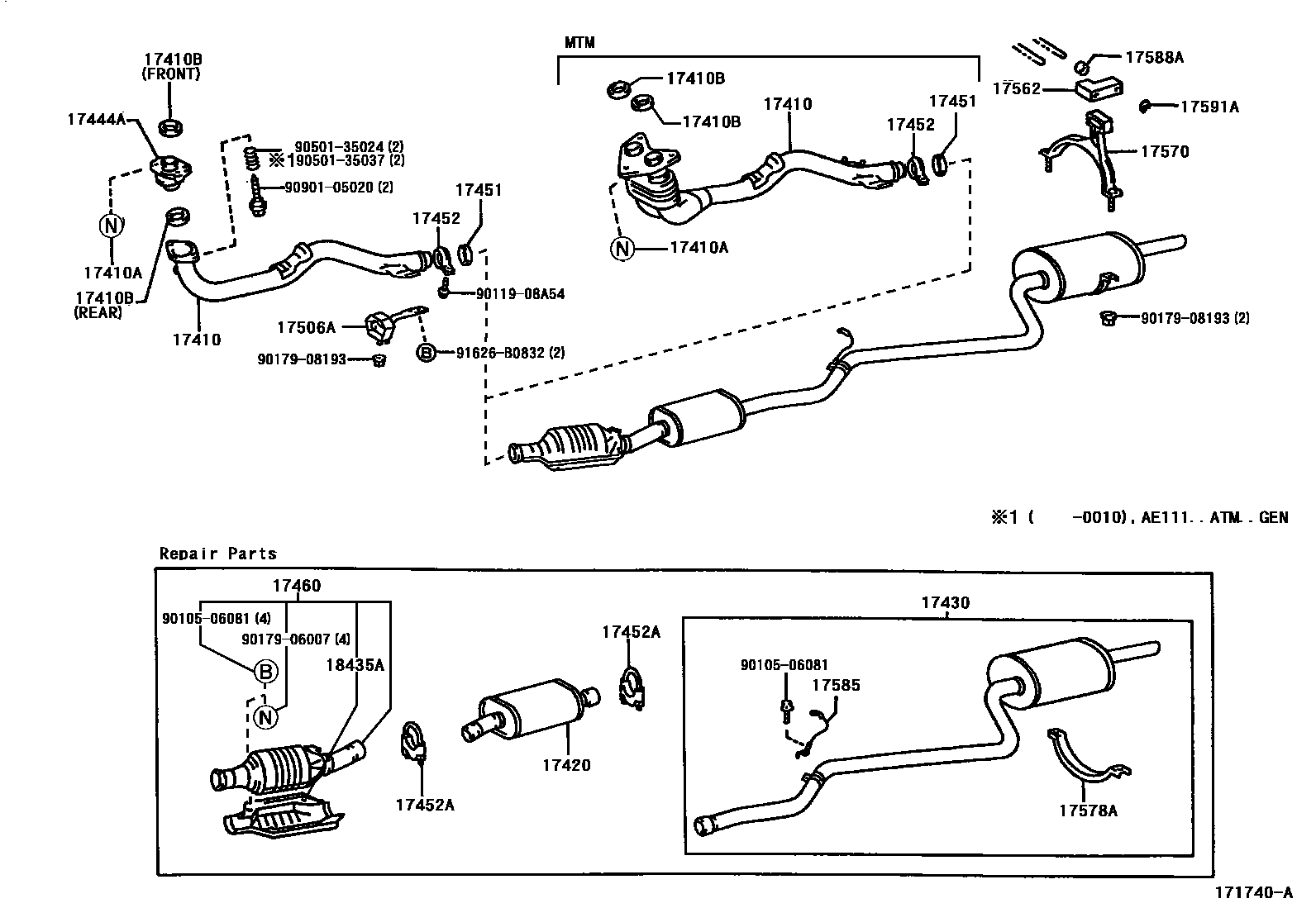

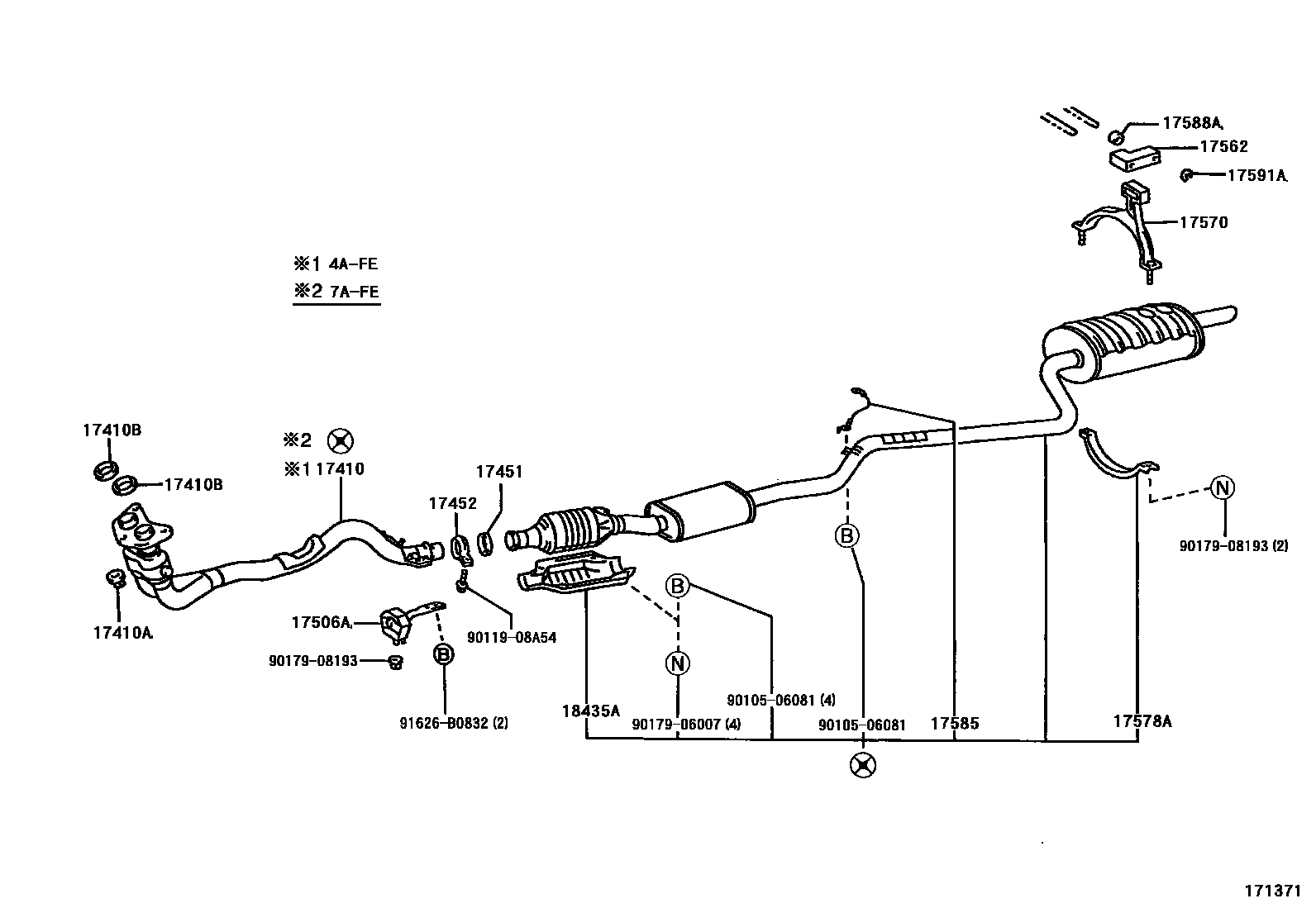

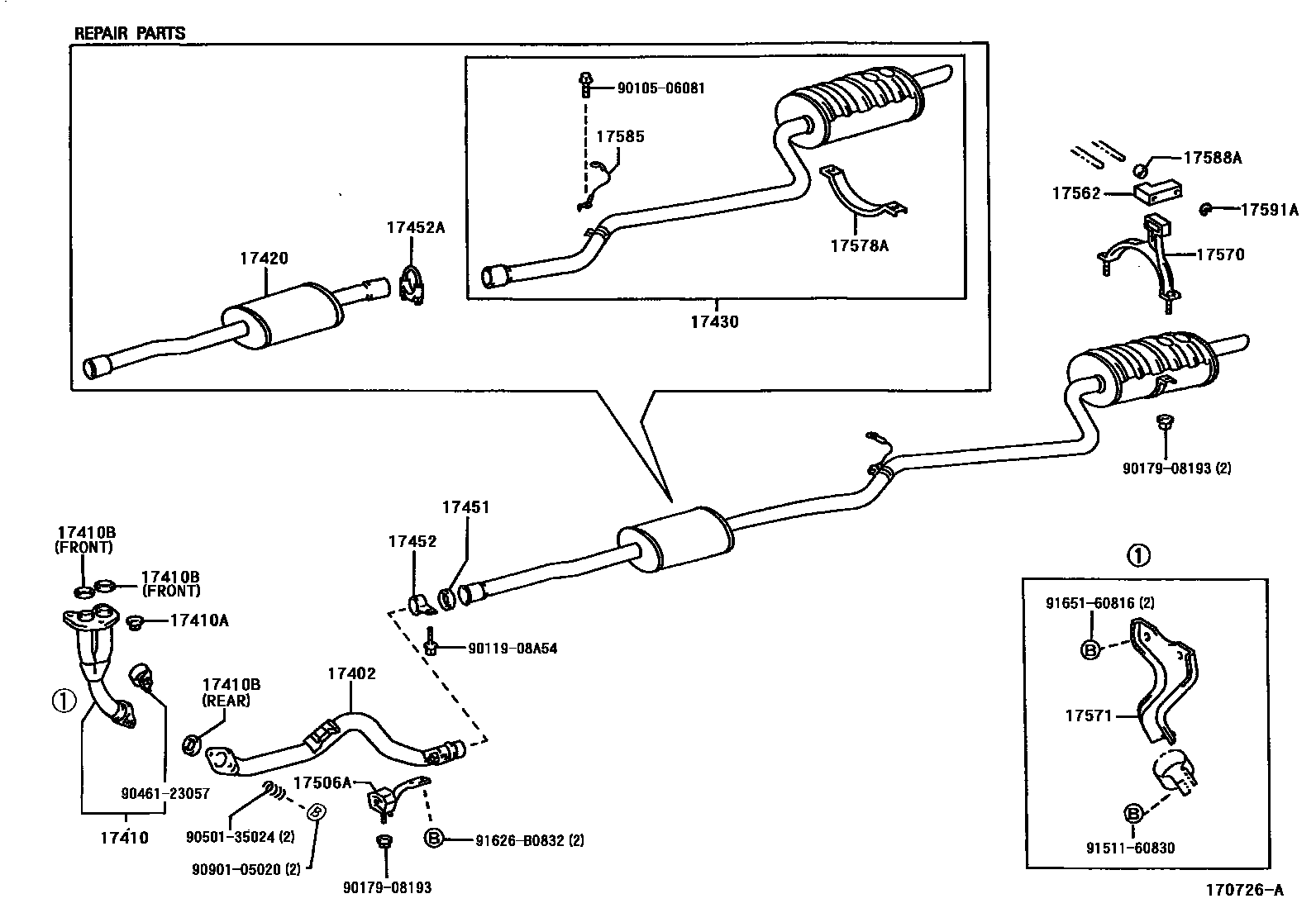

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17402 | No. 2 front exhaust pipe sub-assembly | 17402-11100 |
| 17410 | Front exhaust pipe assembly | 17401-11390 · 17401-11391 · 17410-1A330 · 17410-1A480 · 17410-1A490 · 17410-1A510 · 17410-1A550 · 17410-1A570 · 17410-1A630 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 17451-16030 · 17451-16040 · 90917-06061 · 90917-06064 · 90917-06065 · 90917-06069 · 90917-06080 |
| 17420 | Central exhaust pipe assembly | 17420-11340 · 17420-16720 · 17420-16730 |
| 17430 | Exhaust tailpipe assembly | 17430-11820 · 17430-11821 · 17430-1A600 · 17430-1A601 · 17430-1D010 |
| 17444A | front exhaust pipe spacer | 17444-16050 |
| 17451 | Exhaust pipe gasket | 90917-06082 · 90917-06084 |
| 17452 | Exhaust pipe clamp | 90461-15013 · 90461-15016 |
| 17452A | Exhaust pipe clamp | 17452-16120 · 17452-16160 |
| 17460 | Three-way catalytic converter assembly with tube | 17460-16170 · 17460-16180 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-11100 |
| 17562 | No. 2 exhaust pipe lifting lug | 17562-16240 |
| 17570 | Exhaust pipe bracket assembly | 17570-16020 |
| 17571 | No. 1 exhaust pipe bracket | 17571-11240 |
| 17578A | muffler clip | 17578-11030 · 17578-16040 |
| 17585 | Exhaust pipe hanger | 17585-16060 |
| 17588A | Exhaust pipe hanger spacer | 17588-16020 |
| 17591A | Exhaust pipe bracket block | 17591-16020 |
| 18435A | Integrated three-way catalytic converter protection device | 18435-16170 · 18435-16190 · 18435-20020 |
