Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 5 images and 18 PNC and OE references.

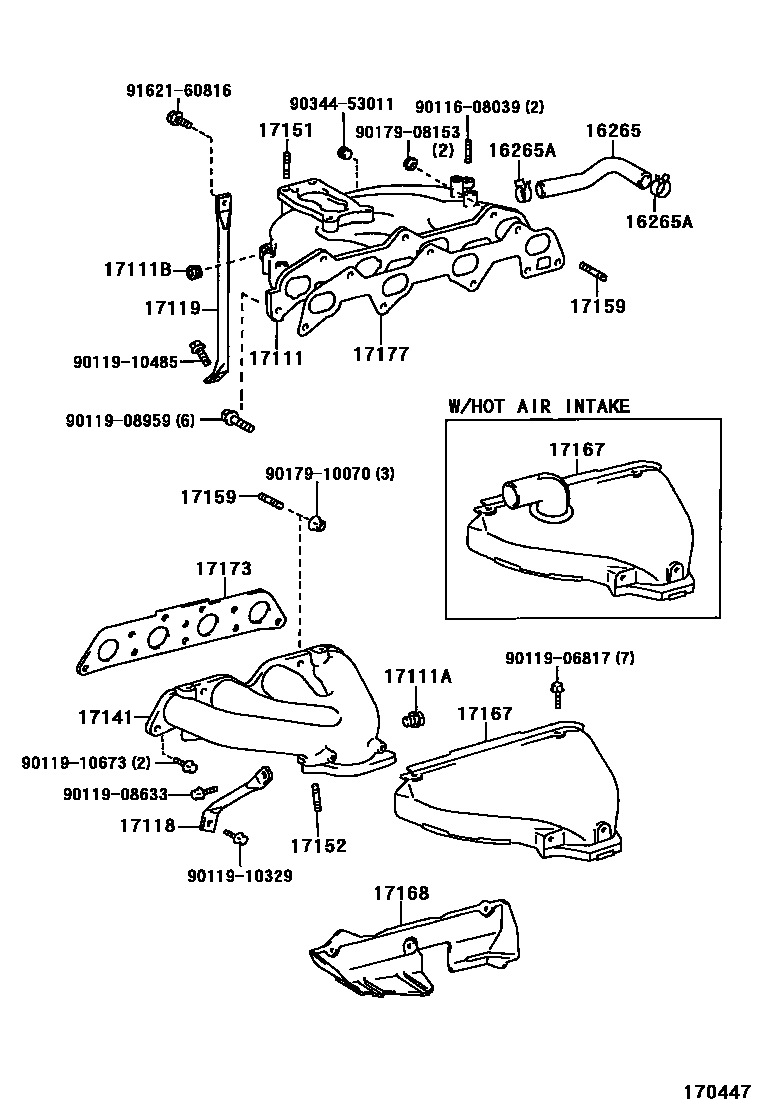

Toyota COROLLA Manifold EPC diagram — 170447
Manifold — 170447 (199704 – 199910)

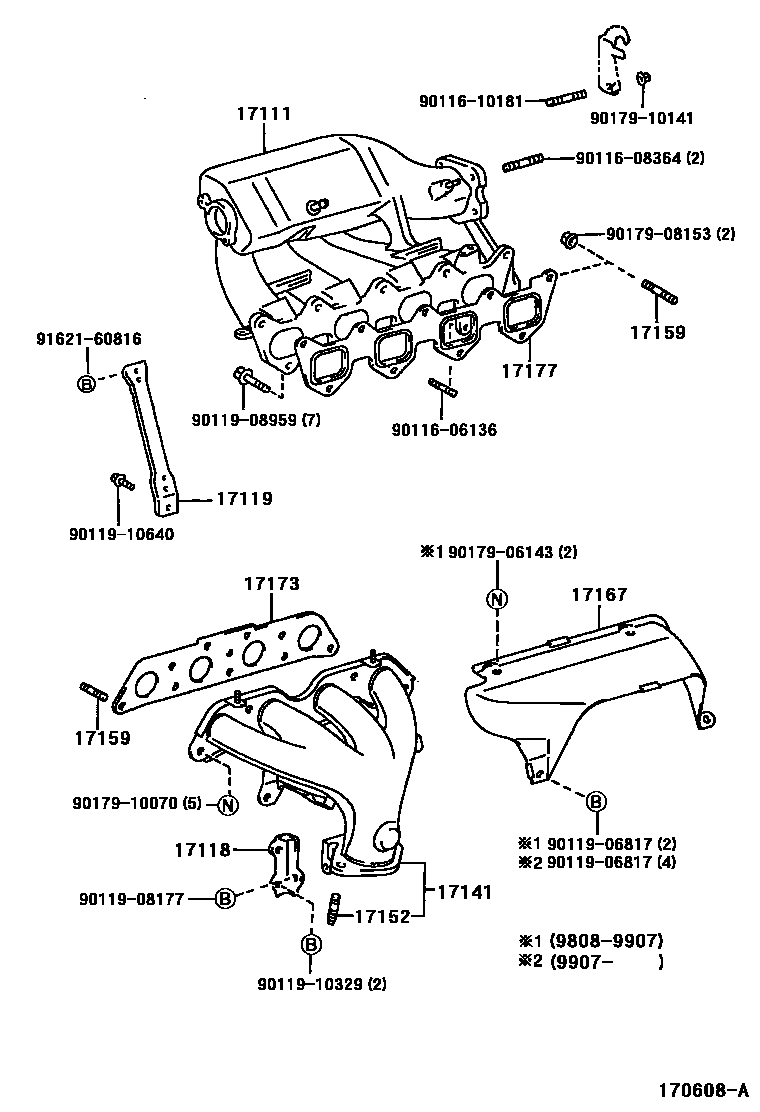

Toyota COROLLA Manifold EPC diagram — 170608A
Manifold — 170608A (199808 – 999999)

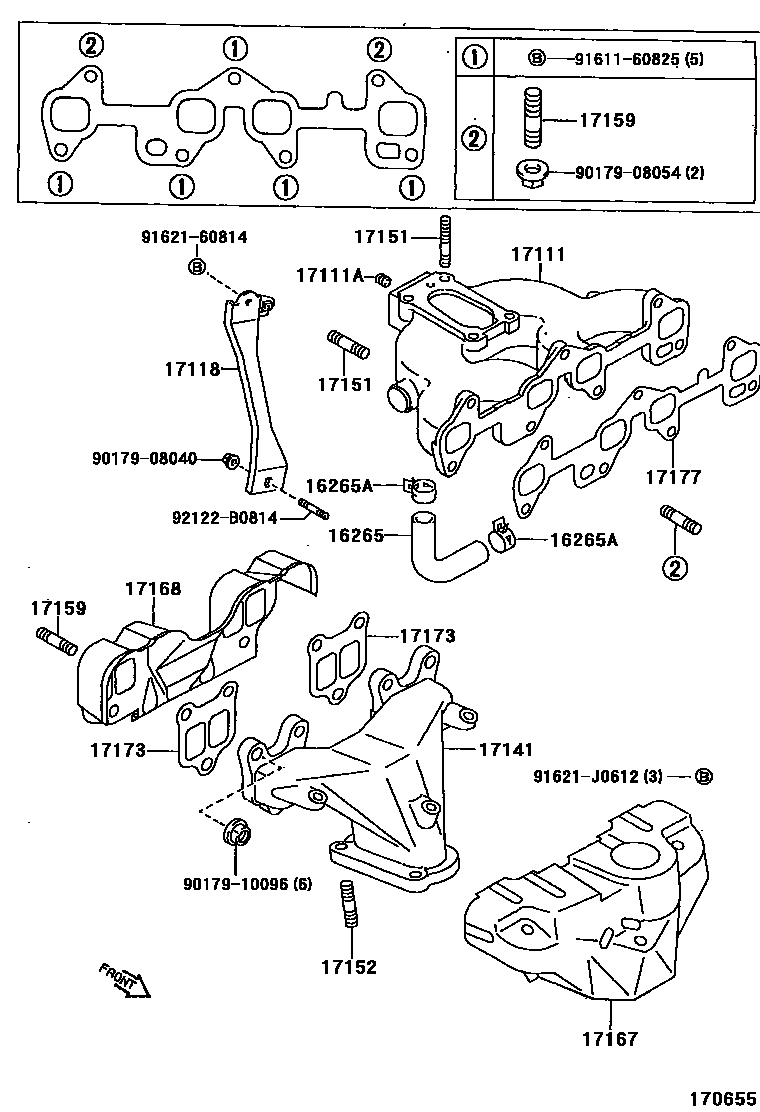

Toyota COROLLA Manifold EPC diagram — 170655
Manifold — 170655 (199704 – 999999)

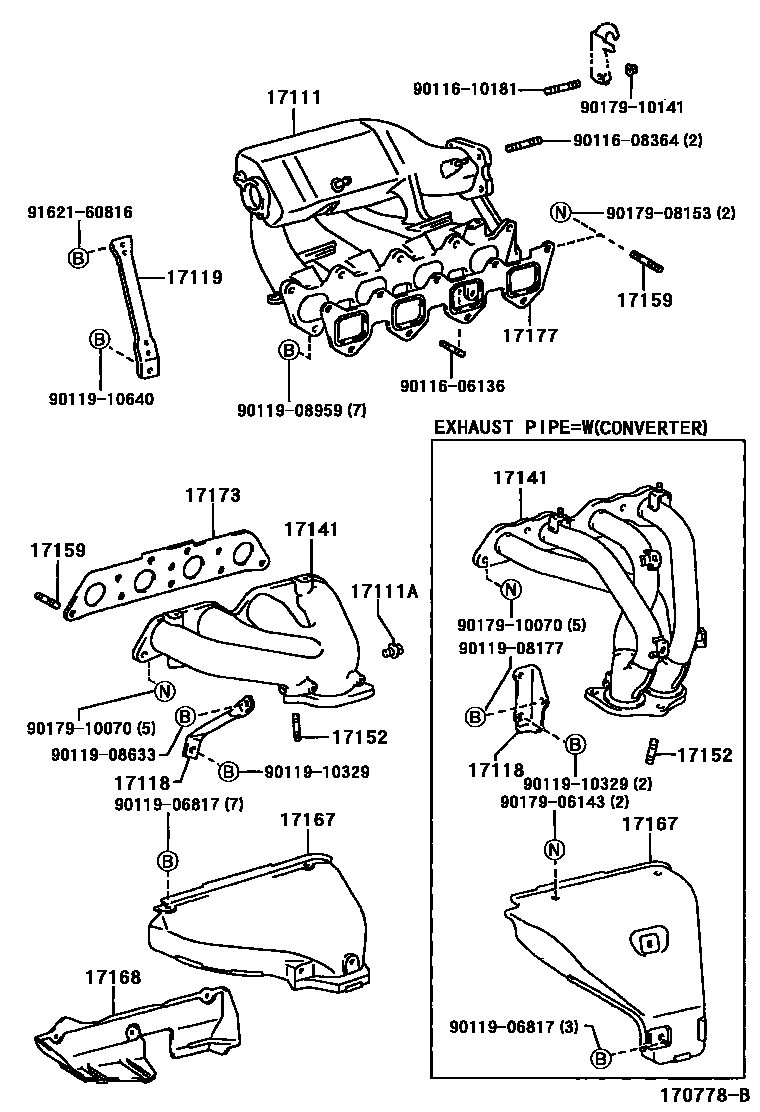

Toyota COROLLA Manifold EPC diagram — 170778B
Manifold — 170778B (199704 – 999999)

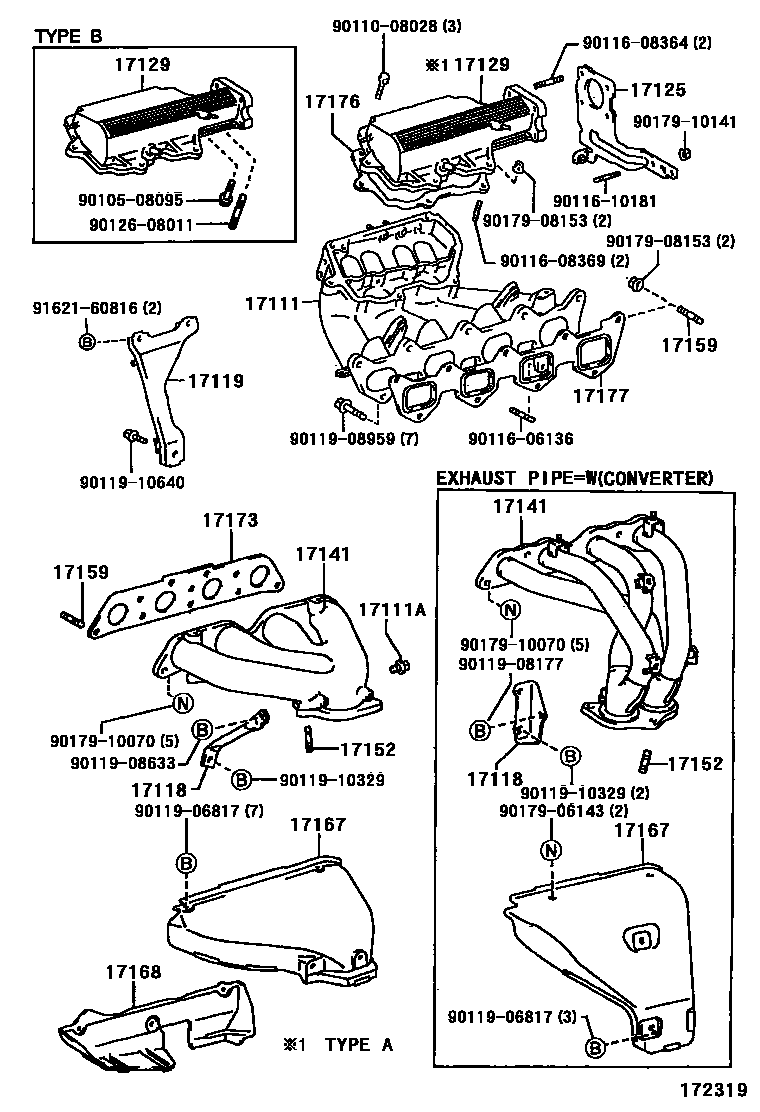

Toyota COROLLA Manifold EPC diagram — 172319
Manifold — 172319 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
16265Intake manifold water hose16265-11010 · 16265-15020
16265AHose clamp or clip (for intake manifold water hose)90467-21001 · 90467-21006
17111Intake Manifold17101-11210 · 17101-16080 · 17101-16190 · 17101-16280
17111ANo. 1 screw plug90341-18047 · 90344-53015
17111BNo. 2 screw plug90344-54003
17118Manifold stays17118-02080 · 17118-11130 · 17118-16050 · 17118-16100 · 17118-16140 · 17118-16150
17119No. 2 manifold stay17012-16020 · 17139-15020 · 17139-15050
17125No. 1 pressure tank stay17125-16080
17129Intake pressure tank17109-15010 · 17109-16030
17141exhaust manifold17141-11041 · 17141-16300 · 17141-16320 · 17141-16350 · 17141-16390
17151Studs (for manifold to carburetor)92112-60832 · 92122-40828
17152Studs (for manifold to exhaust)90116-10017 · 90116-10146
17159Studs (for manifold to cylinder head)90116-10131 · 92112-60825 · 92112-61028 · 92132-60825
17167Exhaust manifold No. 1 heat shield17107-11090 · 17107-16071 · 17167-02050 · 17167-11040 · 17167-16150 · 17167-16171
17168Exhaust manifold No.2 insulation pad17168-10011 · 17168-16100
17173Gasket (exhaust manifold to cylinder head)17173-10021 · 17173-15011 · 17173-15040
17176Gasket (intake surge tank to intake manifold)17176-15010
17177No. 1 gasket (intake manifold to cylinder head)17171-15030 · 17171-16031 · 17177-10020
