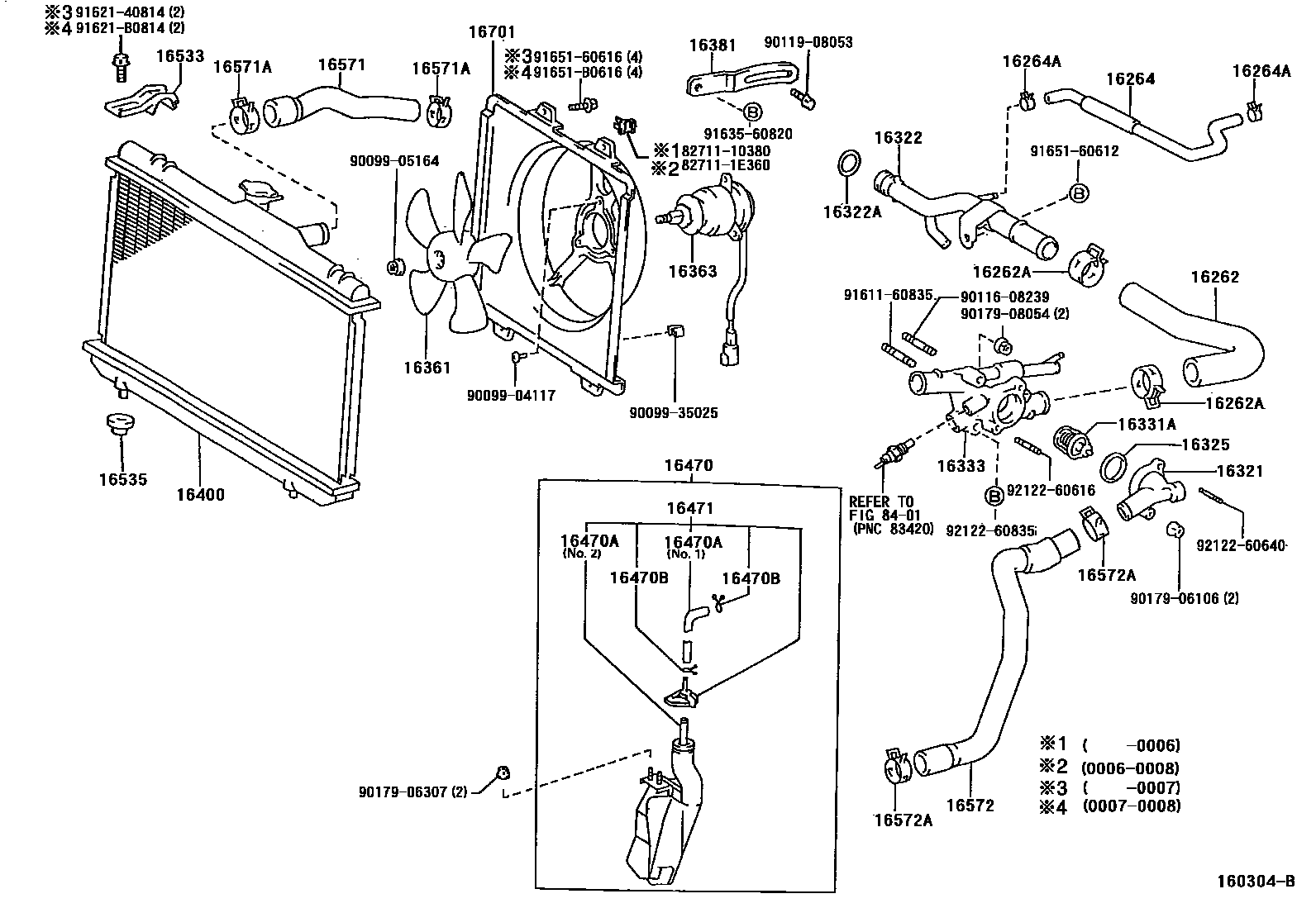

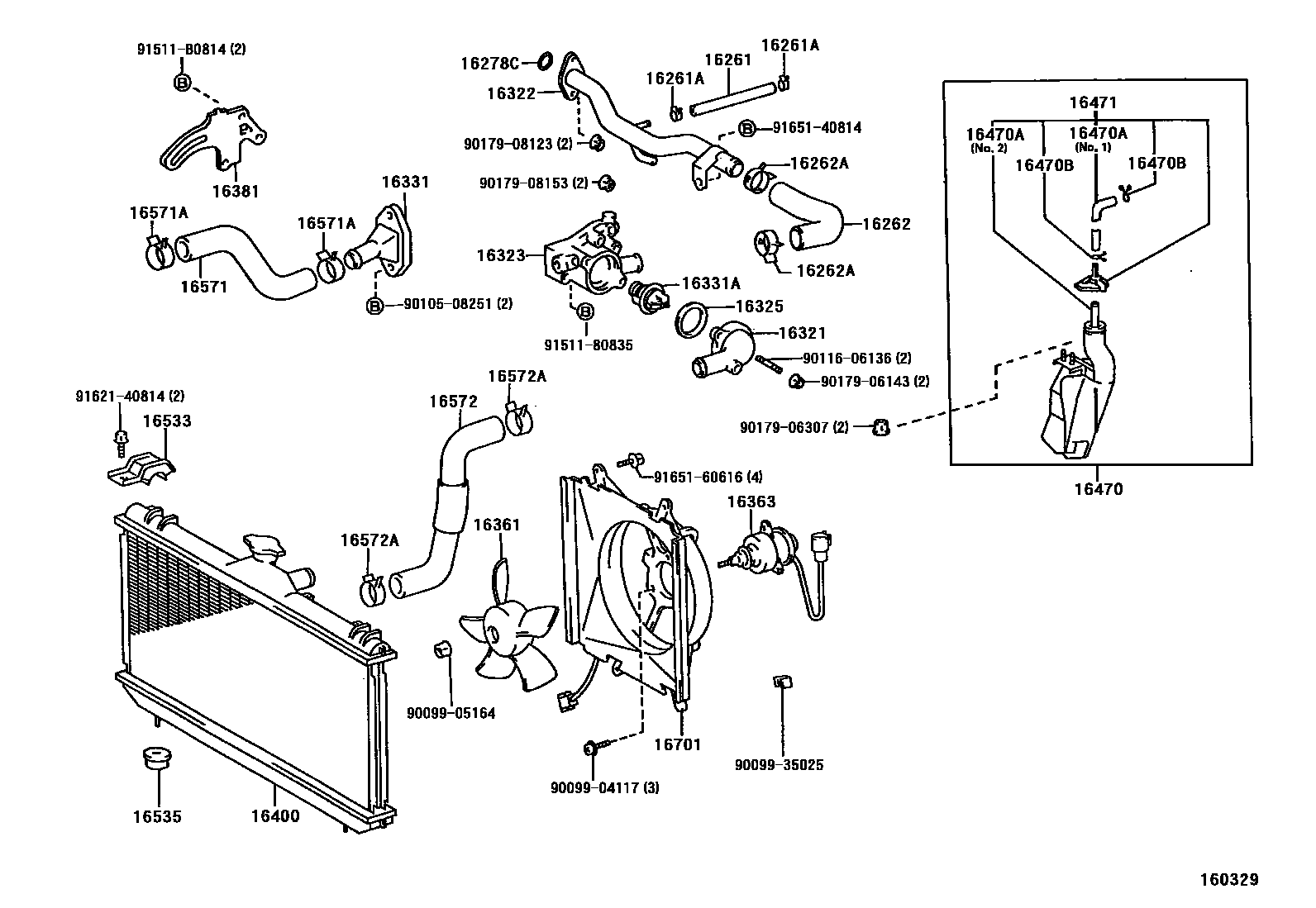

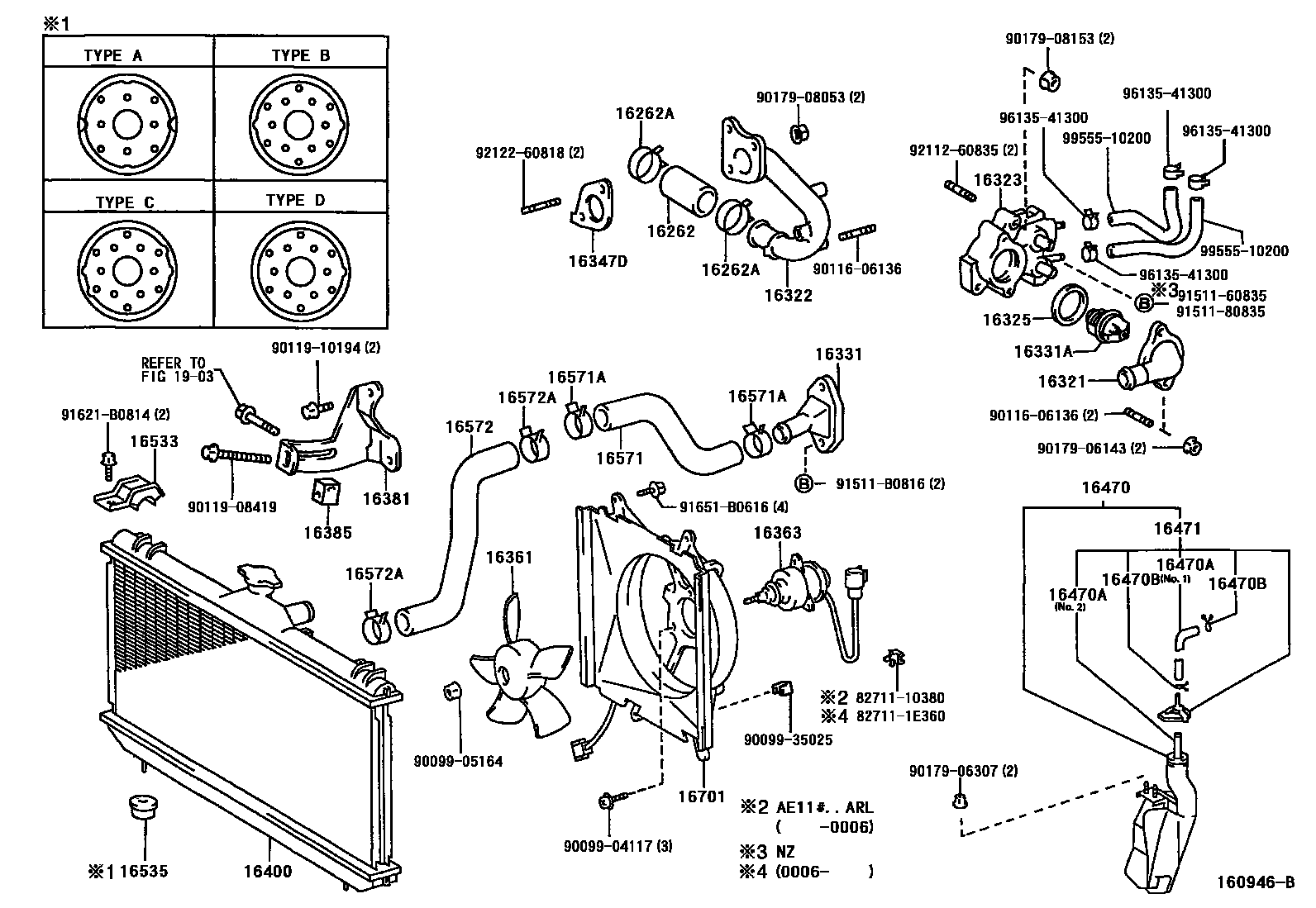

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96135-41300 |
| 16262 | water inlet hose | 16262-10011 · 16262-15030 · 16262-15040 · 16262-16030 |
| 16262A | Clamp (for water inlet hose) | 90467-34003 · 90467-36001 · 90467-37002 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16265-11040 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13001 |
| 16278C | O-ring (for No. 2 water bypass pipe) | 96761-24035 |
| 16321 | water inlet | 16321-11011 · 16321-15020 · 16321-15040 |
| 16322 | PIPE, WATER INLET | 16322-11081 · 16322-11091 · 16322-15041 · 16322-15050 · 16322-16060 |
| 16322A | O-RING, WATER INLET | 96761-35028 |
| 16323 | HOUSING, WATER INLET | 16323-15060 · 16323-15180 · 16323-16410 · 16323-16420 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63011 |
| 16331 | Water outlet | 16331-15080 |
| 16331A | thermostat | 90916-03046 · 90916-03109 · 90916-03115 |
| 16333 | Water outlet shell | 16333-10011 |
| 16347D | water bypass liner | 16347-15010 |
| 16361 | Fan | 16361-02050 · 16361-02110 · 16361-11020 · 16361-63020 |
| 16363 | cooling fan motor | 16363-02040 · 16363-74020 · 16363-74030 |
| 16381 | Fan belt adjustment lever | 16381-11021 · 16381-15060 · 16381-15080 |
| 16385 | Fan belt adjustment slider | 16385-15020 |

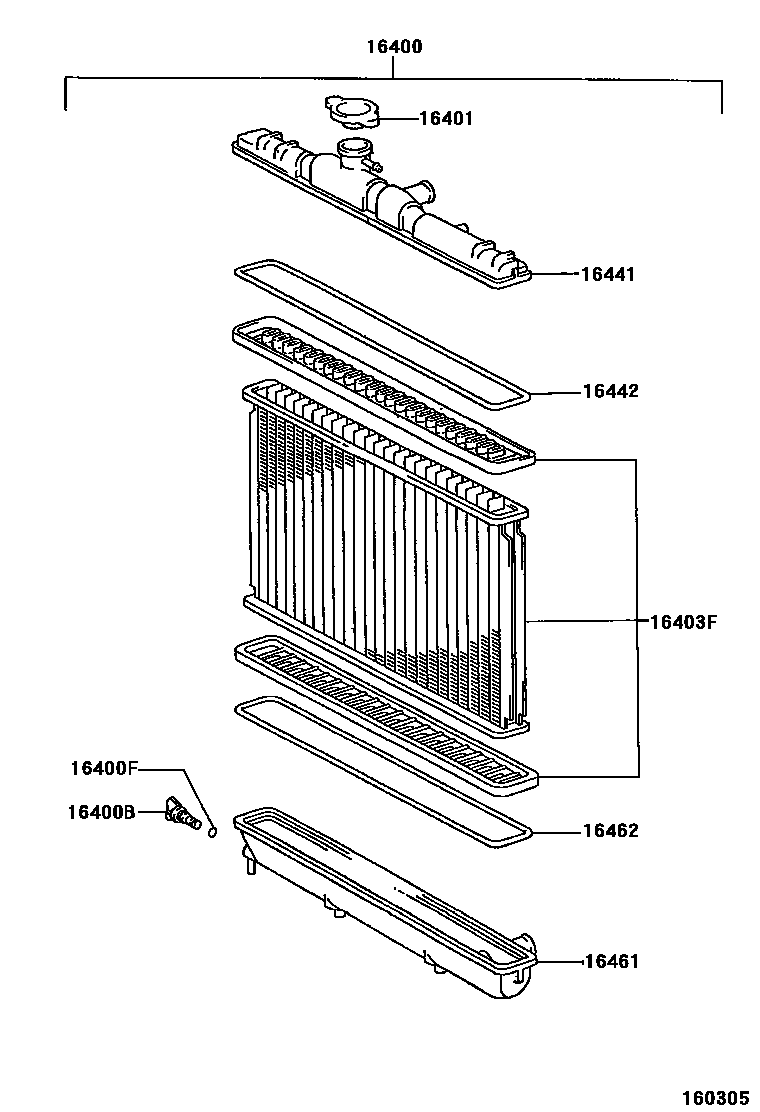

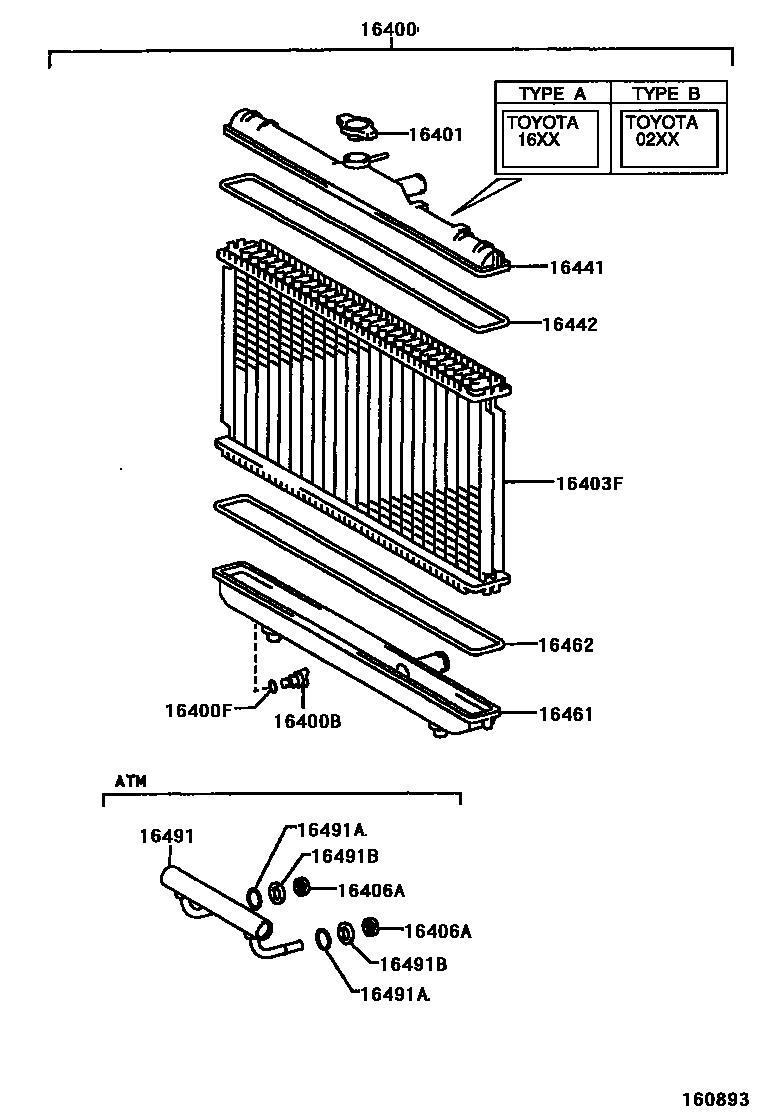

| 16400 | Radiator assembly | 16400-02370 · 16400-02380 · 16400-16660 · 16400-16680 · 16400-16690 · 16400-16720 |
| 16400B | Radiator drain switch screw plug | 23322-54010 · 90080-34010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 · 90080-30024 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-02370 · 16403-02380 · 16403-16670 · 16403-16690 · 16403-16720 |
| 16406A | Bracket (for transmission oil cooler) | 16406-74520 |
| 16441 | Radiator water tank | 16441-02370 · 16441-15500 · 16441-16440 |
| 16442 | O-ring (for radiator tank) | 16442-02370 · 16442-11380 · 16462-62050 |
| 16461 | Radiator lower tank | 16461-02370 · 16461-02380 · 16461-15480 · 16461-15500 · 16461-16440 |
| 16462 | O-ring (for radiator lower tank) | 16462-02370 · 16462-11420 · 16462-62050 |
| 16470 | Radiator reservoir assembly | 16470-15100 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16478-15090 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-15100 |
| 16491 | Oil cooler (for ATM) | 16491-11310 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-02030 · 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-74520 |
| 16533 | Radiator upper bracket | 16533-02020 · 16533-15120 |
| 16535 | Radiator lower support | 90916-04002 · 90916-04003 · 90916-04005 · 90916-04006 |
| 16571 | Radiator water inlet hose | 16571-02030 · 16571-02040 · 16571-02050 · 16571-02060 · 16571-11130 · 16571-15160 · 16571-16180 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-31003 · 90467-34003 |
| 16572 | Radiator outlet hose | 16572-02030 · 16572-02050 · 16572-11220 · 16572-15210 · 16572-16150 · 16572-16160 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-31003 · 90467-34003 |
| 16701 | Fan cover sub-assembly | 16711-02051 · 16711-02130 · 16711-02140 · 16711-15271 · 16711-15281 · 16711-16231 |
