Toyota COROLLA Engine Oil Cooler — Figure 1503

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 1 images and 10 PNC and OE references.

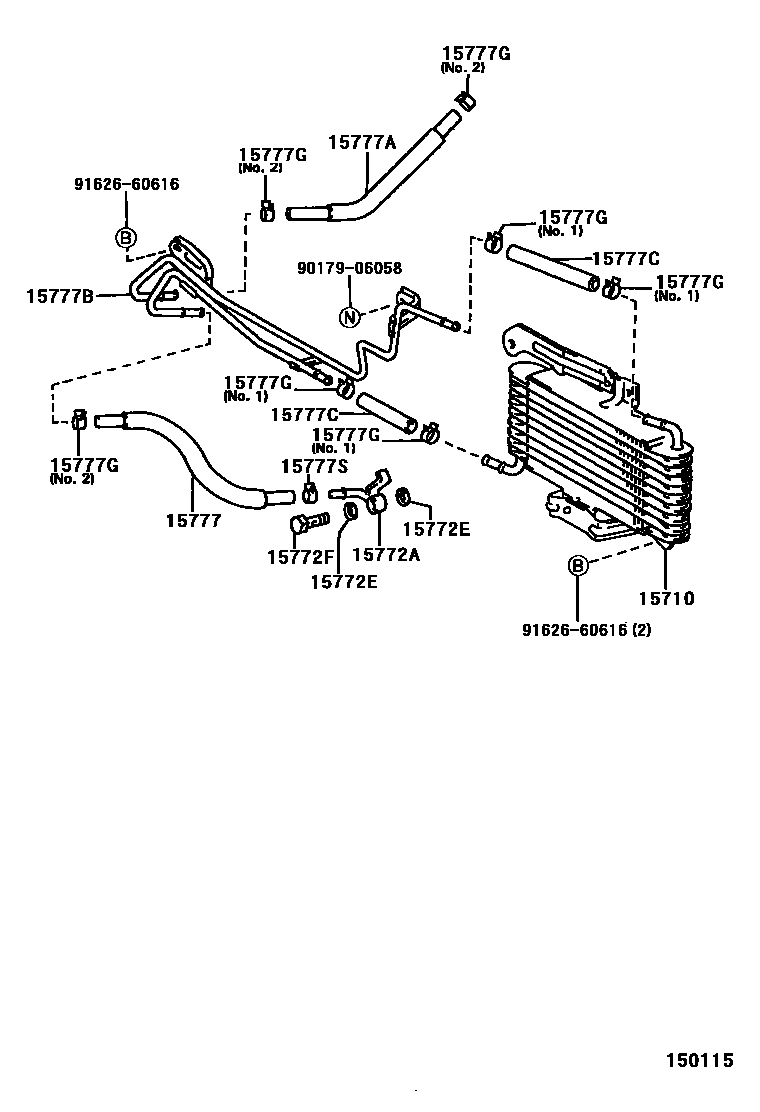

Toyota COROLLA Engine Oil Cooler EPC diagram — 150115
Engine Oil Cooler — 150115 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
15710Oil cooler assembly15700-16100
15772AConnector (for oil pipe)90405-10030 · 90405-10043
15772EGasket (for oil pipe)90430-12031
15772FJoint bolt (for oil pipe)90401-12009
15777oil cooler hose15777-16110
15777Aoil cooler hose15778-16080
15777Boil cooler pipe15767-16140
15777Coil cooler hose15779-16030
15777GHose clips or clips90467-15018 · 90467-15025
15777SHose clips or clips90467-15025
