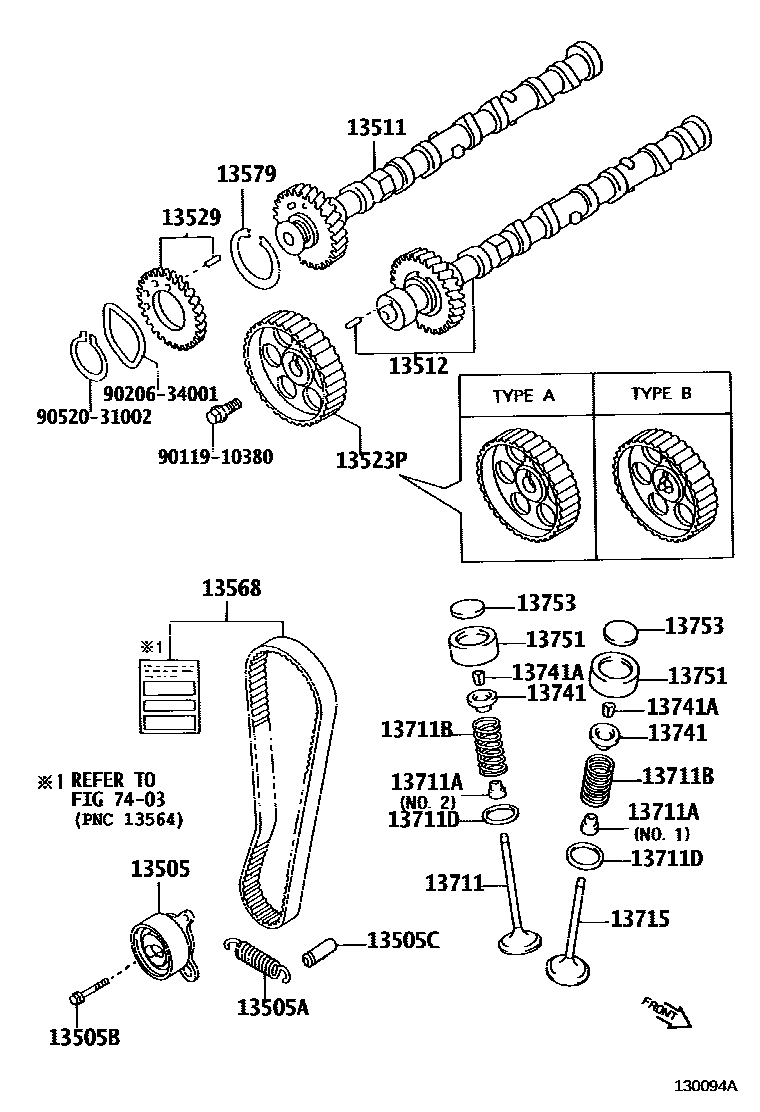

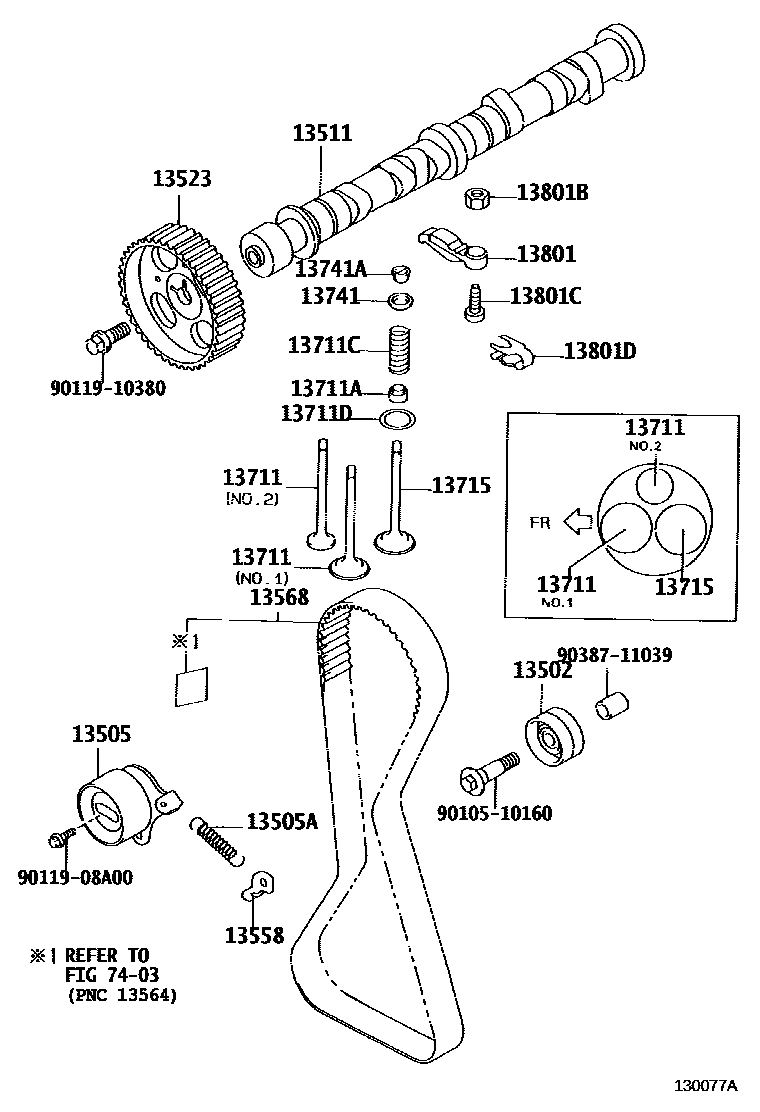

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-10011 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-11011 · 13505-15041 · 13505-15050 |
| 13505A | Tension spring (for idler pulley) | 90506-13004 · 90506-16050 · 90506-16065 · 90507-18017 |
| 13505B | Flange bolts (for idler gear) | 90105-10334 |
| 13505C | Pin (for idler tension spring) | 90249-06006 |
| 13511 | camshaft | 13501-11010 · 13501-15030 · 13501-15050 |
| 13512 | Camshaft No. 2 | 13502-15020 · 13502-15040 |
| 13523 | Camshaft timing gear or sprocket | 13523-10040 |
| 13523P | Camshaft timing pulley | 13523-14010 · 13523-15020 · 13523-15030 · 13523-16070 |
| 13529 | Camshaft counter gear | 13529-15900 |
| 13558 | Spring bracket (for idler pulley) | 13558-11010 |
| 13568 | timing belt | 13568-19025 · 13568-19046 · 13568-19056 · 13568-19135 |
| 13579 | Camshaft timing gear bolt washer | 13579-15010 |
| 13711 | intake valve | 13711-10020 · 13711-15071 · 13711-15090 · 13711-16060 · 13712-10010 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02081 · 90913-02088 · 90913-02089 · 90913-02090 |
| 13711B | Compression spring (for inner side) | 90501-31005 · 90501-32029 |
| 13711C | Compression spring (for outside) | 90501-35011 |
| 13711D | Flat washer (for valve spring seat) | 90201-16020 · 90201-16031 · 90201-19008 |
| 13715 | exhaust valve | 13715-10030 · 13715-15050 · 13715-16060 |
| 13741 | Valve spring seat ring | 13741-10020 · 13741-15020 · 13741-16010 |
| 13741A | Valve spring seat lock plate | 90913-03021 |
| 13751 | valve lifter | 13751-16010 · 13751-74020 |
| 13753 | valve adjustment gasket | 13753-16020 · 13753-16040 · 13753-16060 · 13753-16080 · 13753-16100 · 13753-16120 · 13753-16140 · 13753-16160 · 13753-16180 · 13753-16200 · 13753-16220 · 13753-16240 · 13753-16260 · 13753-16280 · 13753-16300 · 13753-16320 · 13753-16340 · 13753-74010 · 13753-74030 · 13753-74050 · 13753-74070 · 13753-74090 · 13753-74110 · 13753-74130 · 13753-74150 · 13753-74170 · 13753-74190 · 13753-74210 · 13753-74230 · 13753-74250 · 13753-74270 · 13753-74290 · 13753-74310 · 13753-74330 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13811-10021 |
| 13801B | Hex nut (for valve adjustment) | 90170-07004 |
| 13801C | valve adjustment screw | 13788-10013 |
| 13801D | Compression spring (for rocker arm) | 13935-10010 |
