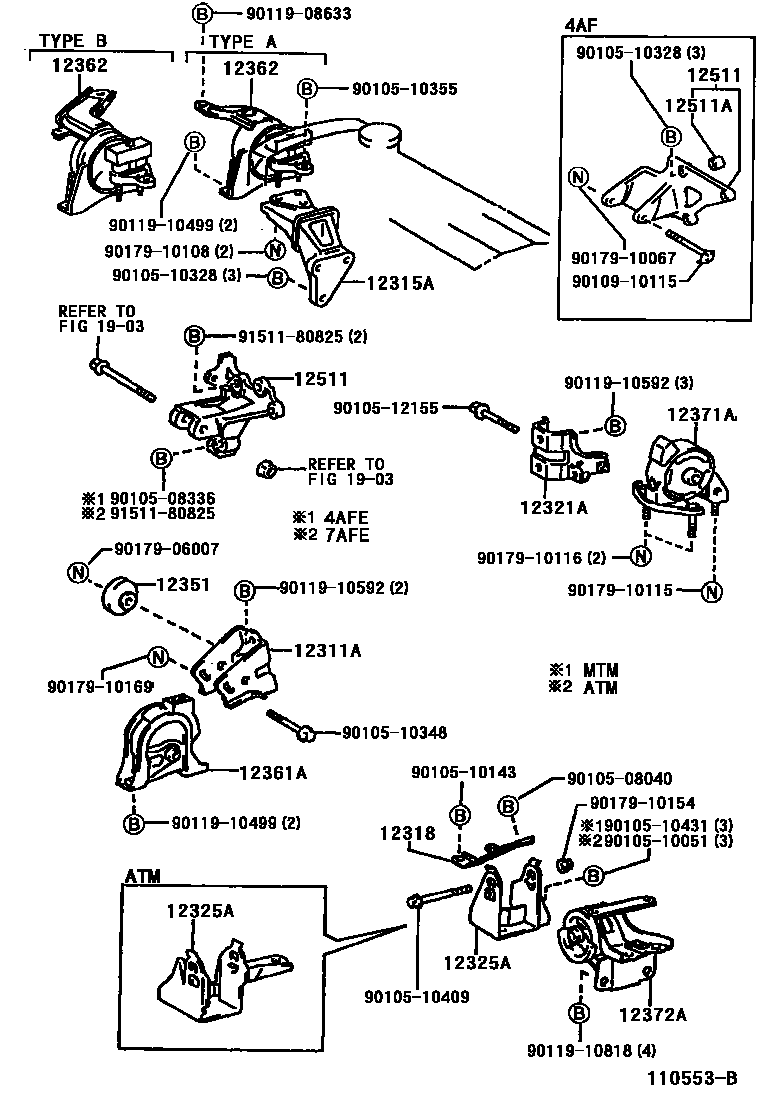

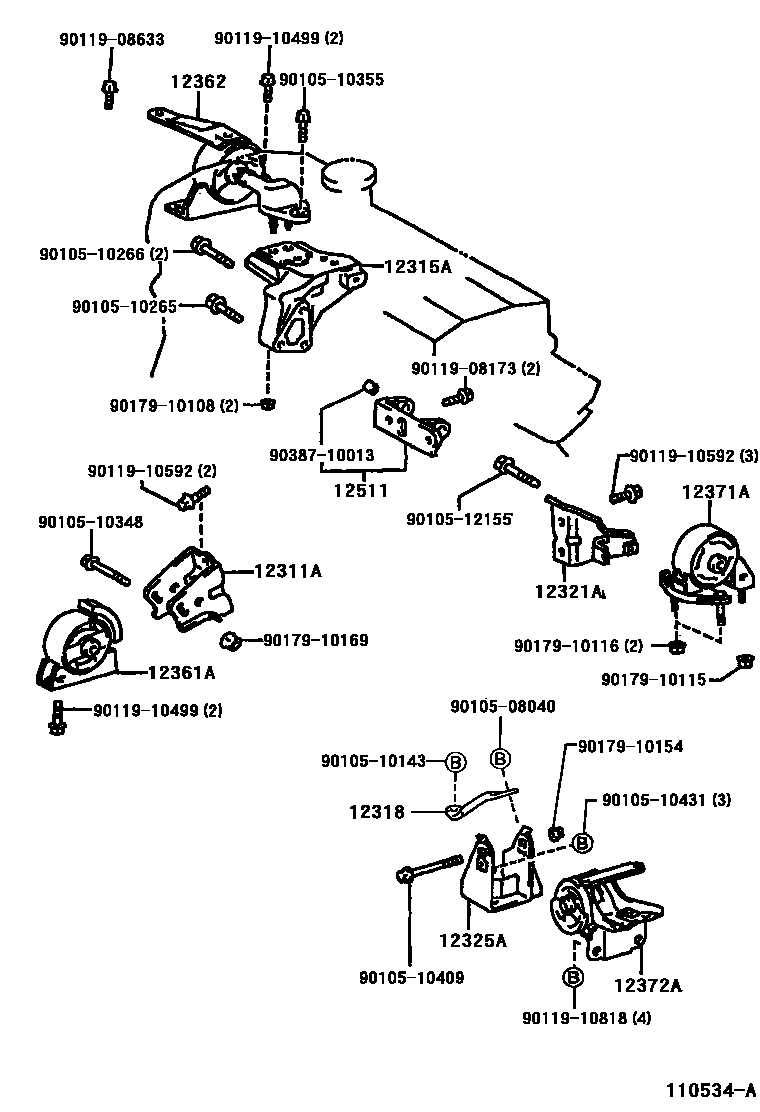

Toyota COROLLA Engine Mounting — Figure 1107
Toyota COROLLA EPC diagram 1107, Engine Mounting, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-11090 · 12311-15130 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-11051 · 12315-15070 · 12315-15081 |
| 12318 | Engine left mounting bracket | 12318-11050 · 12318-15080 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-11191 · 12321-15120 · 12321-15140 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-11160 · 12325-15080 · 12325-15110 |
| 12351 | engine mount shock absorber | 12351-15060 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-11181 · 12361-15170 · 12361-15171 · 12361-15180 · 12361-15181 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12305-11050 · 12305-11060 · 12305-15040 · 12305-16062 |
| 12371A | Engine rear mount vibration isolation pad | 12371-11600 · 12371-15241 · 12371-64210 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-15200 · 12372-15220 |
| 12511 | No. 1 generator bracket | 12511-11020 · 12511-15040 · 12511-15060 · 12511-16110 |
| 12511A | Generator bracket bushing | 90387-10013 |
