Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

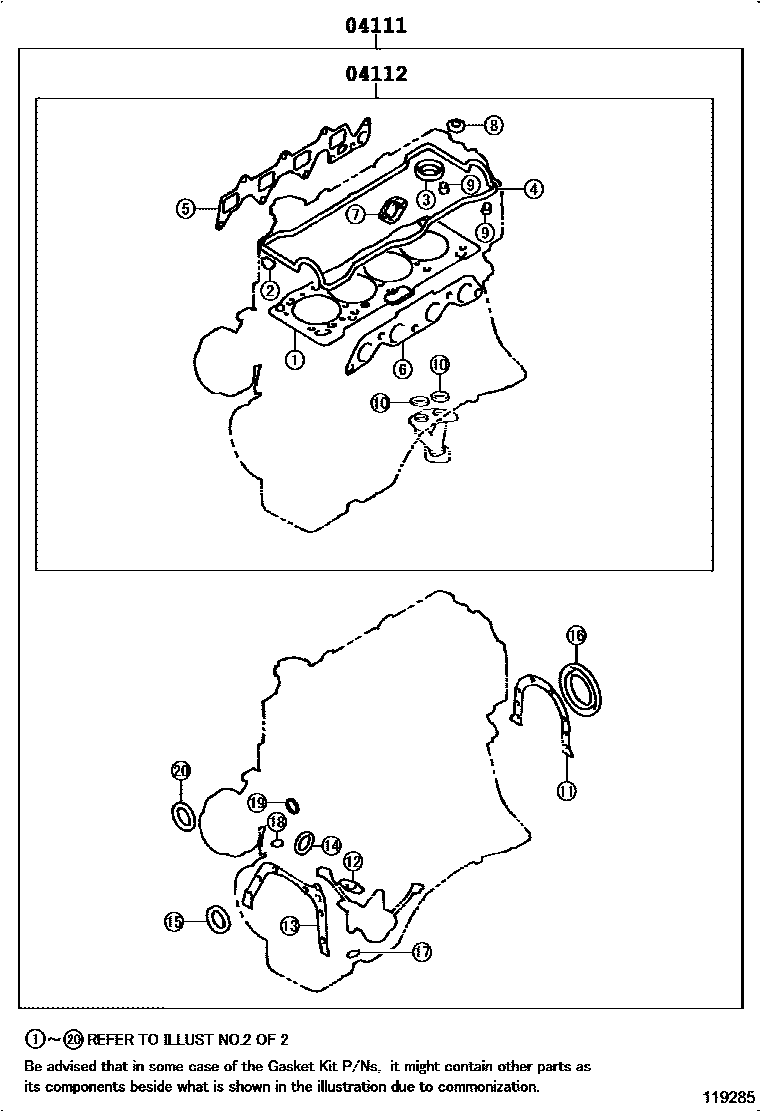

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119285
Engine Overhaul Gasket Kit — 119285 (199704 – 199910)

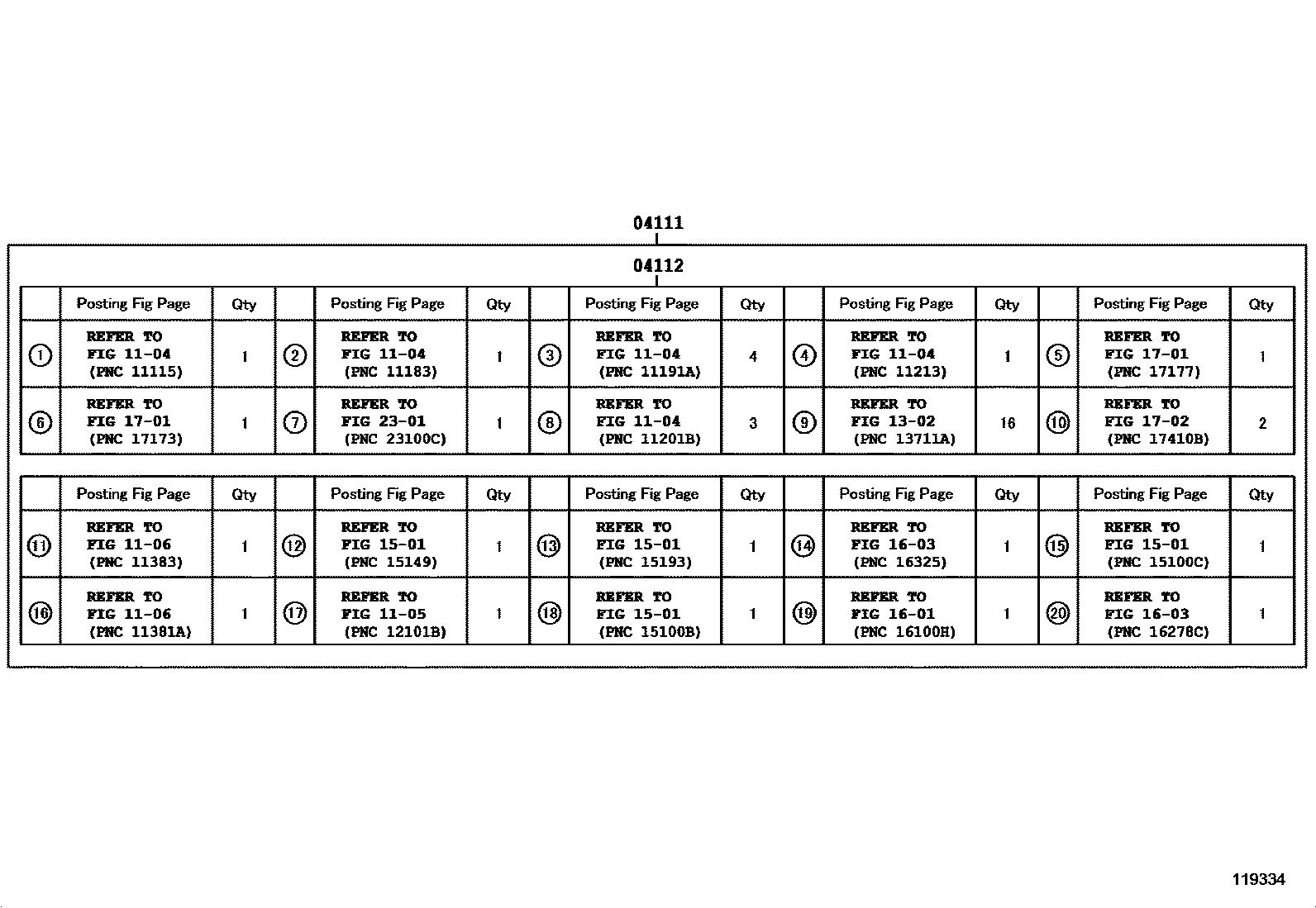

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119334
Engine Overhaul Gasket Kit — 119334 (199704 – 199910)

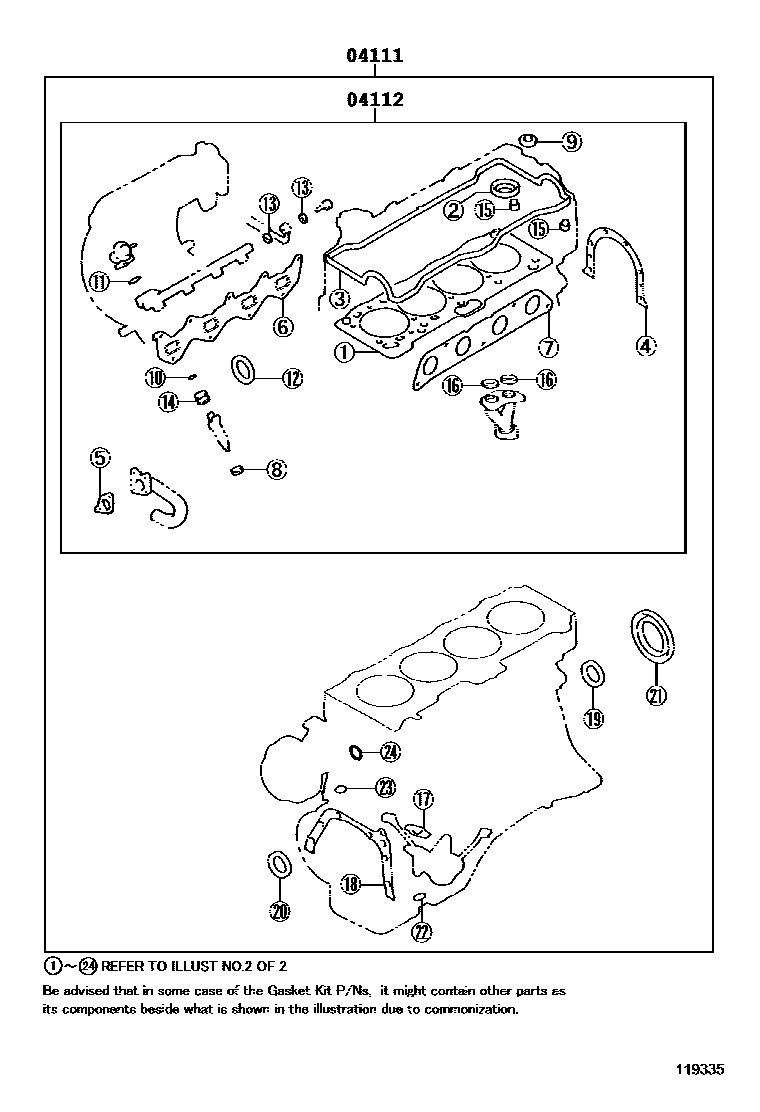

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119335
Engine Overhaul Gasket Kit — 119335 (199704 – 999999)

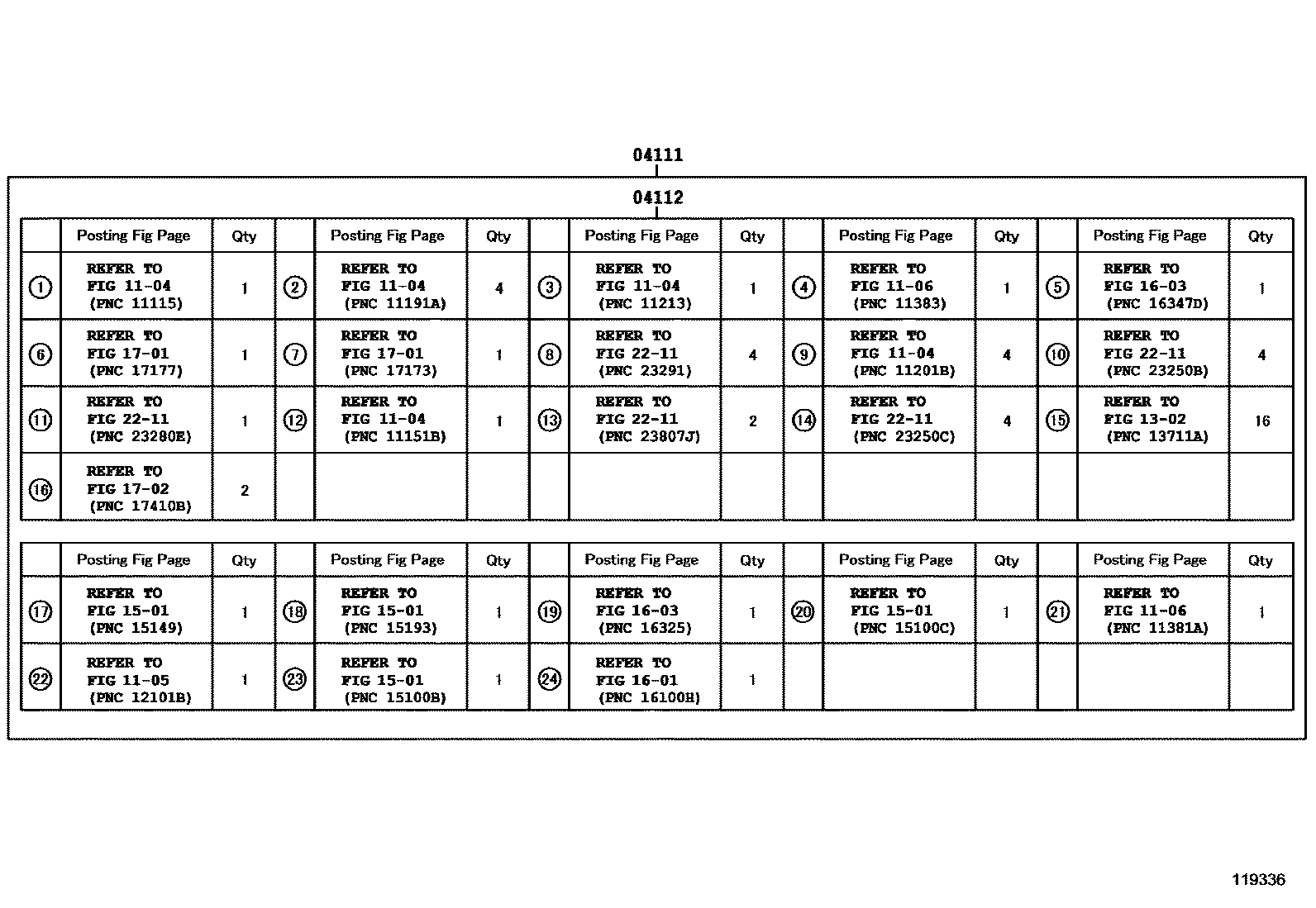

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119336
Engine Overhaul Gasket Kit — 119336 (199704 – 999999)

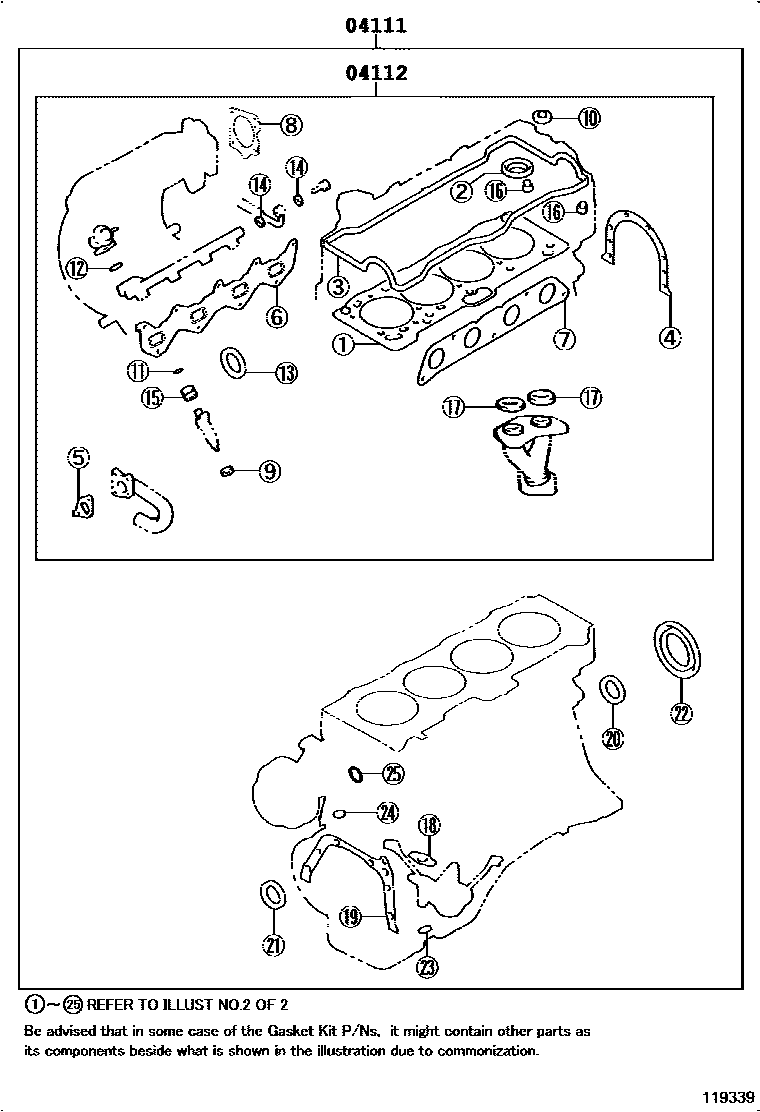

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119339
Engine Overhaul Gasket Kit — 119339 (199704 – 999999)

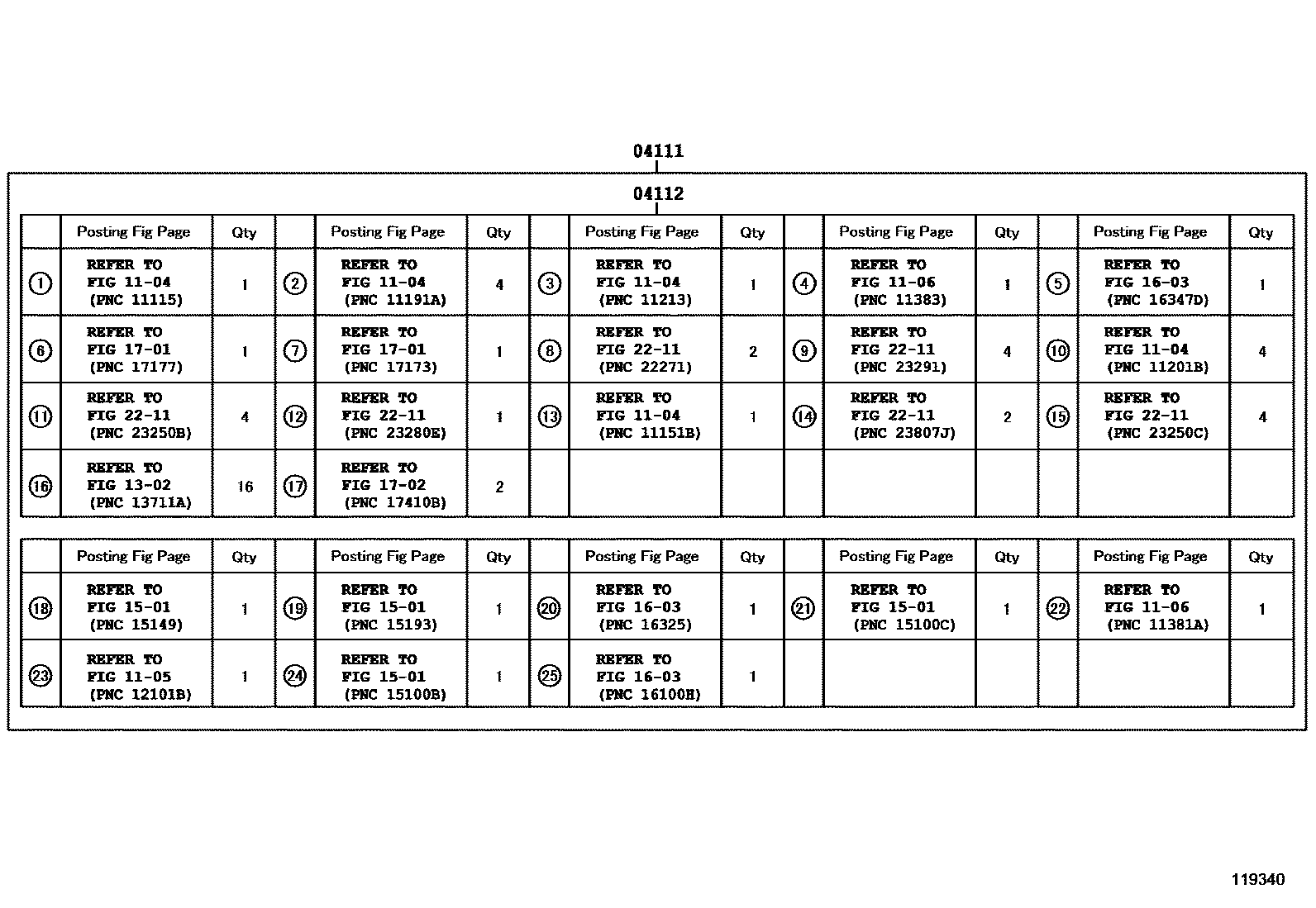

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119340
Engine Overhaul Gasket Kit — 119340 (199704 – 999999)

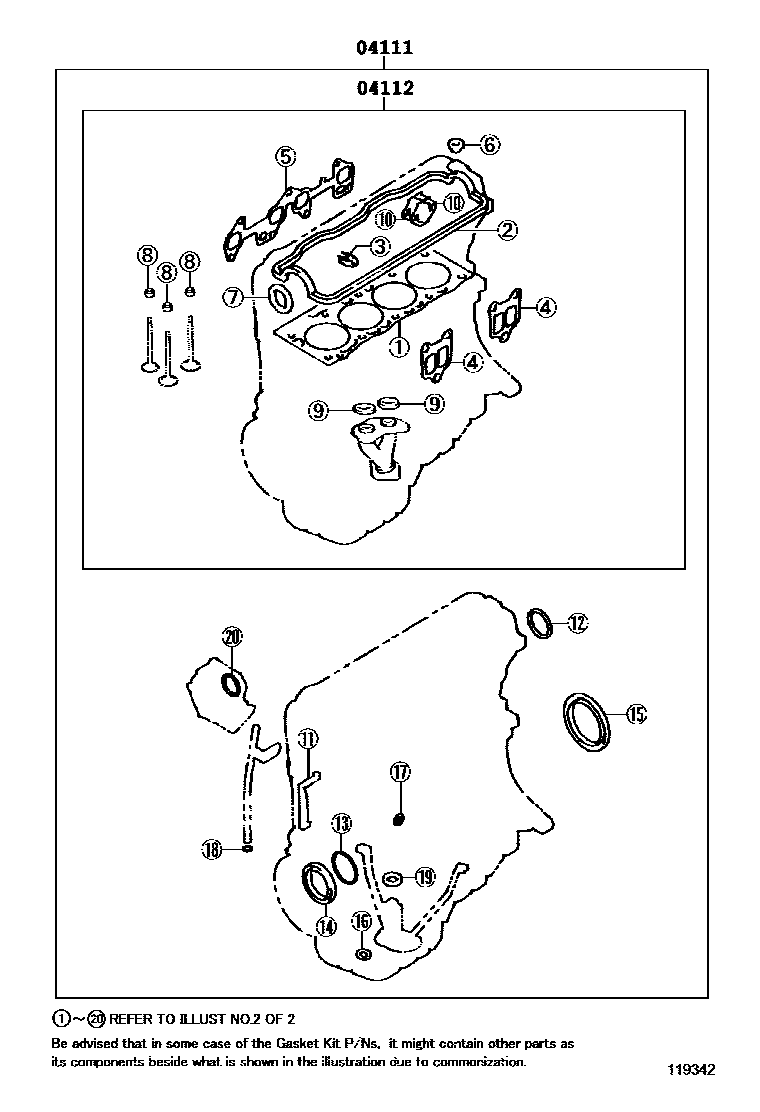

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119342
Engine Overhaul Gasket Kit — 119342 (199704 – 999999)

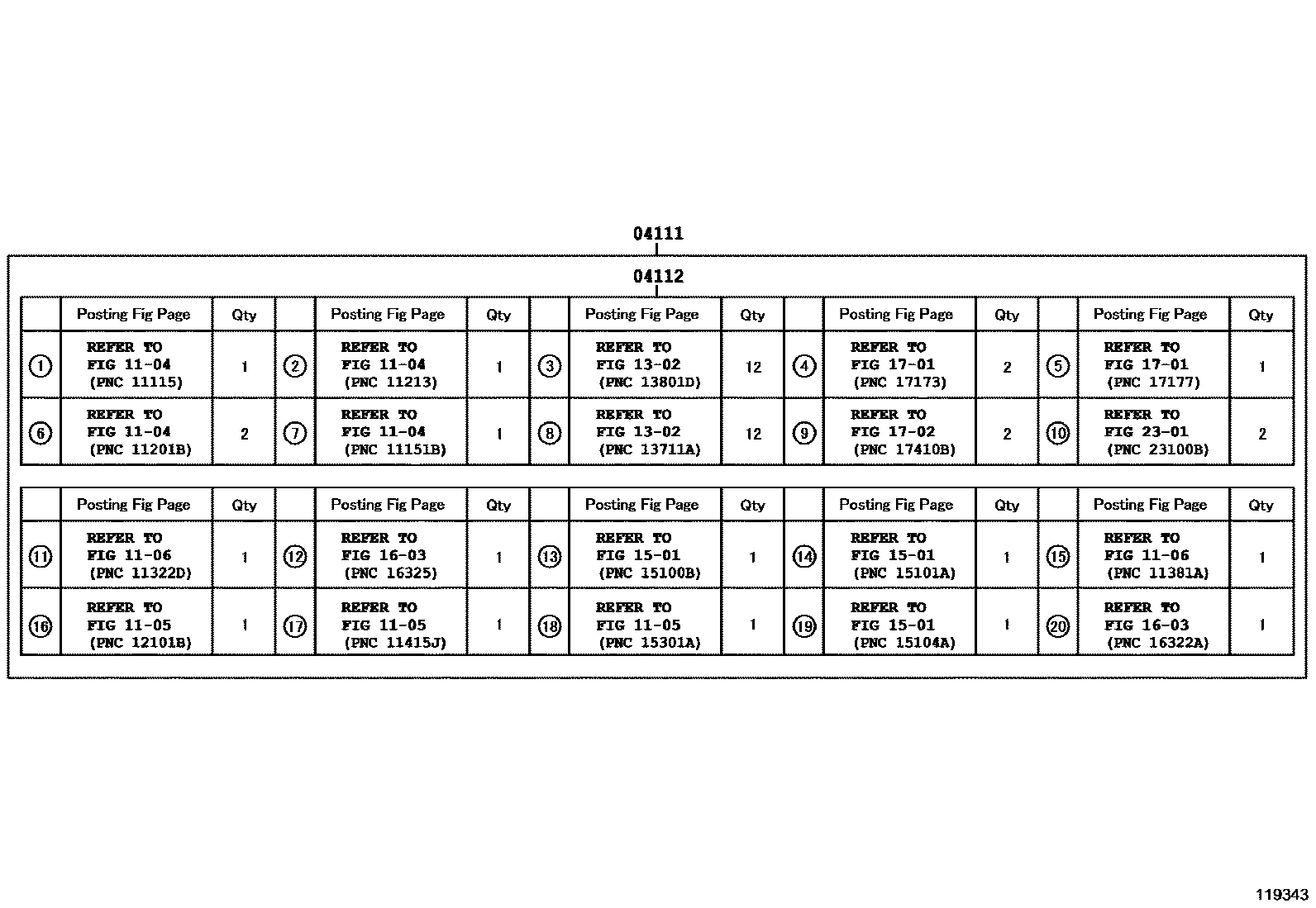

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119343
Engine Overhaul Gasket Kit — 119343 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-11025 · 04111-11026 · 04111-11210 · 04111-16124 · 04111-16231 · 04111-16241 · 04111-16320
04112Engine valve grinding pad assembly04112-11012 · 04112-11180 · 04112-16123 · 04112-16230 · 04112-16240 · 04112-16320
