Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

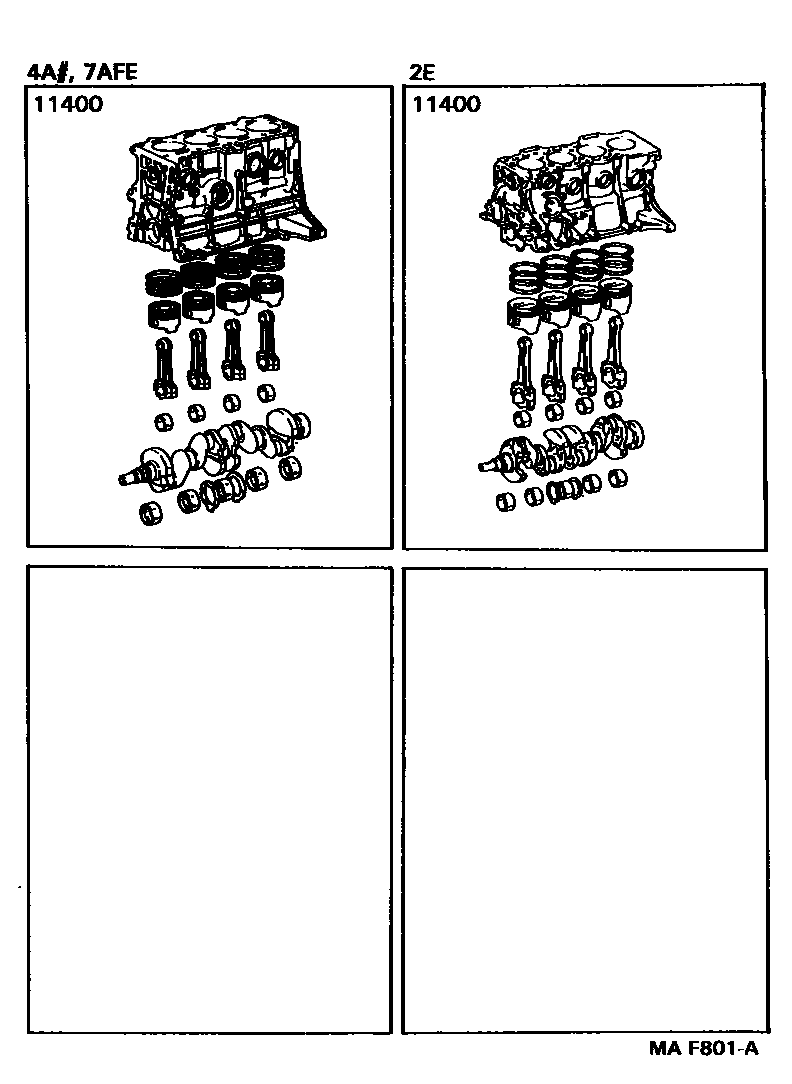

Toyota COROLLA Short Block Assembly EPC diagram — MAF801A
Short Block Assembly — MAF801A (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-11045 · 11400-16230 · 11400-16331 · 11400-16370 · 11400-16380 · 11400-16460
