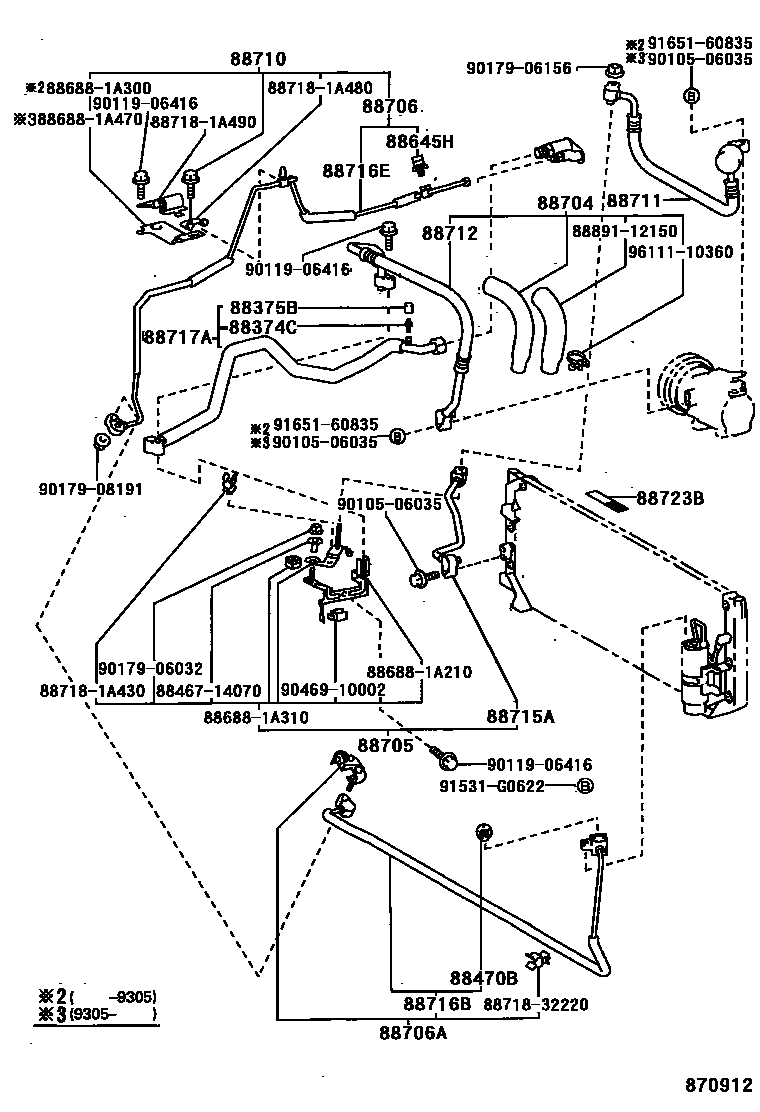

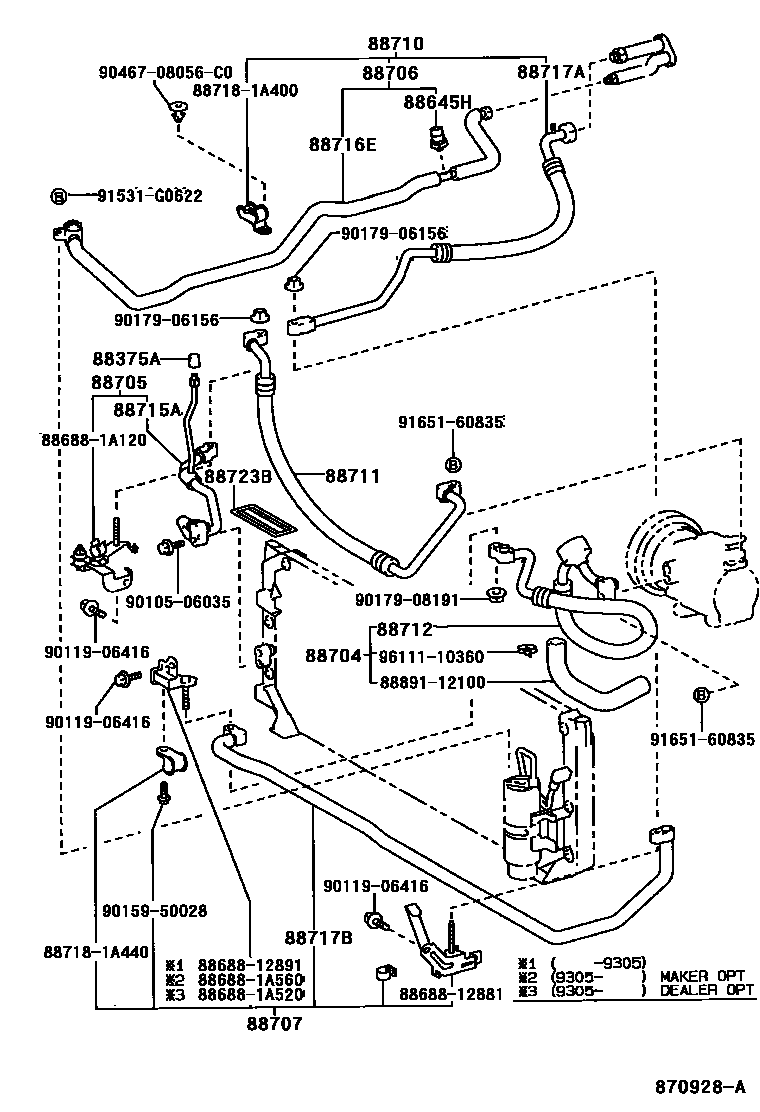

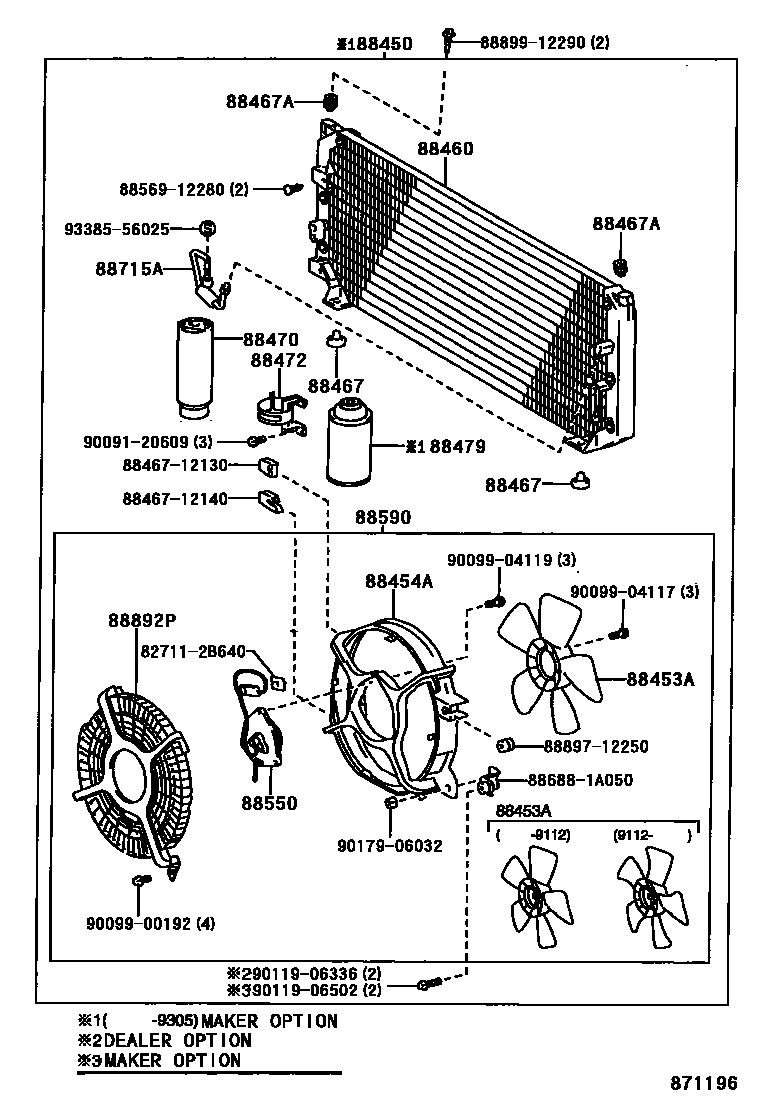

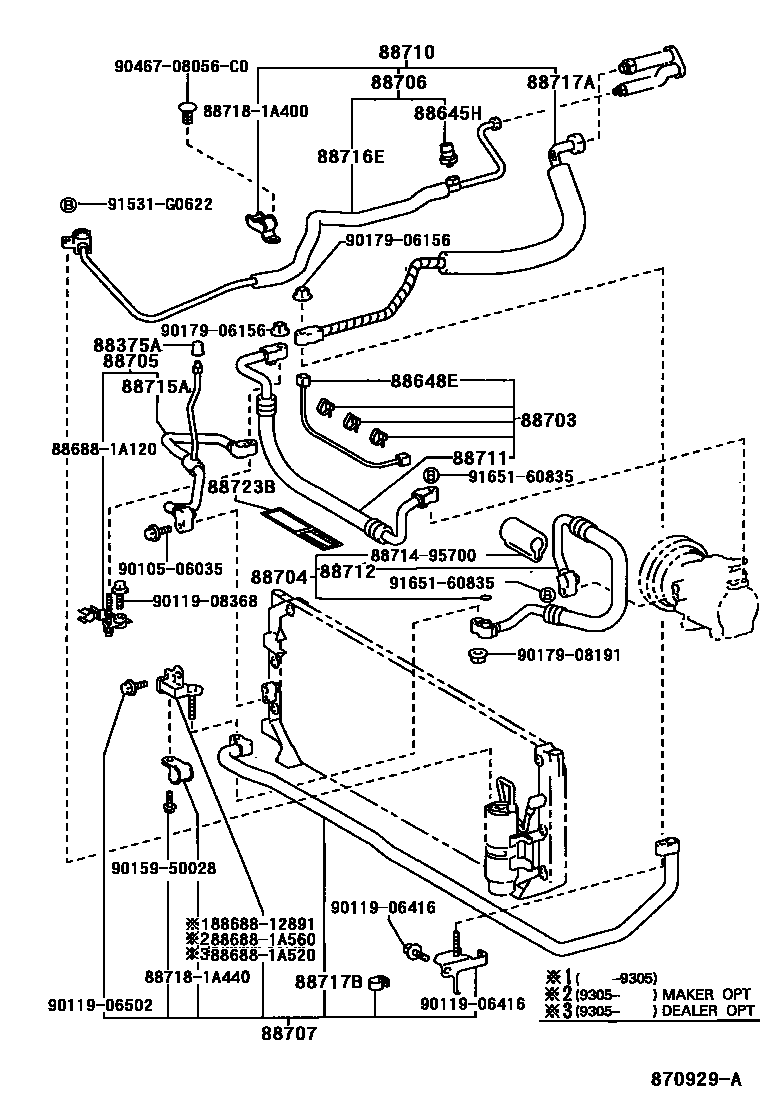

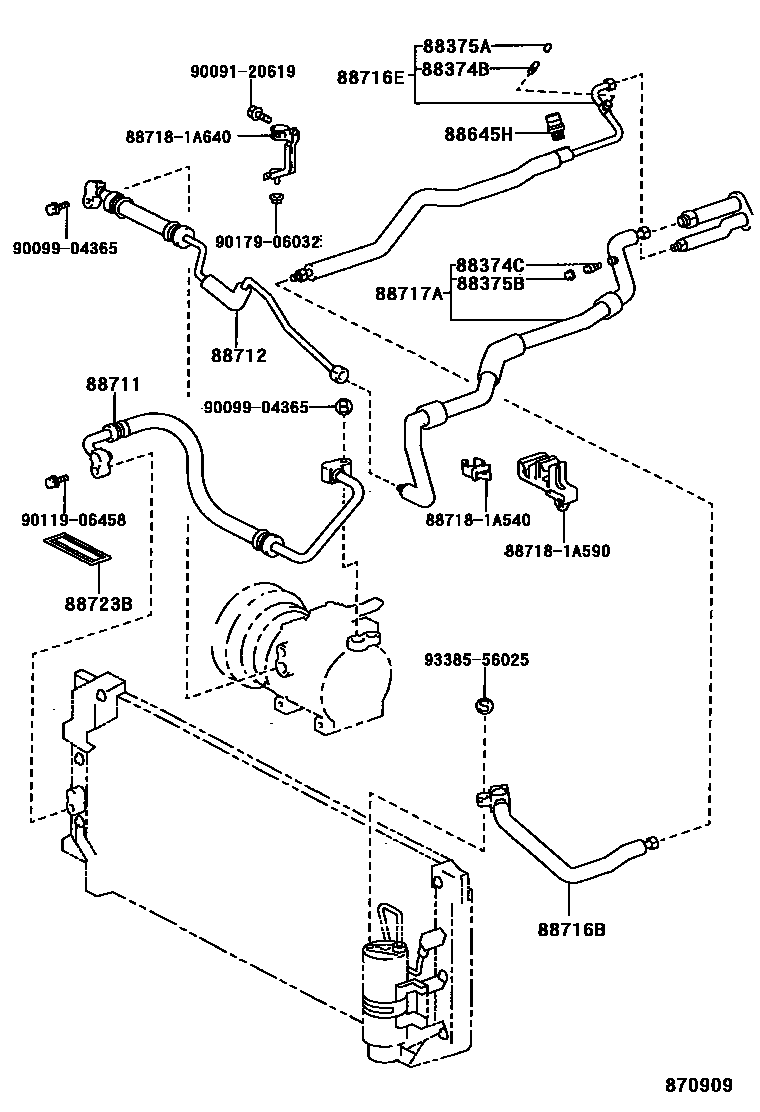

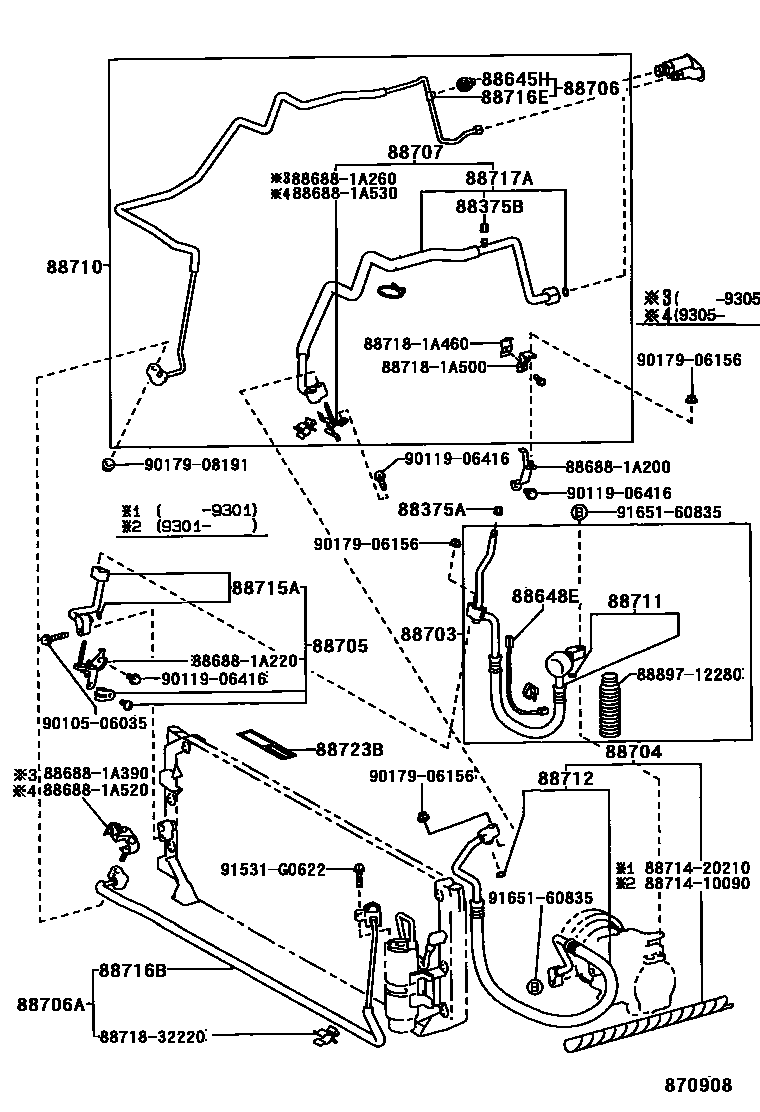

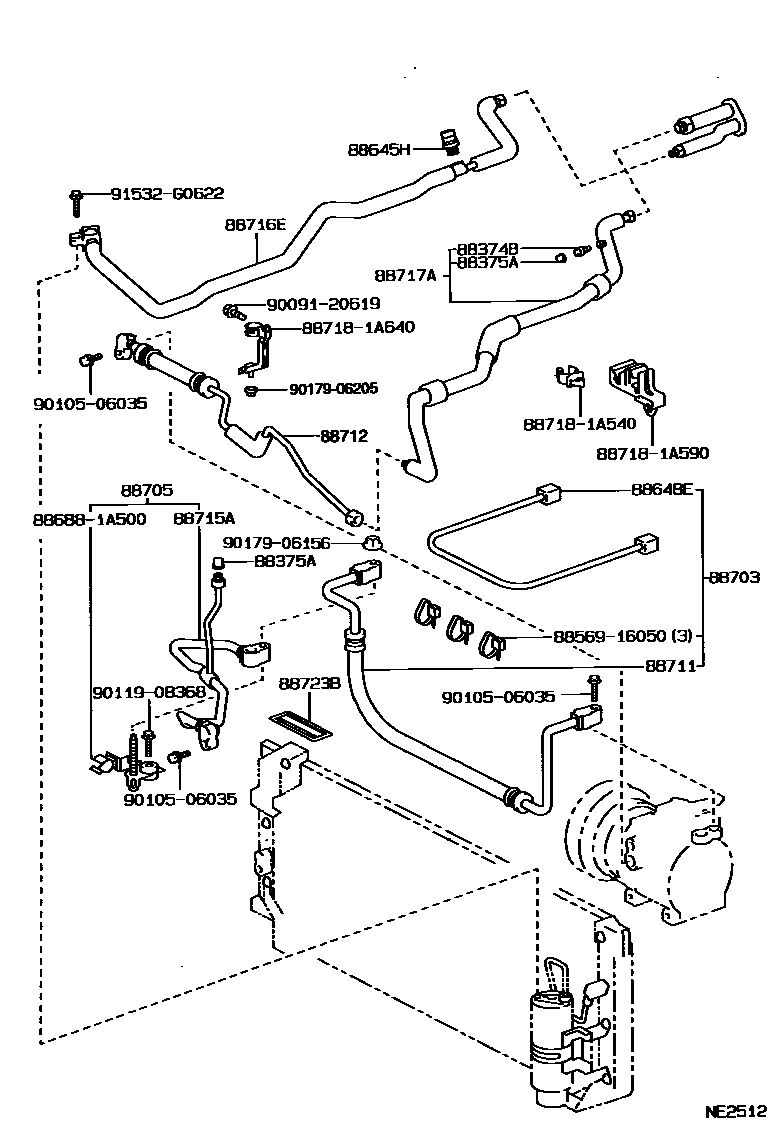

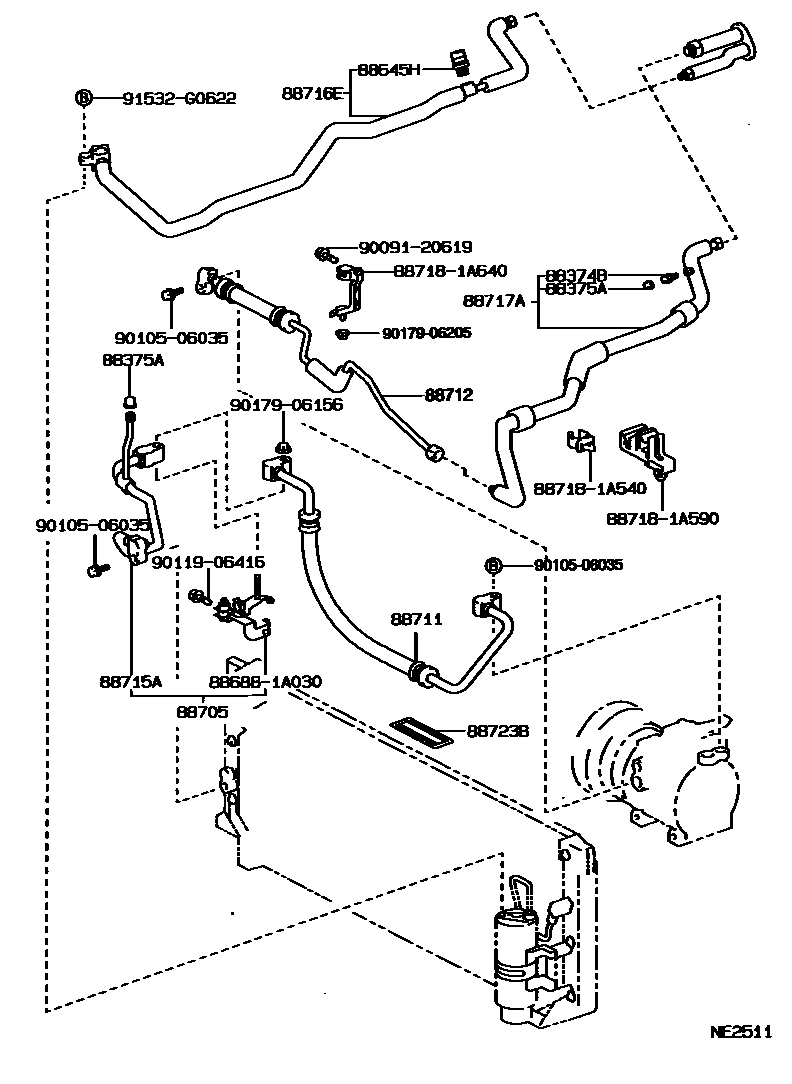

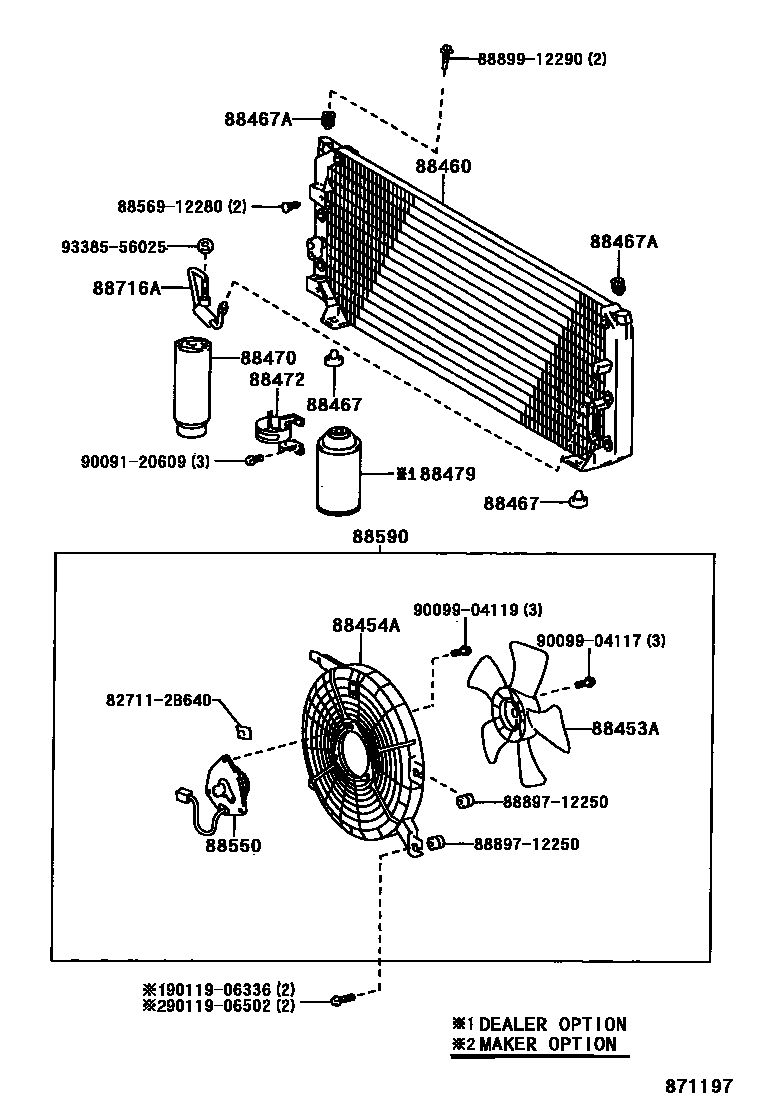

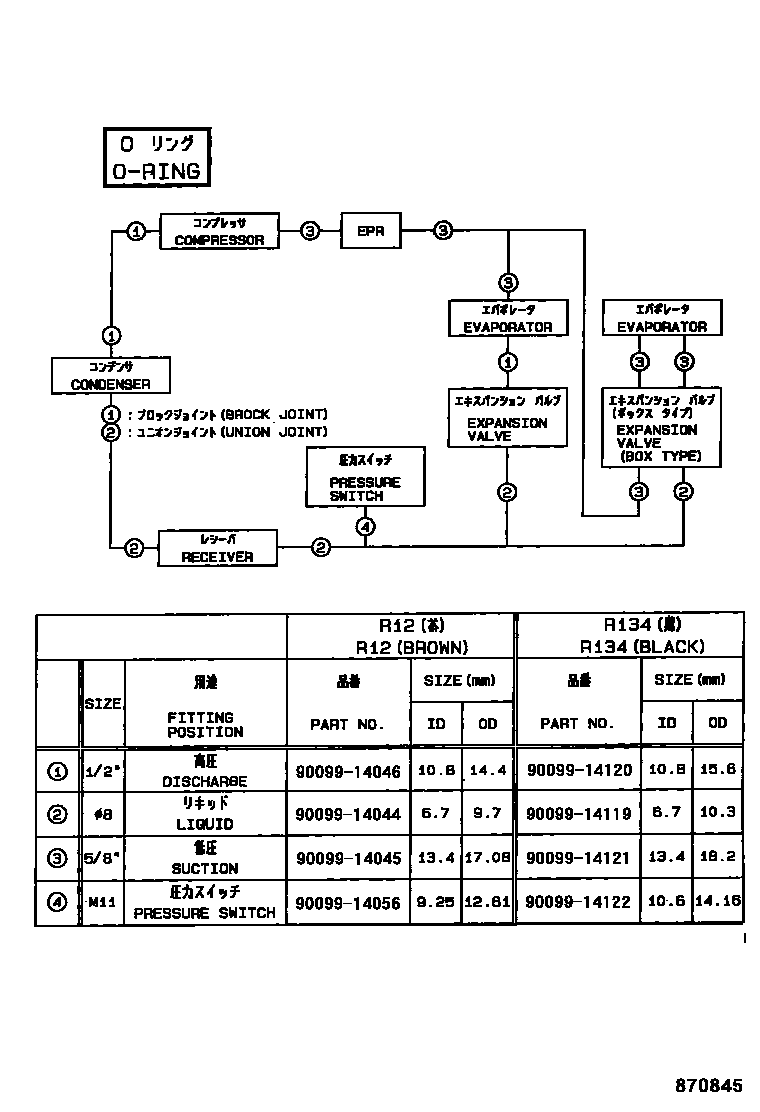

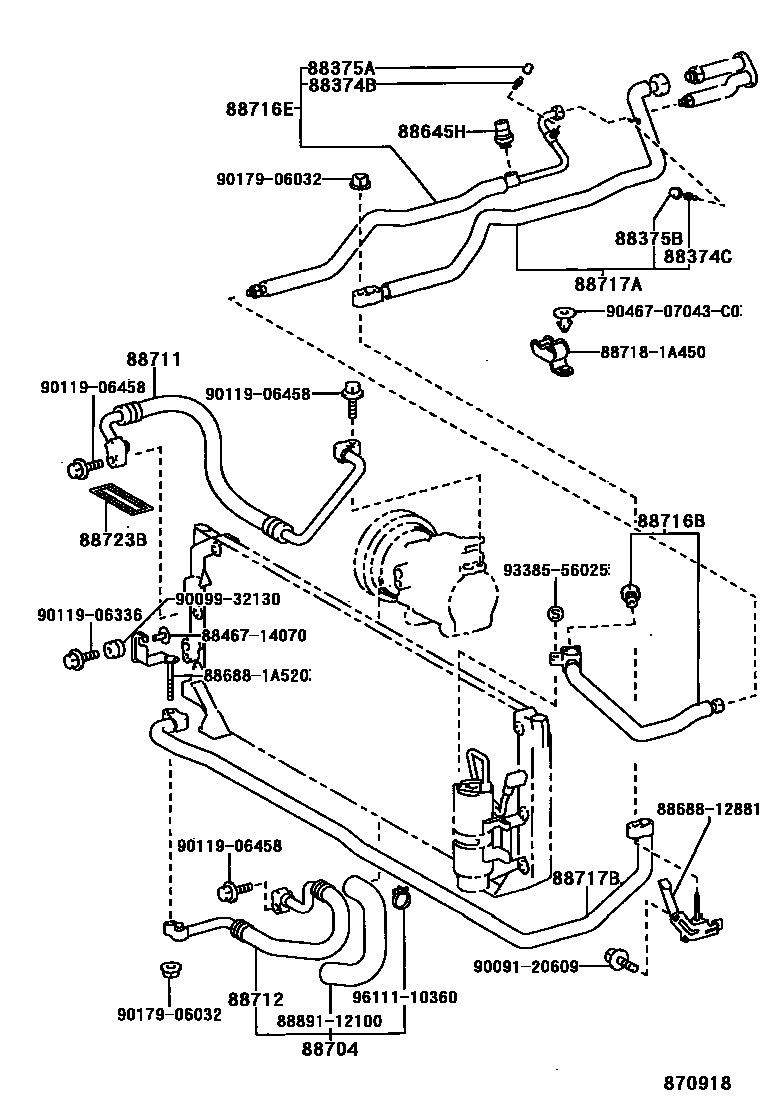

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 11 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 48094-10010 · 88374-30010 |
| 88374C | Service valve No. 2 | 48094-10010 · 88374-12020 · 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-24010 · 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30270 · 88375-30290 |
| 88450 | Condenser assembly with liquid reservoir | 88450-12110 |
| 88453A | cooling fan | 88453-10021 · 88453-10022 · 88453-12080 |
| 88454A | fan cover | 88454-12130 · 88454-12150 |
| 88460 | Air conditioning condenser assembly | 88460-12410 · 88460-12440 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12100 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-12110 |
| 88470 | Cooler reservoir and dryer assembly | 88471-12020 · 88471-60010 |
| 88470B | fuse bolt | 88475-12020 |
| 88472 | No. 1 liquid storage tank bracket | 88473-12080 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02004 · 90986-02006 · 90986-02007 · 90986-02008 |
| 88550 | Blower motor assembly (for condenser) | 88550-12130 · 88550-12150 · 88550-12160 |
| 88590 | Blower assembly with hood | 88590-12210 · 88590-12270 |
| 88645H | No. 1 pressure switch | 88645-20050 · 88645-50010 |
| 88648E | Cooler wiring harness | 88605-1H490 · 88648-12490 |
| 88703 | Discharge hose sub-assembly | 88703-12330 · 88703-12350 · 88703-12370 · 88703-12380 · 88703-12390 · 88703-12450 · 88703-12460 · 88703-12470 |
| 88704 | Oil suction hose sub-assembly | 88704-12410 · 88704-12420 · 88704-12430 · 88704-12440 · 88704-12490 · 88704-12500 · 88704-12510 · 88704-12520 |
| 88705 | Discharge pipe sub-assembly | 88705-12010 · 88705-12030 · 88705-12040 · 88705-12050 · 88705-12070 · 88705-12080 · 88705-12090 · 88705-12110 · 88705-12120 · 88705-12140 |
| 88706 | Liquid pipe sub-assembly | 88706-12080 · 88706-12120 · 88706-12130 · 88706-12260 · 88706-12280 · 88706-12300 |
| 88706A | Liquid pipe A sub-assembly | 88706-12170 · 88706-12290 |
| 88707 | Suction pipe sub-assembly | 88707-12030 · 88707-12070 · 88707-12100 · 88707-12130 · 88707-12160 |
| 88710 | Air conditioning pipe assembly | 88710-12230 · 88710-12260 · 88710-12270 · 88710-12300 · 88710-12400 · 88710-12430 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12630 · 88711-12640 · 88711-12690 · 88711-12700 · 88711-12750 · 88711-12760 · 88711-12770 · 88711-12780 · 88711-12820 · 88711-12840 · 88711-12850 · 88711-12870 · 88711-12890 · 88711-1A050 · 88711-1A060 · 88711-1A110 · 88711-1A120 · 88711-1A140 · 88711-1A150 · 88711-1A160 · 88711-1A170 · 88711-1A180 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-12830 · 88712-12880 · 88712-1A020 · 88712-1A030 · 88712-1A050 · 88712-1A070 · 88712-1A130 · 88712-1A140 · 88712-1A160 · 88712-1A170 · 88712-1A180 · 88712-1A200 · 88712-1A440 · 88712-1A450 · 88712-1A460 · 88712-1A520 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-12380 · 88715-12400 · 88715-12420 · 88715-12430 · 88715-12450 · 88715-12460 · 88715-12470 · 88715-12490 |
| 88716A | Cooler refrigerant liquid pipe A | 88726-12360 · 88726-12410 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-1A020 · 88716-1A060 · 88716-1A220 · 88716-1A240 |
| 88716E | Cooler refrigerant liquid pipe E | 88706-12080 · 88716-12890 · 88716-1A010 · 88716-1A070 · 88716-1A080 · 88716-1A190 · 88716-1A210 · 88716-1A250 · 88716-1A330 |
| 88717A | Cooler refrigerant suction pipe A | 88704-12380 · 88704-12540 · 88717-12560 · 88717-12570 · 88717-12580 · 88717-12700 · 88717-12720 · 88717-12760 · 88717-1A010 · 88717-1A020 |
| 88717B | Cooler refrigerant suction pipe B | 88717-12550 · 88717-12740 · 88717-12830 |
| 88723B | Cooler maintenance warning label | 88723-12060 · 88723-12100 · 88723-12120 |
| 88892P | fan cover mesh | 88892-12200 |
