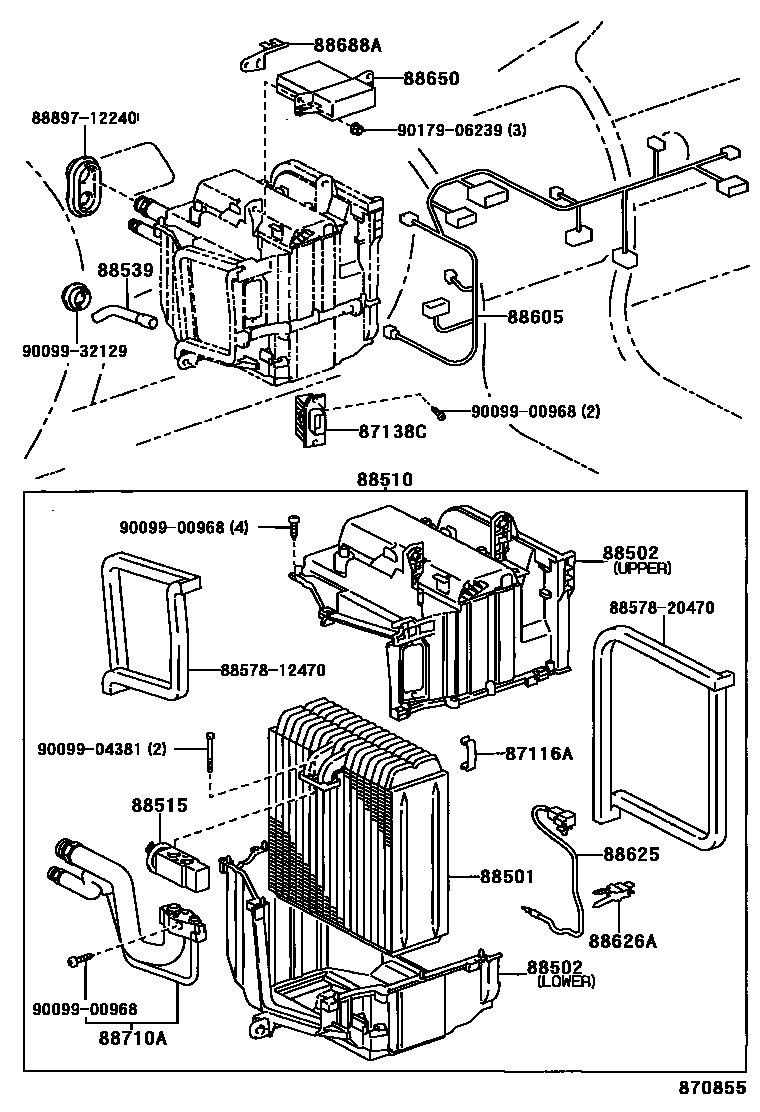

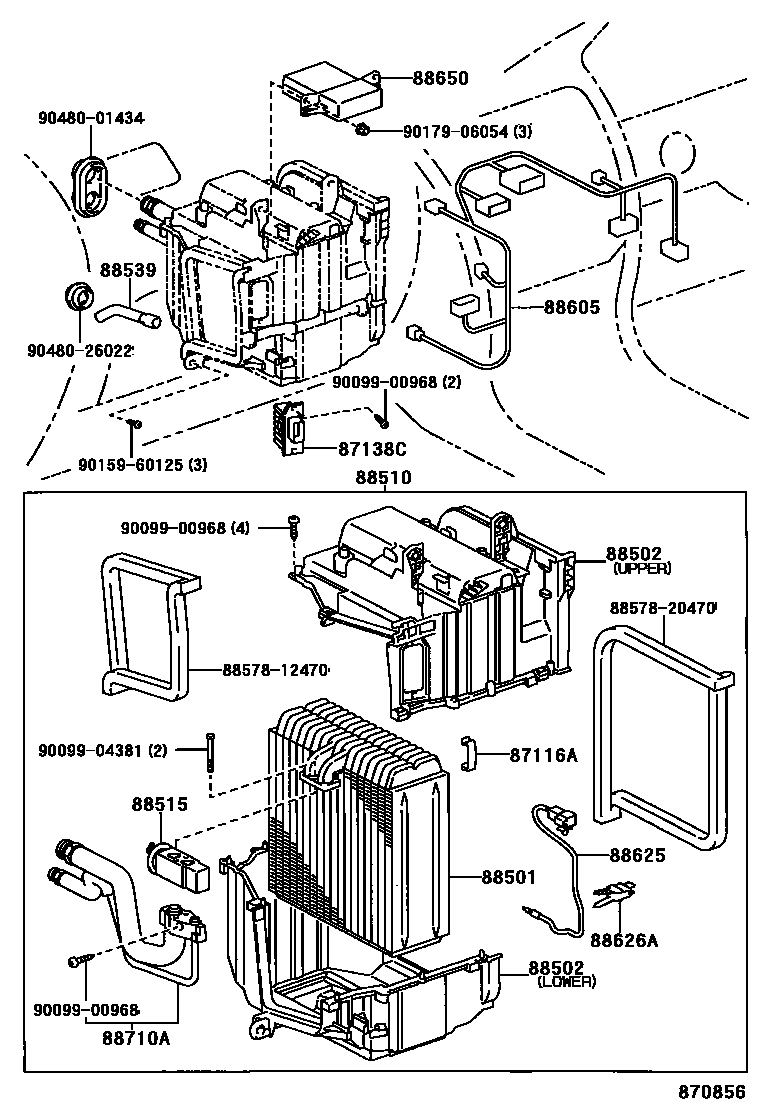

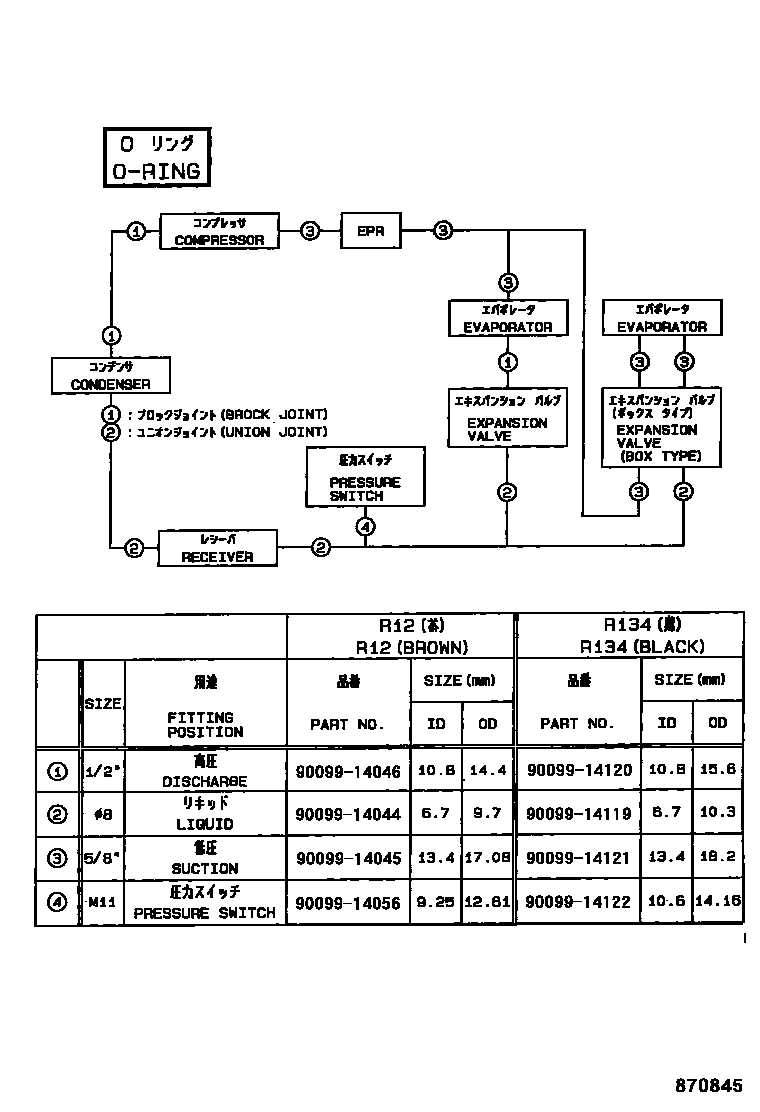

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-14010 |
| 87138C | Blower resistor | 87138-12130 · 87138-12140 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12360 · 88501-12370 · 88501-12390 · 88501-12391 · 88501-12400 · 88501-12401 · 88501-12410 |
| 88502 | Cooling device shell sub-assembly | 88502-12190 · 88502-12200 · 88502-12210 · 88502-12220 |
| 88510 | Cooler device assembly | 88510-12880 · 88510-1A070 · 88510-1A100 · 88510-1A110 · 88510-1A120 · 88510-1A300 · 88510-1A310 · 88510-1A320 · 88510-1A350 · 88510-1A351 |
| 88515 | Cooler expansion valve | 88515-12080 · 88515-14062 · 88515-20100 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12120 · 88539-12160 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-1E800 · 88605-1E810 · 88605-1E820 · 88605-1E830 · 88605-1E840 · 88605-1E850 · 88605-1H120 · 88605-1H130 · 88605-1H140 · 88605-1H240 · 88605-1H250 · 88605-1H260 · 88605-1H270 · 88605-1H570 |
| 88625 | Cooler No. 1 Thermistor | 88625-12280 |
| 88626A | Thermistor mount | 88626-28010 |
| 88650 | Cooler stabilized amplifier assembly | 88650-1A450 · 88650-1A500 |
| 88688A | Cooler stabilized amplifier stand | 88688-1A070 · 88688-1A080 · 88688-1A280 · 88688-1A660 |
| 88710A | Air conditioning pipe assembly | 88710-12240 · 88710-12250 · 88710-12330 · 88710-12340 · 88710-12350 |
