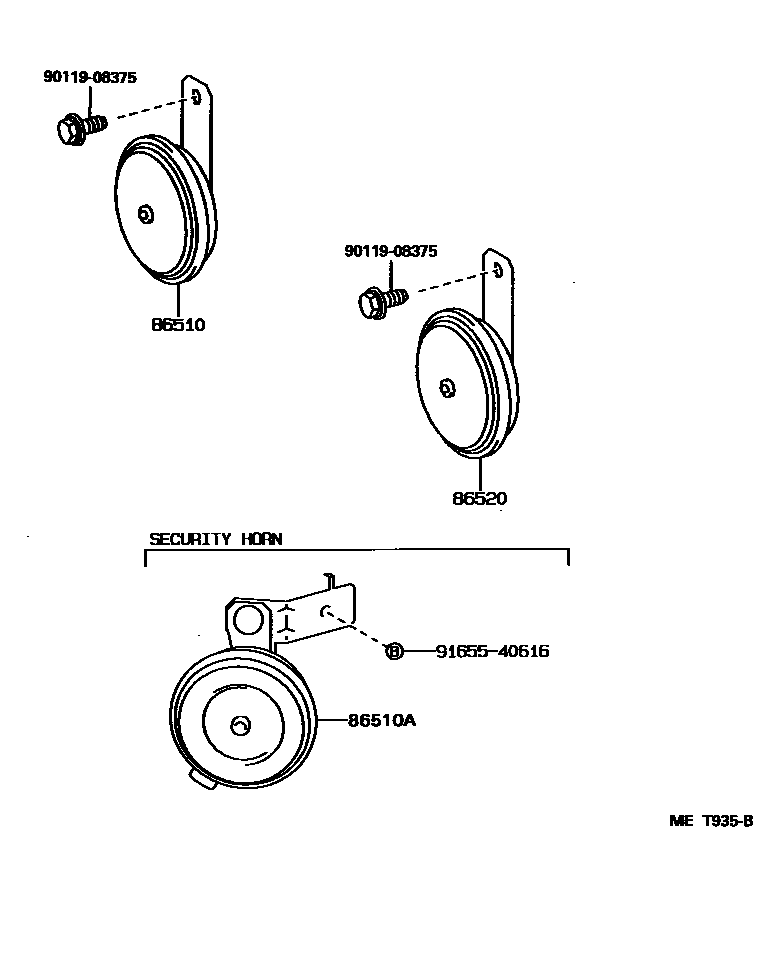

Toyota COROLLA 喇叭 — Figure 8611
Toyota COROLLA EPC diagram 8611, 喇叭, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-20210 · 86510-20230 · 86510-30500 |
| 86510A | Alarm horn assembly | 86510-12500 |
| 86520 | Subwoofer assembly | 86520-17090 · 86520-22220 · 86520-22230 |
