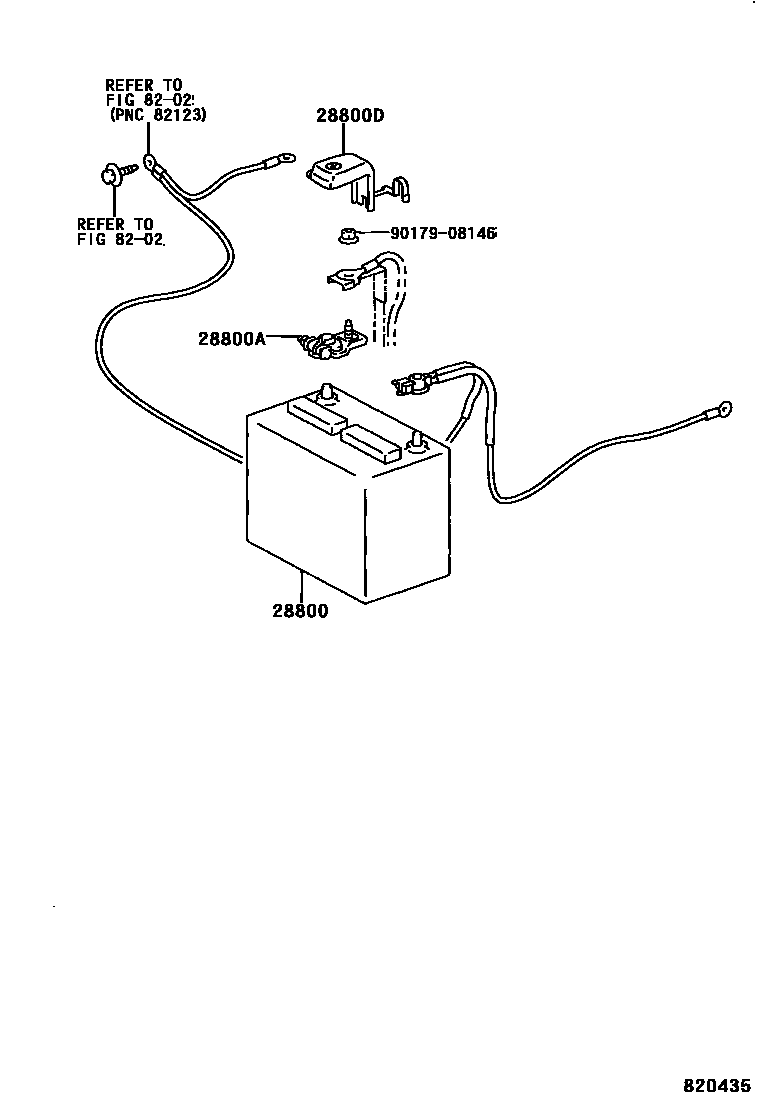

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-11100 · 28800-16070 · 28800-16090 · 28800-16100 · 28800-16110 · 28800-16120 · 28800-16130 · 28800-31010 · 28800-31080 · 28800-70060 · 28800-74060 |
| 28800A | battery positive terminal | 90982-05034 · 90982-05035 |
| 28800D | Connector cover (for battery terminals) | 82821-12290 |
