Toyota COROLLA 高位刹车灯 — Figure 8117

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 2 images and 1 PNC and OE references.

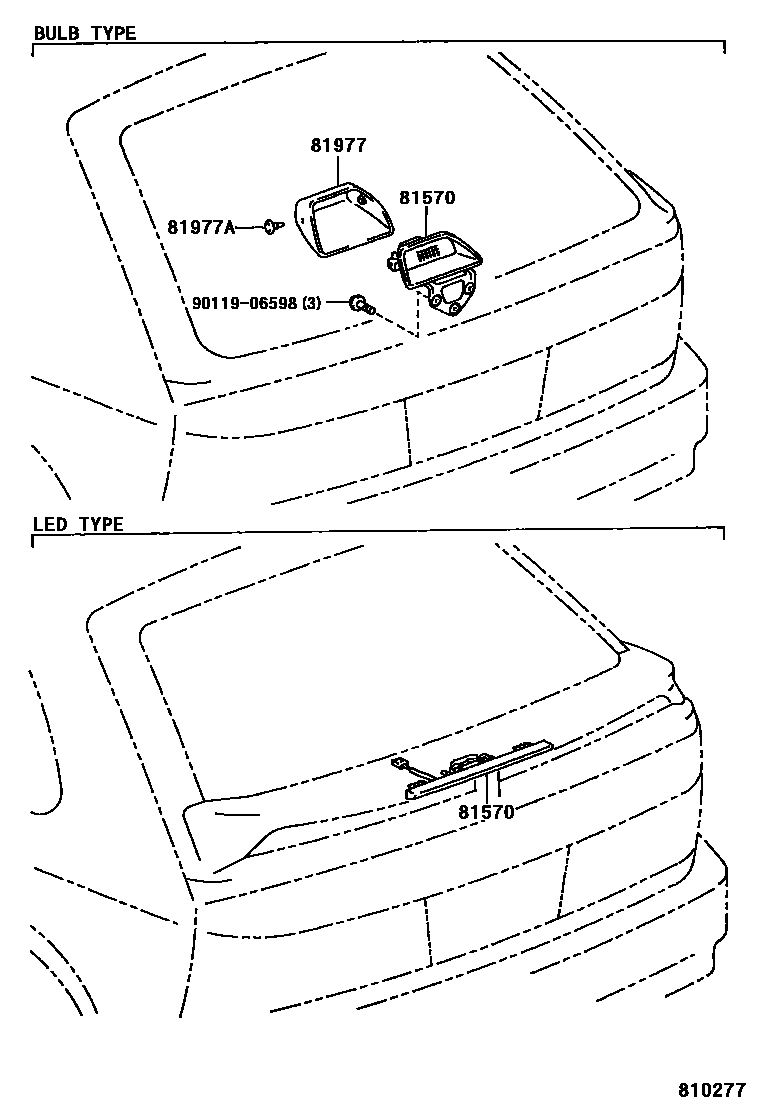

Toyota COROLLA 高位刹车灯 EPC diagram — 810277
高位刹车灯 — 810277 (199205 – 999999)
Toyota COROLLA 高位刹车灯 EPC diagram — MET785
高位刹车灯 — MET785 (199205 – 999999)

PNC and OE references

PNCPart nameOE numbers
81570Central brake light assembly81570-12210 · 81570-12230 · 81570-12231 · 81570-12232 · 81570-12250 · 81570-12251
