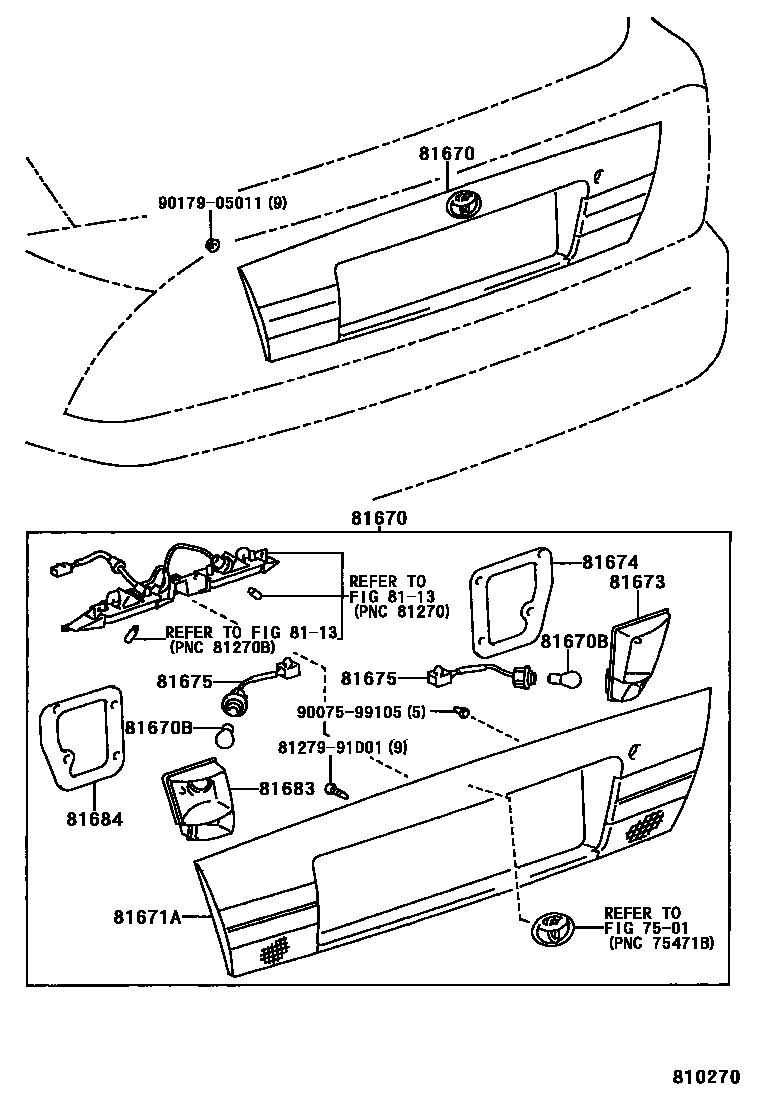

Toyota COROLLA 倒车灯 — Figure 8112
Toyota COROLLA EPC diagram 8112, 倒车灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81670 | Right reversing light assembly | 81670-12080 |
| 81670B | Bulb (for reversing lights) | 99132-11210 |
| 81671A | Reversing light shade and body | 81671-12080 |
| 81673 | Right reversing light body | 81673-12060 |
| 81674 | Right reversing light body gasket | 81672-12060 |
| 81675 | Reversing light holder and wiring harness | 81678-12060 |
| 81683 | Left reversing light body | 81676-12070 |
| 81684 | Left reversing light body gasket | 81674-12060 |
