Toyota COROLLA 前转向灯 — Figure 8103

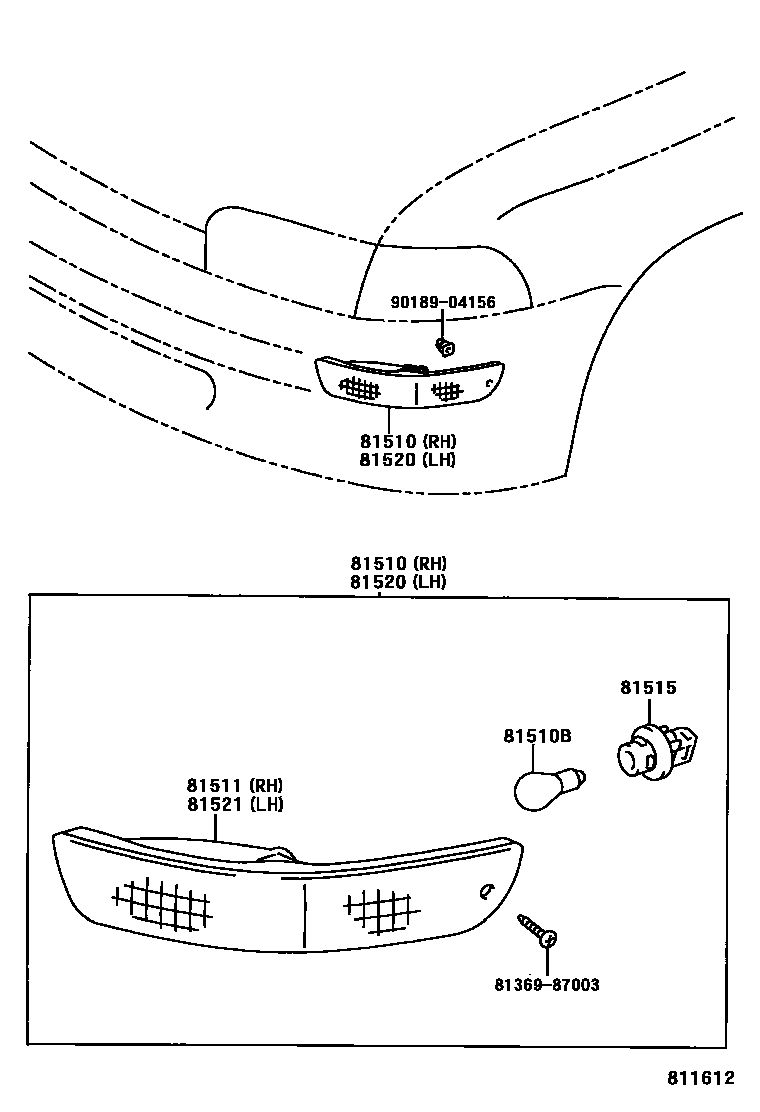

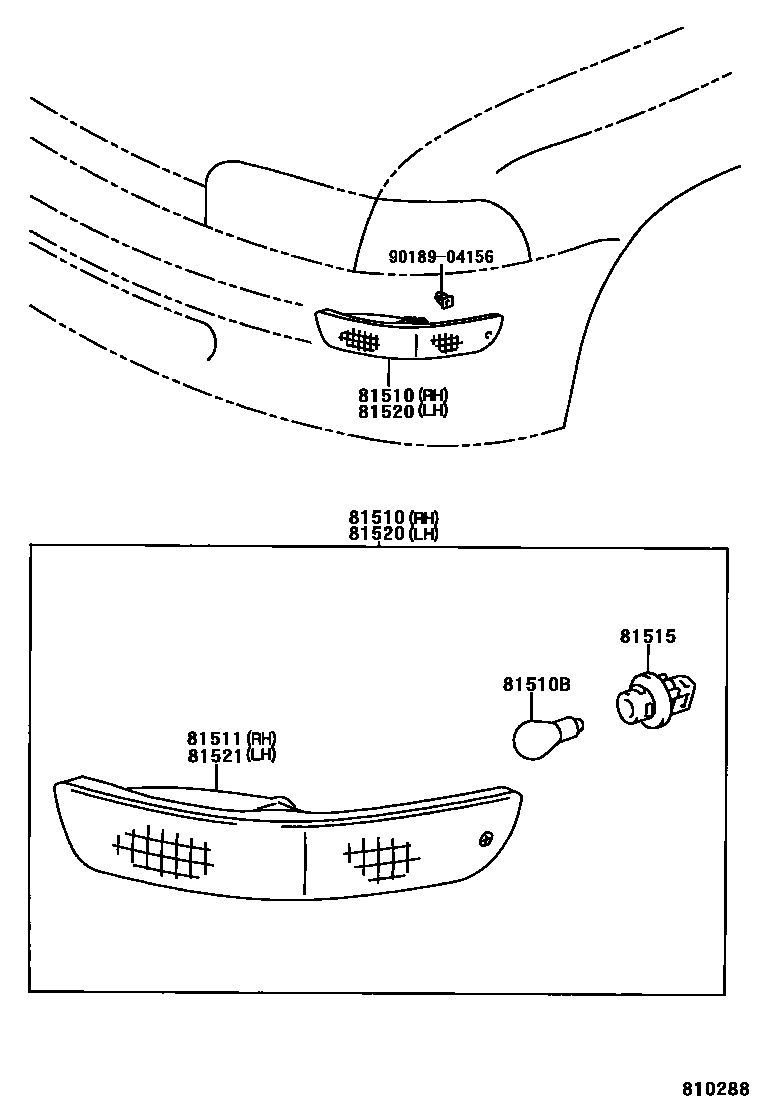

Toyota COROLLA EPC diagram 8103, 前转向灯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-12680 · 81510-12740 · 81510-12771 · 81510-12850 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11210 |
| 81511 | Right front turn signal lamp cover | 81511-12680 · 81511-12740 · 81511-12770 · 81511-12850 |
| 81515 | Front turn signal light body wiring harness sub-assembly | 81515-12520 · 90075-99020 · 90075-99092 |
| 81520 | Left front turn signal lamp assembly | 81520-12640 · 81520-12720 · 81520-12751 · 81520-12810 |
| 81521 | Left front turn signal lamp cover | 81521-12640 · 81521-12720 · 81521-12750 · 81521-12810 |
