Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 10 PNC and OE references.

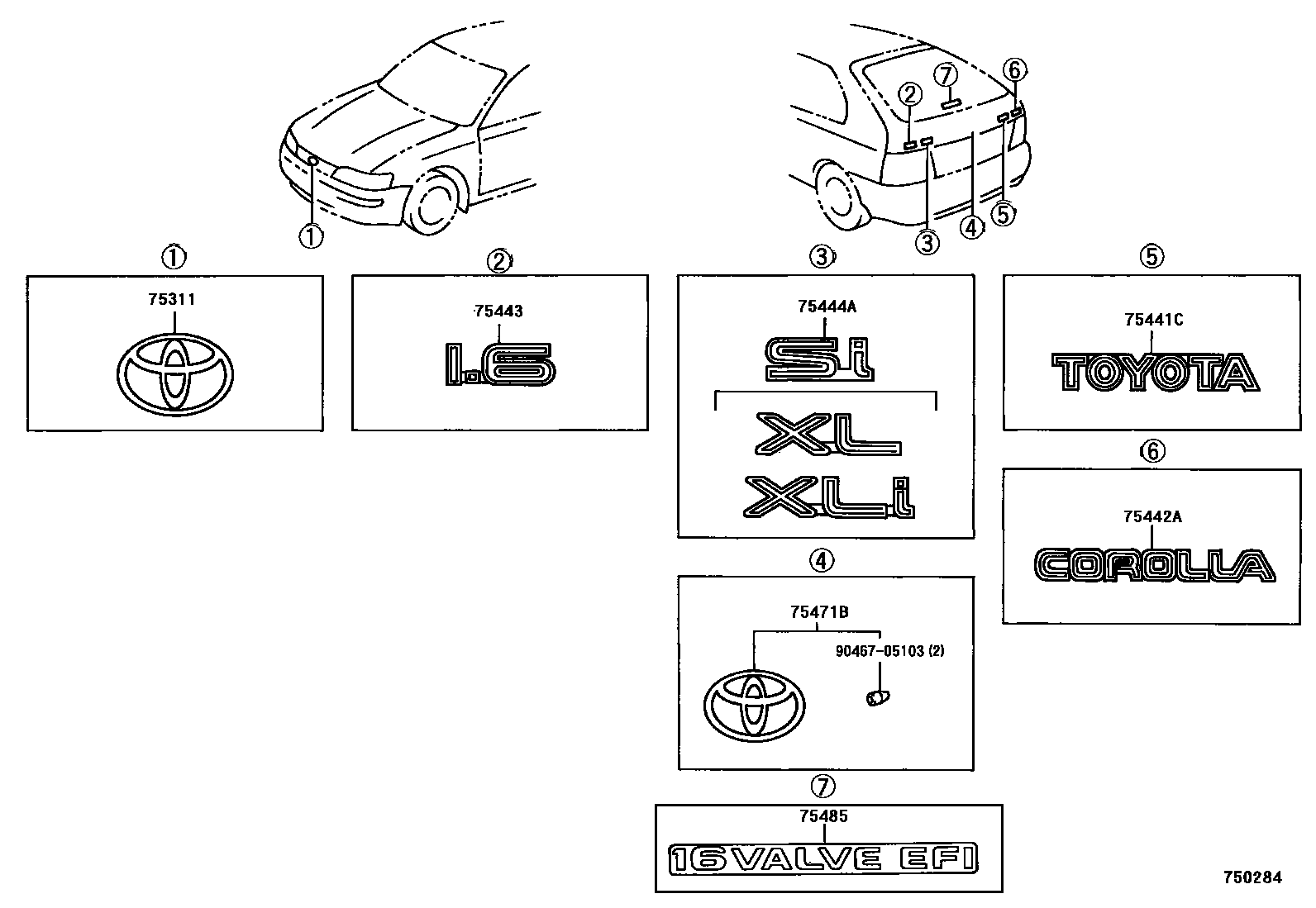

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 750284
丰田徽标和铭牌(车外和车内) — 750284 (199205 – 999999)

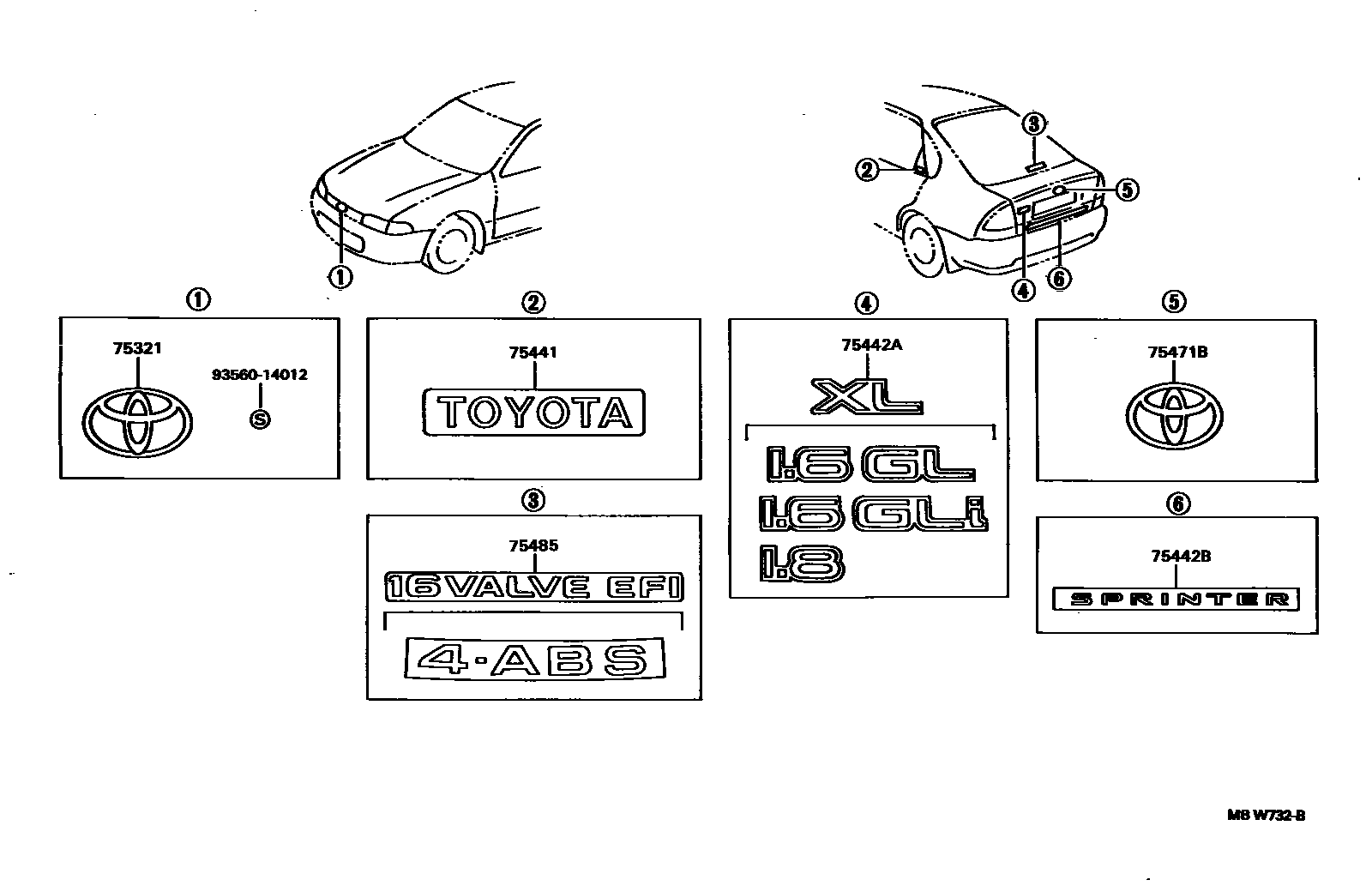

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — MBW732B
丰田徽标和铭牌(车外和车内) — MBW732B (199205 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-1A740
75321Radiator grille or front plate75321-12380
75441No. 1 rear nameplate75473-12080
75441CBack door nameplate75441-12720
75442ANo. 2 nameplate on back door75442-1A190 · 75442-1A200 · 75442-1A250 · 75442-1A270 · 75442-1A320
75442BNo. 2 nameplate on back door75442-1A310
75443No. 3 nameplate on back door75443-1A660
75444ANo. 4 nameplate on back door75444-1A040 · 75444-1A050 · 75444-1A080
75471BNo. 1 nameplate on rear body75441-12710 · 75471-12030
75485Back window nameplate75485-12210 · 75485-12260 · 75485-12310
