Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

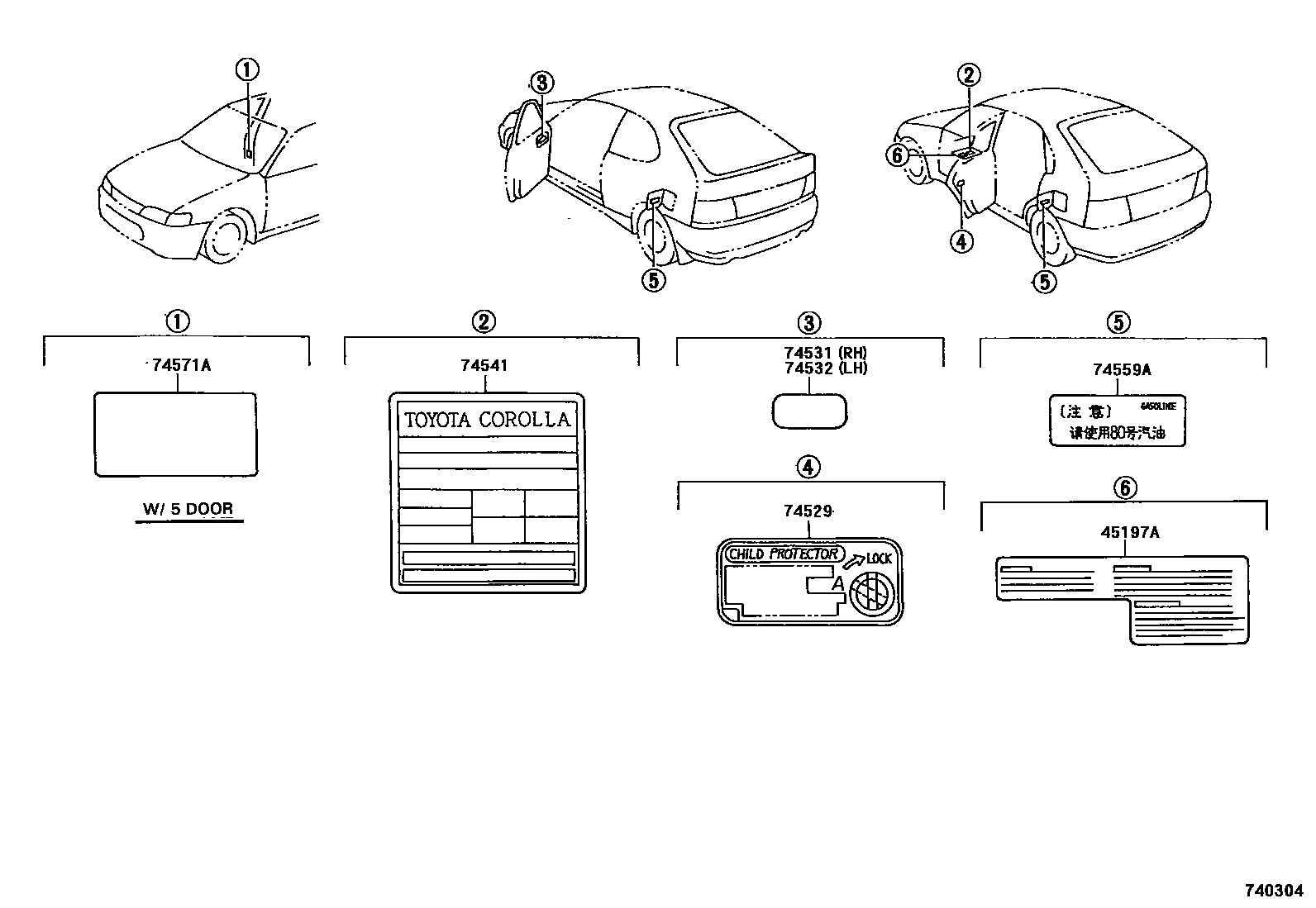

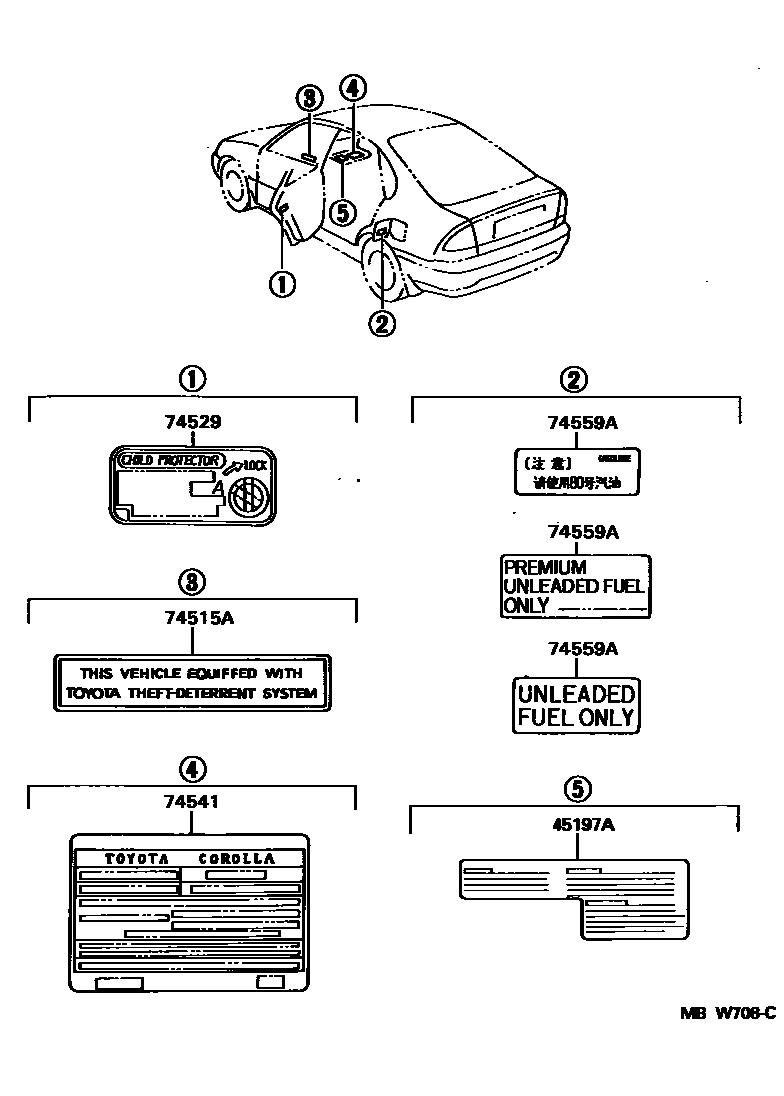

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45197A | air bag warning label | 45197-12070 |
| 74515A | Anti-theft warning nameplate | 74515-14010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-32010 · 69349-32010 |
| 74531 | Right door inner handle warning plate | 74531-12010 |
| 74532 | Left door inner handle warning plate | 74531-12010 |
| 74541 | tire pressure warning plate | 42661-1A540 · 42661-1A690 |
| 74559A | Fuel warning plate | 74559-14050 · 74559-16010 · 74559-28010 · 74559-50010 |
| 74571A | Label cover protective film | 74571-32010 |
