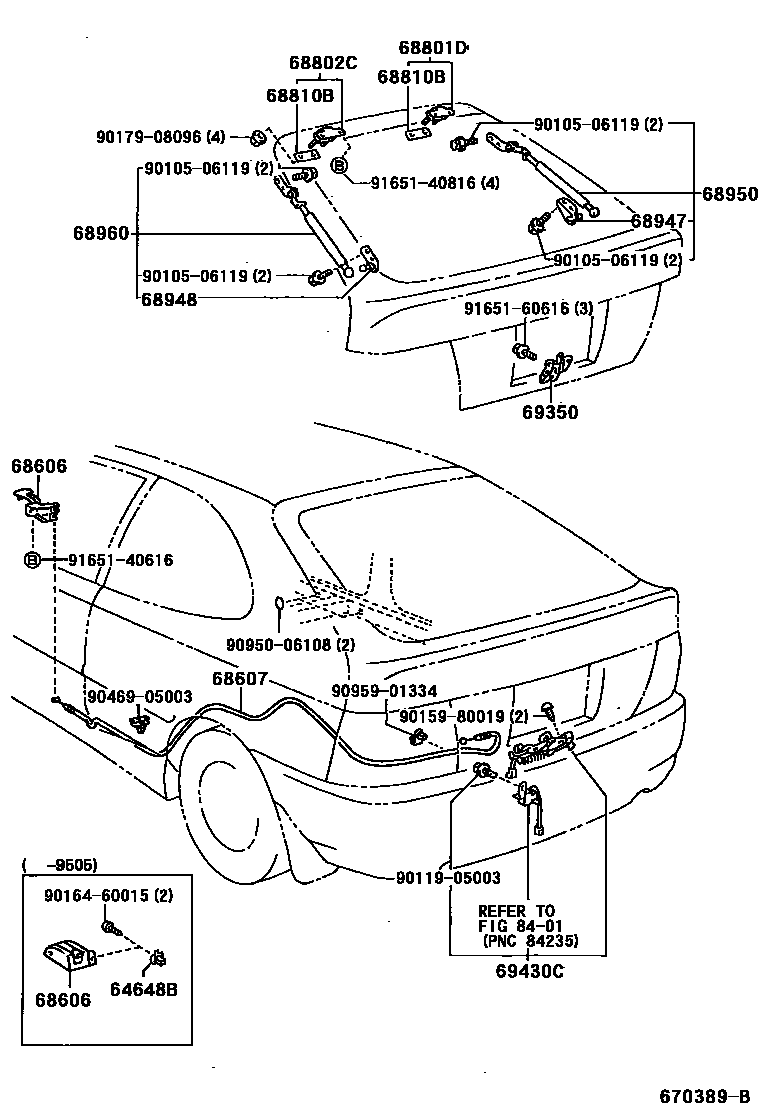

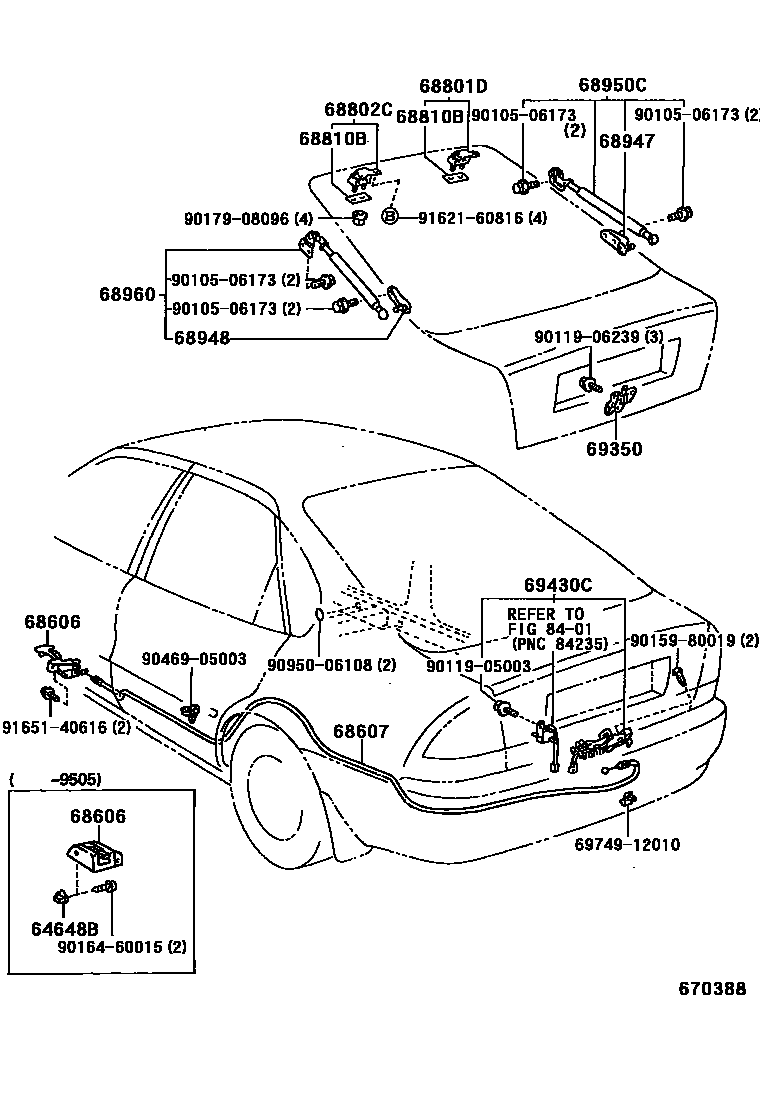

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64648B | Rear door lock opener seal | 64648-12010 |
| 68606 | Rear door lock opening lever sub-assembly | 64606-20090 · 64606-20091 · 64606-20160 · 64606-20161 |
| 68607 | Rear door lock control cable sub-assembly | 64607-12620 · 64607-12621 · 64607-12650 · 64607-12651 · 64607-12680 · 64607-12681 · 64607-12710 · 64607-12711 |
| 68801D | Back door right hinge sub-assembly | 68801-12070 · 68801-12080 · 68801-12090 |
| 68802C | Back door left hinge sub-assembly | 68801-12070 · 68801-12080 · 68801-12090 |
| 68810B | Back door hinge gasket | 68838-12010 · 68838-12020 · 68838-14022 |
| 68947 | Back door right damping strut lower bracket | 68947-12030 · 68947-12040 |
| 68948 | Rear door left damping strut lower bracket | 68948-12030 · 68948-12040 |
| 68950C | Back door right support rod assembly | 68950-19825 · 68950-19835 · 68950-19855 · 68950-19865 · 68950-19875 |
| 68960 | Back door left support rod assembly | 68960-19515 · 68960-19525 · 68960-19545 · 68960-19555 · 68960-19565 |
| 69350 | Rear door lock assembly | 69350-12120 · 69350-12190 |
| 69430C | Back door lock assembly | 69430-12300 · 69430-12301 · 69430-12310 · 69430-12311 |
