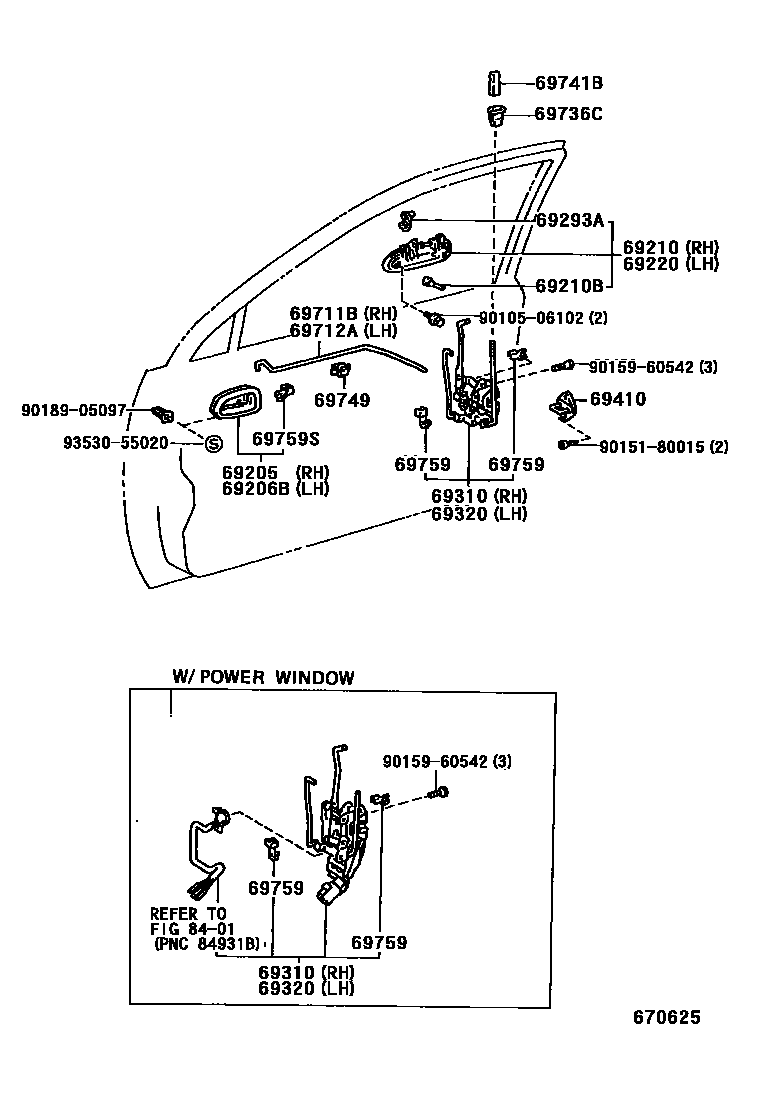

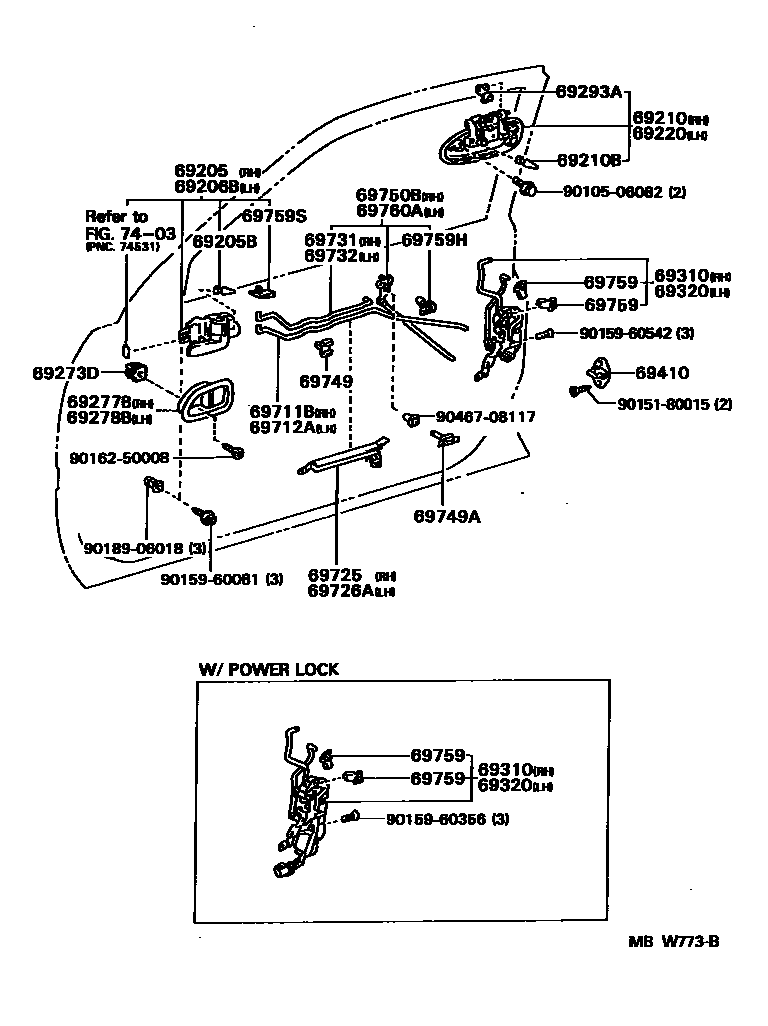

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210 | Right front door outer handle assembly | 69210-12160 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04014 |
| 69220 | Left front door outer handle assembly | 69220-12160 |
| 69273D | door inner panel | 69273-12040 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69030-12200 · 69030-12201 · 69030-12202 · 69030-12203 · 69030-12205 · 69030-12260 · 69030-12261 · 69030-12262 · 69030-12263 · 69030-12312 · 69310-12450 · 69310-12480 |
| 69320 | Left front door lock assembly | 69040-12210 · 69040-12211 · 69040-12212 · 69040-12213 · 69040-12260 · 69040-12261 · 69040-12262 · 69040-12263 · 69040-12322 · 69320-12460 · 69320-12490 |
| 69410 | Front door lock plate assembly | 69410-20070 · 69410-87001 |
| 69711B | Right front door lock remote control lever | 69711-12130 · 69711-12150 |
| 69712A | Left front door lock remote control lever | 69712-12140 · 69712-12160 |
| 69725 | Right front door inner locking link guard | 69725-12010 |
| 69726A | Left front door inner locking link guard | 69726-12010 |
| 69731 | Right front door No. 1 inner locking link | 69731-12050 |
| 69732 | Left front door No. 1 inner locking link | 69732-12050 |
| 69736C | Front door locking link guide block | 69736-12100 · 69736-12110 |
| 69749 | Front door lock link clip | 69749-12040 · 69749-12070 · 69749-50020 |
| 69749A | Front door lock No. 1 link clamp | 69749-12060 |
| 69750B | Right front door inner locking link assembly | 69750-12050 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20040 · 69759-20050 · 69759-24010 · 69759-24020 · 69759-24050 · 69759-24060 |
| 69759H | Rear door lock No. 2 control link buckle | 69759-20080 · 69759-20090 |
| 69759S | Front door inner handle buckle | 69759-20060 · 69759-20070 · 69759-22040 · 69759-22050 |
| 69760A | Left front door inner locking link assembly | 69760-12050 |
