Toyota COROLLA 前门板和前门玻璃 — Figure 6701

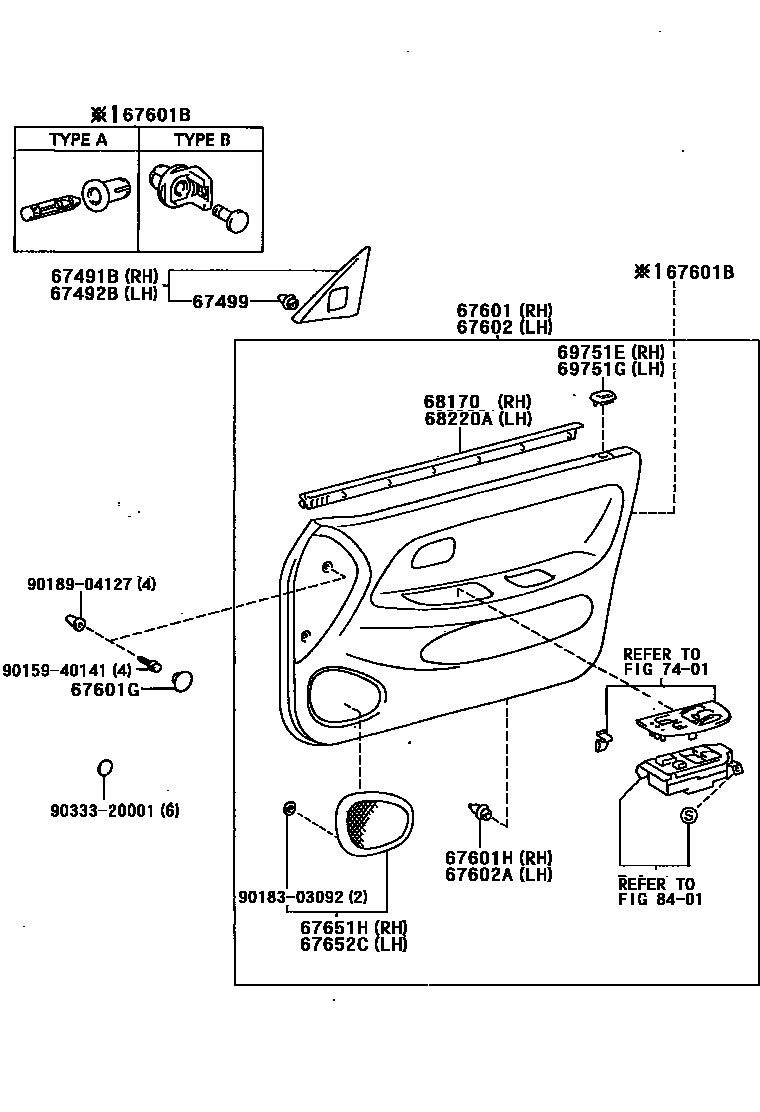

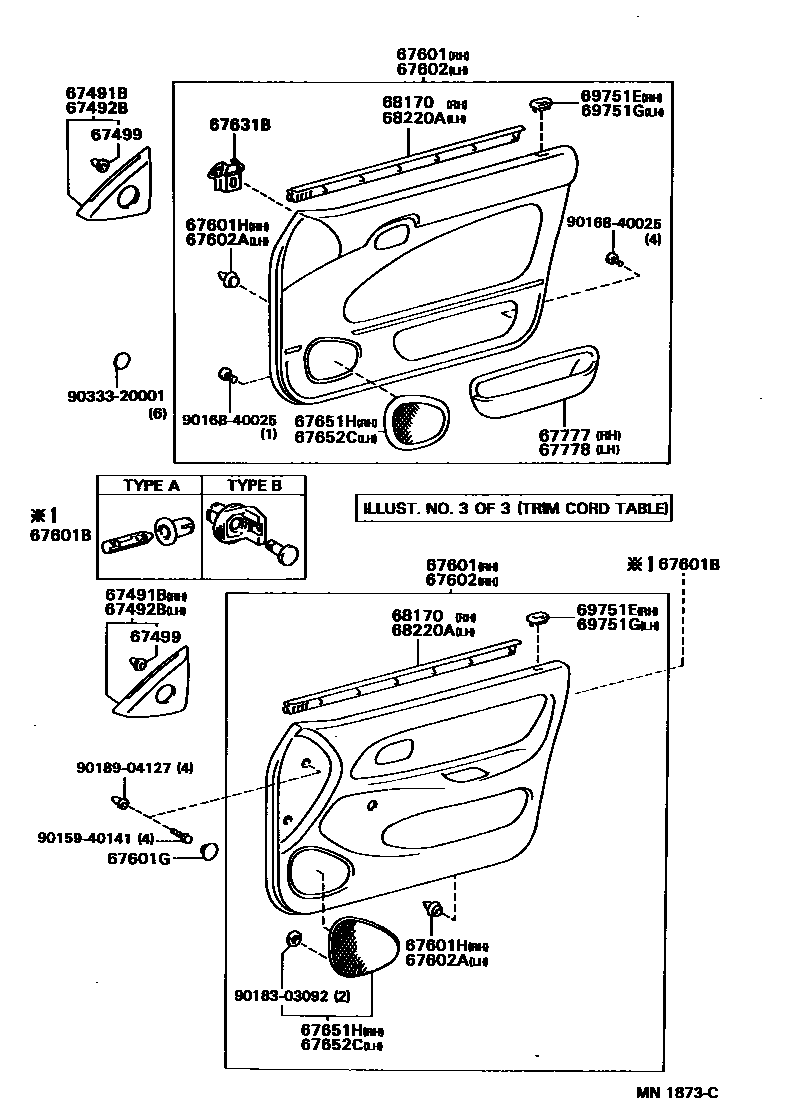

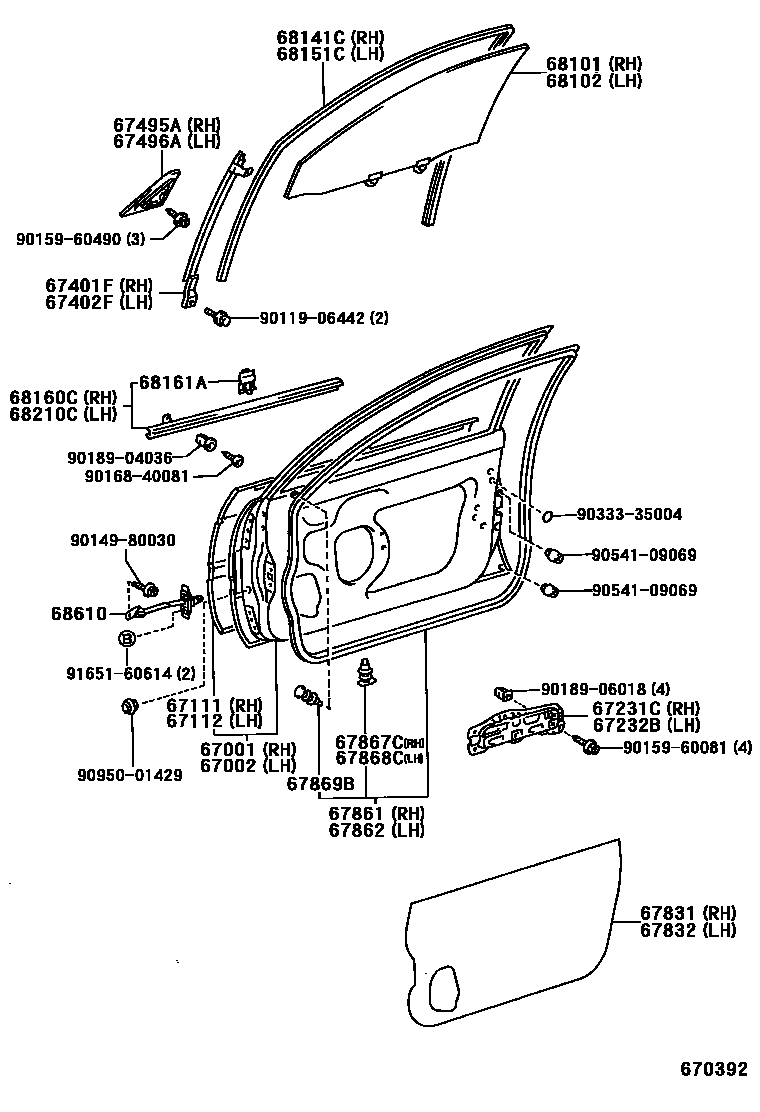

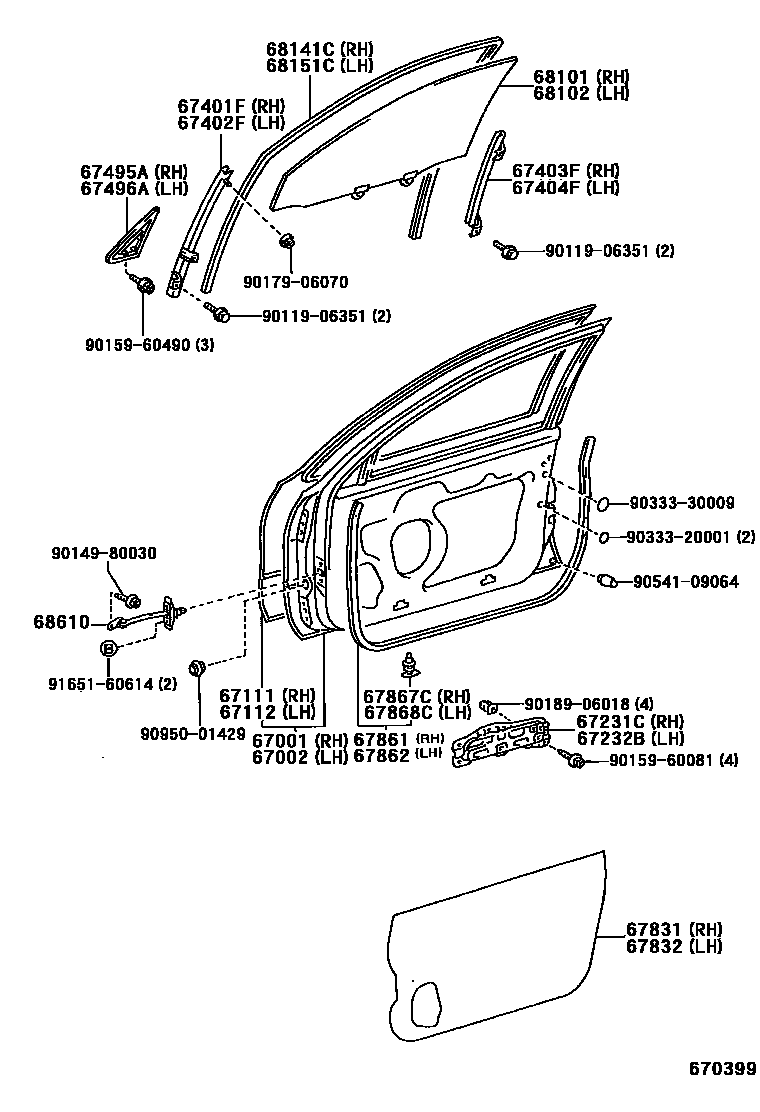

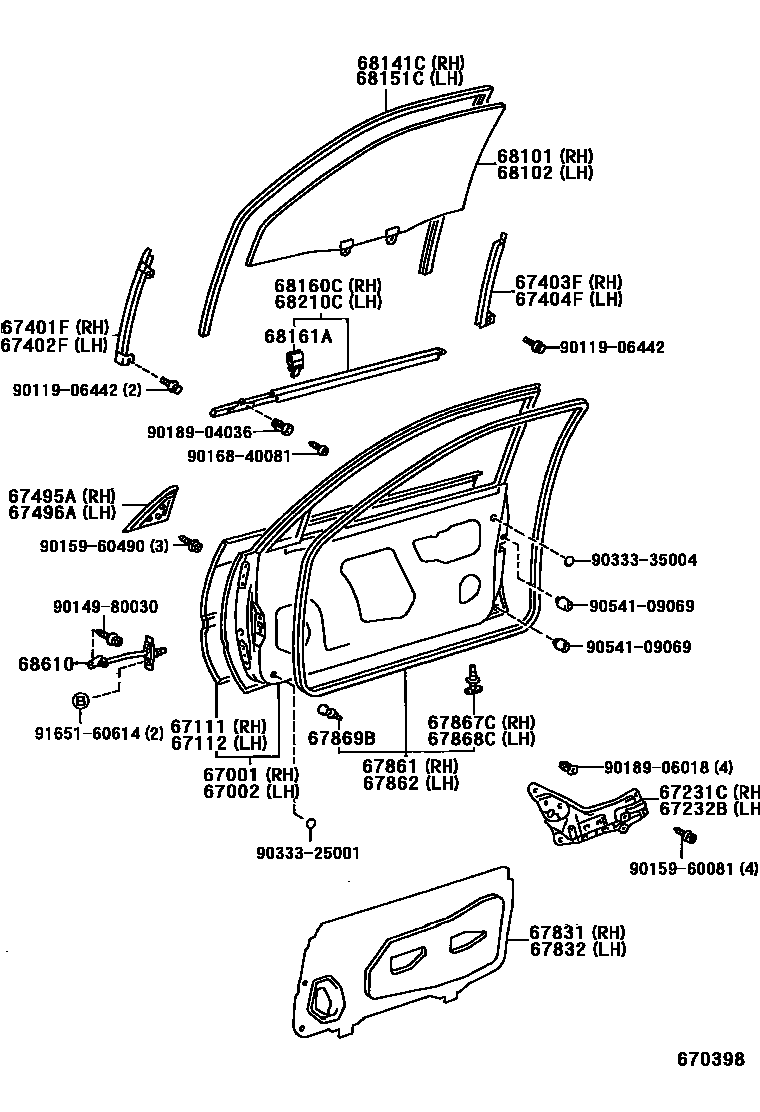

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-1A491 · 67001-1A510 · 67001-1A530 · 67001-1A540 |
| 67002 | Left front door panel sub-assembly | 67002-1A471 · 67002-1A490 · 67002-1A510 · 67002-1A520 |
| 67111 | Outer right front door panel | 67111-12560 · 67111-12580 · 67111-12610 · 67111-12620 |
| 67112 | Outer left front door panel | 67112-12460 · 67112-12490 · 67112-12530 · 67112-12620 |
| 67231C | Right door trim panel bracket | 67231-12010 · 67231-12020 |
| 67232B | Left door trim panel bracket | 67232-12010 · 67232-12020 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-12270 · 67401-12320 · 67401-12330 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-12290 · 67402-12340 · 67402-12350 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12170 · 67403-12190 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12170 · 67404-12190 |
| 67491B | Right front door window upper bracket decorative strip | 67491-12231 · 67491-12241 · 67491-12261 · 67491-12310 · 67491-12320 · 67491-12350 |
| 67492B | Left front door window upper bracket decorative strip | 67492-12231 · 67492-12241 · 67492-12261 · 67492-12270 · 67492-12310 · 67492-12340 |
| 67495A | Right front door front lower door frame upper cover | 67495-12160 · 67495-12170 · 67495-12190 |
| 67496A | Left front door front lower door frame upper cover | 67496-12160 · 67496-12190 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-30070 |
| 67601B | Catch (for front door trim panel) | 90467-09141 |
| 67601H | Right door trim panel fixing | 67771-12030 · 67771-12050 · 67771-12070 · 67771-13030 · 67771-16160 · 67771-16170 · 67771-28020 · 90467-08179 |
| 67602A | Left door trim panel fixing | 67771-12030 · 67771-12050 · 67771-12070 · 67771-13030 · 67771-16160 · 67771-16170 · 67771-28020 · 90467-08179 |
| 67631B | Front door trim panel fixings | 67631-12040 |
| 67831 | Right front door access hole cover | 67831-12470 · 67831-12480 · 67831-12490 · 67831-12510 |
| 67832 | Left front door access hole cover | 67832-12270 · 67832-12280 · 67832-12290 · 67832-12300 |
| 67861 | Right front door seal | 67861-12780 · 67861-12800 · 67861-12820 |
| 67862 | Left front door seal | 67862-12740 · 67862-12760 · 67862-12780 |
| 67867C | Right front door seal strip fixing | 67867-12150 · 67868-12050 · 67868-20140 |
| 67868C | Left front door seal strip fixing | 67867-12150 · 67868-12050 · 67868-20150 |
| 67869B | Front door seal strip clip | 67869-12020 |
| 68101 | Right front door glass sub-assembly | 68101-12790 · 68101-12800 · 68101-12830 · 68101-12840 · 68101-1A020 |
| 68102 | Left front door glass sub-assembly | 68102-12790 · 68102-12800 · 68102-12830 · 68102-12840 · 68102-1A020 |
| 68141C | Right front door glass lift channel | 68141-12330 · 68141-12390 · 68141-12430 |
| 68151C | Left front door glass lift channel | 68151-12050 · 68151-12110 · 68151-12150 |
| 68160C | Right front door glass outer sealing strip assembly | 68161-12190 · 68161-12220 |
| 68161A | Catch (for front door glass outer sealing strip) | 68211-12160 |
| 68170 | Front door glass inner sealing strip assembly | 68171-12160 · 68171-12220 · 68171-12230 |
| 68210C | Left front door glass outer sealing strip assembly | 68162-12130 · 68162-12160 |
| 68220A | Left front door glass inner sealing strip assembly | 68172-12050 · 68172-12080 · 68172-12150 |
| 68610 | Front door opening limiter assembly | 68610-12080 · 68610-12081 · 68610-12090 · 68610-12091 · 68610-12120 · 68620-12010 · 68620-12011 · 68620-12020 · 68620-12021 · 68620-12050 |
