Toyota COROLLA 车侧通风装置 — Figure 6102

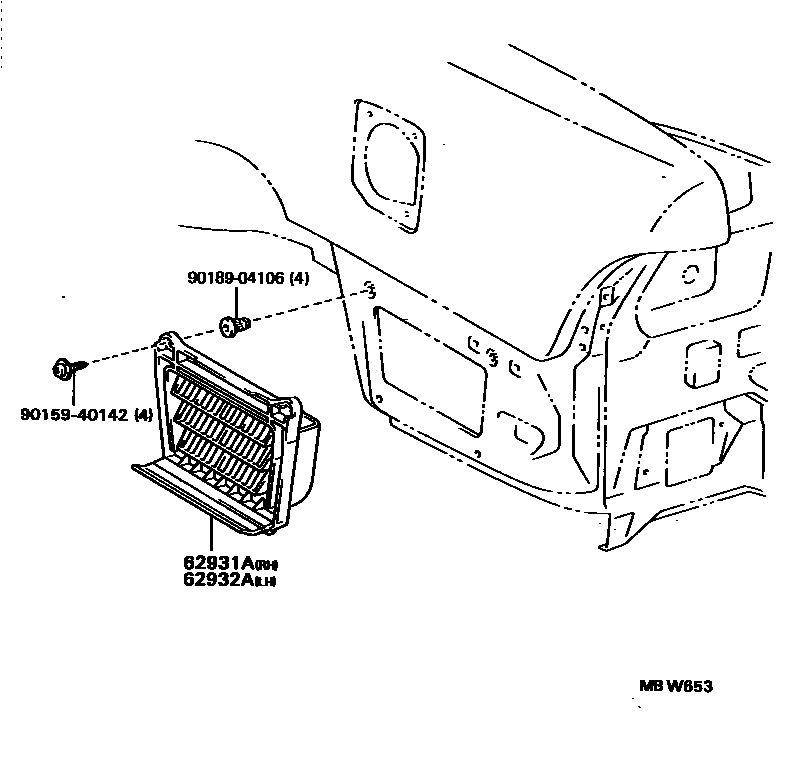

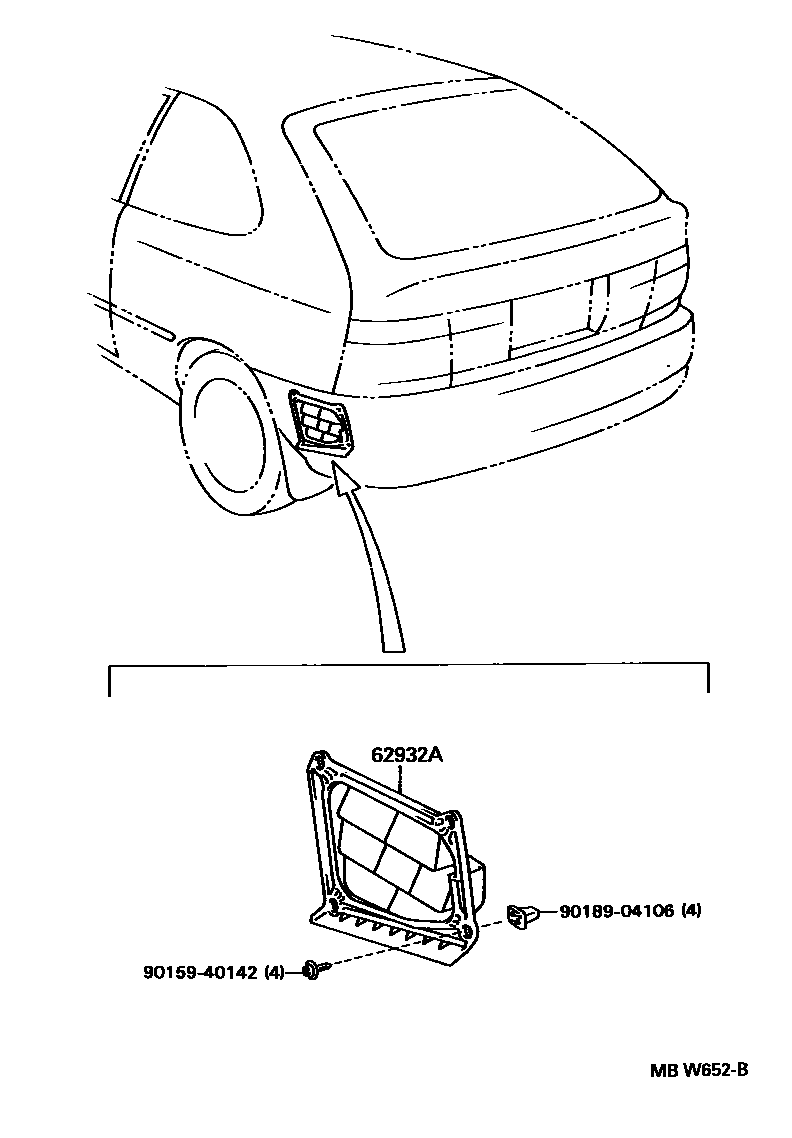

Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62931A | Right side ventilation duct | 62930-12120 |
| 62932A | Left side ventilation duct | 62930-12110 · 62930-12130 |
