Toyota COROLLA 侧梁 — Figure 6101

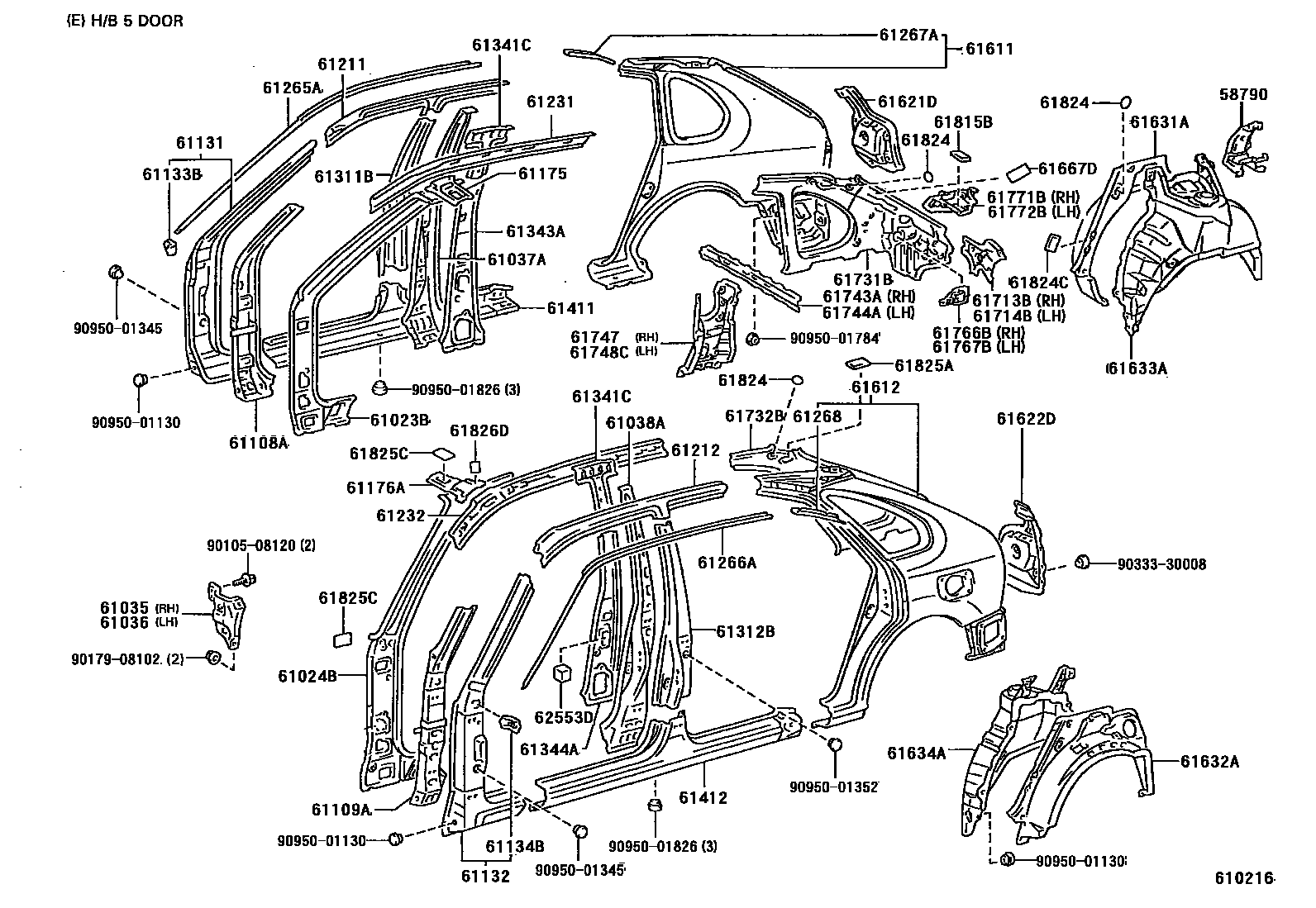

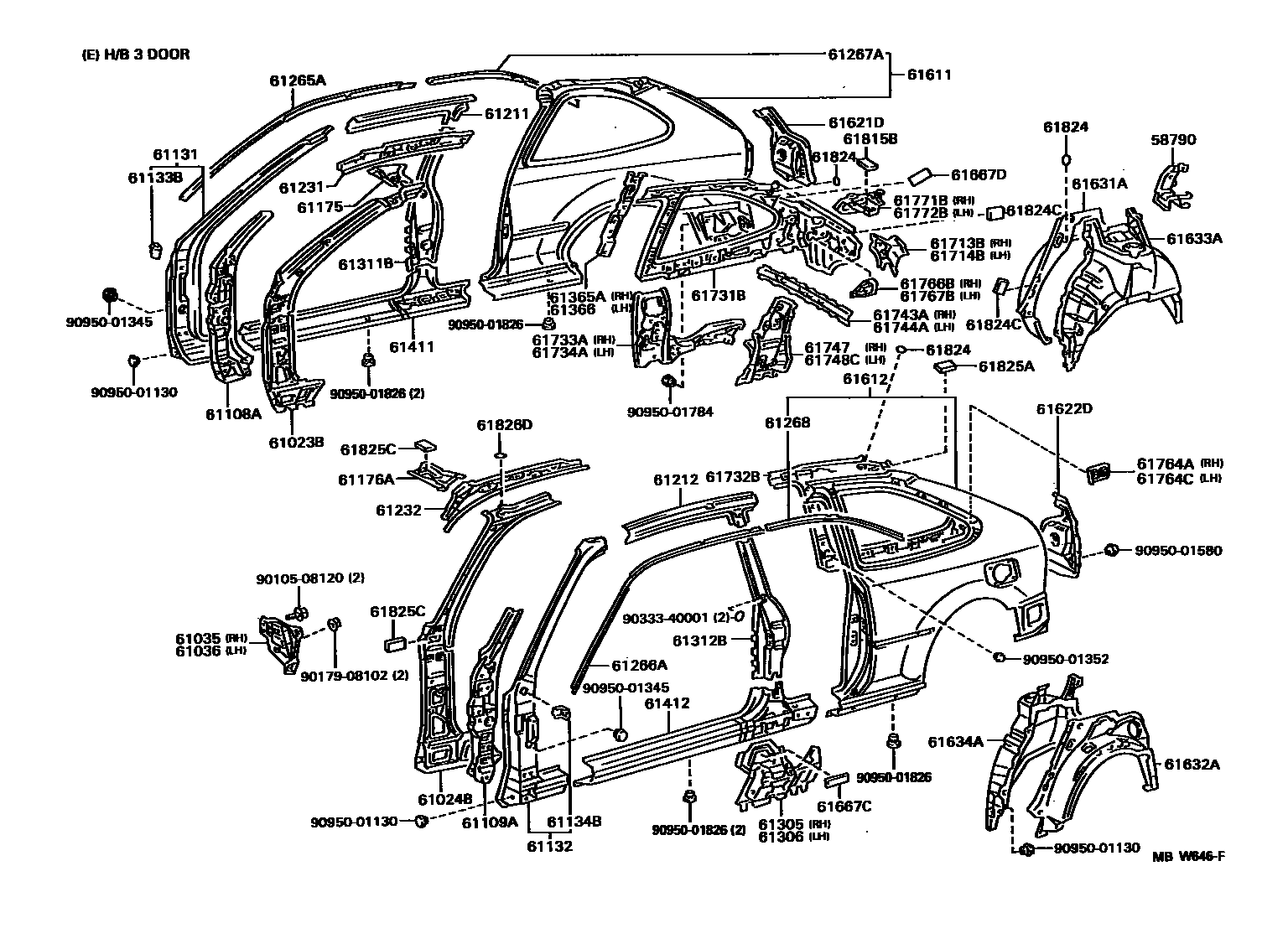

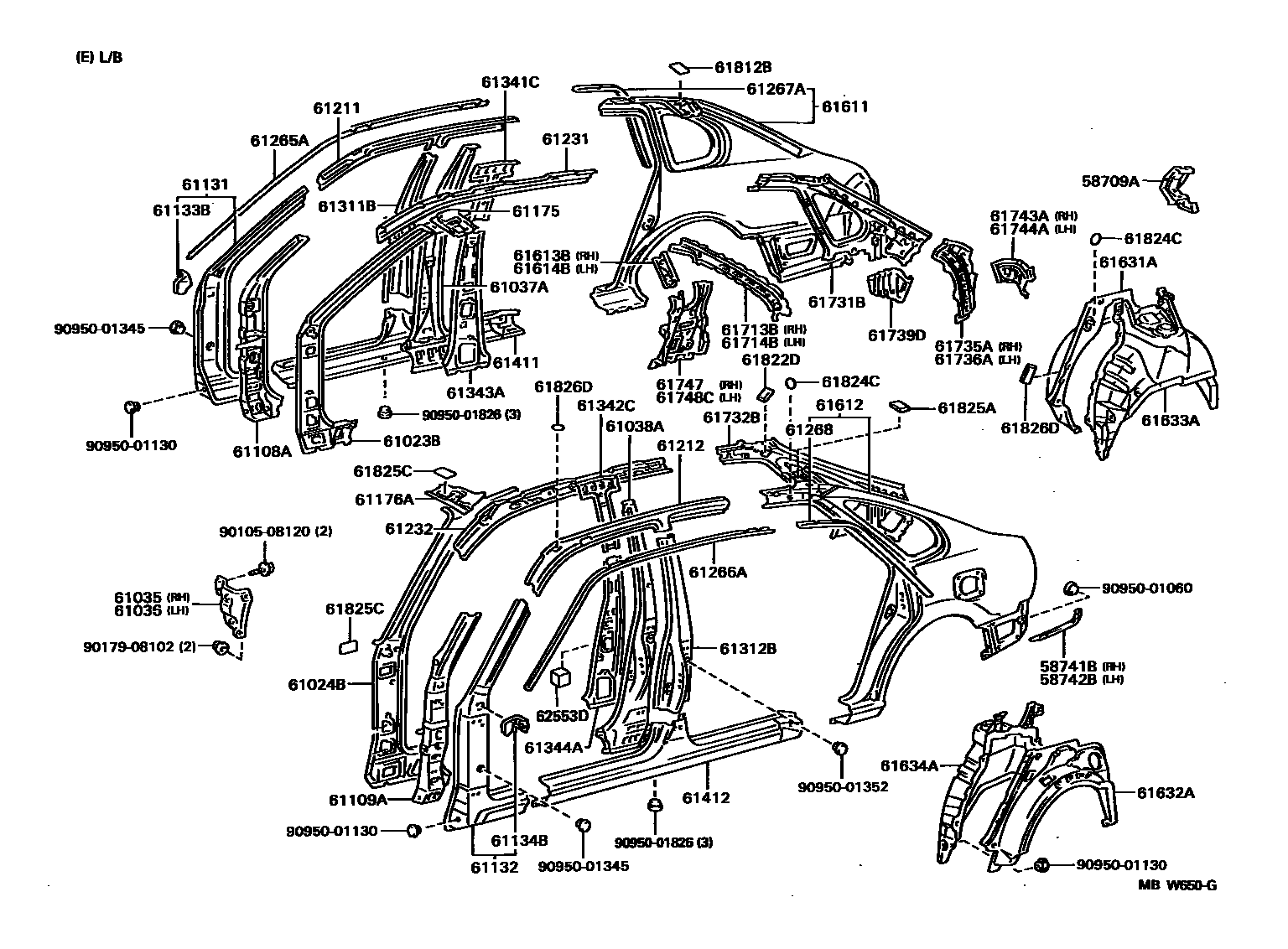

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 78 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58709A | Jack bracket sub-assembly | 58709-12060 |
| 58741B | Right side enclosure protection panel | 52462-12050 |
| 58742B | Left side enclosure protection panel | 52463-12040 |
| 58790 | Jack bracket assembly | 58790-12100 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12050 · 61023-12060 · 61023-12070 · 61023-12110 · 61023-12160 · 61023-12180 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12050 · 61024-12060 · 61024-12070 · 61024-12110 · 61024-12170 · 61024-12200 · 61024-12210 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61035-12050 · 61035-12060 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-12050 · 61036-12090 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12050 · 61037-12060 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12050 · 61038-12060 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12110 · 61108-12120 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12100 · 61109-12110 |
| 61131 | Right body outer front upper pillar | 61131-12350 · 61131-12360 · 61131-12370 · 61131-12390 · 61131-12410 |
| 61132 | Left body outer front upper pillar | 61132-12360 · 61132-12370 · 61132-12380 · 61132-12400 · 61132-12420 |
| 61133B | Right body outer front pillar bracket | 61133-12190 · 61133-12240 |
| 61134B | Left body outer front pillar bracket | 61133-12190 · 61134-12210 |
| 61175 | No. 2 right side body inner front pillar reinforcement | 61175-12080 · 61175-12090 |
| 61176A | No. 2 left body inner front pillar reinforcement | 61176-12080 · 61176-12090 |
| 61211 | Roof right outer longitudinal beam | 61211-12290 · 61211-12310 · 61211-12330 |
| 61212 | Roof left outer longitudinal beam | 61212-12290 · 61212-12310 · 61212-12330 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12500 · 61231-12680 · 61231-12770 · 61231-12810 · 61231-12820 |
| 61232 | Roof left inner longitudinal beam | 61232-12550 · 61232-12590 · 61232-12650 · 61232-12690 · 61232-12700 |
| 61265A | Drainage channel in the middle section on the right side of the roof | 61265-12180 · 61265-12200 · 61265-12220 |
| 61266A | Drainage channel in the middle section of the left side of the roof | 61266-12180 · 61266-12200 · 61266-12220 |
| 61267A | Roof right rear gutter | 61267-12160 · 61267-12170 · 61267-12190 |
| 61268 | Roof left rear gutter | 61268-12160 · 61268-12170 · 61268-12190 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-12100 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-12100 |
| 61311B | Right body outer center pillar | 61311-12190 · 61311-12200 · 61311-12220 |
| 61312B | Left body outer center pillar | 61312-12230 · 61312-12240 · 61312-12260 |
| 61341C | Right inner middle pillar | 61341-12090 · 61341-12100 |
| 61342C | Left side inner center pillar | 61342-12100 |
| 61343A | Right body inner center pillar | 61343-12090 · 61343-12100 |
| 61344A | Left body inner center pillar | 61344-12090 · 61344-12100 |
| 61365A | No. 3 seat belt anchor to center pillar reinforcement | 61365-12160 |
| 61366 | Left No. 3 seat belt anchor to center pillar reinforcement | 61366-12100 |
| 61411 | Right door outer sill panel | 61411-12530 · 61411-12540 · 61411-12560 |
| 61412 | Left door outer sill panel | 61412-12520 · 61412-12530 · 61412-12550 |
| 61611 | Right side hoarding | 61601-1E690 · 61601-1E923 · 61601-1E924 · 61601-1E927 |
| 61612 | left side panel | 61602-1E590 · 61602-1E929 · 61602-1E930 · 61602-1E933 |
| 61613B | Right front side panel inner panel | 61613-12030 |
| 61614B | Left front side panel inner panel | 61614-12030 |
| 61621D | Back door right opening slot | 61621-12907 |
| 61622D | Rear door left opening slot | 61622-12907 |
| 61631A | Right wheel cover outer panel | 61631-12210 |
| 61632A | Left side wheel cover outer panel | 61632-12210 |
| 61633A | Right wheel housing lining panel | 61607-12560 · 61607-12590 · 61607-12630 · 61607-12640 |
| 61634A | Left side wheel housing lining panel | 61608-12540 · 61608-12570 · 61608-12610 · 61608-12620 |
| 61667C | No. 1 side panel seal | 61667-12050 |
| 61667D | Side panel seals | 61667-12050 |
| 61713B | Roof right outer reinforcement | 61713-12080 · 61713-12090 |
| 61714B | Roof left outer reinforcement | 61714-12070 · 61714-12080 |
| 61731B | Roof right inner panel | 61701-12280 · 61701-12290 · 61731-12580 · 61731-12590 |
| 61732B | Roof left inner panel | 61702-12280 · 61702-12290 · 61732-12540 · 61732-12550 |
| 61733A | Right front roof inner panel | 61733-12903 |
| 61734A | Left front roof inner panel | 61734-12903 |
| 61735A | Right rear roof inner panel | 61735-12340 |
| 61736A | Left rear roof inner panel | 61736-12330 |
| 61739D | Jack bracket bracket reinforcement | 61739-12120 |
| 61743A | Rear door opening right reinforcement | 61703-12030 · 61743-12030 · 61743-12040 |
| 61744A | Rear door opening left reinforcement | 61704-12100 · 61744-12030 · 61744-12040 |
| 61747 | Roof right inner panel to wheel housing bracket | 61703-12020 · 61747-12901 · 61747-12902 |
| 61748C | Roof left inner panel to wheel arch bracket | 61704-12070 · 61748-12901 · 61748-12902 |
| 61764A | Corner window locking corner plate | 61764-12060 |
| 61764C | Corner window locking corner plate | 61765-12070 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-12270 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-12230 |
| 61771B | Opening frame on the upper right corner of the back door | 61771-12030 · 61771-12040 |
| 61772B | Opening frame at the upper left corner of the back door | 61772-12030 · 61772-12040 |
| 61812B | Right noise control panel | 61812-12010 |
| 61815B | Right inner upper cover of the roof | 61815-32020 |
| 61822D | Left side noise control panel | 61822-12010 |
| 61824 | Noise Control Panel No. 1 | 61824-12040 |
| 61824C | No. 1 silencer panel gasket | 61824-12040 · 61826-12020 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 · 61825-12040 |
| 61825C | No. 2 silencer panel gasket | 61815-32020 · 61825-12010 |
| 61826D | Noise Control Panel No. 3 | 61824-12040 · 61827-12030 |
| 62553D | No. 3 column pad | 61667-12050 · 62151-12130 · 62553-12120 |
