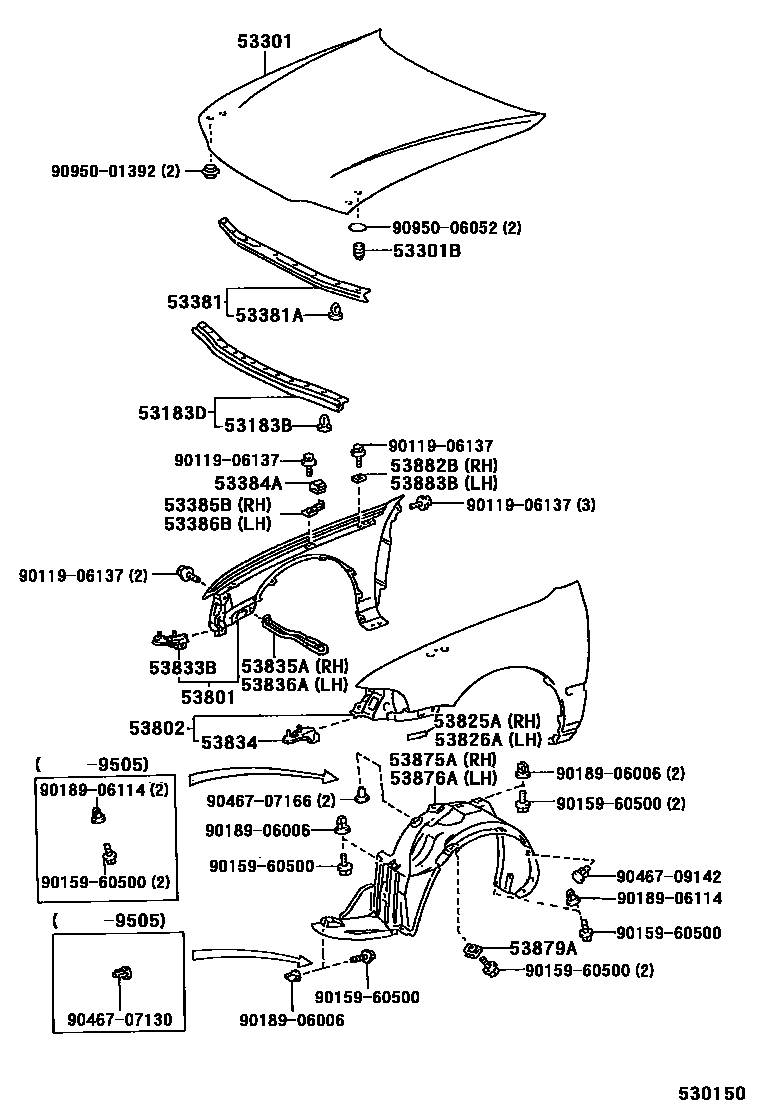

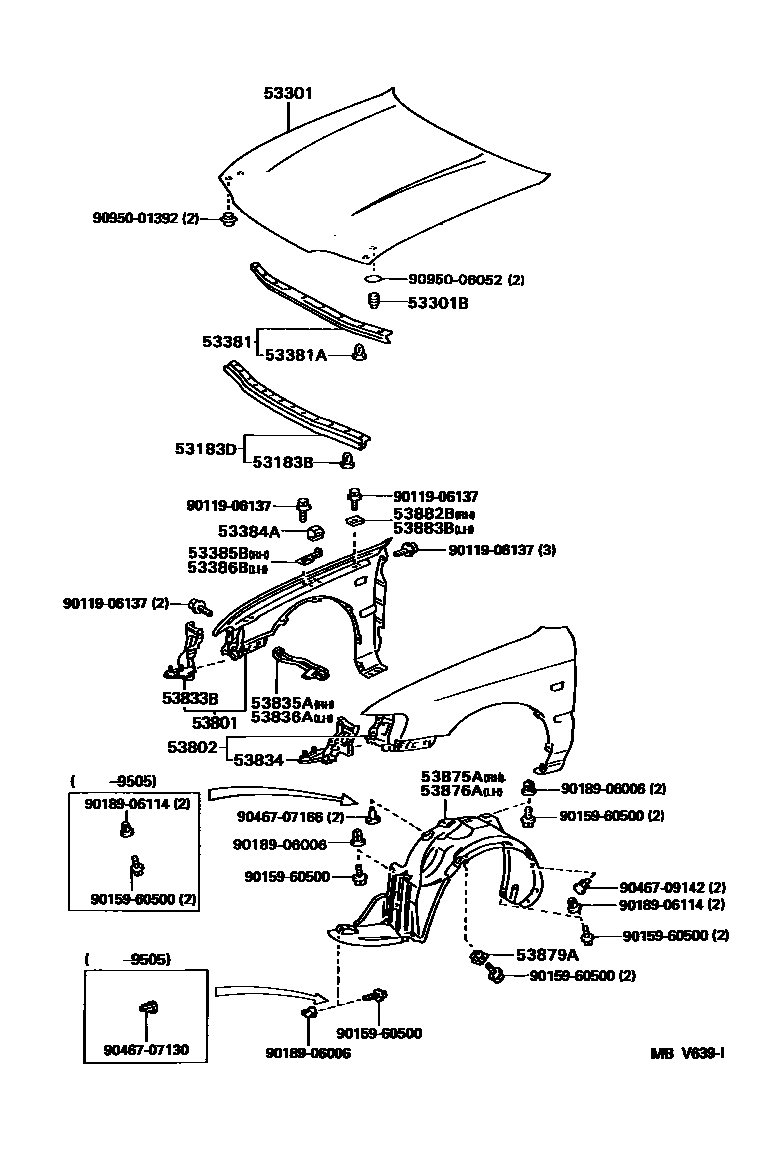

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183B | Clip (for headlight cover seal) | 90467-08011 |
| 53183D | Headlight cover to engine cover seal | 53183-12100 · 53183-12180 |
| 53301 | Engine cover sub-assembly | 53301-12700 · 53301-12710 |
| 53301B | engine cover cushion | 90541-15019 |
| 53381 | Engine cover to radiator bracket seal | 53381-12160 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53384A | fender to engine cover buffer block | 53384-12080 |
| 53385B | Right side bracket (fender to engine cover bumper) | 53385-12020 · 53386-20020 |
| 53386B | Left side bracket (fender to engine cover bumper) | 53385-20020 · 53386-12020 |
| 53801 | Right front fender sub-assembly | 53801-1E700 · 53801-1E740 · 53801-1E810 |
| 53802 | Left front fender sub-assembly | 53802-1E580 · 53802-1E620 · 53802-1E690 |
| 53825A | Right front fender protection piece | 53825-12020 |
| 53826A | Protection piece on left front fender | 53825-12020 |
| 53833B | Right front fender side panel | 53083-12050 · 53083-12060 |
| 53834 | Left front fender lower side panel | 53084-12050 · 53084-12060 |
| 53835A | Right front fender to fender stay | 53803-12020 · 53803-12030 |
| 53836A | Left front fender to fender stay | 53804-12020 · 53804-12030 |
| 53875A | Right front fender lining | 53875-12210 |
| 53876A | Left front fender lining | 53876-12200 |
| 53879A | Front fender lining fixing parts | 53879-14010 |
| 53882B | Right front fender seal | 53882-16030 |
| 53883B | Left front fender seal | 53882-16030 |
