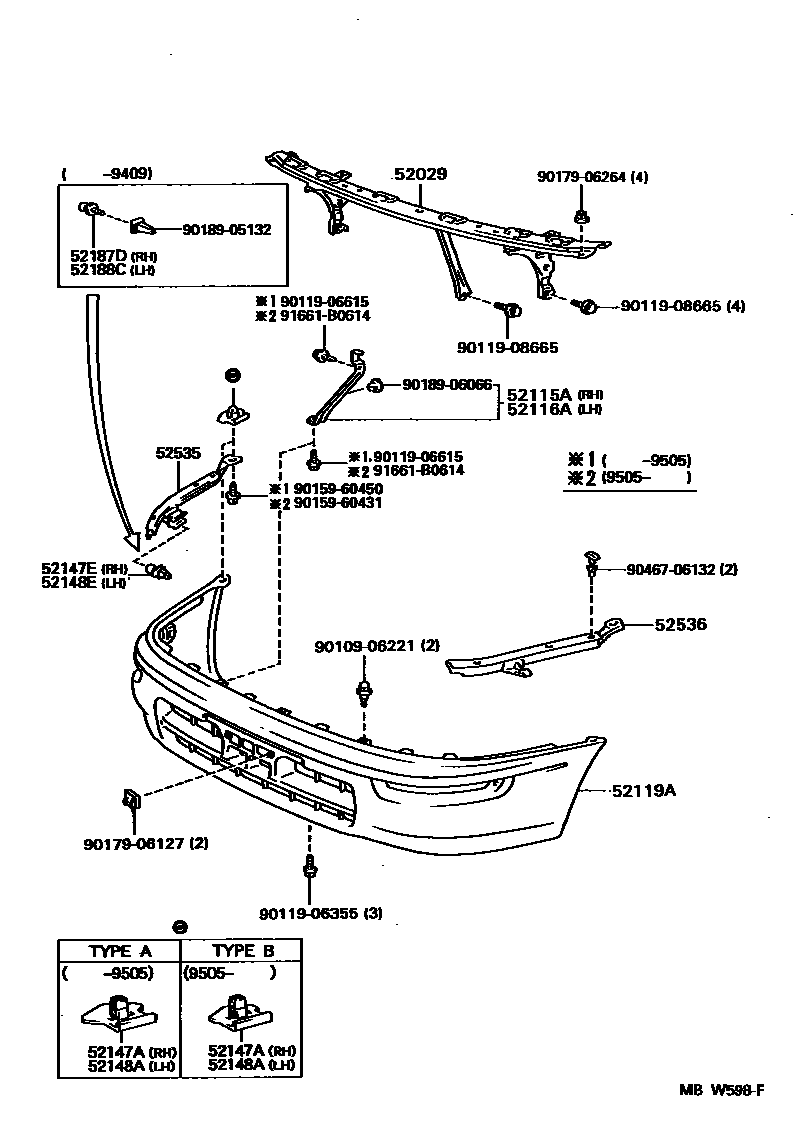

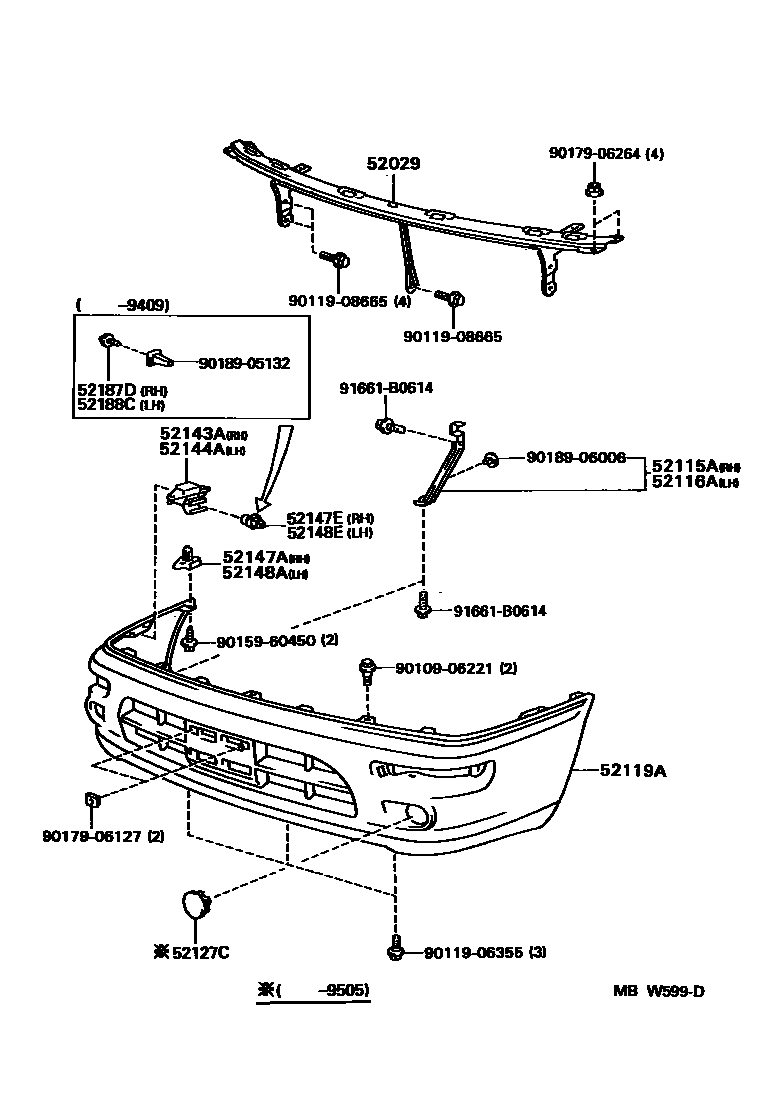

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-12020 · 52029-12080 |
| 52115A | Front bumper right side bracket | 52115-12340 · 52115-12350 |
| 52116A | Front bumper left bracket | 52116-12270 · 52116-12280 |
| 52119A | front bumper cover | 52119-1E130 · 52119-1E190 · 52119-1E380 |
| 52127C | Front bumper hole cover | 52127-12120 |
| 52143A | Front bumper inner right arm | 52143-12300 · 52143-12330 |
| 52144A | Front bumper inner left arm | 52143-12300 · 52143-12330 |
| 52147A | Front bumper stay right side bracket | 52147-12170 · 52147-16080 |
| 52147E | Front bumper right side mounting support | 52148-12130 |
| 52148A | Front bumper stay left bracket | 52147-12170 · 52147-16080 |
| 52148E | Front bumper left side mounting support | 52148-12130 |
| 52187D | Front bumper right positioning guide rod | 52187-12140 |
| 52188C | Front bumper left positioning guide rod | 52187-12140 |
| 52535 | Front bumper right side fixing bracket | 52503-12010 |
| 52536 | Front bumper left fixed bracket | 52504-12010 |
