Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

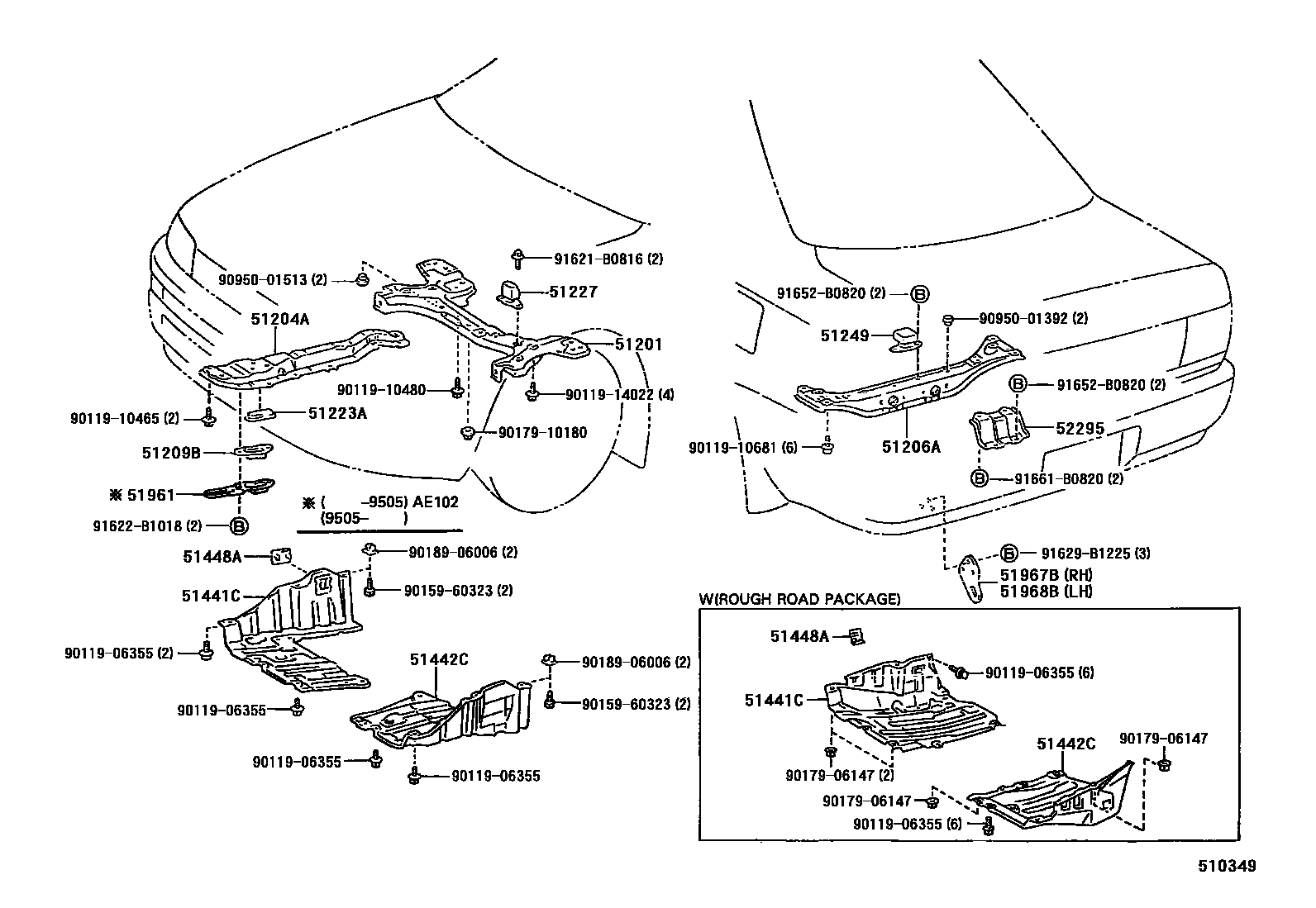

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12320 · 51201-12360 · 51201-12370 · 51201-12380 |
| 51204A | Engine center mount beam sub-assembly | 51204-12080 |
| 51206A | Rear suspension cross member sub-assembly | 51206-12040 · 51206-12060 |
| 51209B | Center beam front protective cover sub-assembly | 51209-12010 |
| 51223A | Engine mounting hole cover | 51223-12010 |
| 51227 | Front suspension cross member shock absorber counterweight | 51227-12040 |
| 51249 | Rear suspension cross member shock absorber | 51249-12060 |
| 51441C | Engine right bottom cover | 51408-12050 · 51408-12051 · 51408-12060 · 51441-12140 |
| 51442C | Engine left bottom cover | 51409-12030 · 51409-12040 · 51442-12080 · 51442-12090 |
| 51448A | Engine right bottom cover | 51448-20010 |
| 51961 | No. 1 hook | 51960-12040 · 51960-12060 |
| 51967B | right rear transport hook | 51967-12220 |
| 51968B | Left rear transport hook | 51968-12110 · 51968-12140 · 51968-12160 |
| 52295 | Right rear suspension cross member bracket | 52295-12010 |
