Toyota COROLLA 前桥控制臂和转向节 — Figure 4802

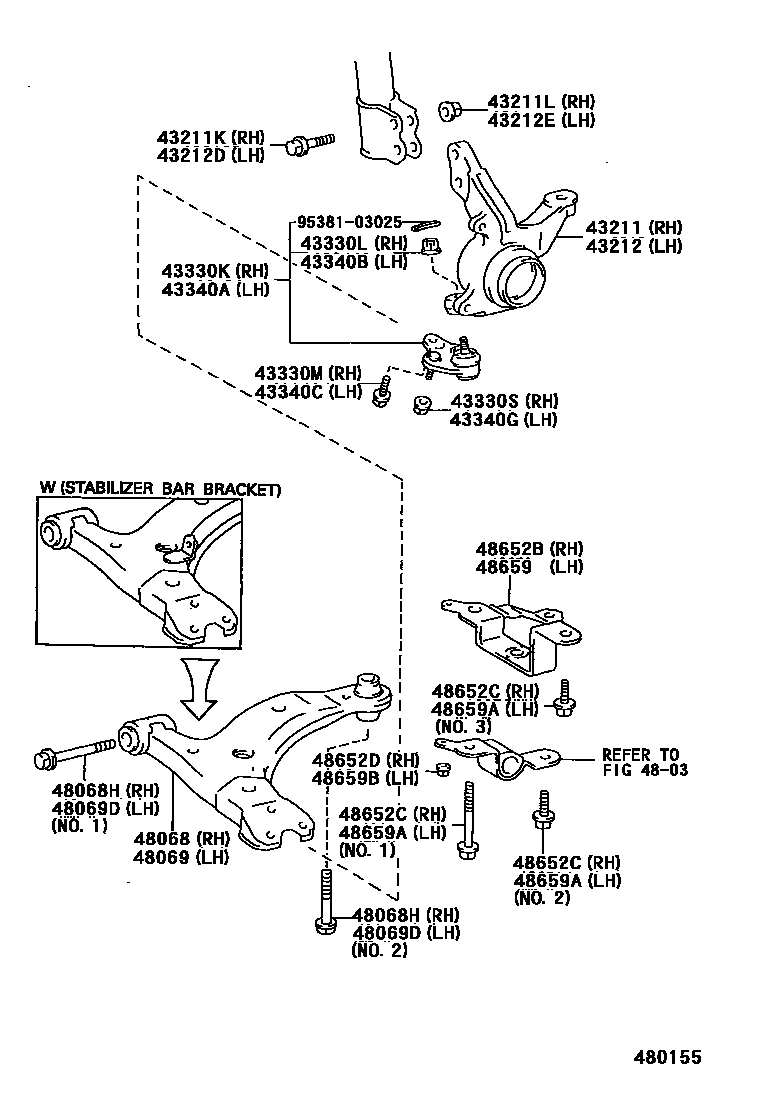

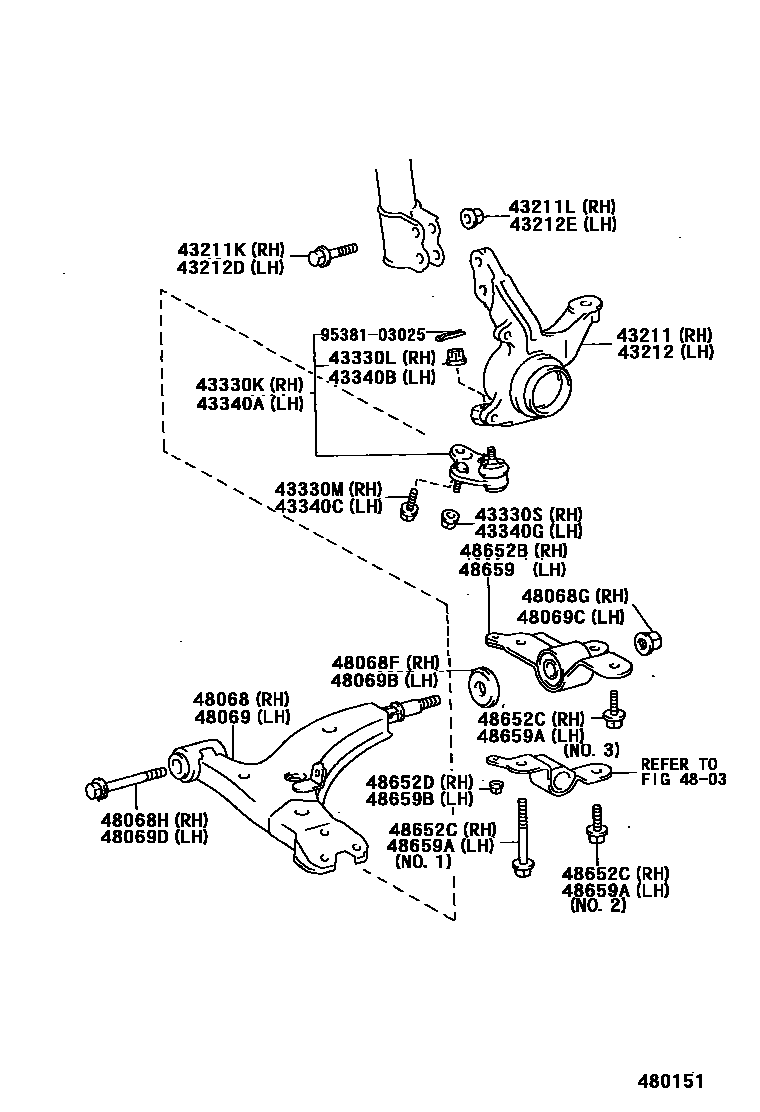

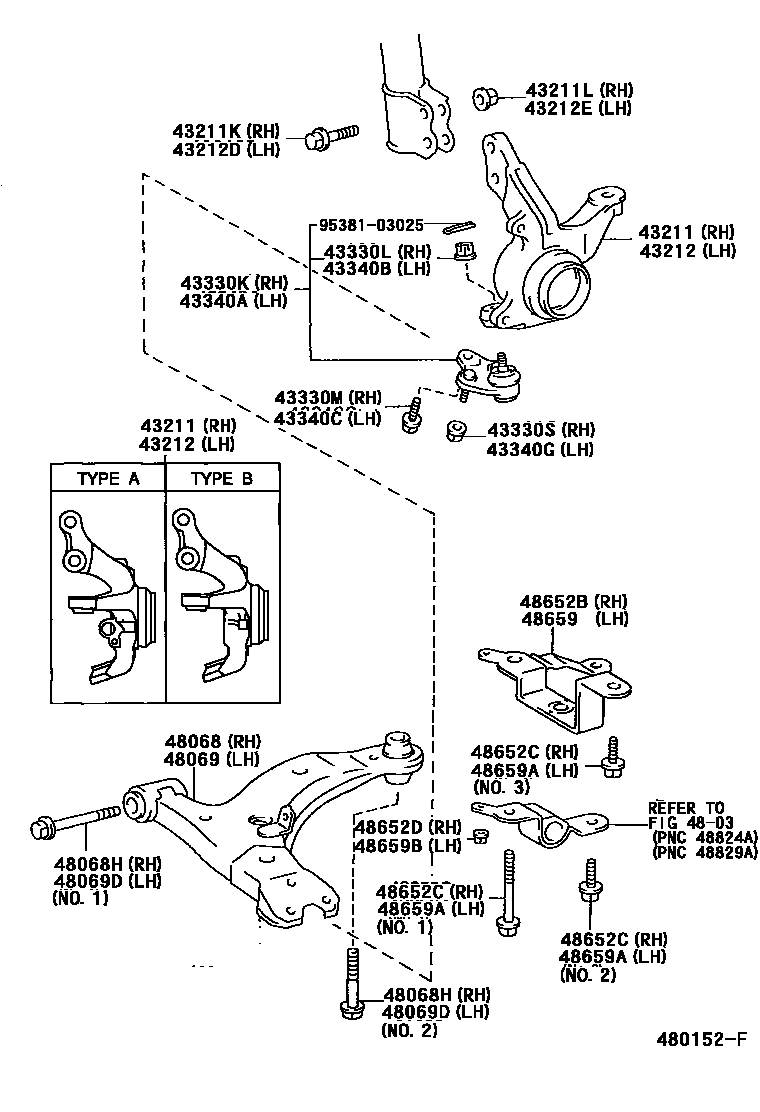

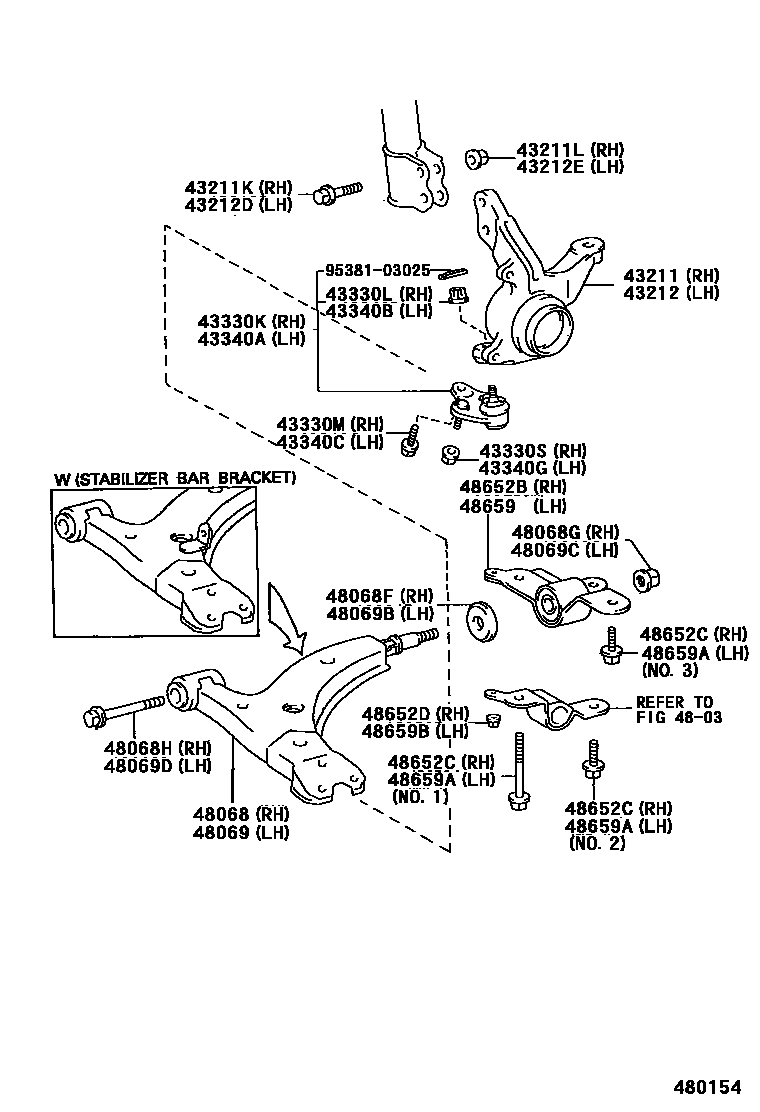

Toyota COROLLA EPC diagram 4802, 前桥控制臂和转向节, with 5 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-12200 · 43211-12220 · 43211-12240 · 43211-12290 · 43211-12300 · 43211-12310 |

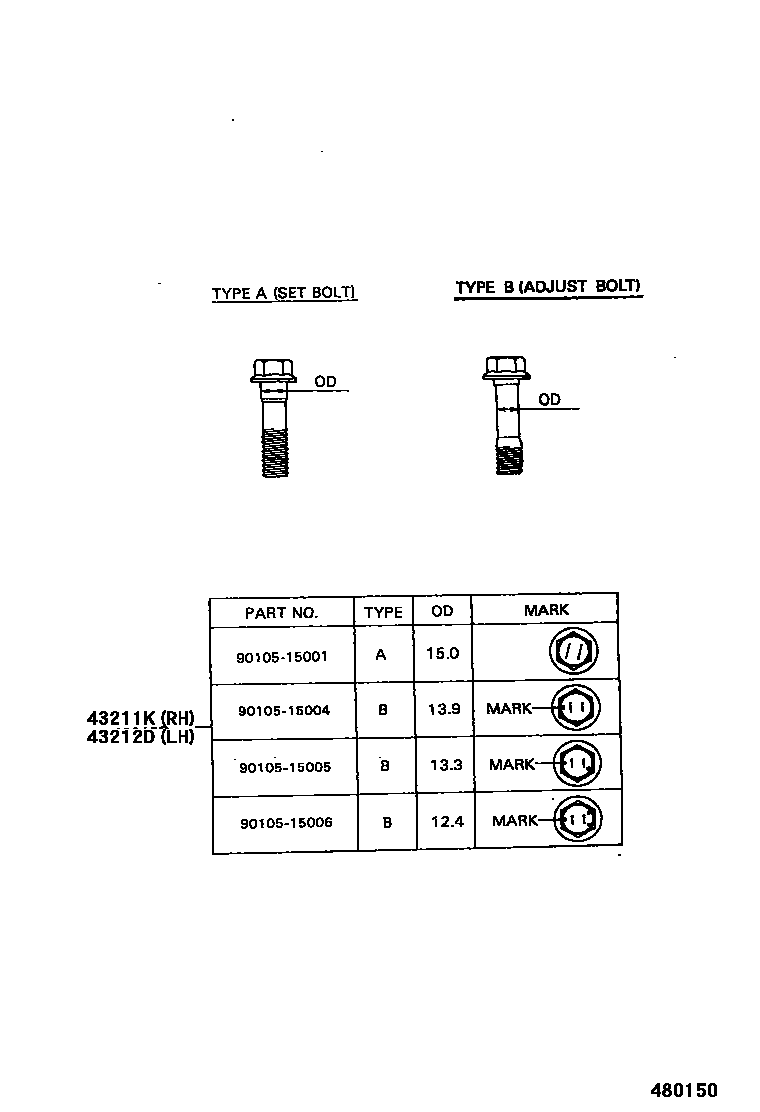

| 43211K | Bolt (for right steering knuckle) | 90105-15001 · 90105-15004 · 90105-15005 · 90105-15006 · 90105-15007 |
| 43211L | Nut (for right steering knuckle) | 90179-15001 |
| 43212 | left steering knuckle | 43212-12160 · 43212-12180 · 43212-12200 · 43212-12250 · 43212-12260 · 43212-12270 |
| 43212D | Bolt (for left steering knuckle) | 90105-15001 · 90105-15004 · 90105-15005 · 90105-15006 · 90105-15007 |
| 43212E | Nut (for left steering knuckle) | 90179-15001 |
| 43330K | Right front lower ball joint assembly | 43330-19095 · 43330-19115 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-14003 |
| 43330M | Bolt (for right front lower ball joint) | 90105-12156 |
| 43330S | Nut (for right front lower ball joint) | 90179-12070 |
| 43340A | Left front lower ball joint assembly | 43330-19095 · 43330-19115 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-14003 |
| 43340C | Bolt (for left front lower ball joint) | 90105-12156 |
| 43340G | Nut (for left front lower ball joint) | 90179-12070 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-12130 · 48068-12140 · 48068-12160 · 48068-12170 · 48068-12171 · 48068-12180 · 48068-12181 · 48068-12190 · 48068-12191 |
| 48068F | Crash pad block (for right front suspension No. 1 lower arm) | 90948-02152 |
| 48068G | Nut (for right front suspension No. 1 lower arm) | 90179-14006 |
| 48068H | Bolt (for right front suspension No. 1 lower arm) | 90119-14023 · 90119-14041 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-12130 · 48069-12140 · 48069-12160 · 48069-12170 · 48069-12171 · 48069-12180 · 48069-12181 · 48069-12190 · 48069-12191 |
| 48069B | Crash pad block (for left front suspension No. 1 lower arm) | 90948-02152 |
| 48069C | Nut (for left front suspension No. 1 lower arm) | 90179-14006 |
| 48069D | Bolt (for left front suspension No. 1 lower arm) | 90119-14023 · 90119-14041 |
| 48652B | Right front lower arm brace | 48075-12010 · 48075-12031 · 48075-12040 · 48652-12060 · 48652-12070 |
| 48652C | Bolt (for right front lower arm bracket) | 90119-10692 · 90119-12125 · 90119-12238 |
| 48652D | Nut (for right front lower arm bracket) | 90179-08072 · 90179-08145 |
| 48659 | Left front lower arm brace | 48076-12010 · 48076-12031 · 48076-12040 · 48659-12060 · 48659-12070 |
| 48659A | Bolt (for left front lower arm bracket) | 90119-10692 · 90119-12125 · 90119-12238 |
| 48659B | Nut (for left front lower arm bracket) | 90179-08072 · 90179-08145 |
