Toyota COROLLA 制动助力器和真空管 — Figure 4703

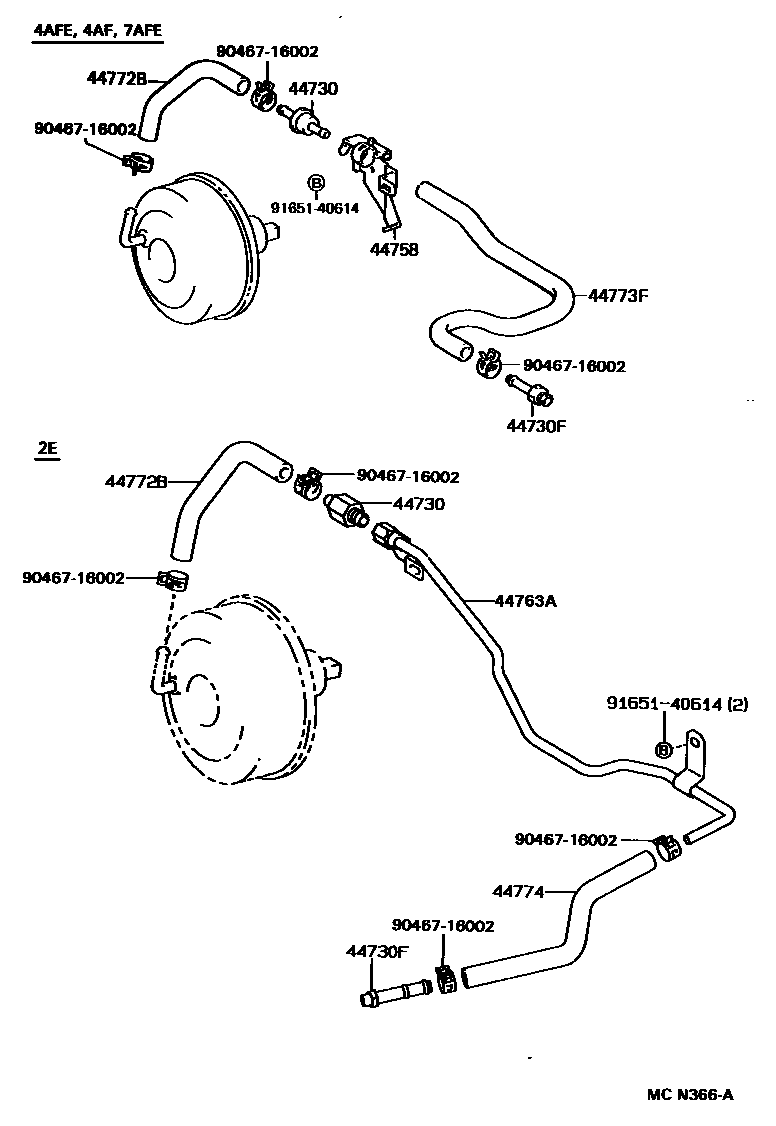

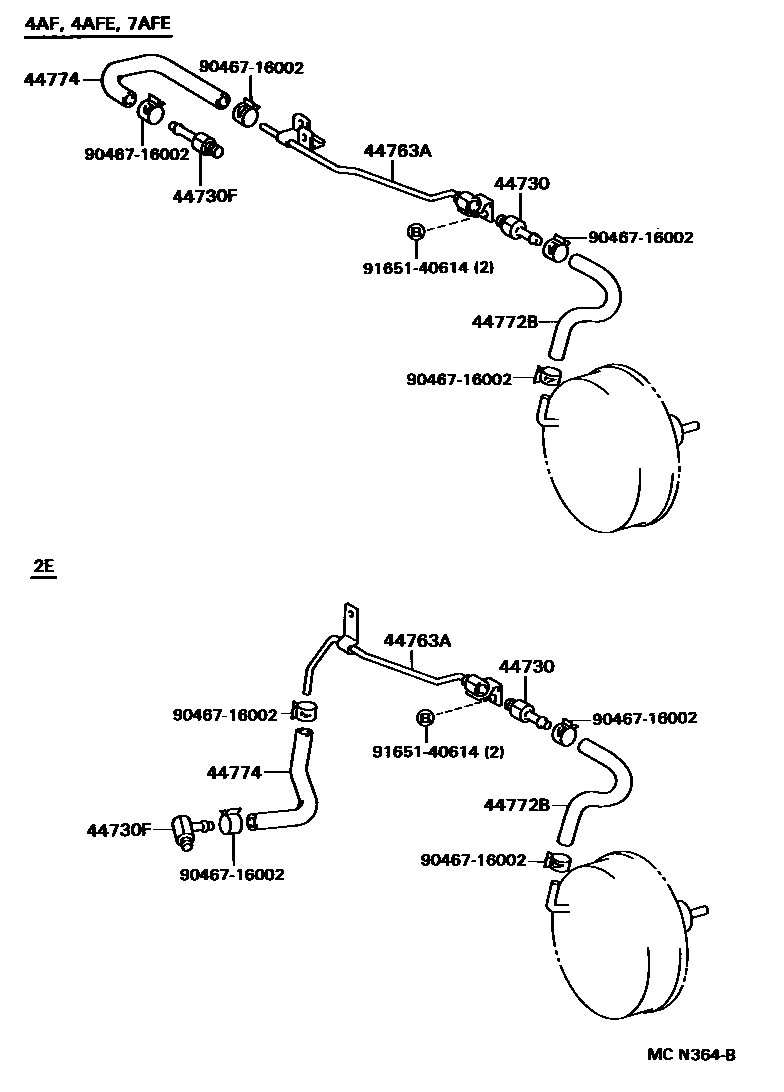

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-1A190 · 44610-1A390 · 44610-1A410 · 44610-1A450 · 44610-1A860 · 44610-1A870 · 44610-1A880 · 44610-1E010 · 44610-1E240 · 44610-1E260 · 44610-1E280 · 44610-1E300 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44580-22030 · 44730-10010 · 44730-12040 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51007 · 90404-51034 · 90404-51319 |
| 44731C | brake booster bracket | 44731-12050 |
| 44758 | Vacuum check valve bracket | 44758-12290 · 44758-12300 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12190 · 44763-12200 · 44763-12230 · 44763-12240 |
| 44772B | Hoses (check valve to brake booster) | 44772-12420 · 44772-12430 · 44772-12440 · 44772-12460 |
| 44773F | Hoses (connector to check valve) | 44773-12470 · 44773-12480 · 44773-12590 · 44773-12600 |
| 44774 | Hoses (joints to connector tubes) | 44774-12250 · 44774-12270 · 44774-12280 · 44774-12290 · 44774-12300 |
| 44785 | brake booster pad | 44785-12010 · 44785-20020 |
