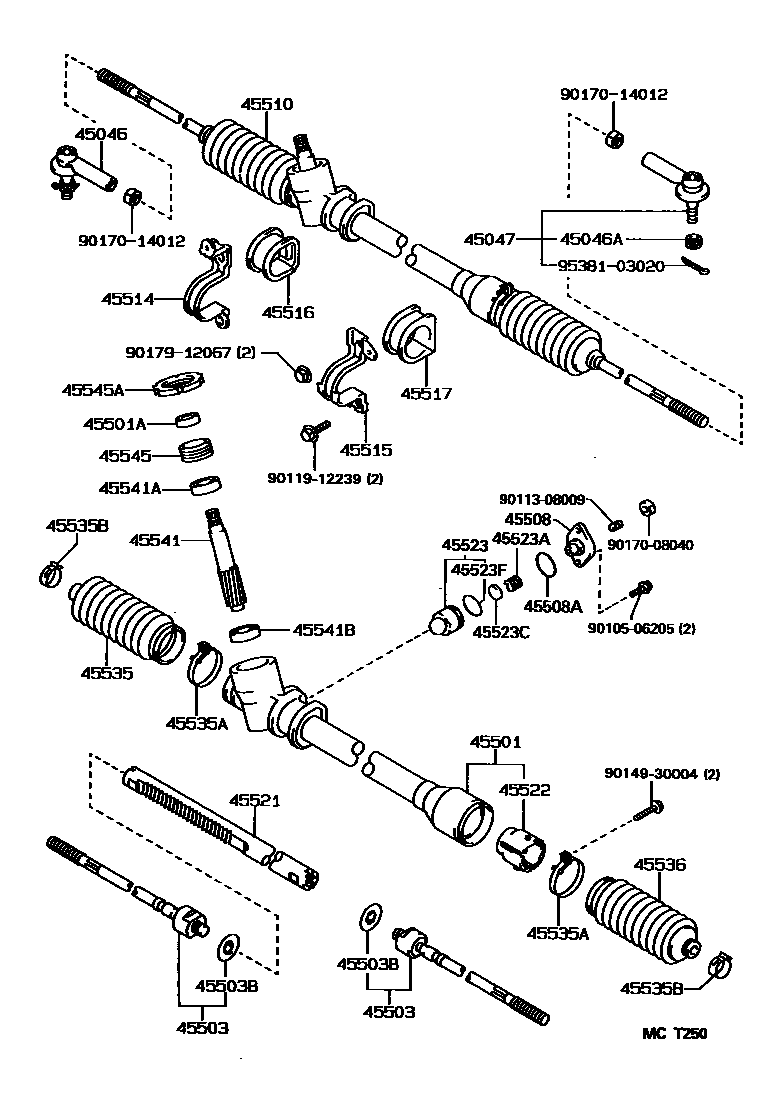

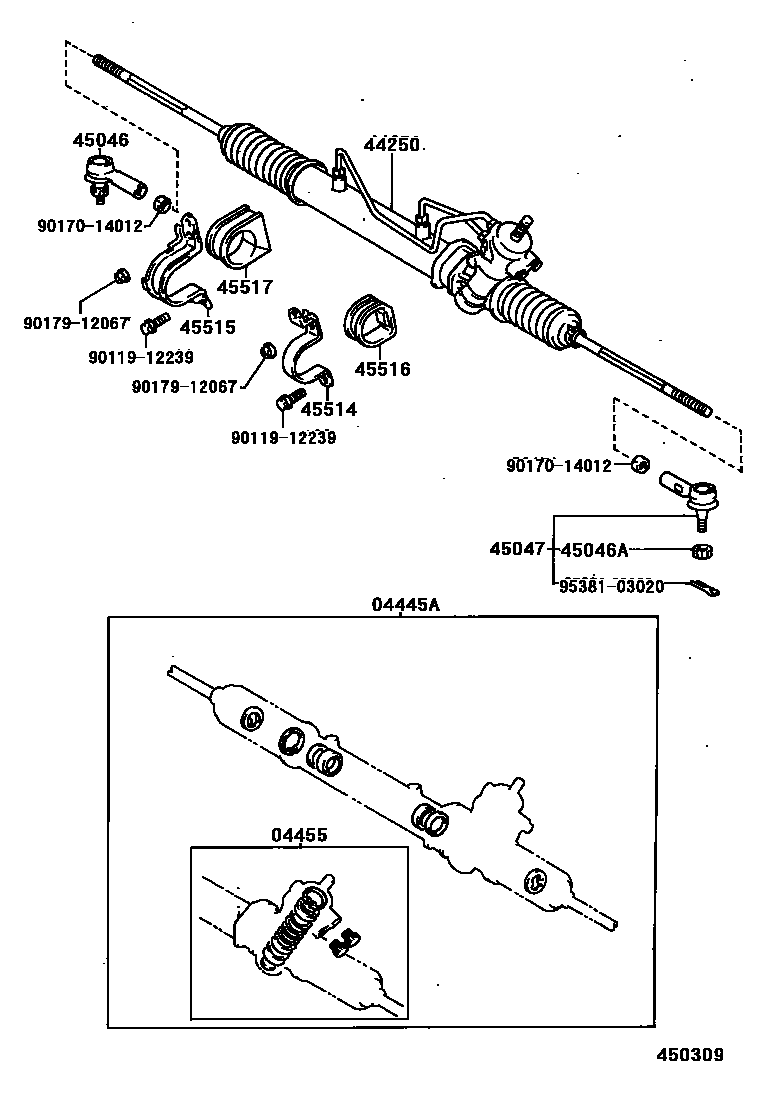

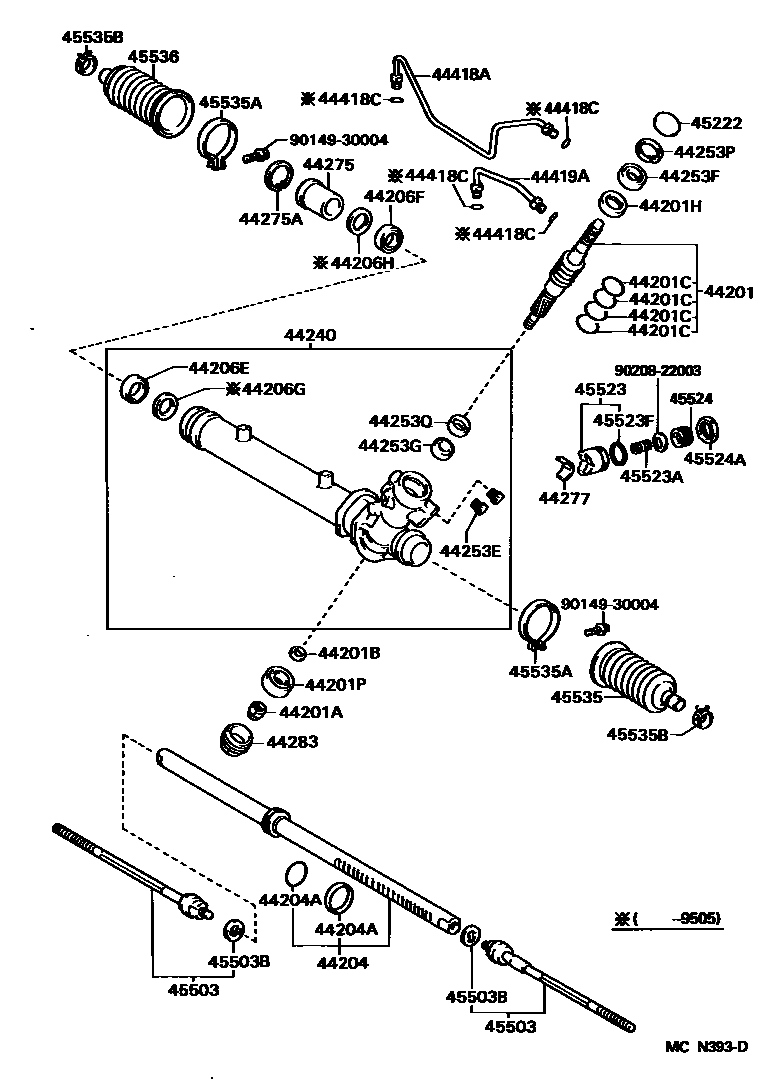

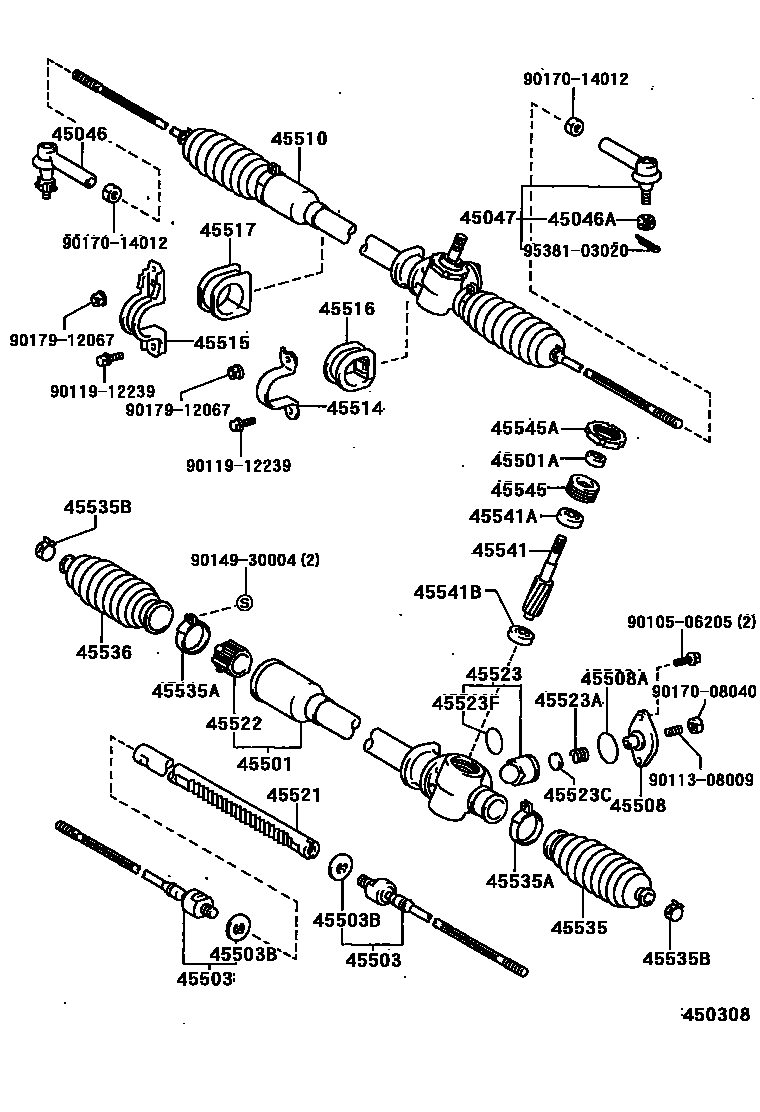

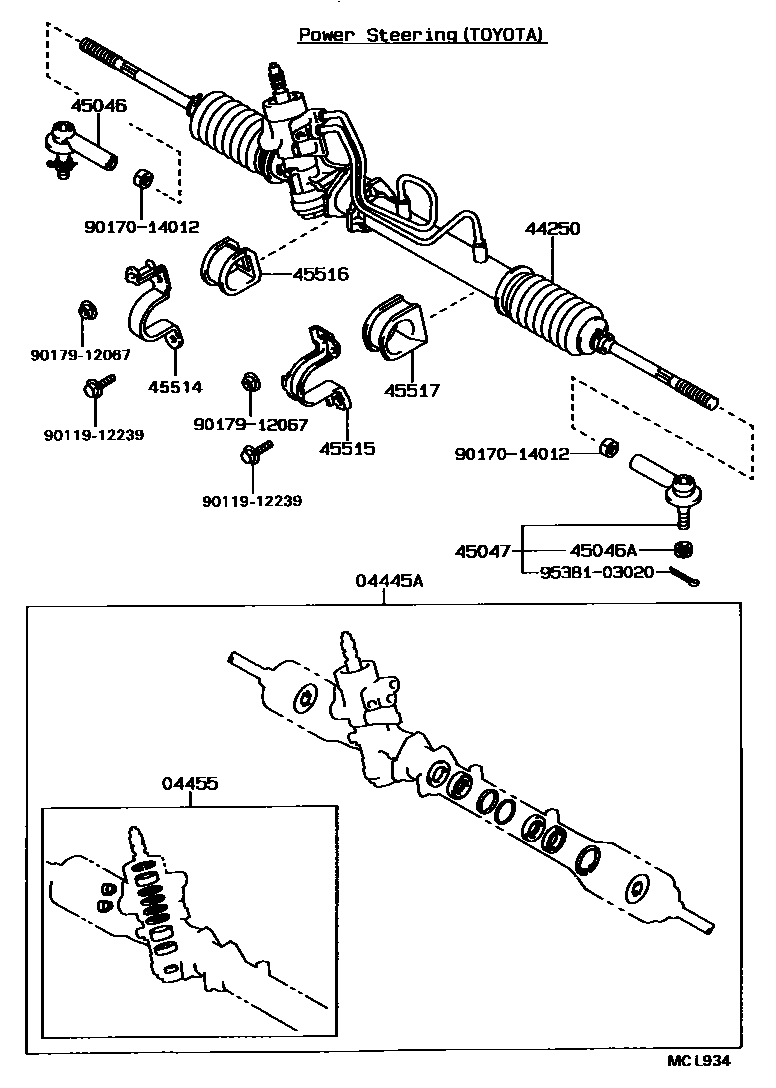

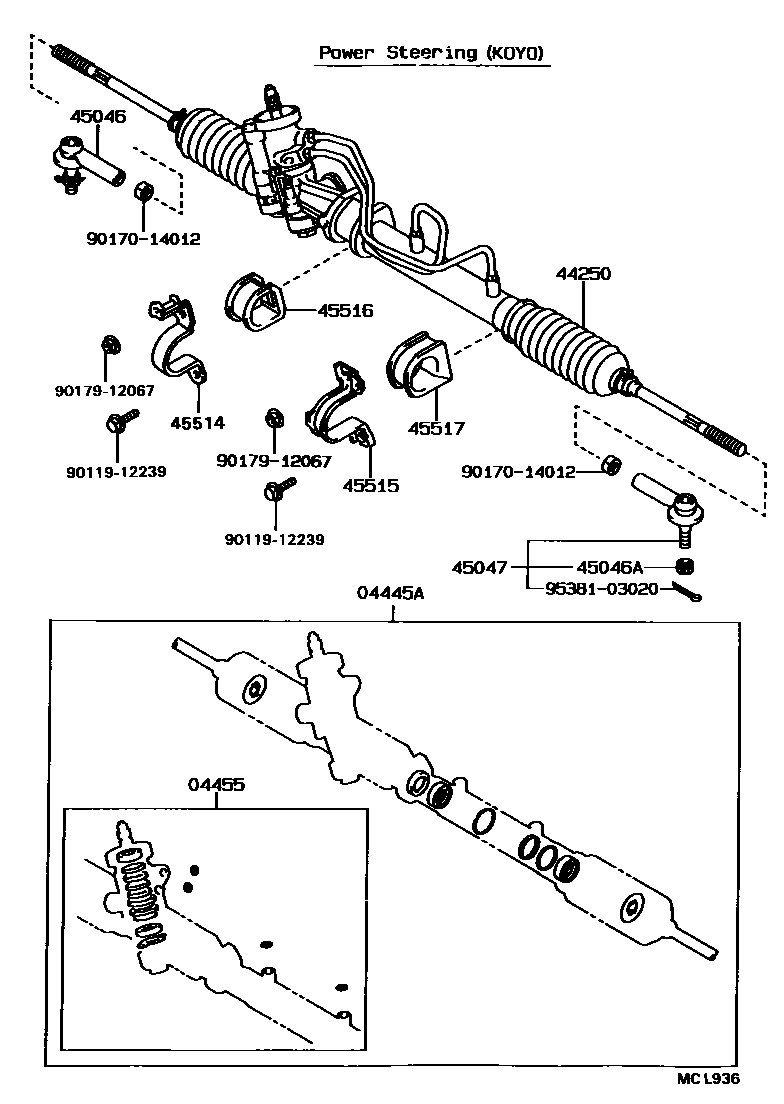

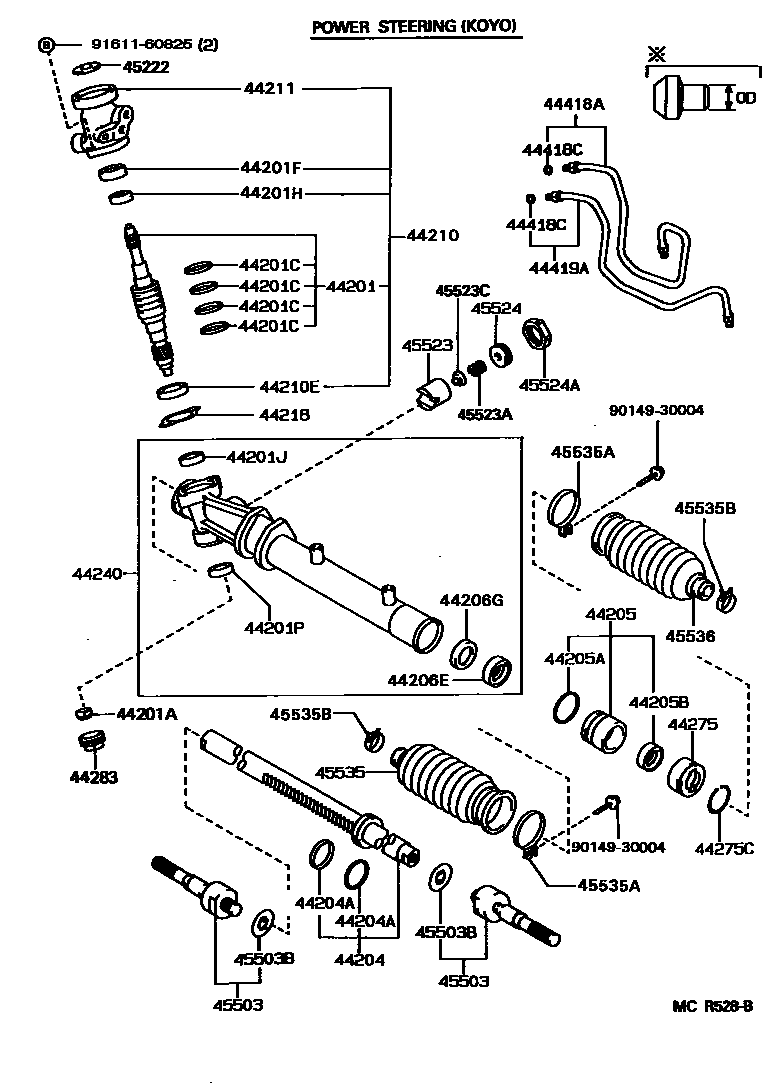

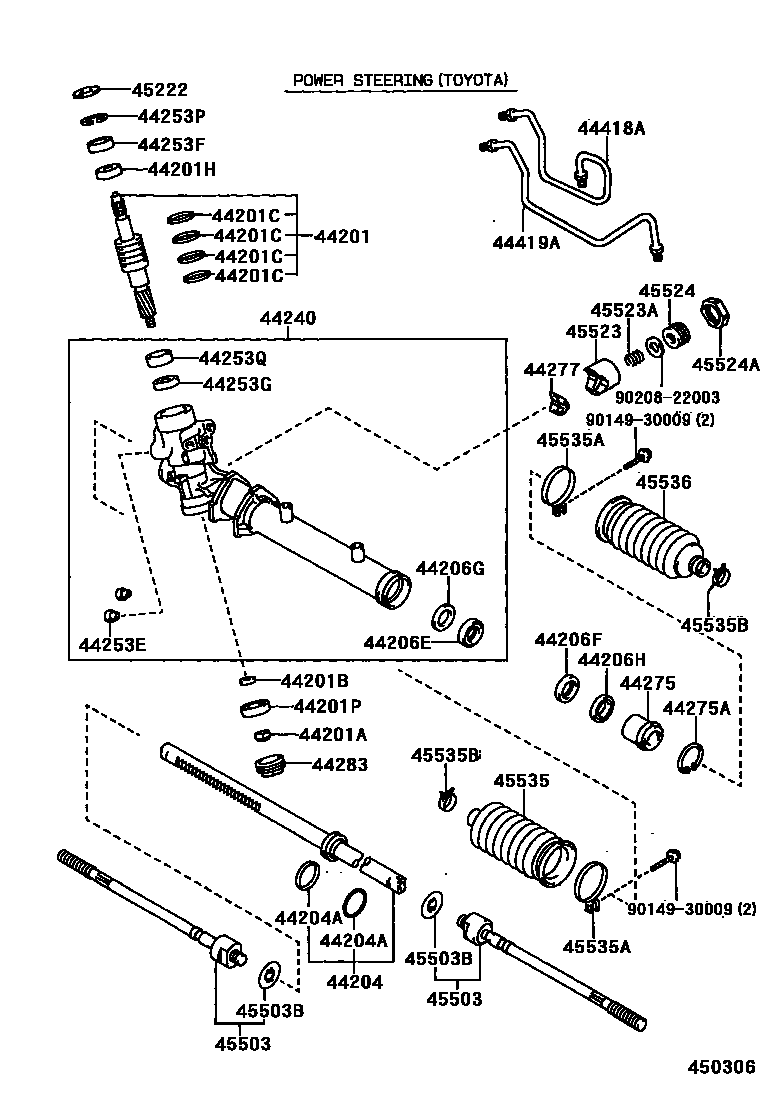

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 8 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-12100 · 04445-12110 · 04445-12130 · 04445-12150 · 04445-12160 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-10040 · 04455-12090 · 04455-12210 |
| 44201 | Power steering control valve sub-assembly | 44201-12171 · 44201-12200 · 44201-12270 · 44201-12300 · 44201-12370 · 44201-12371 · 44201-12390 · 44201-12391 · 44201-12400 · 44201-12401 · 44201-12420 · 44201-12440 |
| 44201A | Lock nut (for power steering control valve) | 90179-10048 · 90179-12098 |
| 44201B | Spacer (for power steering control valve) | 90560-12030 |
| 44201C | Ring (for power steering control valve) | 90560-33003 · 90560-33005 · 90562-33002 |
| 44201F | Oil seal (for power steering control valve) | 90311-19010 |
| 44201H | Bearing (for upper power steering control valve) | 90365-19001 · 90369-19005 |
| 44201J | Bearing (for central power steering control valve) | 90364-22006 |
| 44201P | Bearing (for lower power steering control valve) | 90363-12008 · 90363-12009 · 90363-12014 |
| 44204 | Power steering rack sub-assembly | 44204-12030 · 44204-12031 · 44204-12040 · 44204-12041 · 44204-12100 · 44204-12160 · 44204-12170 |
| 44204A | Ring (for steering rack piston) | 90301-33003 · 90301-34006 · 90562-37003 · 90562-37004 |
| 44205 | Cylinder end stopper sub-assembly | 44205-12051 |
| 44205A | O-ring (for cylinder end stopper) | 96711-31035 |
| 44205B | Oil seal (for cylinder end stop) | 90311-24008 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90310-24007 · 90310-24009 · 90311-24010 · 90311-24011 |
| 44206F | No. 2 oil seal (for power steering cylinder barrel) | 90310-24007 · 90310-24008 · 90310-24009 |
| 44206G | No. 1 spacer (for power steering cylinder barrel) | 90560-24005 · 90560-25014 |
| 44206H | No. 2 spacer (for power steering cylinder barrel) | 90560-24005 |
| 44210 | Power steering control valve assembly | 44210-12190 · 44210-12250 |
| 44210E | Oil seal (for power steering control valve) | 90311-26003 |
| 44211 | control valve housing | 44211-12140 |
| 44218 | valve housing gasket | 44218-12020 |
| 44240 | Power steering rack housing assembly | 44240-12140 · 44240-12162 · 44240-12190 · 44240-12200 · 44240-12220 · 44240-12280 · 44240-12300 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-12290 · 44250-12390 · 44250-12400 · 44250-12420 · 44250-12440 · 44250-12510 · 44250-12530 · 44250-12540 · 44250-12560 · 44250-12620 |
| 44253E | Connector seat (for power steering rack housing) | 90410-06002 |
| 44253F | No. 1 oil seal (for power steering rack housing) | 90311-19007 |
| 44253G | No. 2 oil seal (for power steering rack housing) | 90310-23005 |
| 44253P | Hole snap ring (for power steering rack housing) | 90521-41003 |
| 44253Q | Bushing (for power steering rack housing) | 90389-28001 |
| 44275 | Cylinder end stop | 44275-12051 · 44275-12080 · 44275-12090 |
| 44275A | Bore snap ring (for cylinder end stop) | 90521-50002 · 90521-50003 |
| 44275C | Coil (for cylinder end stop) | 90580-18002 |
| 44277 | Rack guide block seat | 44277-12040 |
| 44283 | Rack housing cover | 44283-12010 · 44283-16010 |
| 44418A | Right steering pressure oil pipe | 44418-12120 · 44418-12130 · 44418-12140 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-03001 · 90430-04007 |
| 44419A | Left steering pressure oil pipe | 44419-12130 · 44419-12140 · 44419-12150 · 44419-12170 |
| 45046 | Right tie rod end sub-assembly | 45046-19175 · 45046-29305 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-19175 · 45046-29305 |
| 45222 | Steering gear dust cover | 45222-12080 · 45222-12090 |
| 45501 | Steering rack housing sub-assembly | 45501-12150 · 45501-12160 |
| 45501A | T-type oil seal (for steering rack housing) | 90311-15002 |
| 45503 | Steering rack end sub-assembly | 45503-19205 · 45503-19215 · 45503-29365 · 45503-29385 |
| 45503B | Jaw washer (for steering rack end) | 90214-14009 |
| 45508 | Steering rack guide block spring cover sub-assembly | 45508-17010 · 45546-12010 · 45546-17011 |
| 45508A | O-ring (for steering rack guide block spring cover) | 90301-33013 |
| 45510 | Steering gear assembly | 45510-12170 · 45510-12180 · 45510-12260 · 45510-12270 |
| 45514 | No. 1 steering rack housing bracket | 45514-12090 · 45514-12110 |
| 45515 | No. 2 steering rack housing bracket | 45515-12170 · 45515-12180 |
| 45516 | No. 1 steering rack housing seal | 45516-12060 |
| 45517 | No. 2 steering rack housing seal | 45517-12111 |
| 45521 | steering rack | 45521-20040 · 45521-20050 |
| 45522 | steering rack bushing | 45522-12040 · 45522-12060 |
| 45523 | Rack guide block (for steering gear) | 45504-02010 · 45504-12010 · 45504-12030 · 45504-12040 · 45504-17020 · 45523-12080 |
| 45523A | Spring (for steering gear rack guide block) | 90501-26042 · 90501-26075 · 90501-30015 · 90501-32032 |
| 45523C | Spacer (for rack guide block) | 45542-12010 · 45542-17010 |
| 45523F | O-ring (for steering gear guide block) | 96711-35026 |
| 45524 | Steering rack guide block spring cover | 45524-12030 · 45524-12041 · 45524-12050 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-32001 · 90179-33003 |
| 45535 | No. 1 steering rack dust cover | 45535-02010 · 45535-12060 · 45535-12070 · 45535-12100 |
| 45535A | Clamp (for steering rack dust boot) | 90460-50003 · 90460-52001 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19012 · 90467-19017 · 90467-19019 |
| 45536 | No. 2 steering rack dust cover | 45535-02010 · 45535-12060 · 45535-12070 · 45535-12100 |
| 45541 | steering pinion | 45541-12080 · 45541-12090 |
| 45541A | Upper radial ball bearing (for steering pinion) | 90363-15015 |
| 45541B | Lower radial ball bearing (for steering pinion) | 90363-13004 |
| 45545 | Pinion Bearing Adjustment Screw | 45545-10010 |
| 45545A | Nut (for pinion bearing adjustment screw) | 90179-38001 |
