Toyota COROLLA 动力转向配管 — Figure 4503

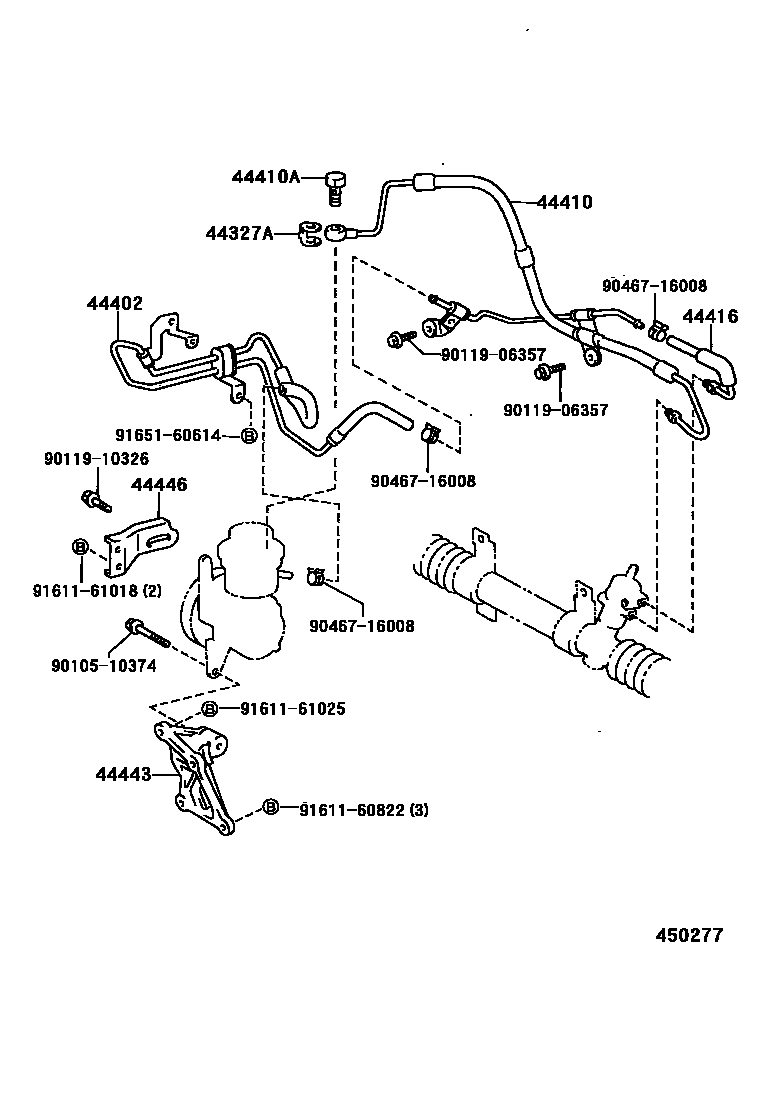

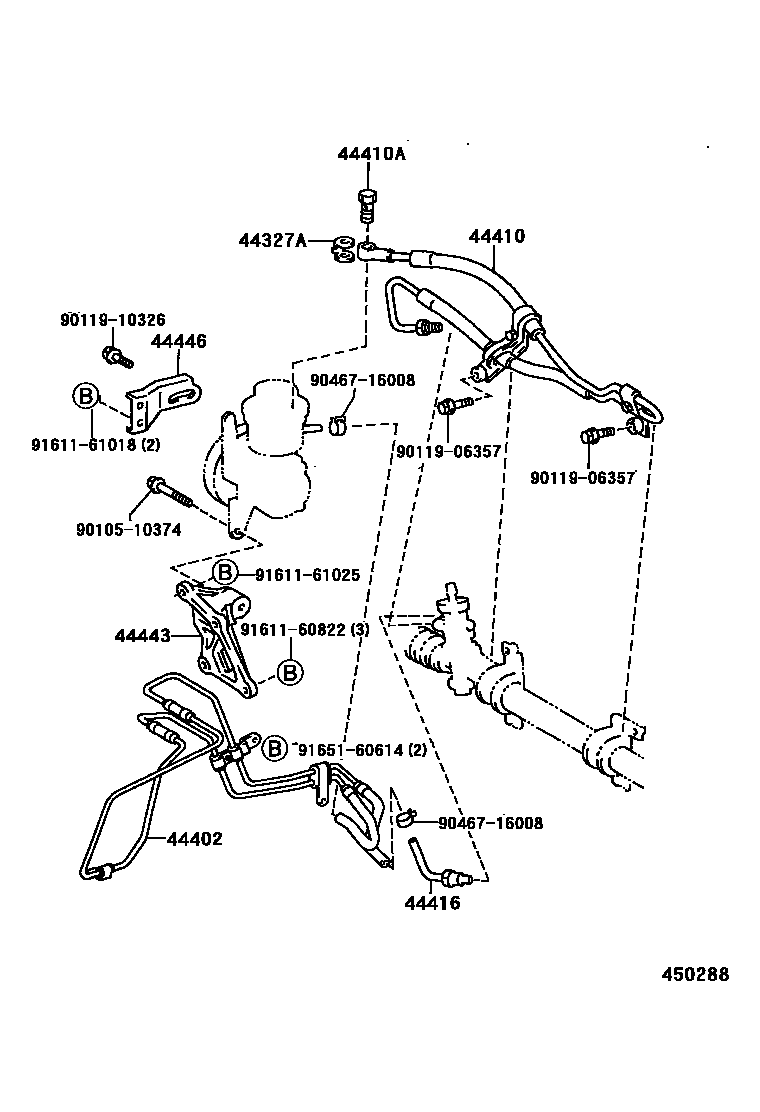

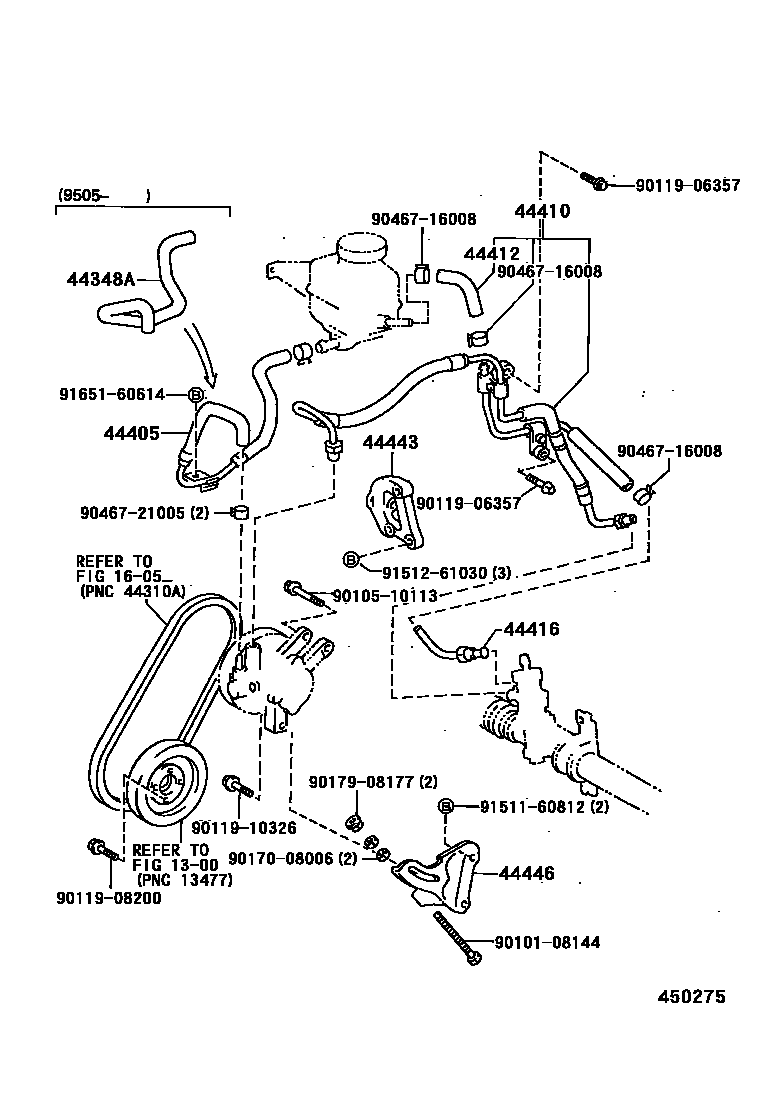

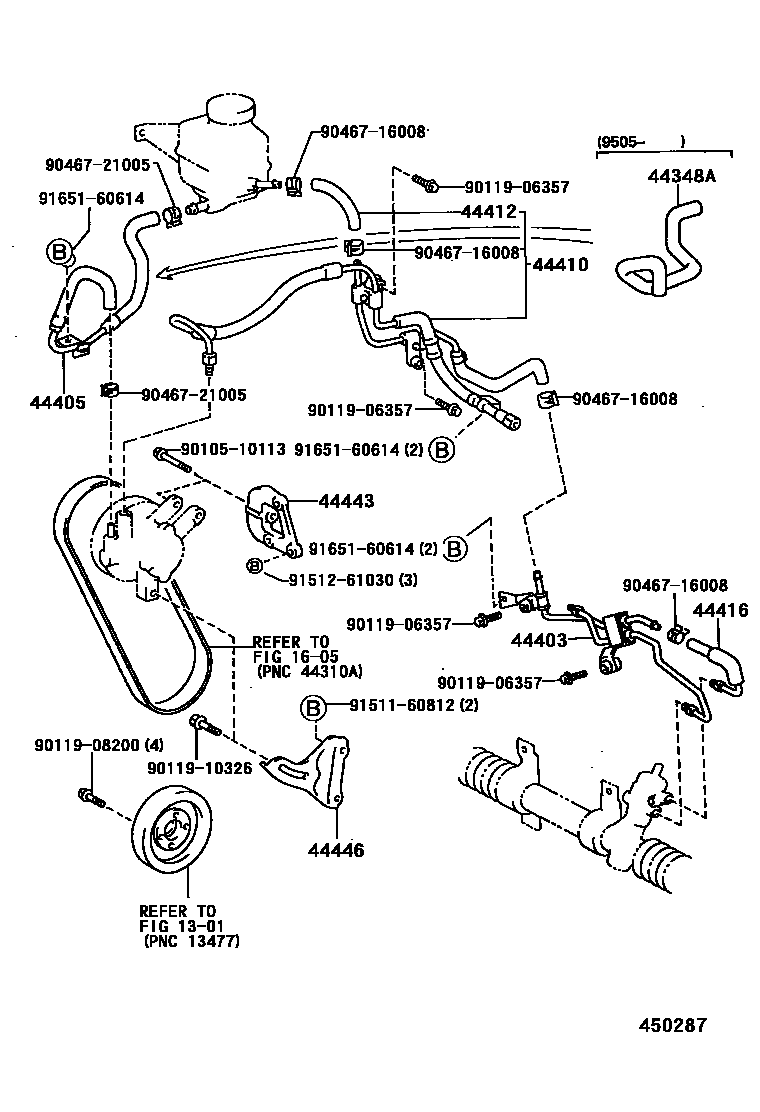

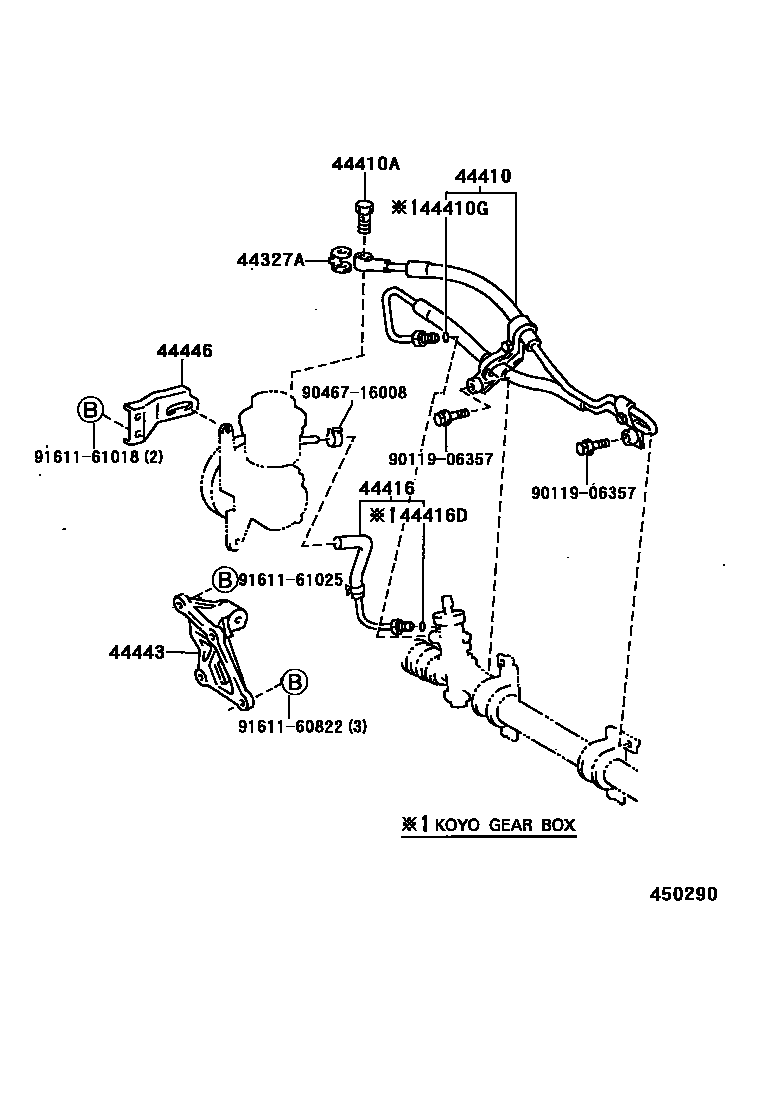

Toyota COROLLA EPC diagram 4503, 动力转向配管, with 5 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-12070 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-12130 · 44402-12160 · 44402-12180 · 44402-12210 |
| 44403 | No. 1 pressure supply pipe sub-assembly | 44403-12060 · 44403-12061 |
| 44405 | No. 1 pipe assembly (oil storage tank to pump) | 44405-12110 · 44405-12111 · 44405-12140 · 44405-12141 |
| 44410 | Pressure supply pipe assembly | 44040-12080 · 44040-12120 · 44040-12121 · 44040-12190 · 44040-12191 · 44410-12371 · 44410-12391 · 44410-12451 · 44410-12481 · 44410-12492 · 44410-12511 · 44410-12512 · 44410-12521 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16012 |
| 44410G | O-ring (for pressure supply pipe) | 90301-07009 |
| 44412 | Oil return hose | 44412-12200 |
| 44416 | Oil return pipe (for steering gear outlet) | 44406-12160 · 44406-12170 · 44406-12171 · 44406-12180 · 44406-12181 · 44416-12210 · 44416-12240 |
| 44416D | O-ring (for oil return pipe) | 90301-07009 |
| 44443 | pump bracket | 44443-12070 · 44443-12100 |
| 44446 | Adjust the stand | 44446-12050 · 44446-12060 · 44446-12090 |
