Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

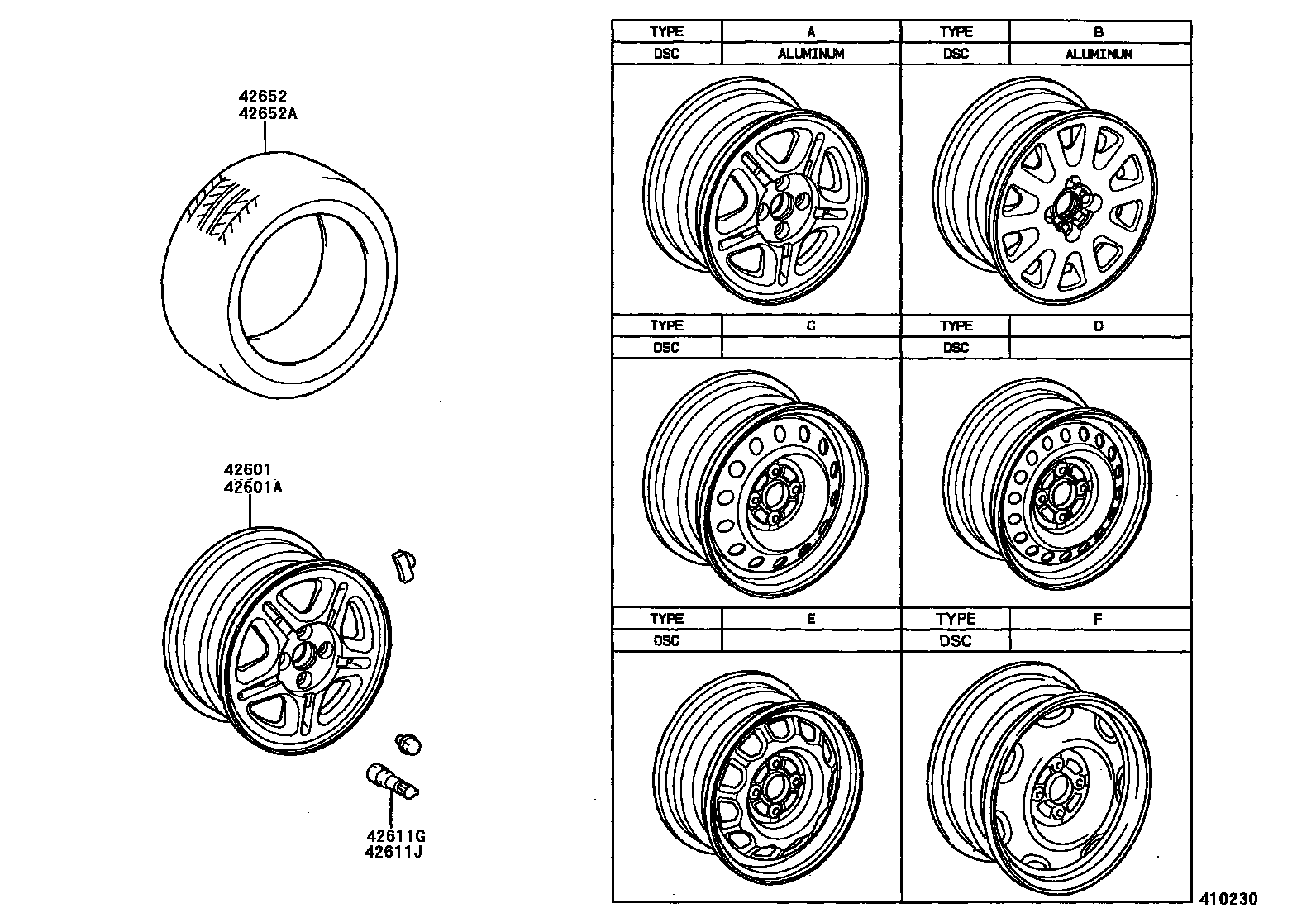

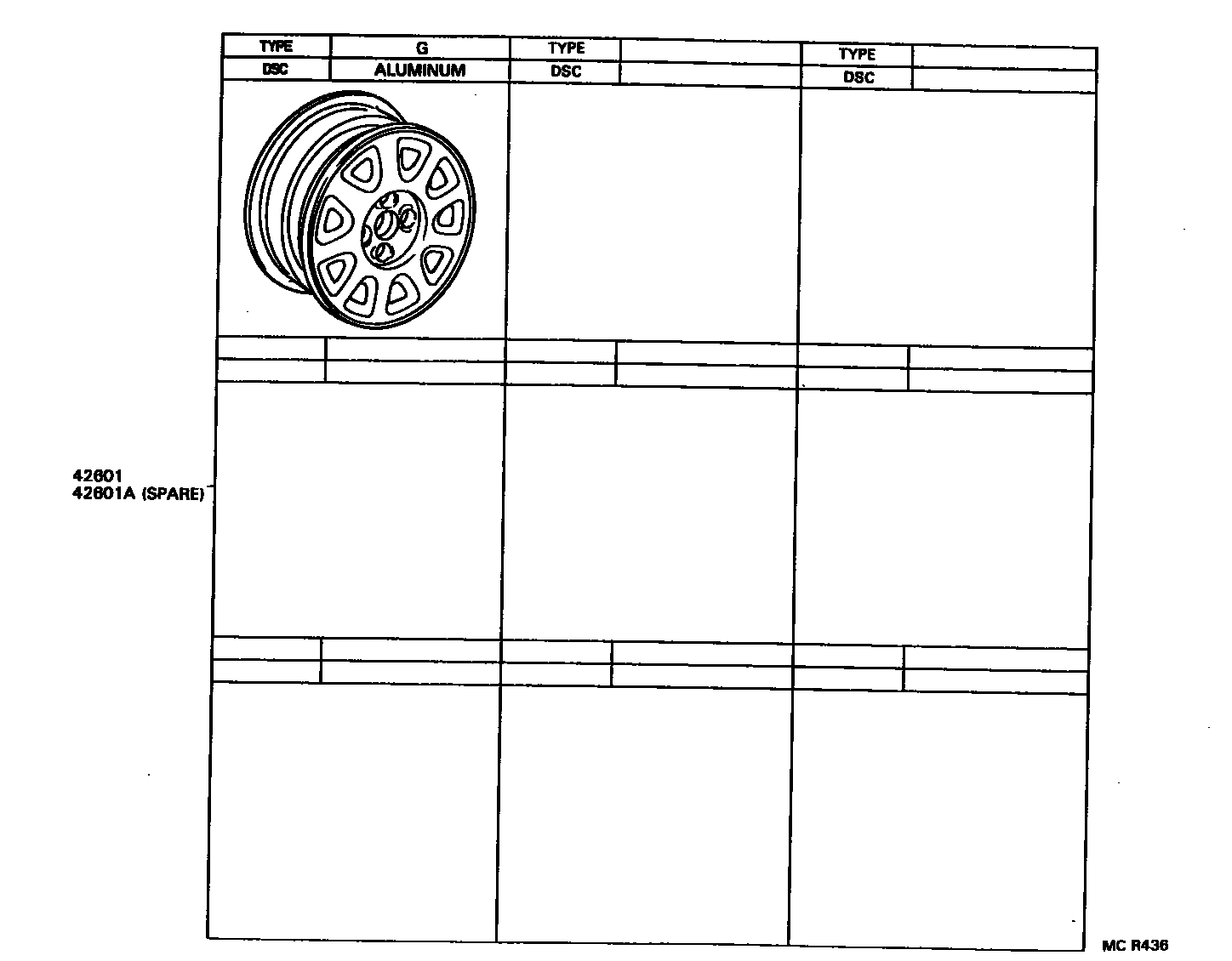

| 42601 | spoke wheel | 42611-1A120 · 42611-1A130 · 42611-1A180 · 42611-1A300 |
| 42601A | Spoke wheel (for spare tire) | 42611-1A120 · 42611-1A130 · 42611-1A180 · 42611-1A300 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 · 90942-01062 |

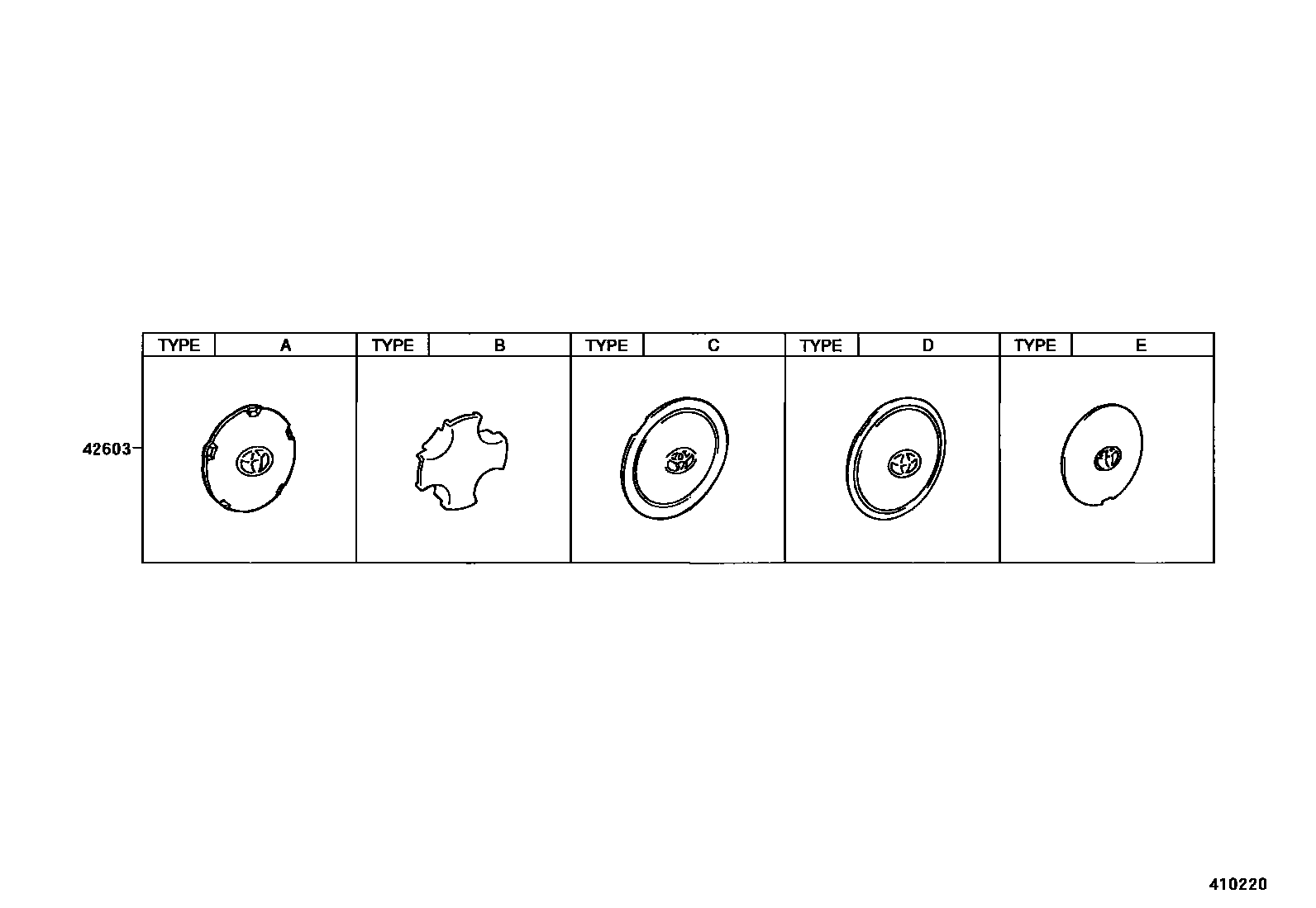

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12520 · 42603-12530 · 42603-12540 · 42603-12560 · 42603-12610 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |

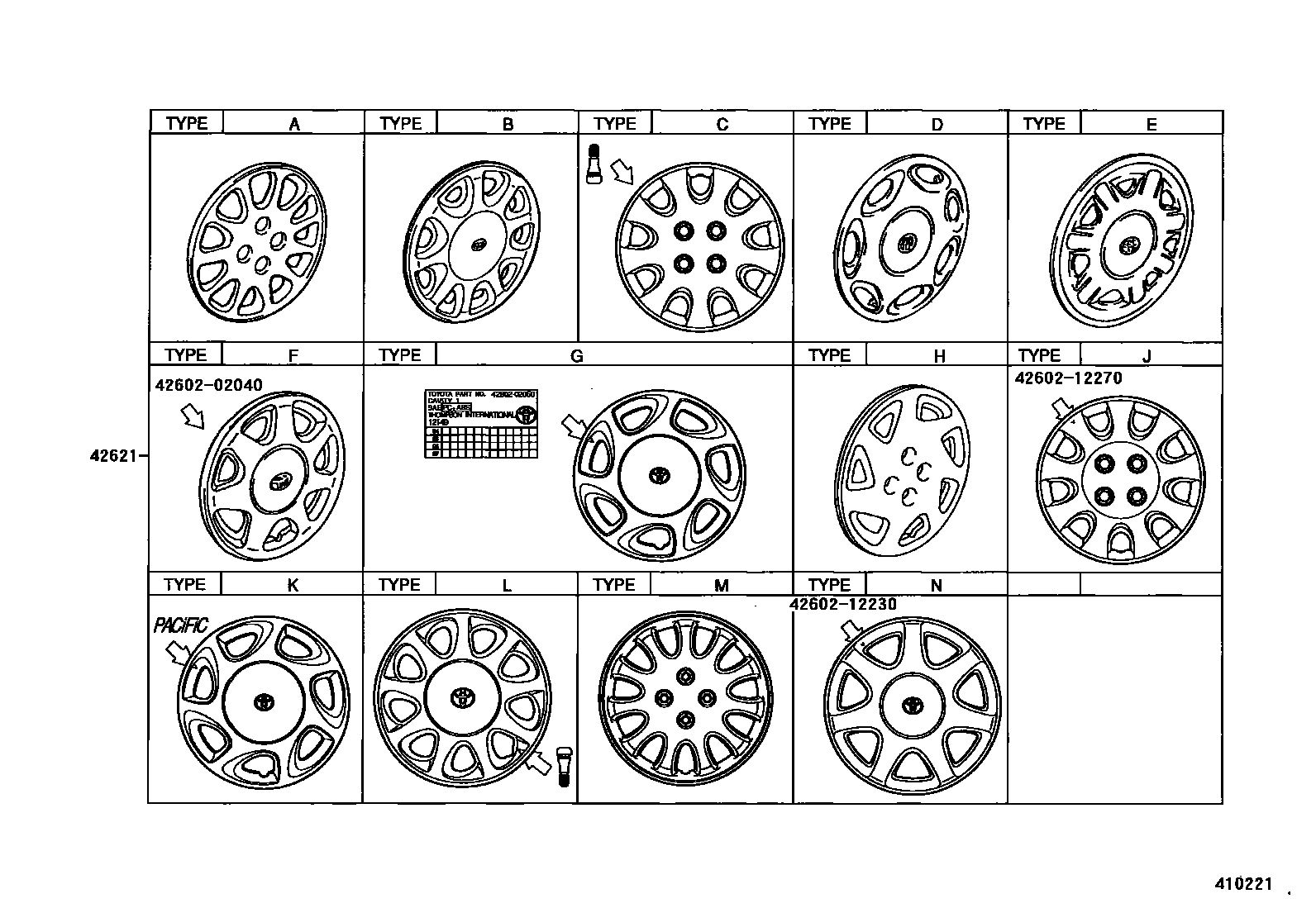

| 42621 | wheel cover | 42602-02030 · 42602-02040 · 42602-02050 · 42602-12230 · 42602-12240 · 42602-12250 · 42602-12260 · 42602-12270 · 42602-12280 · 42602-12290 · 42602-12310 · 42602-12320 · 42602-12350 |
| 42652 | tires | 42605-10060 · 42605-20100 · 42652-12220 · 42652-12680 · 42652-12880 · 42652-12890 · 42652-14140 · 42652-14290 · 42652-16230 · 42652-1A140 · 42652-1A150 · 42652-1A230 · 42652-1A260 · 42652-20260 |
| 42652A | Tire (for Spare Wheel) | 42605-10060 · 42605-20100 · 42652-12220 · 42652-12680 · 42652-12880 · 42652-12890 · 42652-14140 · 42652-14290 · 42652-16230 · 42652-1A140 · 42652-1A150 · 42652-1A230 · 42652-1A260 · 42652-20260 |
