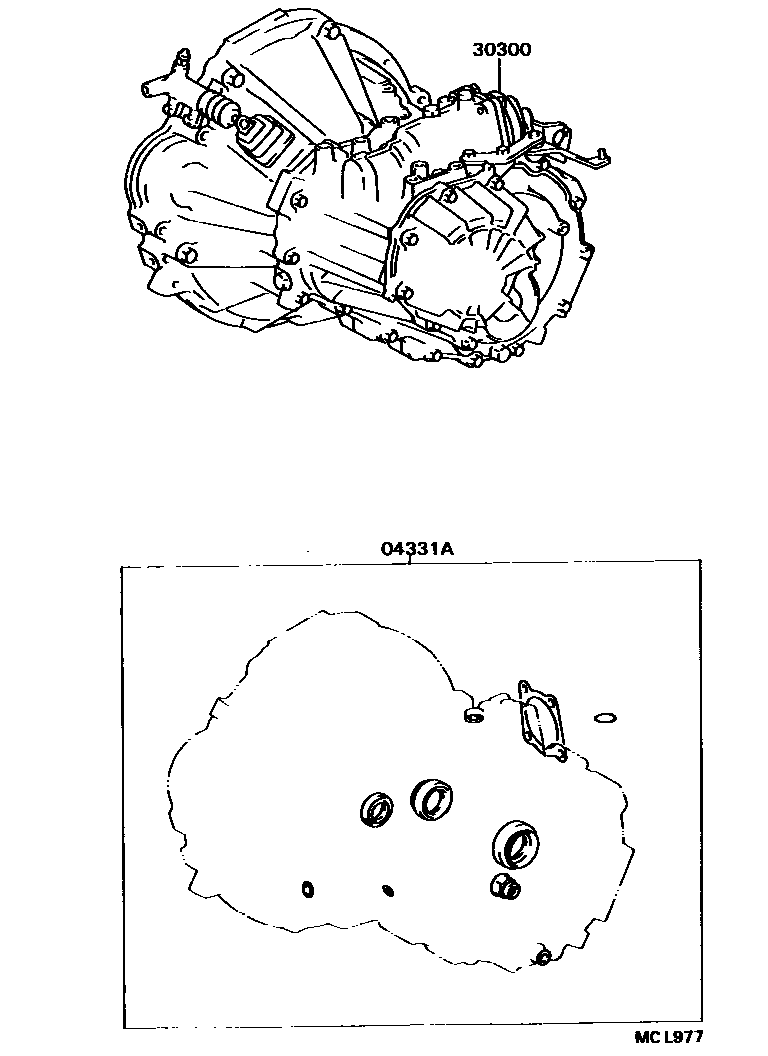

Toyota COROLLA 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota COROLLA EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-12110 |
| 30300 | Manual transmission axle assembly | 30300-12800 · 30300-12801 · 30300-12840 · 30300-12841 · 30300-12850 · 30300-12851 · 30300-12860 · 30300-12861 · 30300-12862 · 30300-12870 · 30300-12871 · 30300-12872 · 30300-1A080 · 30300-1A081 · 30300-1A090 · 30300-1A091 |
