Toyota COROLLA vacuum tube — Figure 1708

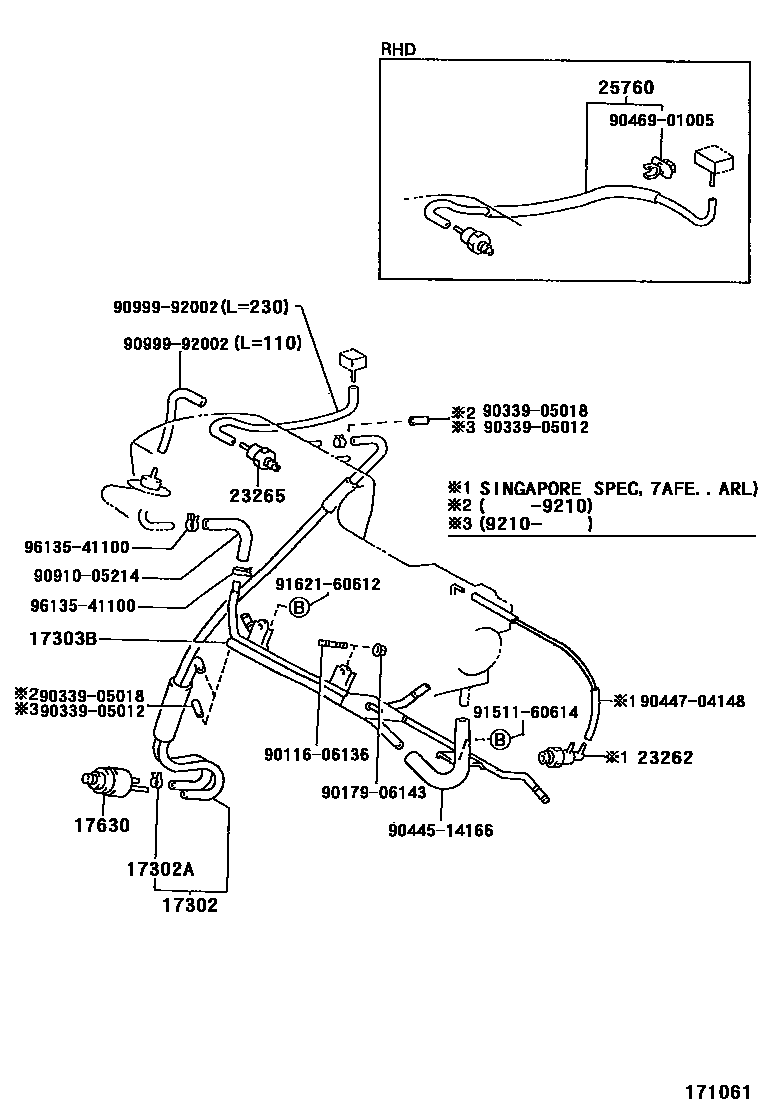

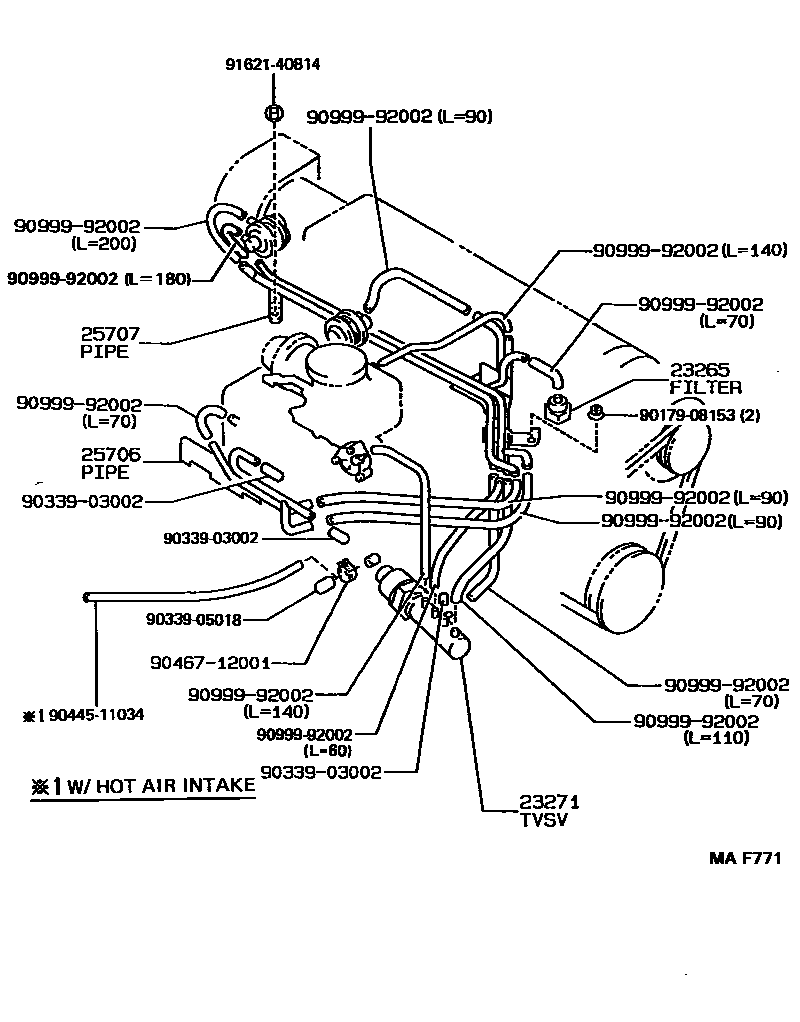

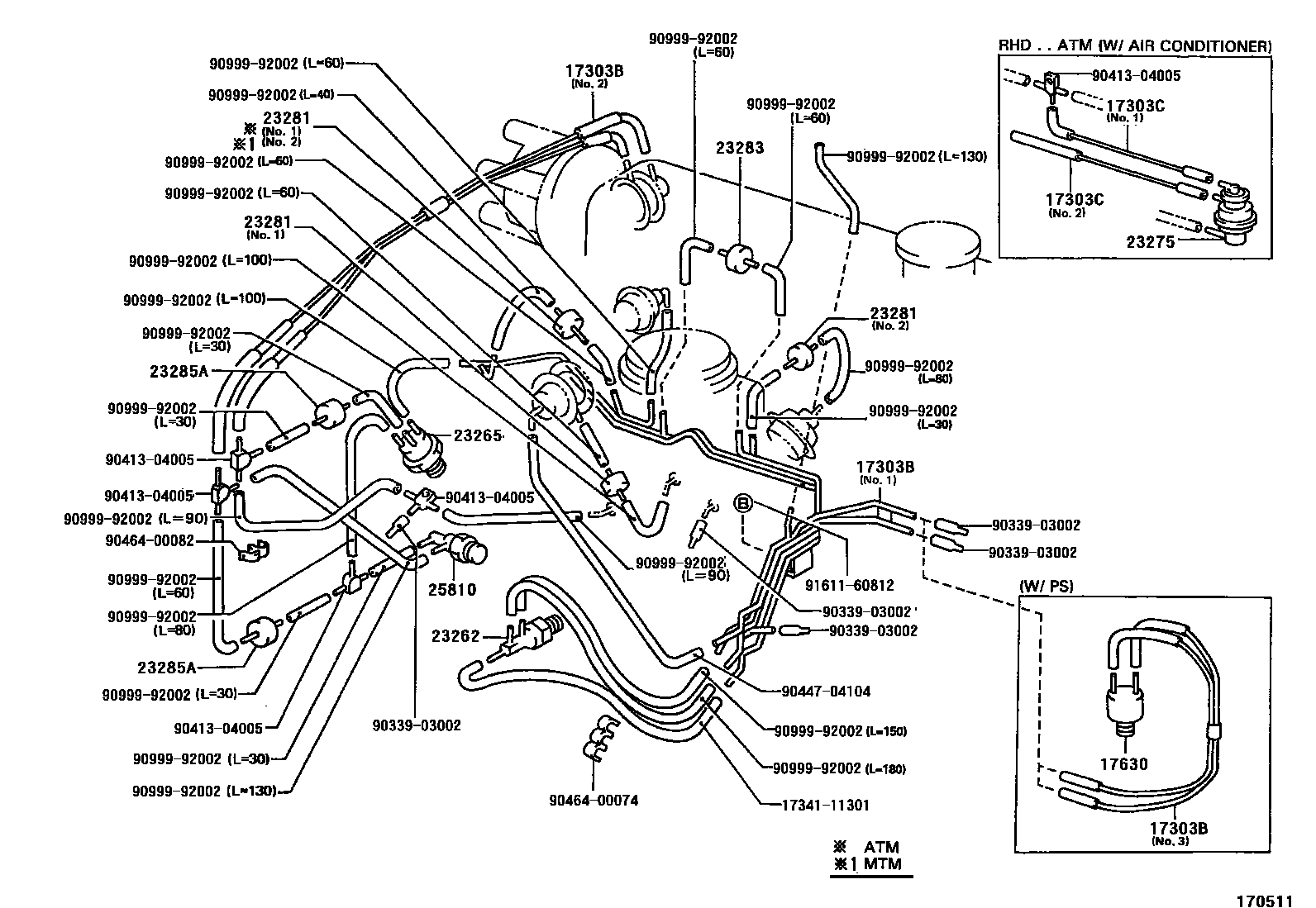

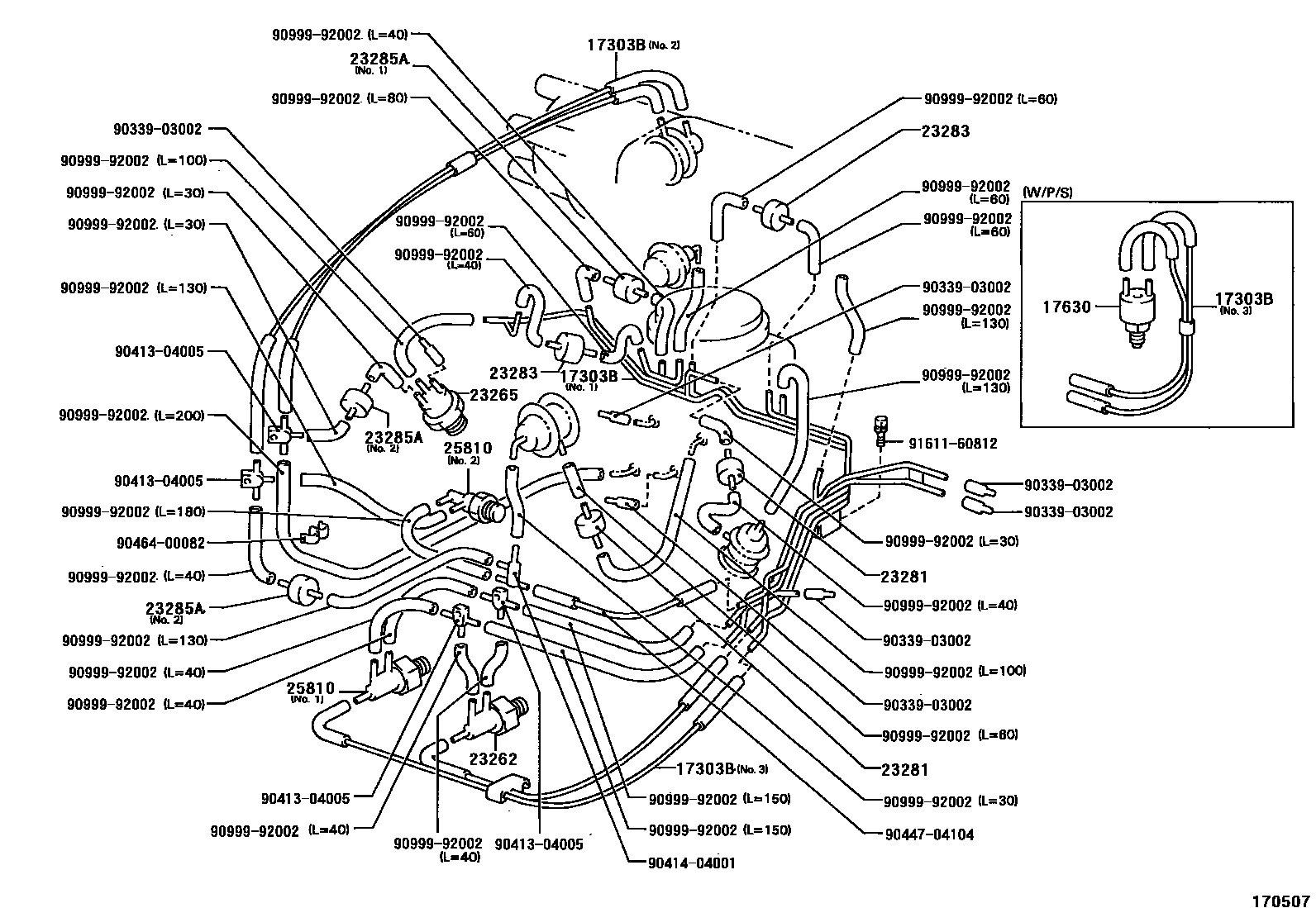

Toyota COROLLA EPC diagram 1708, vacuum tube, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302 | Air hose sub-assembly | 17302-15010 |
| 17302A | Hose clip | 96132-51000 · 96132-51100 |
| 17303B | No. 1 air pipe sub-assembly | 17303-11440 · 17303-11460 · 17303-11550 · 17303-11570 · 17303-11690 · 17303-15060 |
| 17303C | No. 2 air pipe sub-assembly | 17303-11680 · 17303-11770 |
| 17630 | Air control valve assembly | 17630-15030 · 17630-15080 |
| 23262 | No. 1 bimetallic vacuum switch valve | 25820-11040 · 90925-05068 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11027 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 |
| 23275 | Vacuum control valve No. 1 | 90925-03173 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01100 · 90925-01101 |
| 23283 | Vacuum Transfer Valve No. 3 | 90925-01091 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-16210 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-16061 |
| 25760 | Vacuum transfer hose assembly | 25760-15020 |
| 25810 | Bimetal valve assembly | 25810-11070 · 25810-11080 |
