Toyota COROLLA Exhaust Pipe — Figure 1702

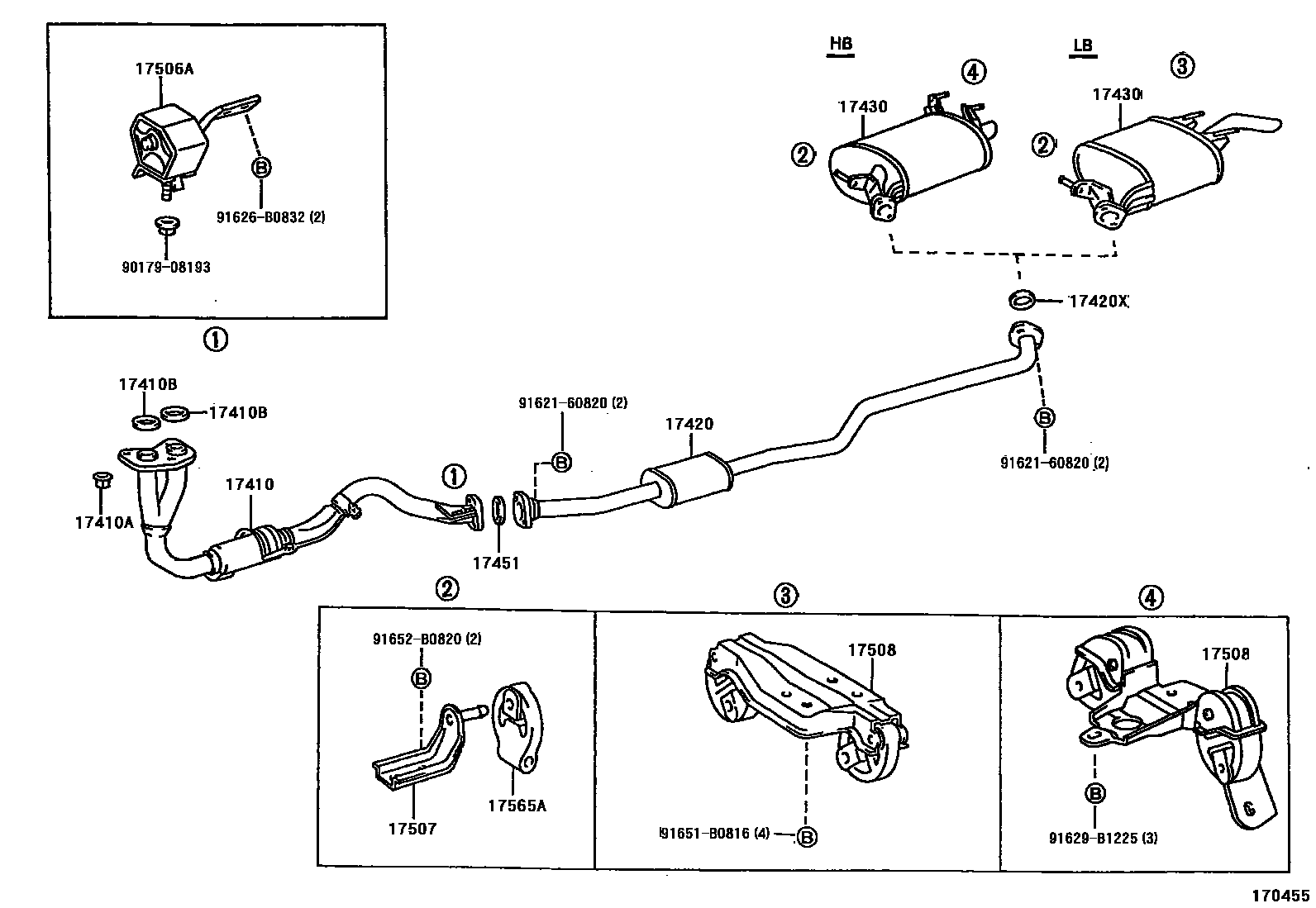

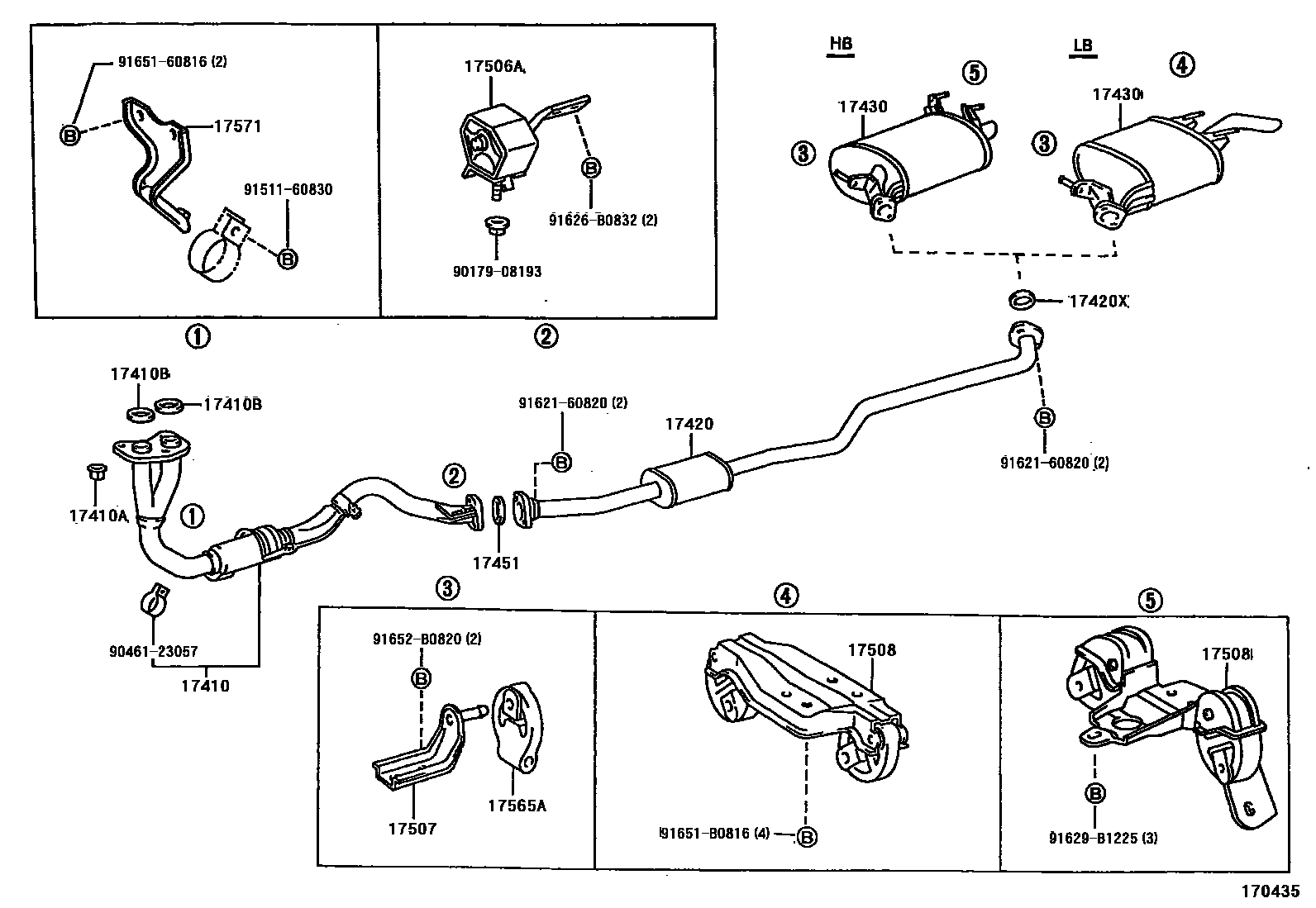

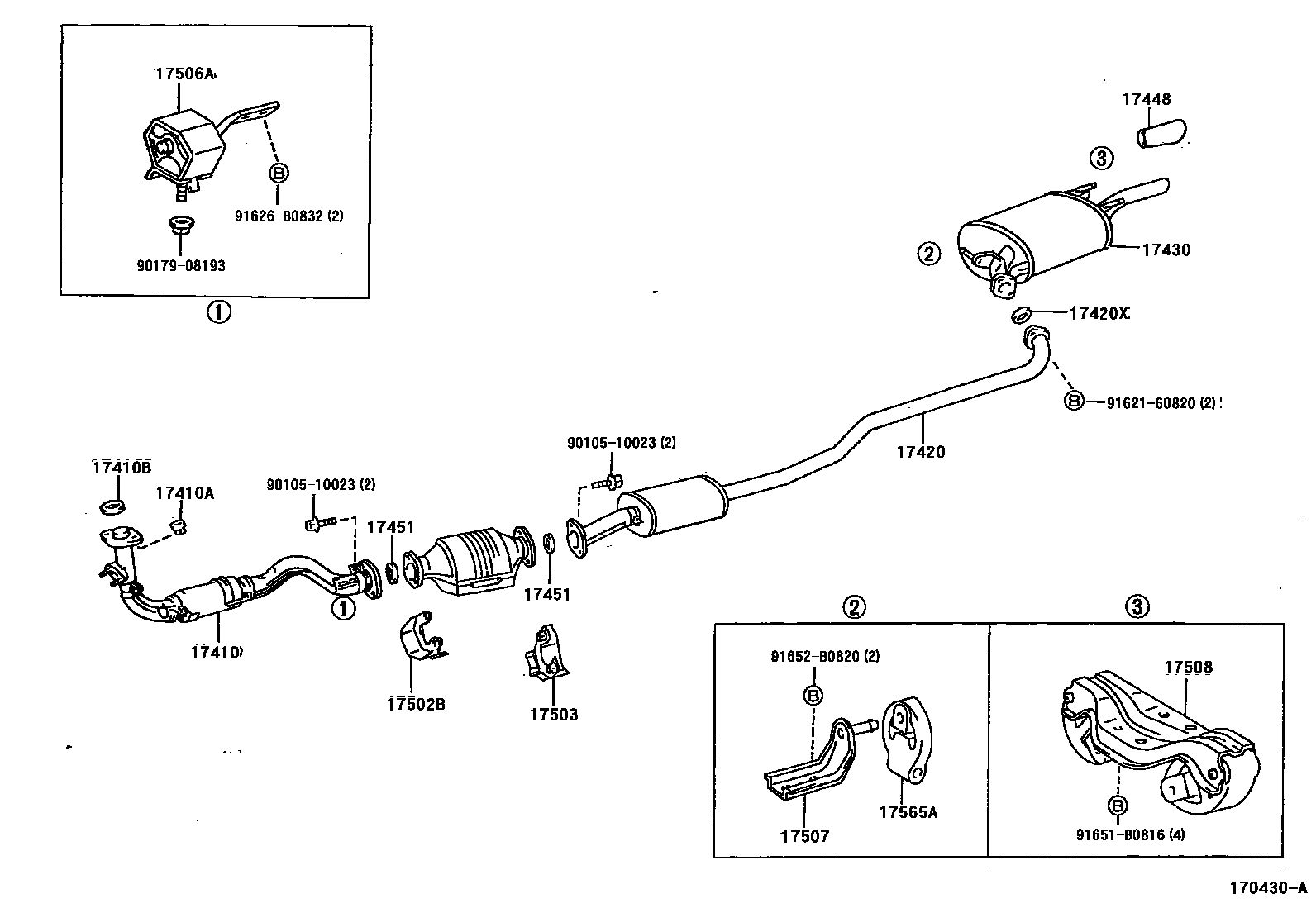

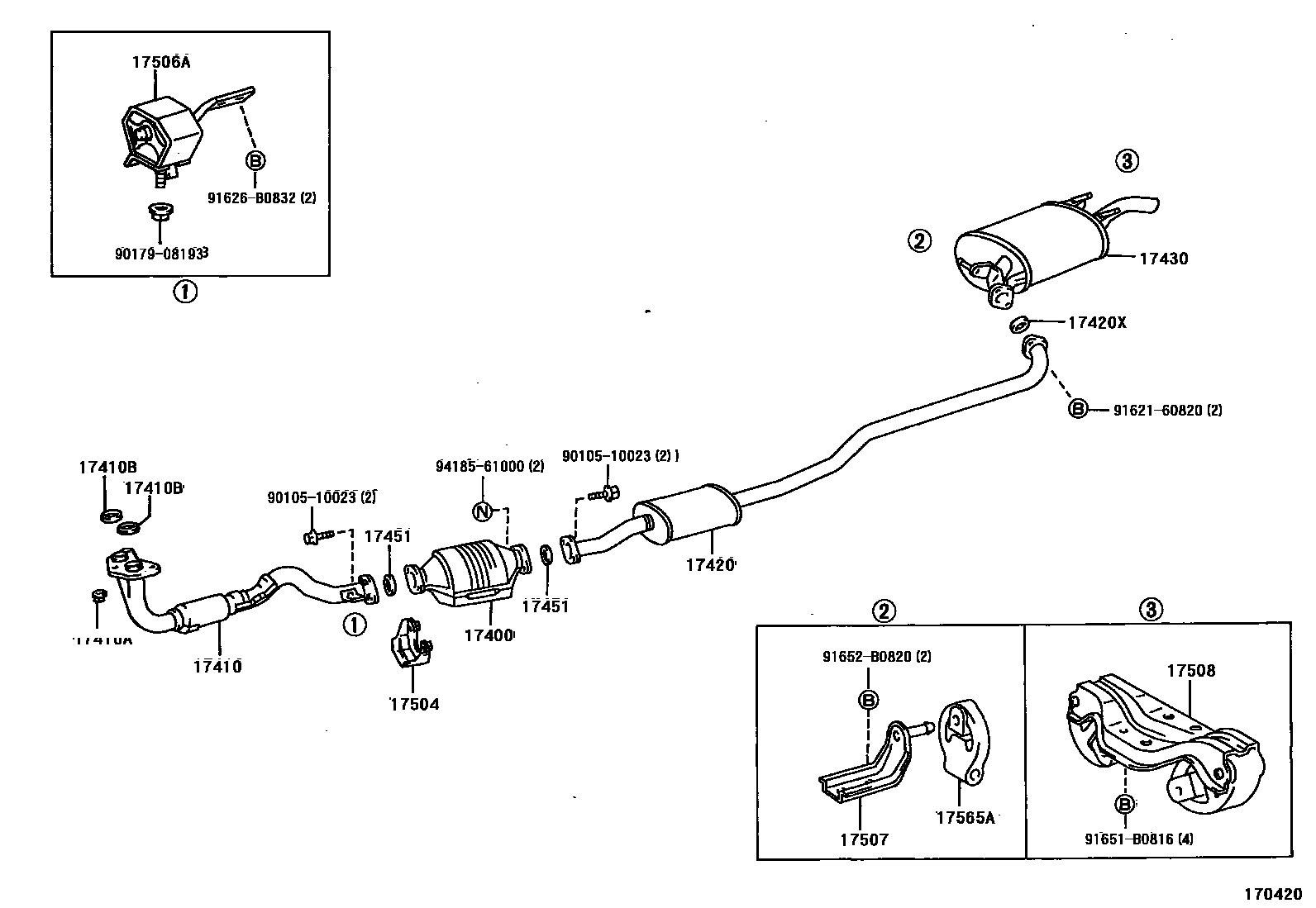

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-16610 |
| 17410 | Front exhaust pipe assembly | 17410-11580 · 17410-16830 · 17410-1A030 · 17410-1A090 · 17410-1A150 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06061 · 90917-06064 · 90917-06065 · 90917-06069 |
| 17420 | Central exhaust pipe assembly | 17420-02100 · 17420-11230 · 17420-16590 |
| 17420X | Center exhaust pipe liner | 90917-06039 · 90917-06074 |
| 17430 | Exhaust tailpipe assembly | 17430-11640 · 17430-1A220 · 17430-1A290 · 17430-1A430 |
| 17448 | Exhaust pipe tail throat | 17448-70020 |
| 17451 | Exhaust pipe gasket | 90917-06043 · 90917-06045 · 90917-06057 · 90917-06074 |
| 17502B | Three-way catalytic converter front bracket sub-assembly | 17502-16020 |
| 17503 | Three-way catalytic converter rear bracket sub-assembly | 17503-02030 |
| 17504 | Three-way catalytic converter bracket sub-assembly | 17504-42010 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-15070 · 17506-16120 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-15040 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-15050 · 17508-16070 · 17508-16080 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-16230 |
| 17571 | No. 1 exhaust pipe bracket | 17571-11110 |
