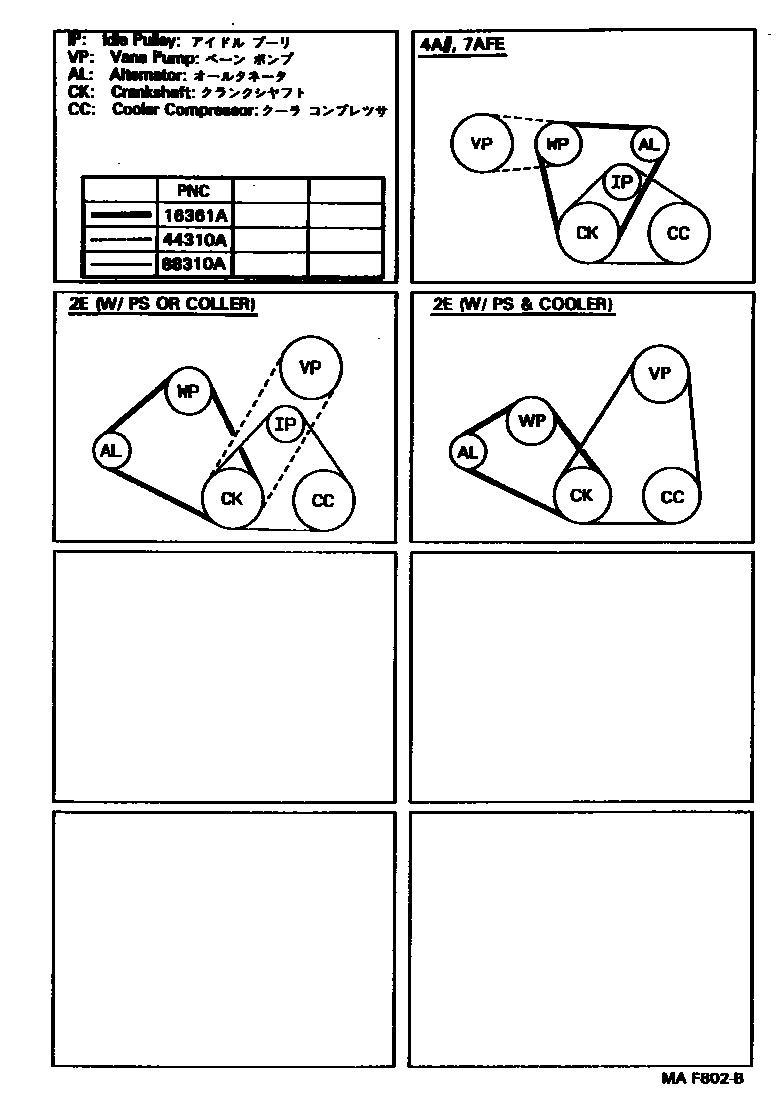

Toyota COROLLA V-Belt — Figure 1605
Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90080-91055 · 90916-02332 · 99364-20820 · 99365-20970 |
| 44310A | V-belt (for vane pump) | 99363-50630 · 99363-80630 · 99363-90630 · 99365-50920 · 99365-80920 · 99365-90920 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90916-02354 · 90916-02364 · 99364-80860 · 99365-20880 · 99365-20890 · 99365-21070 · 99365-21080 · 99365-71070 · 99365-80890 · 99365-81080 |
