Toyota COROLLA Oil Filter — Figure 1502

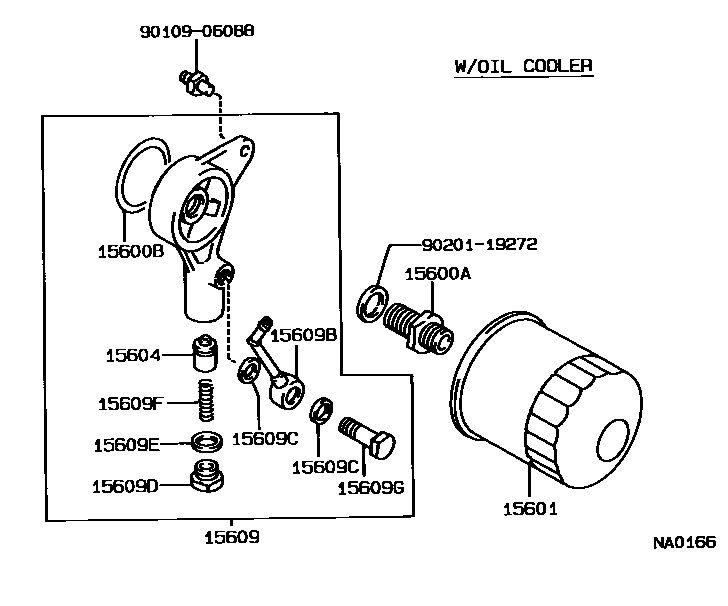

Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15600A | Connector (for oil filter) | 90404-19001 · 90404-19007 · 90405-19003 |
| 15600B | No. 1 O-ring (for oil filter) | 15188-11010 · 96732-31060 |
| 15601 | Oil filter sub-assembly | 90080-91058 · 90915-10001 |
| 15604 | Oil safety valve sub-assembly | 15131-38030 |
| 15609 | Oil filter bracket sub-assembly | 15670-15020 · 15670-16030 |
| 15609B | Connector (for oil filter bracket) | 90029-40004 · 90029-40006 |
| 15609C | Gasket (for oil filter holder connector) | 90430-14235 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 15133-20010 |
| 15609E | Headed straight thread plug liner | 15134-20010 |
| 15609F | Spring (for oil filter bracket) | 15132-21010 |
| 15609G | Connector bolt (for oil filter bracket) | 90401-14003 |
