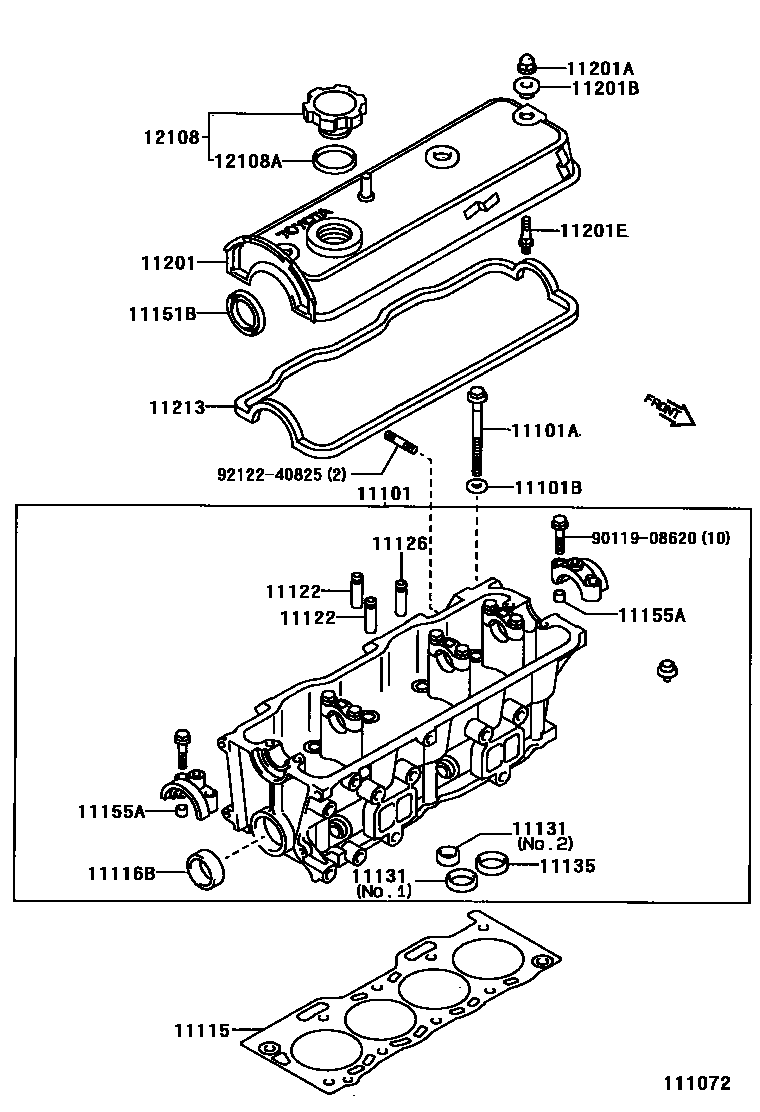

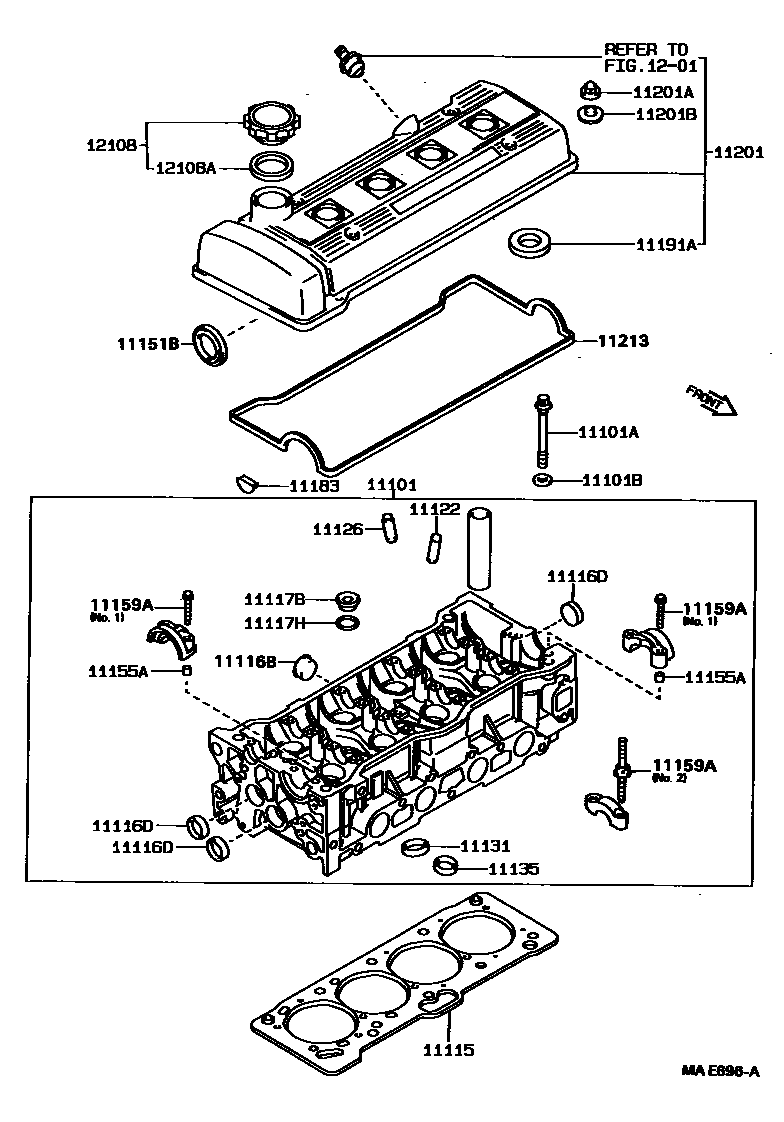

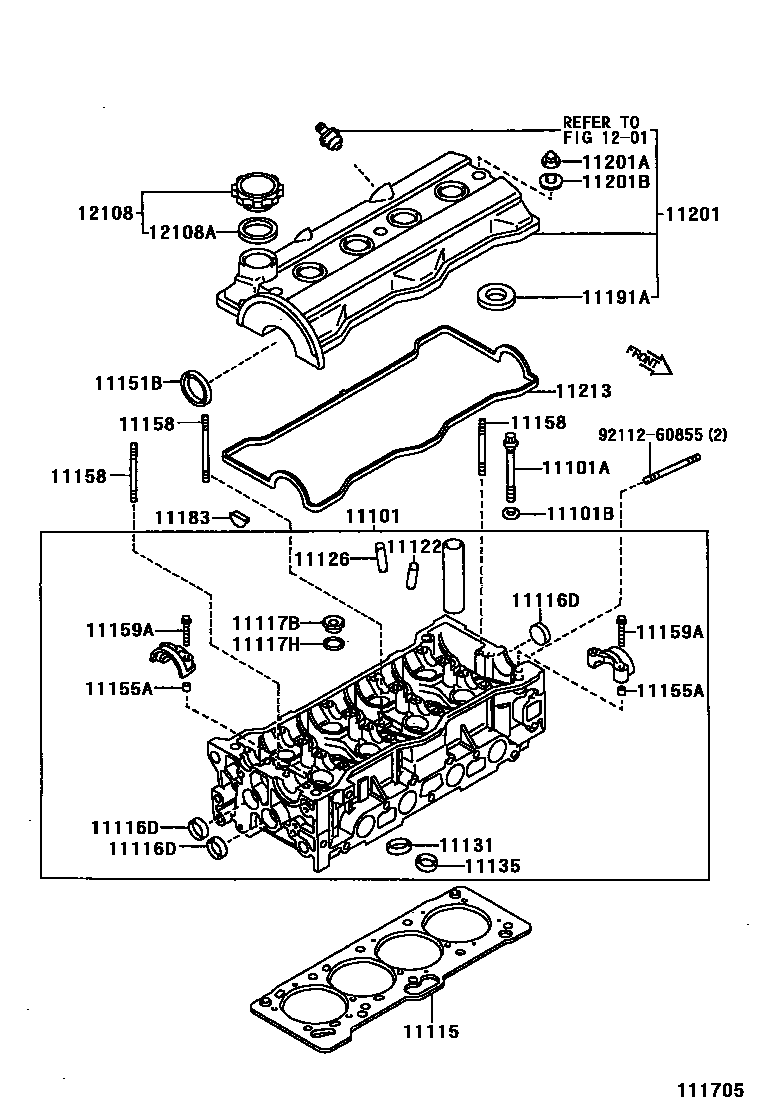

Toyota COROLLA Cylinder Head — Figure 1104
Toyota COROLLA EPC diagram 1104, Cylinder Head, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-19156 · 11101-19225 · 11101-19375 · 11101-19415 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90105-09002 · 90109-10058 · 90109-10059 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-09015 · 90201-10344 |
| 11115 | GASKET, CYLINDER HEAD | 11115-11010 · 11115-16082 · 11115-16121 · 11115-16130 · 11115-16150 |
| 11116B | No. 2 sealing plug | 96411-42500 · 96411-44000 |
| 11116D | No. 4 sealing plug | 96411-42800 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-10040 · 11122-15030 · 11123-10040 · 11123-15030 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-10040 · 11122-15030 · 11123-10040 · 11123-15030 |
| 11131 | intake valve seat | 11131-10020 · 11131-11010 · 11131-15040 · 11131-16040 · 11132-10020 · 11132-11010 · 11132-15040 · 11132-16040 · 11137-10010 · 11138-10010 |
| 11135 | Exhaust valve seat | 11135-11010 · 11135-15030 · 11135-16040 · 11136-11010 · 11136-15030 · 11136-16040 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-35013 · 90311-35022 · 90311-35035 |
| 11155A | PIN, RING W/HEAD | 90253-09001 · 90253-11021 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90116-06073 · 90116-06074 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90109-06080 · 90109-06222 |
| 11183 | PLUG, SEMICIRCULAR | 11183-15020 |
| 11191A | Gasket (for spark plug bushing) | 11193-15010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-10010 · 11210-15050 · 11210-15070 · 11210-15071 |
| 11201A | Cap nut (for cylinder head cover) | 90176-06008 · 90176-06028 · 90176-08007 |
| 11201B | Gasket (for cylinder head cover) | 90210-06010 · 90210-08020 · 90210-09001 · 90210-09019 |
| 11201E | Studs (for cylinder head cover assembly) | 90116-08190 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-10011 · 11213-15050 · 11213-15070 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-11021 · 12180-13030 · 12180-55010 · 12180-62011 · 12180-65011 · 12180-73011 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 12195-71020 · 90430-37140 |
