Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

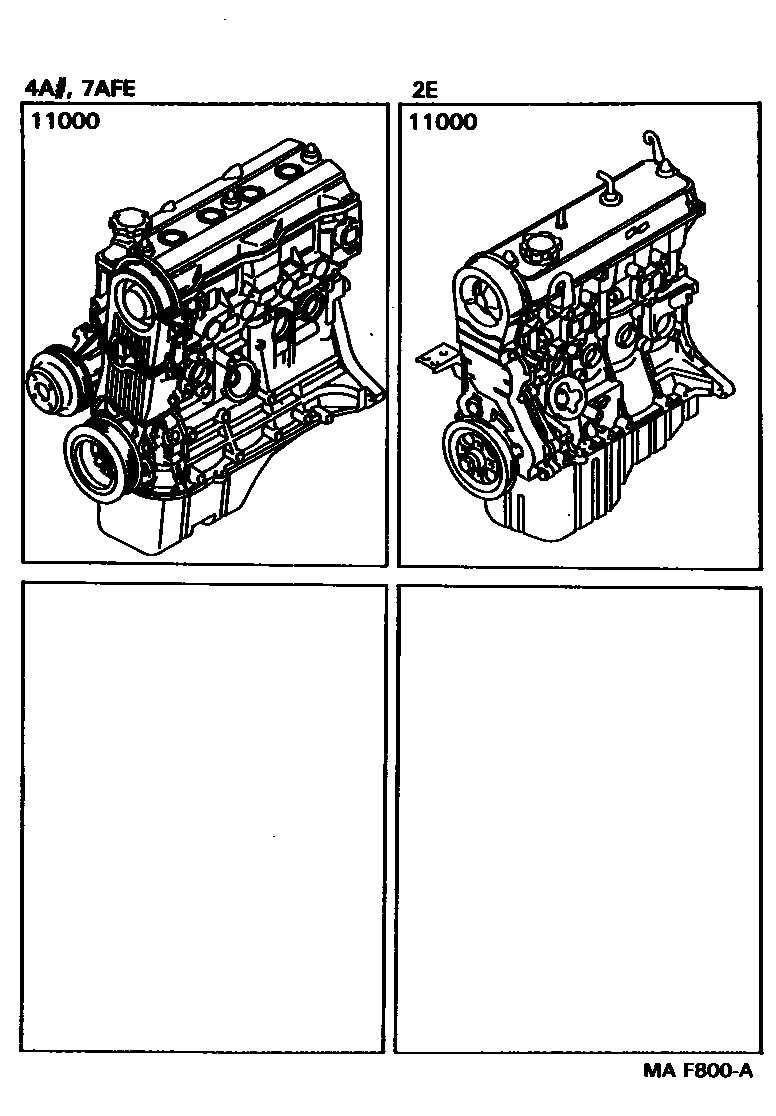

Toyota COROLLA Partial Engine Assembly EPC diagram — MAF800A
Partial Engine Assembly — MAF800A (199205 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-11550 · 19000-11551 · 19000-11552 · 19000-11560 · 19000-11561 · 19000-16410 · 19000-16610 · 19000-1A110 · 19000-1A260 · 19000-1A280 · 19000-1A450
