Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

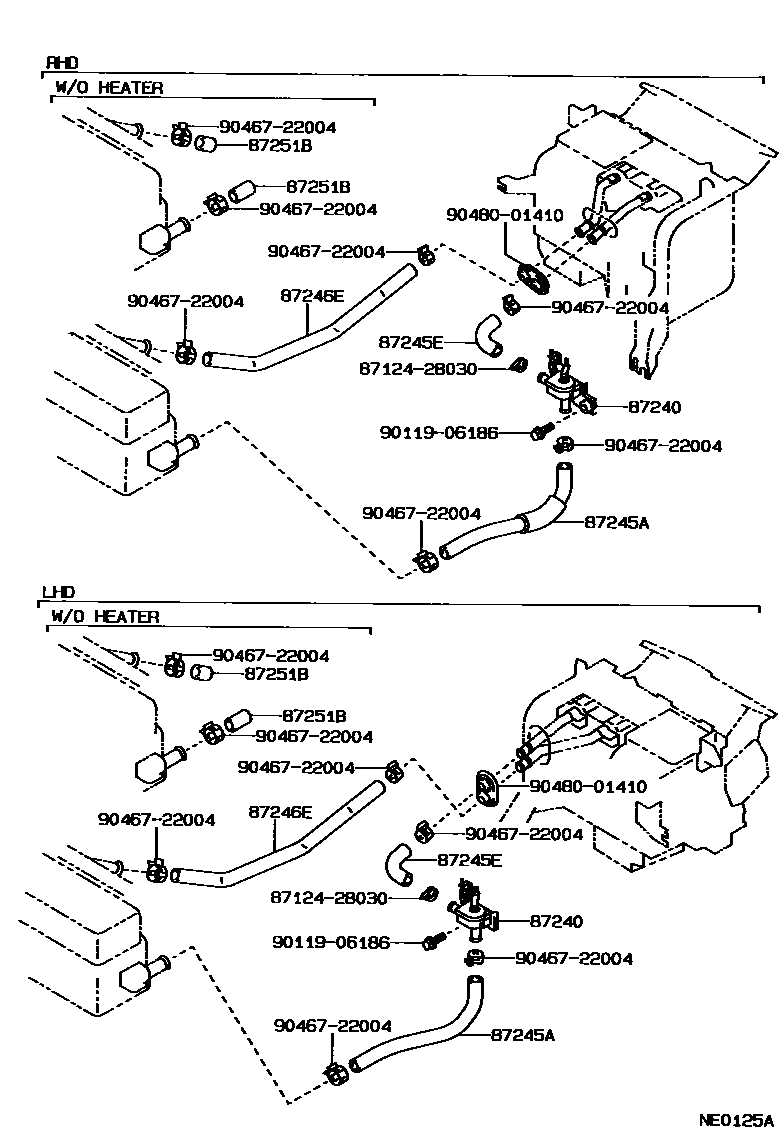

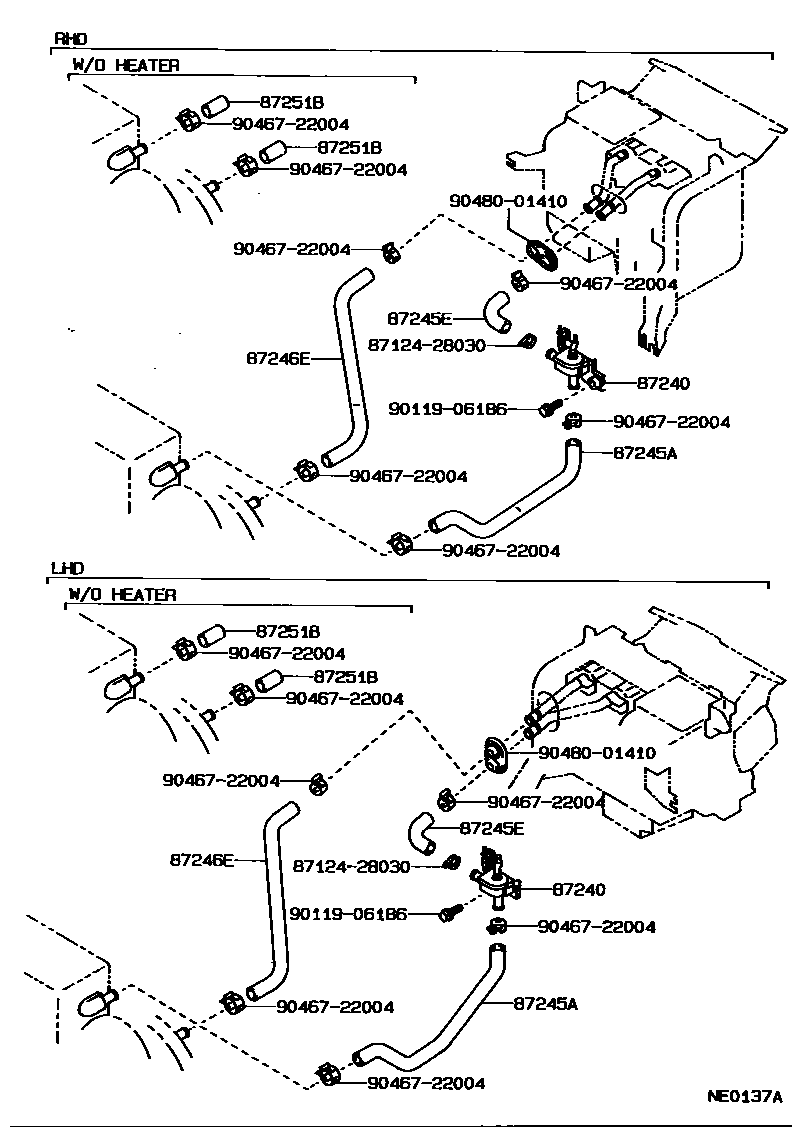

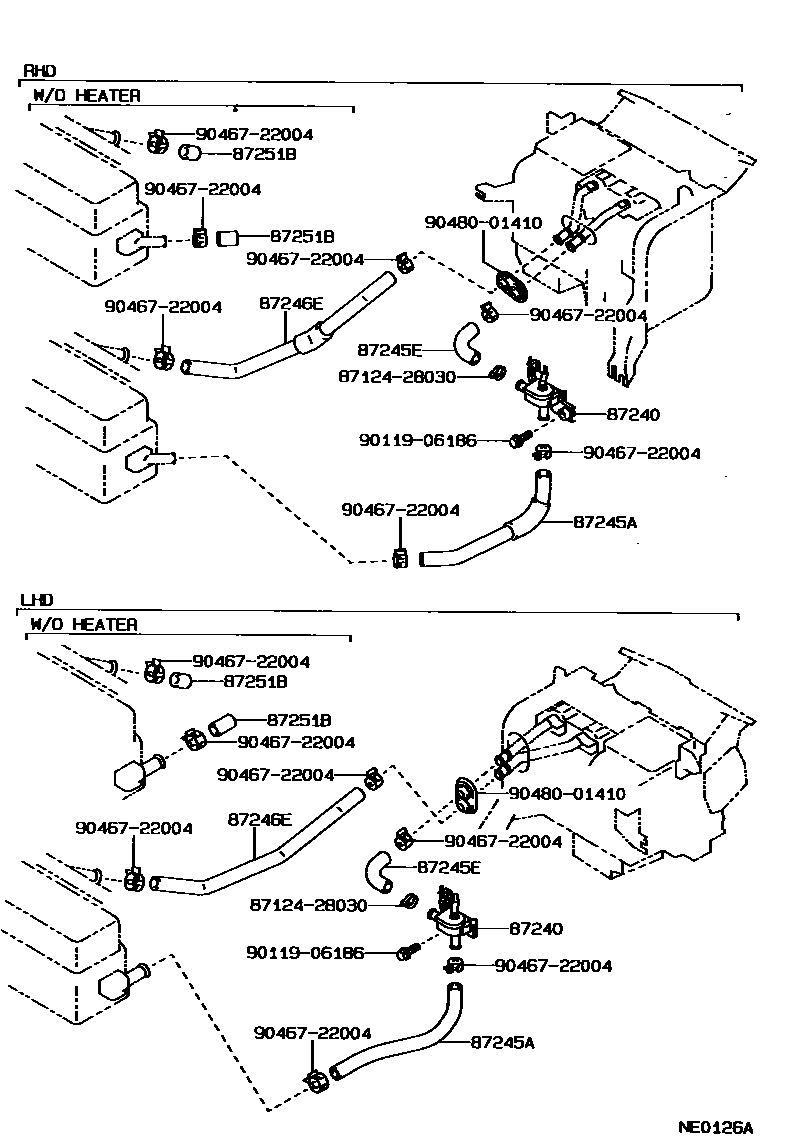

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87240 | Heater water valve assembly | 87240-12230 · 87240-12240 |
| 87245A | Heater water inlet hose A | 87245-12840 · 87245-12841 · 87245-1A160 · 87245-1A180 · 87245-1A230 · 87245-1A390 |
| 87245E | Heater water inlet hose E | 87245-1A300 · 87245-1A310 · 87245-1A380 |
| 87246E | Heater outlet hose E | 87245-1A210 · 87245-1A211 · 87245-1A240 · 87245-1A241 · 87245-1A242 · 87245-1A260 · 87245-1A270 · 87245-1A271 · 87245-1A272 · 87245-1A290 · 87245-1A330 · 87245-1A331 · 87245-1A400 |
| 87251B | heater water plug | 90339-16001 · 90339-16007 |
