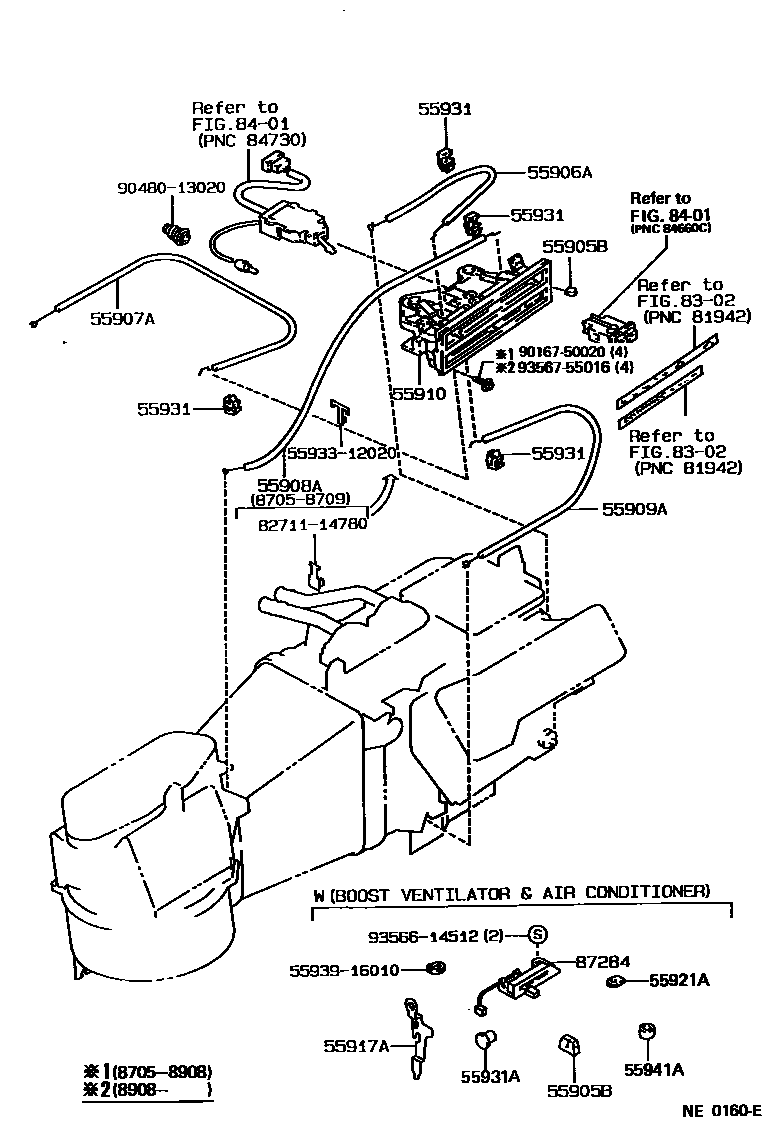

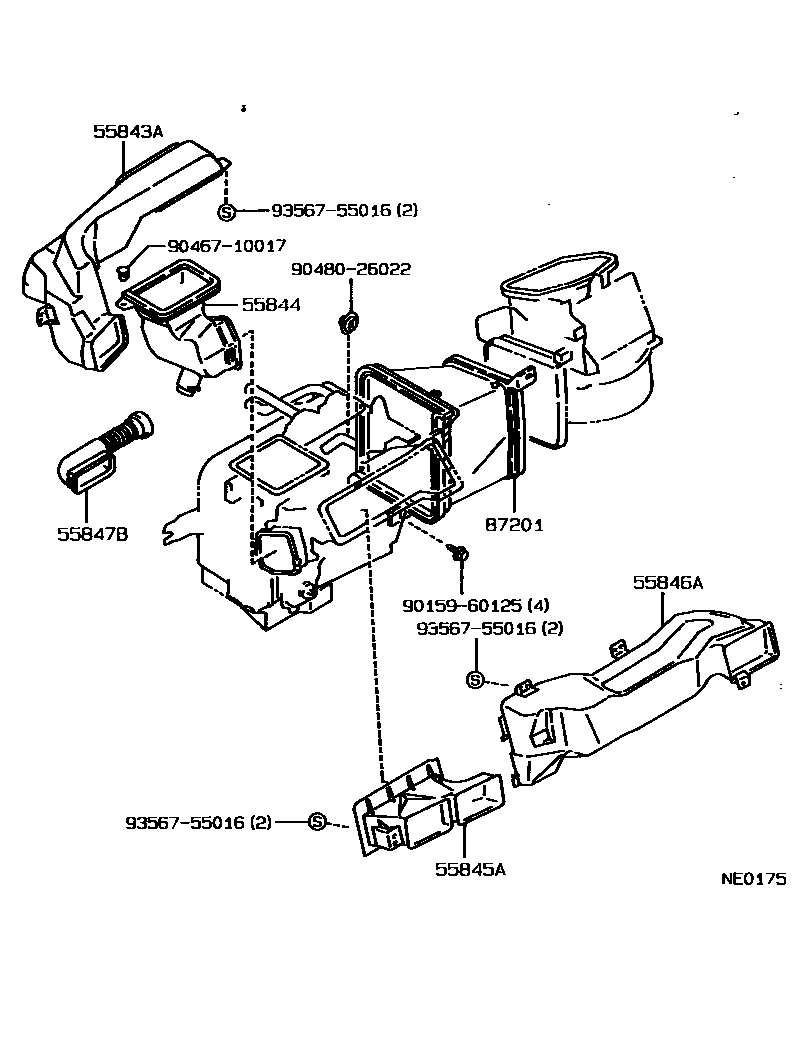

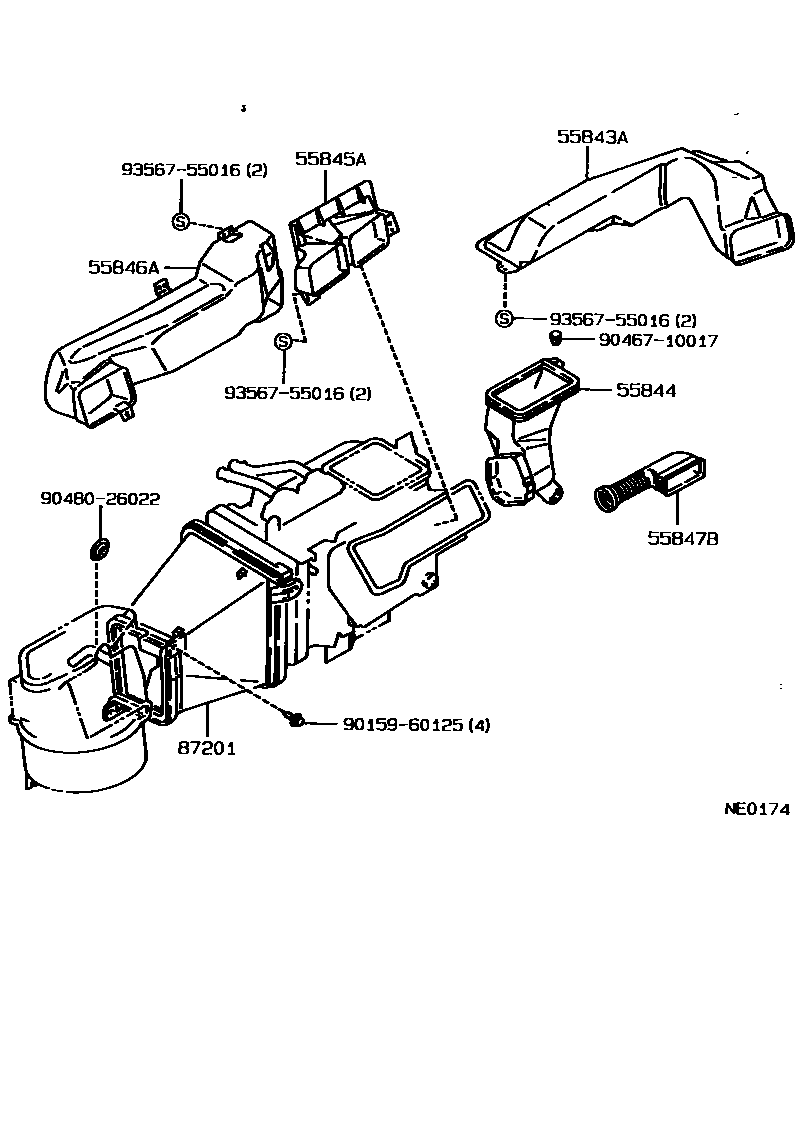

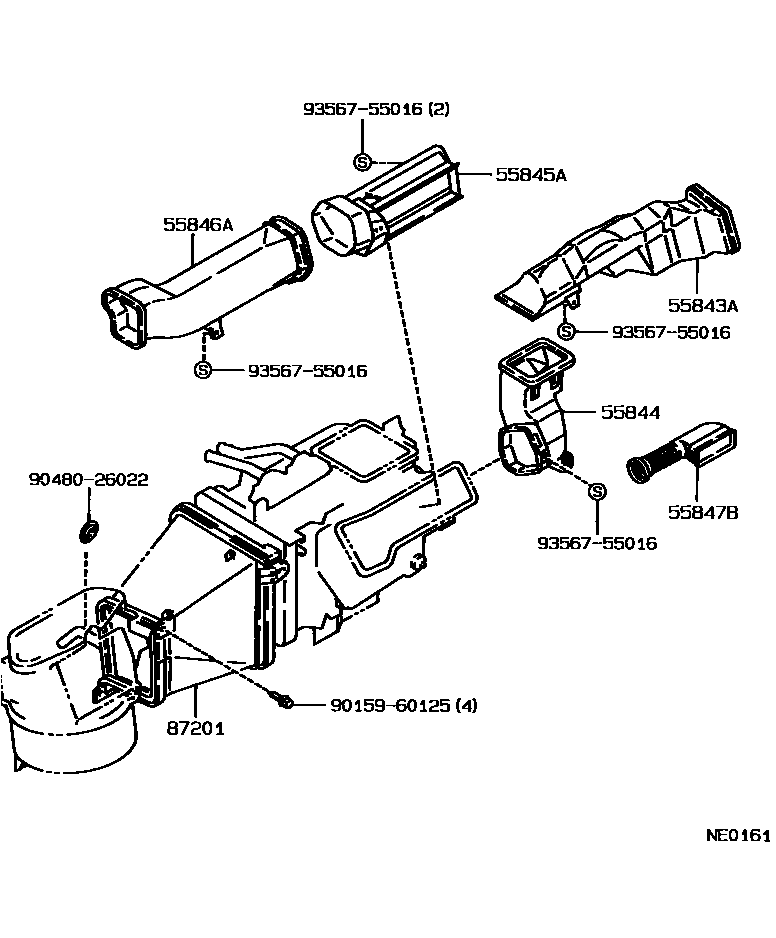

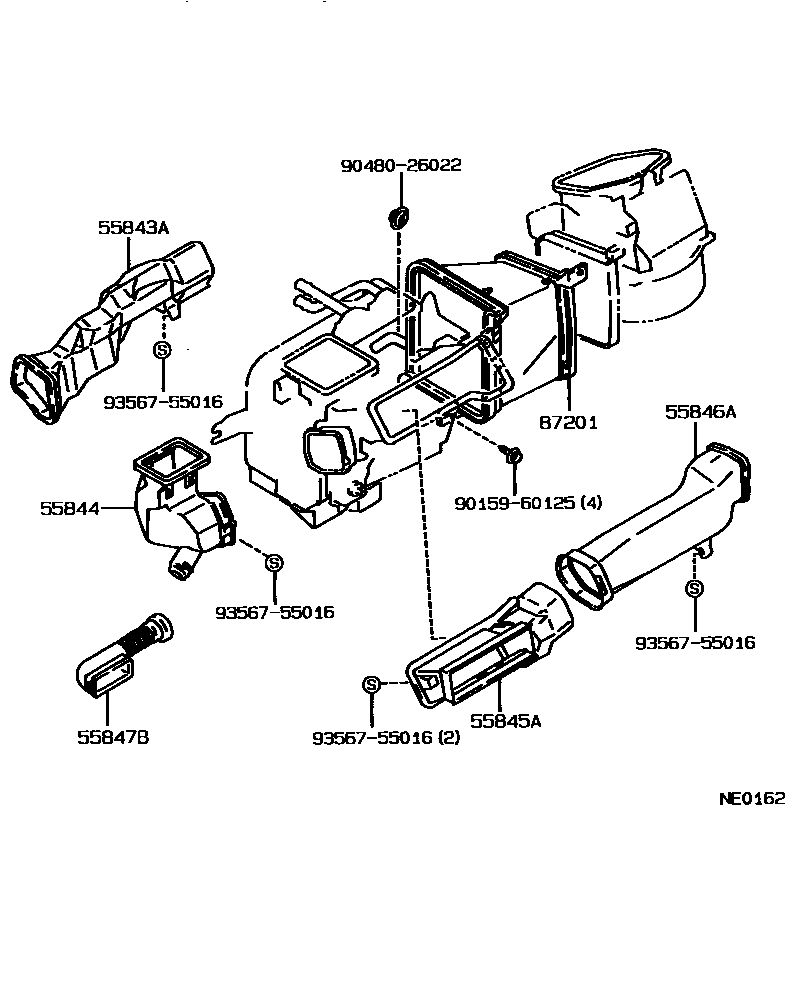

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-12170 · 55843-12180 · 55843-12190 · 55843-12200 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12210 · 55844-12220 · 55844-12230 · 55844-12240 · 55844-12250 · 55844-12260 · 55844-12270 · 55844-12280 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-12110 · 55845-12120 · 55845-12130 · 55845-12140 |
| 55846A | Air duct No. 4 from heater to air register | 55846-12090 · 55846-12100 · 55846-12130 · 55846-12140 |
| 55847B | Air duct No. 5 from heater to air regulator | 55847-12070 · 55847-12071 |
| 55905B | Heater control button 2 | 55905-12130 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12230 · 55906-12240 · 55906-12250 · 55906-12270 · 55906-12290 · 55906-12300 · 55906-12310 · 55906-12320 |
| 55907A | Water valve control cable sub-assembly | 55907-12260 · 55907-12280 · 55907-12290 · 55907-12310 · 55907-12320 · 55907-12330 · 55907-12340 · 55907-12350 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12190 · 55908-12210 · 55908-12220 · 55908-12230 · 55908-12240 · 55908-12250 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12170 · 55909-12190 · 55909-12210 · 55909-12230 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-12440 · 55910-12441 · 55910-12450 · 55910-12451 · 55910-12460 · 55910-12461 · 55910-12480 · 55910-12490 · 55910-12491 · 55910-12500 · 55910-12501 · 55910-12510 · 55910-12511 · 55910-12520 · 55910-12521 |
| 55917A | Temperature damper control lever | 55917-12100 |
| 55921A | Heater Controller Fixing | 55921-14110 |
| 55931 | Heater control harness clip | 55933-10010 |
| 55931A | Heater control lever shaft | 55931-12020 |
| 55941A | heater control guide | 55941-12020 |
| 87201 | No. 1 air duct sub-assembly | 87201-12110 · 87201-12120 · 87201-12130 · 87201-12140 |
| 87284 | Variable resistor sub-assembly | 88032-12100 · 88032-12120 |
