Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

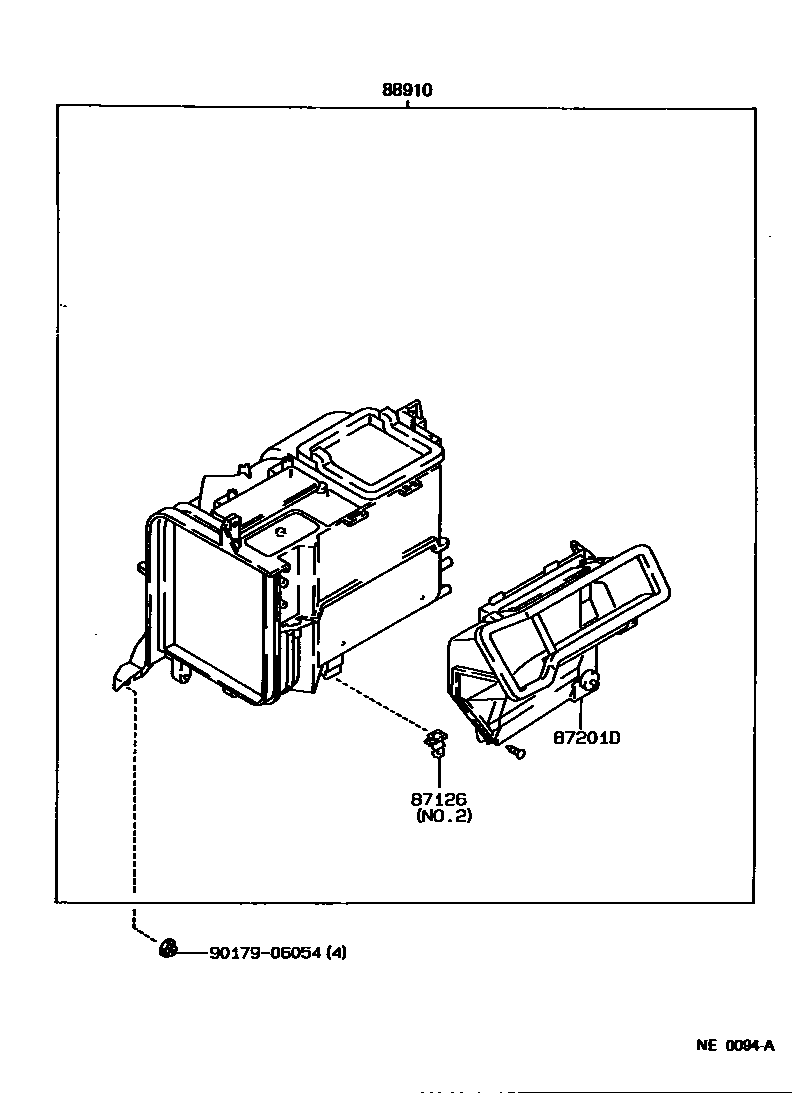

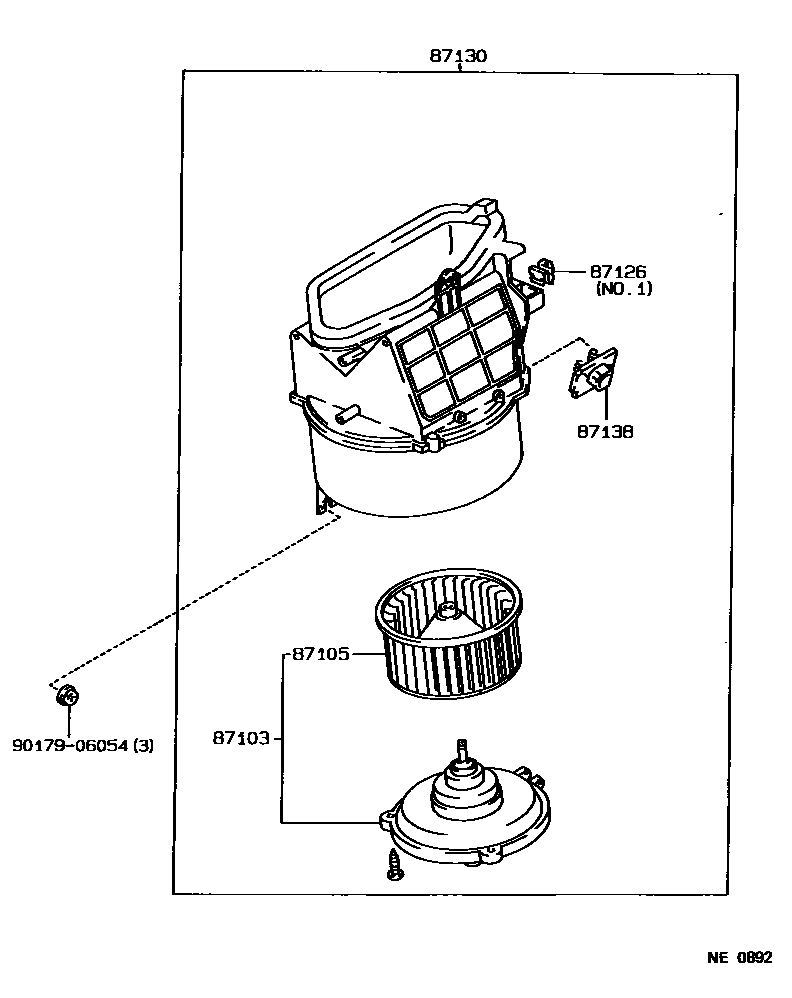

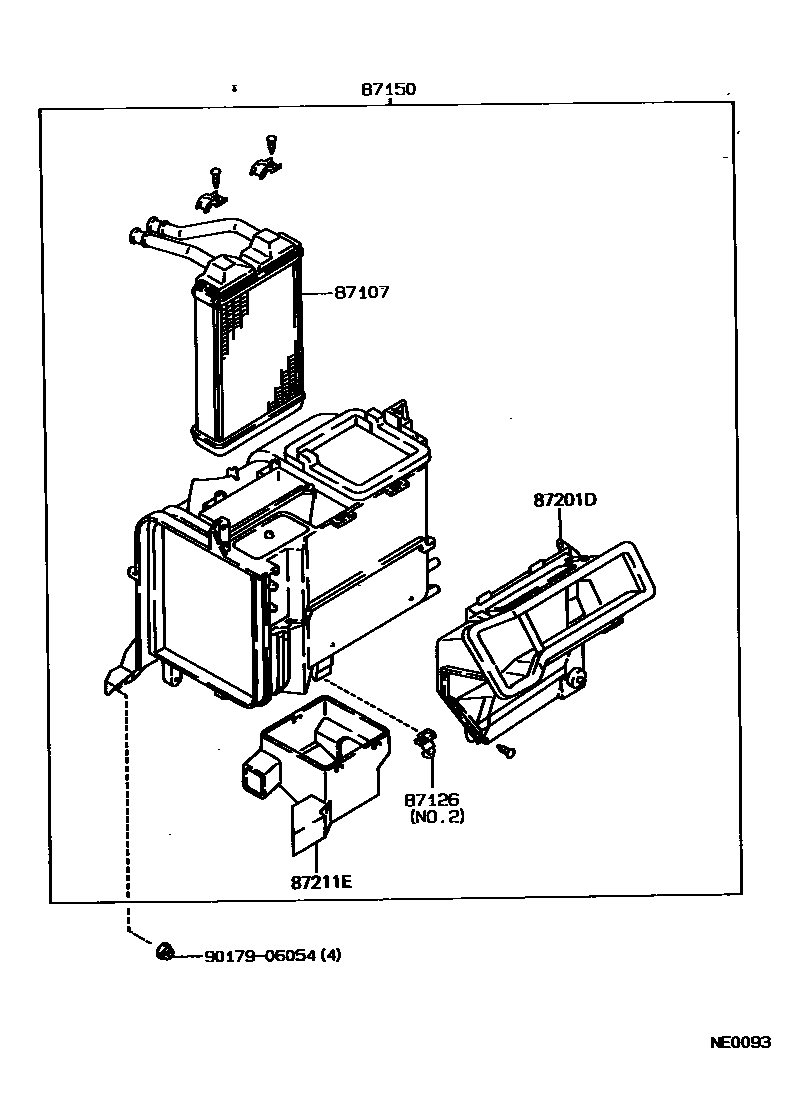

Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-12010 · 87103-12020 |
| 87105 | Heater blower fan sub-assembly | 87105-32010 · 87105-32020 |
| 87107 | Heater radiator device sub-assembly | 87107-12380 · 87107-12410 |
| 87126 | heater control clip | 87126-12040 · 87126-12050 |
| 87130 | Front heater blower assembly | 87130-12250 · 87130-12270 |
| 87138 | Heater Blower Resistor | 87138-12120 |
| 87150 | Heater radiator assembly | 87150-12370 · 87150-12440 · 87150-12480 · 87150-12530 |
| 87201D | Air duct sub-assembly | 87201-12150 · 87201-12160 · 87201-12170 · 87201-12180 · 87201-12260 · 87201-12261 · 87201-12270 · 87201-12280 · 87201-12281 |
| 87211E | air duct | 87211-12120 · 87211-12121 · 87211-12140 |
| 88910 | Auxiliary ventilation device assembly | 88910-12060 · 88910-12070 |
