Toyota COROLLA 后清洗器 — Figure 8504

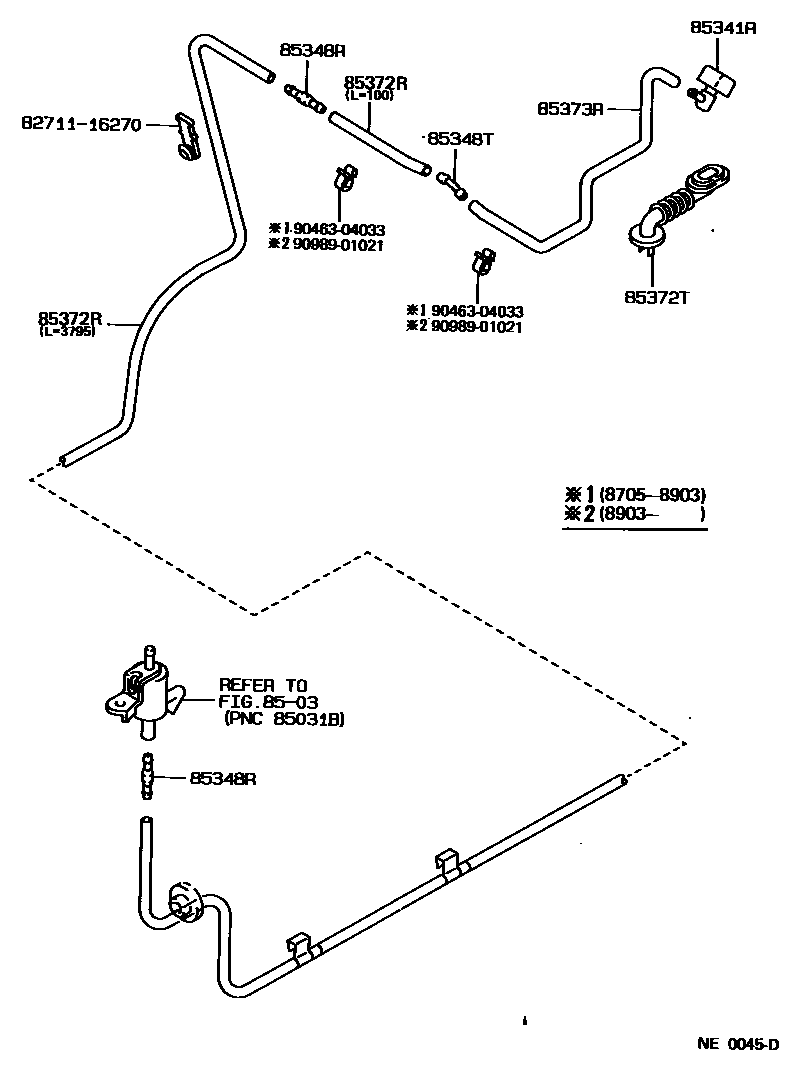

Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85341R | Cleaner nozzle assembly | 85341-12230 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348T | No. 2 rear washer hose connector | 85355-20080 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33299 · 90099-33852 |
| 85372T | Cleaner seal | 85372-12020 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33299 |
