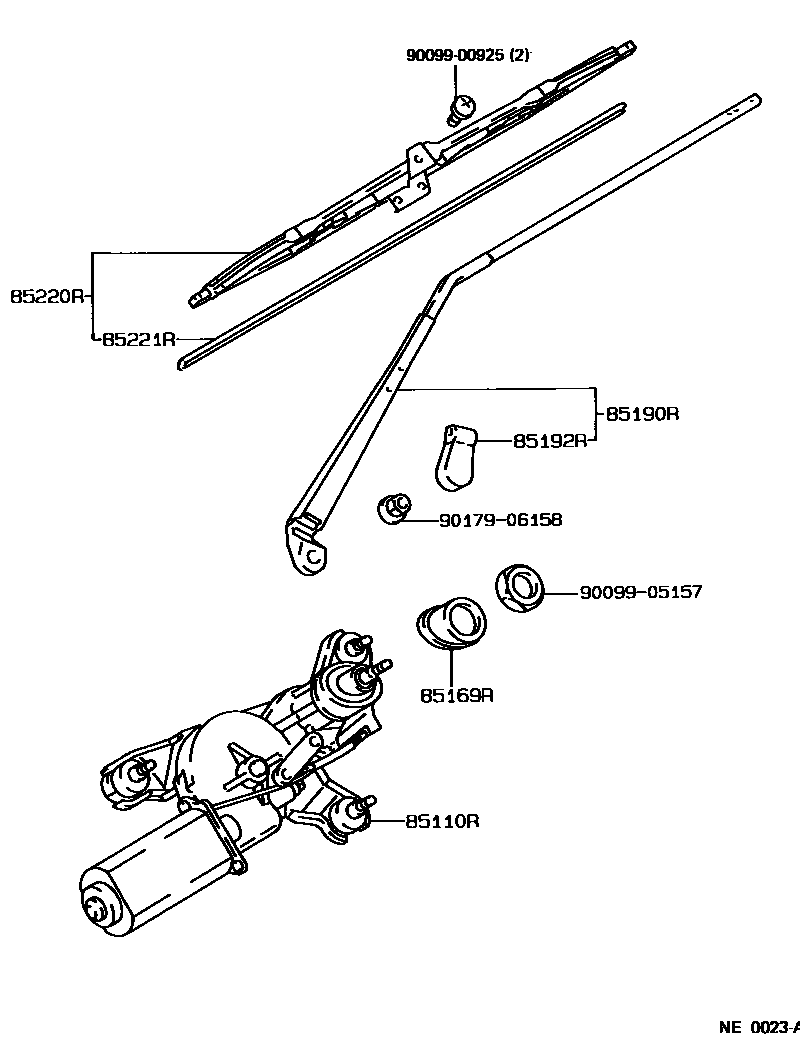

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85110-12700 · 85110-12760 |
| 85169R | No. 1 rear wiper link pivot washer | 85179-12700 |
| 85190R | Rear wiper arm assembly | 85190-12860 · 85190-12880 |
| 85192R | Rear wiper arm cover | 85192-13060 |
| 85220R | Rear wiper blade assembly | 85220-12600 · 85220-16441 · 85220-22520 |
| 85221R | Rear wiper blade | 85221-12170 · 85221-16090 |
