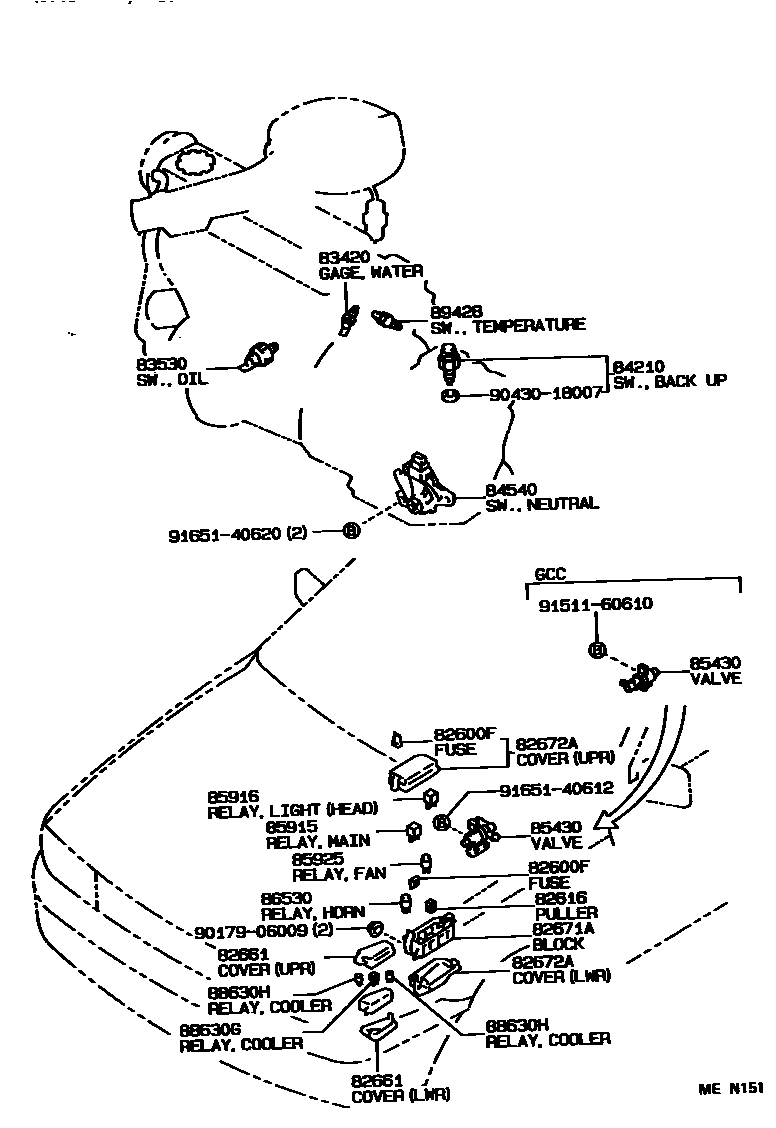

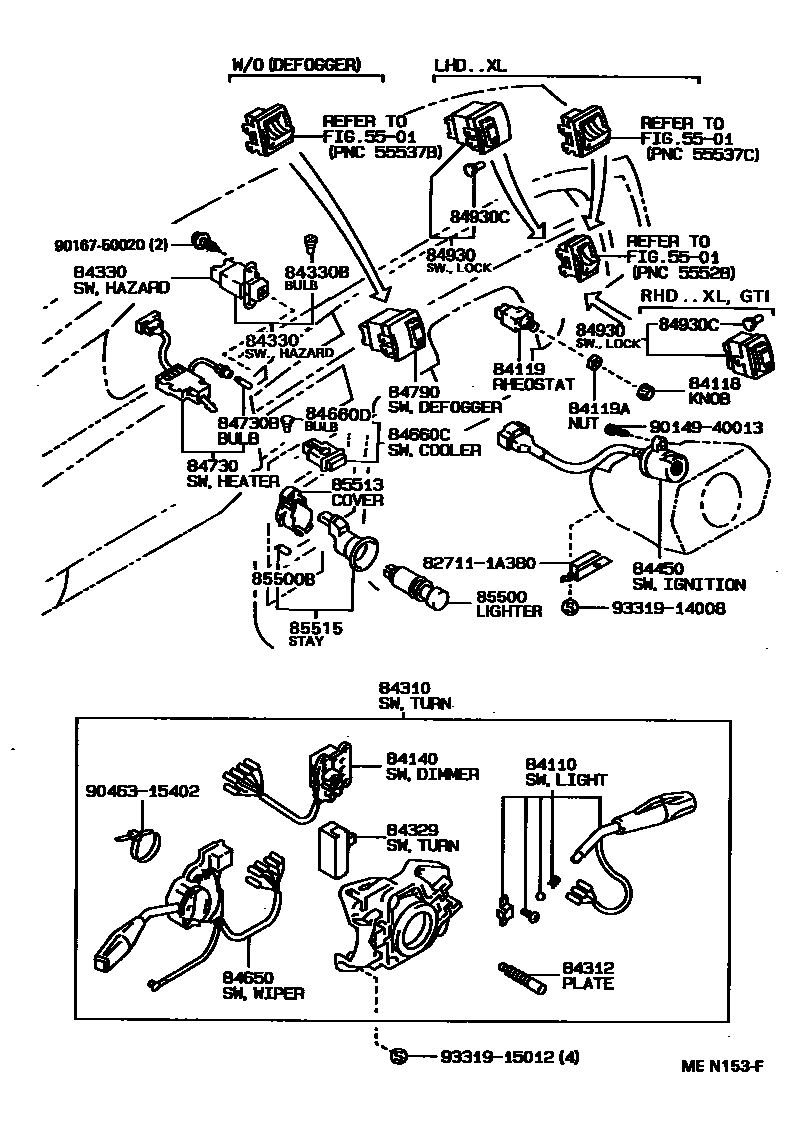

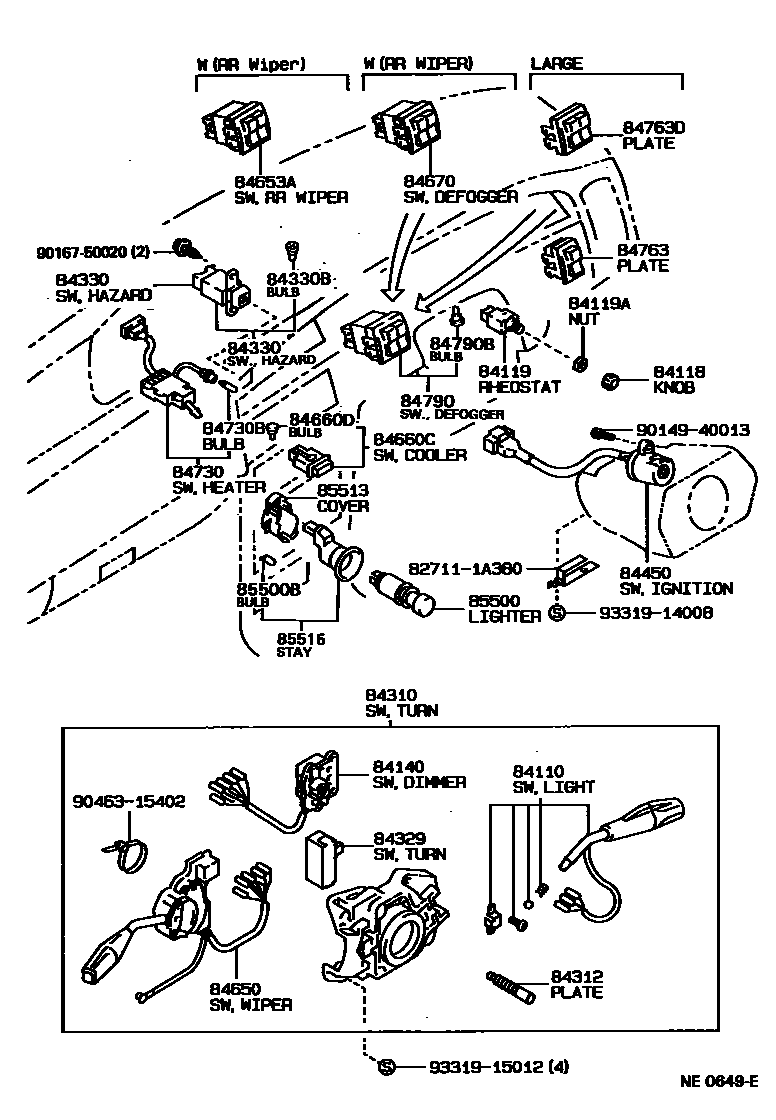

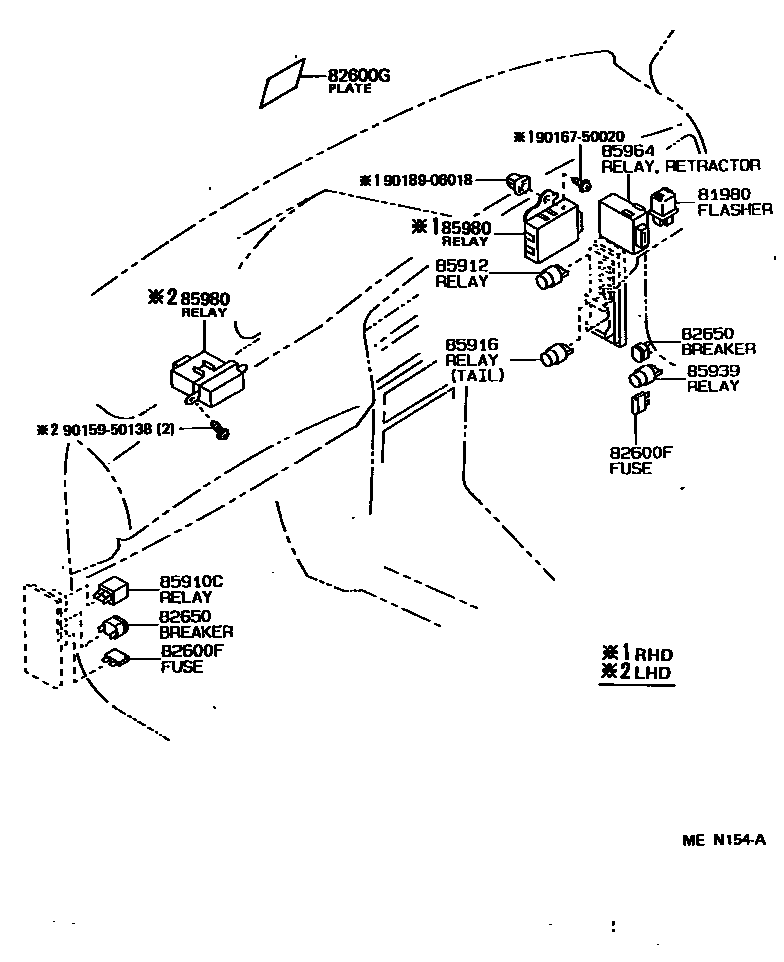

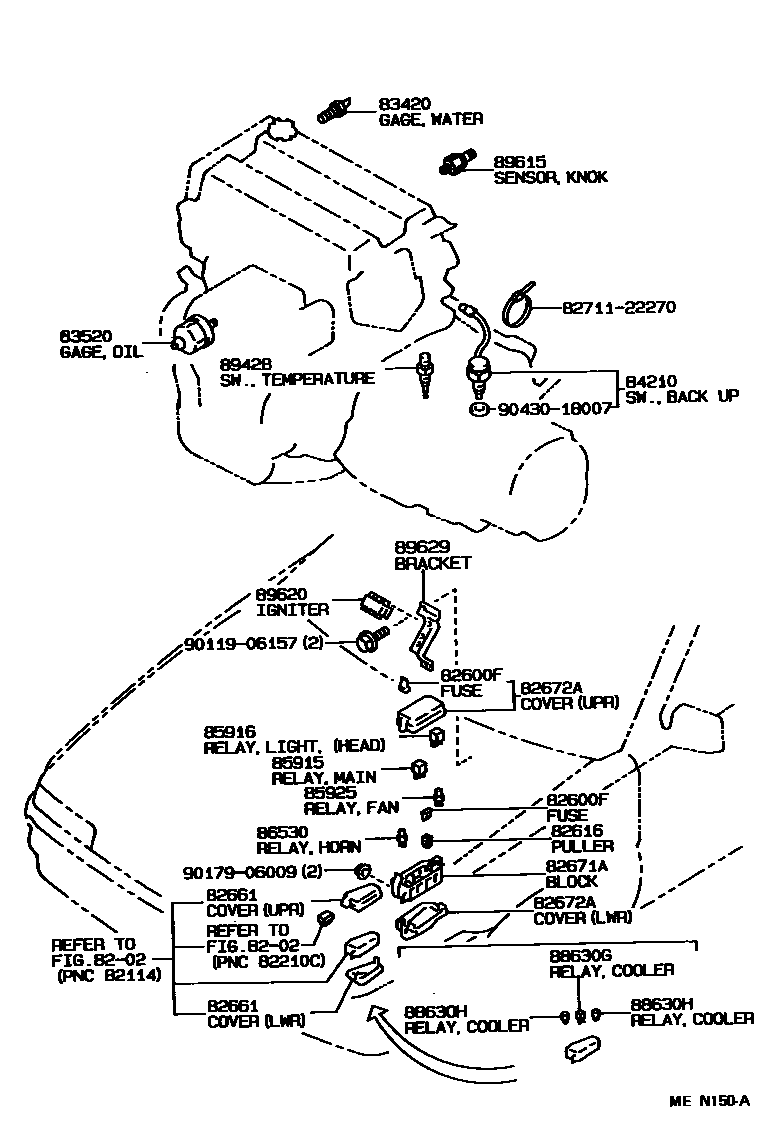

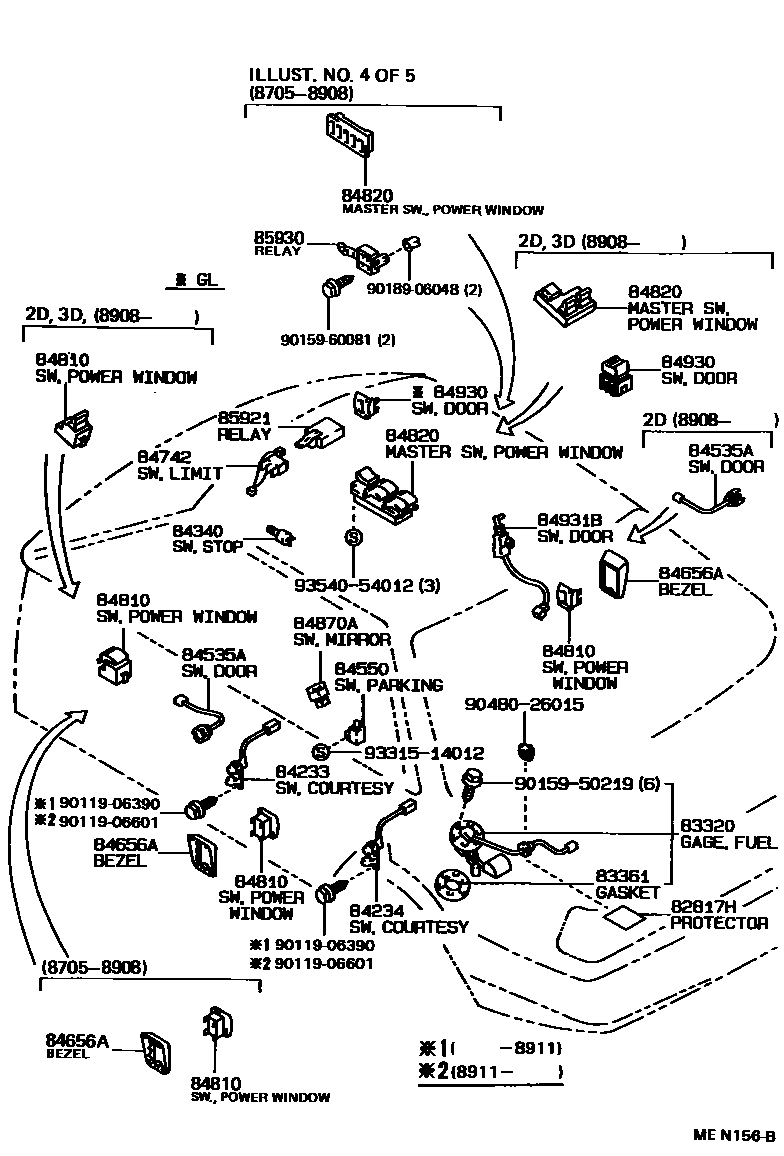

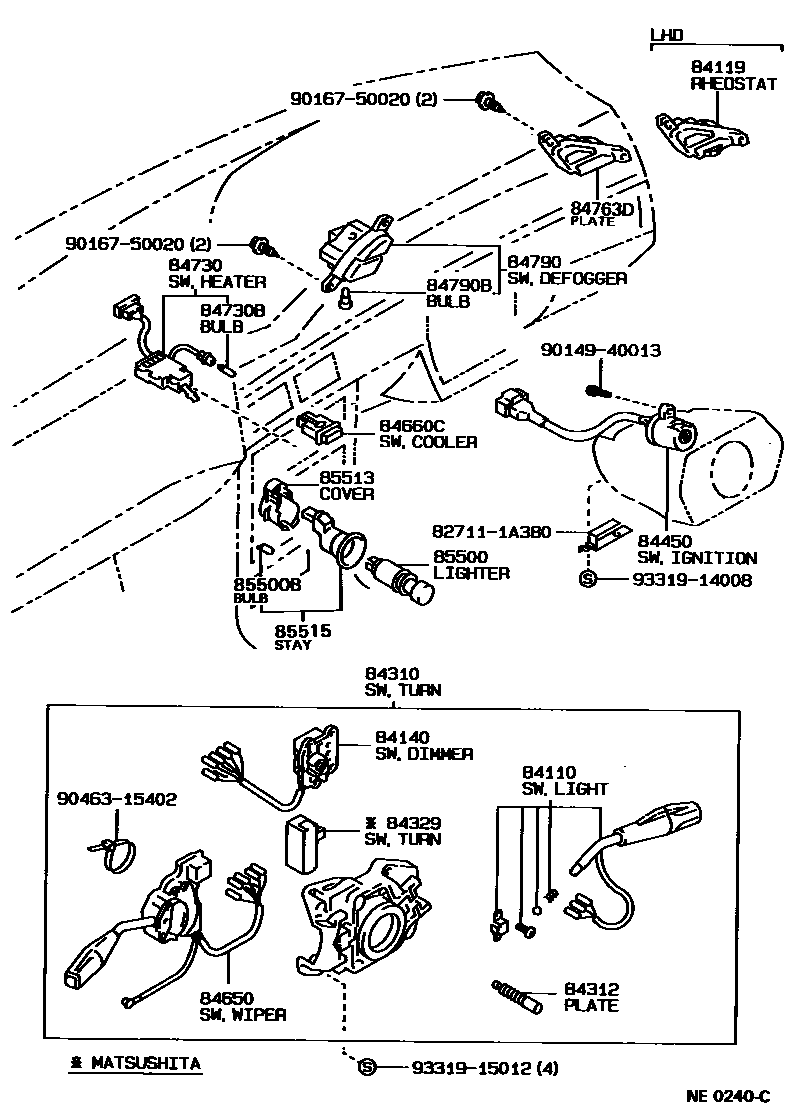

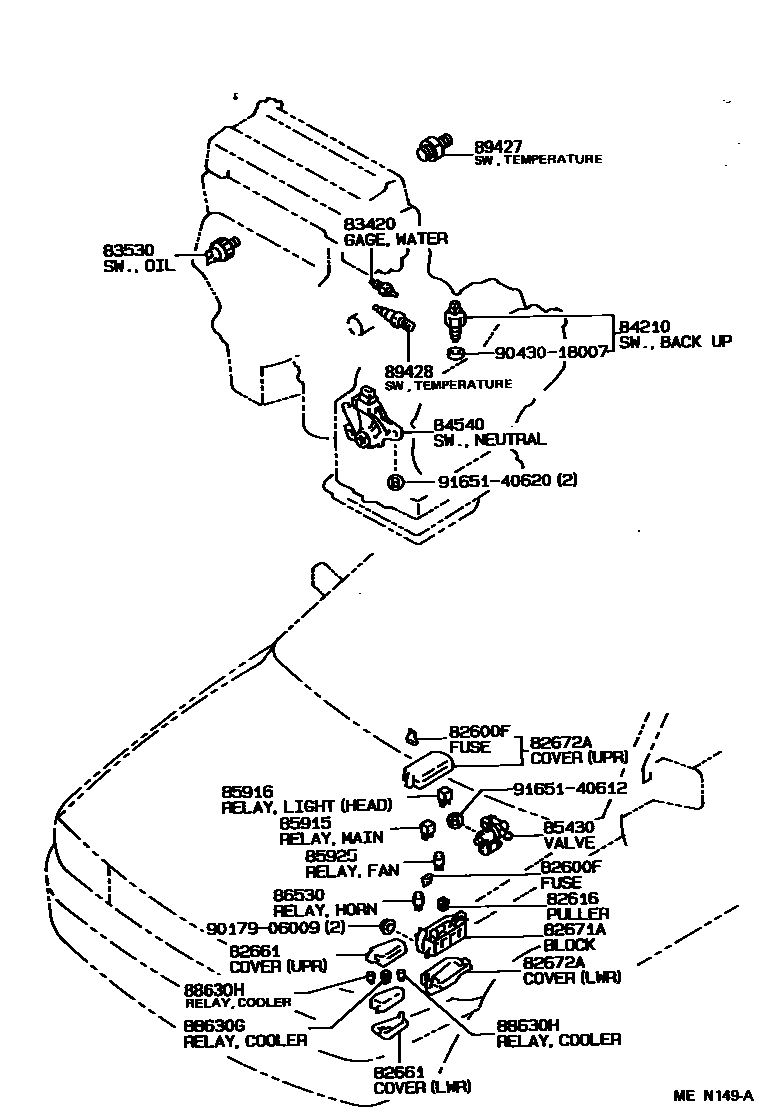

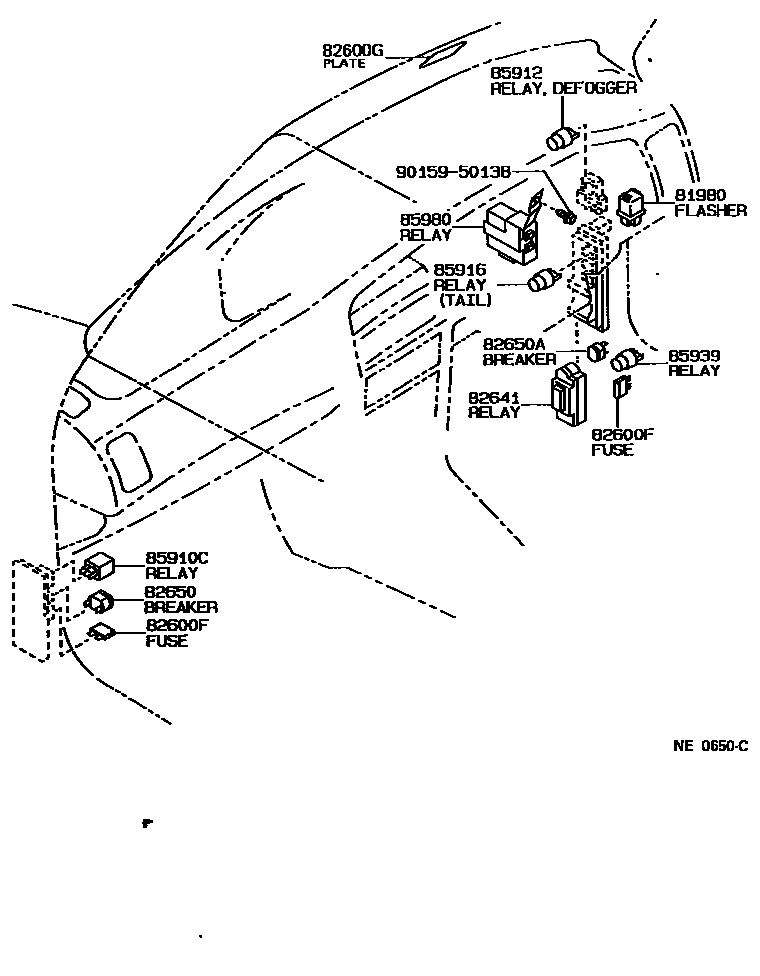

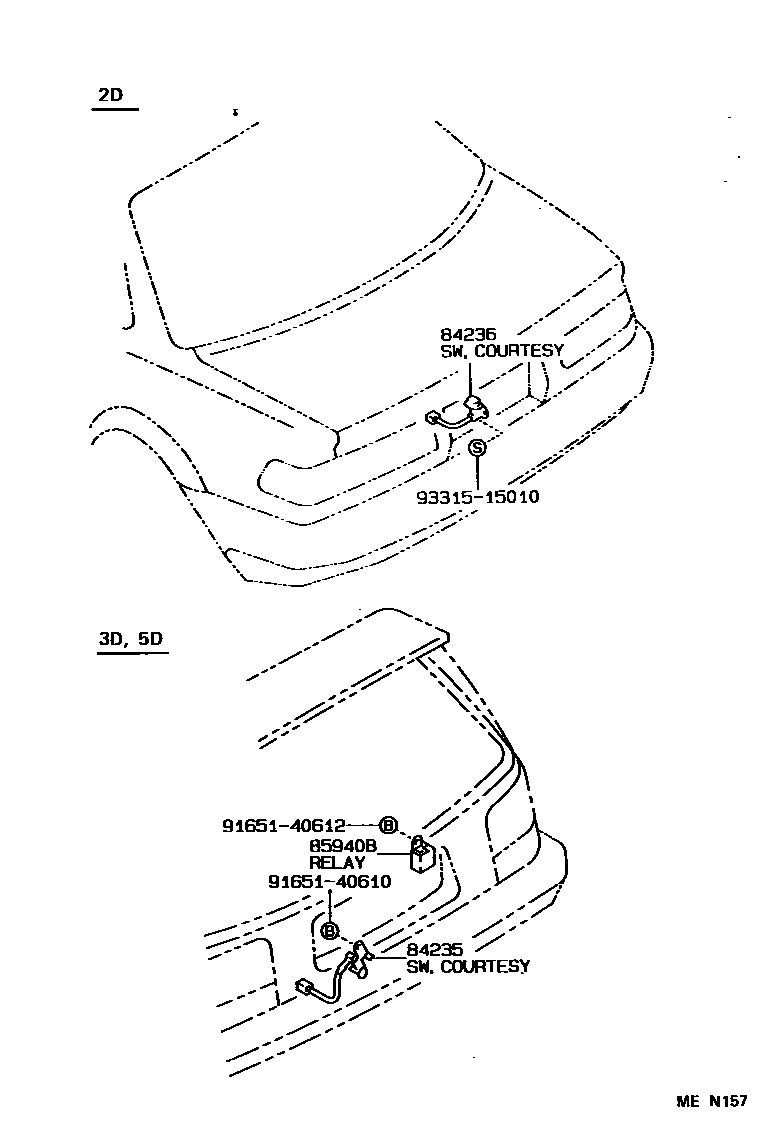

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 10 images and 75 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81980 | Turn signal flasher relay assembly | 81980-12070 |
| 82600F | Spare fuse | 90080-82005 · 90080-82014 · 90080-82015 · 90982-07011 · 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82600G | Warning nameplate (for fuses) | 82685-12010 |
| 82616 | fuse puller | 82616-12010 |
| 82641 | Integrated relay No. 1 | 82641-12010 · 82641-12020 · 82641-12021 |
| 82650 | No. 1 circuit breaker assembly | 82650-20011 |
| 82650A | No. 2 circuit breaker assembly | 82650-20011 |
| 82661 | No. 1 relay box cover | 82661-12140 · 82661-12160 |
| 82671A | junction box | 82671-12050 · 82671-12080 |
| 82672A | Junction box cover | 82672-12010 · 82672-12020 · 82672-12070 · 82672-12140 · 82672-12150 · 82672-12180 · 82672-12190 |
| 82817H | Harness protection device | 82817-16100 |
| 83320 | Fuel gauge sensor assembly | 83320-80072 · 83320-80075 · 83320-80080 · 83320-80081 · 83320-80082 · 83320-80113 · 83320-80114 |
| 83361 | fuel gauge sensor gasket | 83361-32020 |
| 83420 | Water temperature sensor assembly | 83420-16020 · 83420-20020 |
| 83520 | Oil pressure gauge sensor assembly | 83520-14023 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-30050 · 83530-30051 · 83530-30080 |
| 84110 | No. 1 light control switch assembly | 84112-19885 · 84112-19895 · 84112-80001 · 84112-80002 · 84112-80003 · 84112-80004 · 84112-80005 · 84112-80007 |
| 84118 | Light control rheostat button | 84118-12070 |
| 84119 | Light control rheostat | 84119-12110 · 84119-20082 |
| 84119A | Rheostat control retaining bolt or nut | 90170-09167 |
| 84140 | Headlight dimmer switch assembly | 84140-12210 · 84140-12220 · 84140-12250 · 84140-12260 · 84140-12320 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-60021 |
| 84233 | Door control light switch assembly (for front door) | 84231-12060 · 84231-12070 · 84231-16060 · 84231-24010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-12060 · 84231-16060 |
| 84235 | Door control light switch assembly (for back door) | 84231-16021 |
| 84236 | Door control light switch assembly (for trunk) | 84231-20110 |
| 84310 | Turn signal switch assembly | 84310-12800 · 84310-12830 · 84310-12890 · 84310-1A140 · 84310-1A150 · 84310-1A151 · 84310-1A170 · 84310-1A240 · 84310-1A241 · 84310-1A260 · 84310-1A261 · 84310-1A280 · 84310-1A300 · 84310-1A440 |
| 84312 | Speaker contact piece | 84312-12040 · 84312-12050 |
| 84329 | turn signal switch | 84329-12010 · 84329-12030 |
| 84330 | Hazard warning signal switch assembly | 84332-12250 · 84332-12260 · 84332-12290 · 84332-12300 |
| 84330B | Hazard warning signal switch light bulb | 84999-10190 · 84999-10210 · 84999-10340 |
| 84340 | brake light switch assembly | 84340-30030 |
| 84450 | Ignition or starter switch assembly | 84450-12150 |
| 84535A | door lock switch | 84535-12010 · 84535-12020 |
| 84540 | Neutral start switch assembly | 84540-16030 |
| 84550 | Parking brake switch assembly | 84550-12060 |
| 84650 | Windshield wiper switch assembly | 84652-01050 · 84652-02030 · 84652-12430 · 84652-12440 · 84652-12450 · 84652-12460 · 84652-12710 · 84652-12720 · 84652-12750 · 84652-12760 · 84652-12770 · 84652-12780 · 84652-12790 · 84652-12800 · 84652-12830 · 84652-12840 · 84652-1A030 · 84652-1A050 |
| 84660C | Cooler switch | 84660-12100 · 84660-12110 · 84660-12120 · 84660-12130 · 84660-20090 · 84660-20100 |
| 84660D | Light bulb (for cooler switch) | 88607-20060 |
| 84730 | Heater blower switch assembly | 84732-12230 · 84732-12240 · 84732-12270 |
| 84730B | heater blower switch light bulb | 90981-11014 |
| 84742 | Sliding sunroof limit switch | 84742-32010 |
| 84763D | switch board | 84763-12050 |
| 84790 | Rear window defogger switch assembly | 84790-12200 · 84790-12210 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10090 · 84999-10170 |
| 84810 | Electric window lift switch assembly | 84810-12070 · 84810-32070 |
| 84820 | Electric window lift main switch assembly | 84820-12080 · 84820-12100 · 84820-12220 · 84820-12221 · 84820-12240 |
| 84870A | Exterior rearview mirror switch assembly | 84870-20050 · 84870-20080 |
| 84930 | Door control switch assembly | 84930-12010 · 84930-12080 · 84930-12090 |
| 84930C | Light bulb (for door control switch) | 84999-10170 |
| 84931B | door control switch | 84931-19015 · 84931-19025 · 84931-19035 · 84931-20071 |
| 85430 | External ventilation control valve | 90925-09011 · 90925-09034 · 90925-09036 |
| 85500 | Cigarette lighter assembly | 85500-12250 |
| 85500B | Cigarette lighter bulb | 84999-10230 |
| 85513 | Cigarette lighter cover | 85513-12010 · 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-12010 · 85515-12020 · 85515-12021 · 85515-12030 · 85515-12031 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90987-02002 · 90987-02004 |
| 85915 | main relay | 90987-04002 |
| 85916 | Light control relay | 90987-02002 · 90987-02004 · 90987-02006 |
| 85921 | Sliding sunroof control relay | 85921-12020 |
| 85925 | Radiator fan relay | 90987-03001 |
| 85930 | Electric window relay assembly | 85930-12031 · 85930-12041 · 85930-12071 · 85930-12081 |
| 85939 | Power window relay | 90987-02002 · 90987-02004 |
| 85940B | Rear wiper relay assembly | 85940-12030 · 85940-12031 |
| 85964 | Car light telescopic relay | 85964-17010 · 85964-20020 |
| 85980 | Door control relay assembly | 85980-12020 · 85980-12030 · 85980-12090 · 85980-12100 |
| 86530 | Speaker relay assembly | 90987-02002 · 90987-02004 |
| 88630G | Cooler relay assembly | 88630-32010 |
| 88630H | Cooler relay assembly | 90987-02004 |
| 89427 | Temperature detection switch | 89427-12090 |
| 89428 | No. 2 temperature detection switch | 89428-10100 · 89428-10110 · 89428-15011 · 89428-20060 |
| 89615 | knock control sensor | 89615-12020 · 89615-12040 · 89615-12050 |
| 89620 | Ignition assembly | 89621-12010 |
| 89629 | Ignition bracket assembly | 89629-12030 · 89629-12040 |
