Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 2 PNC and OE references.

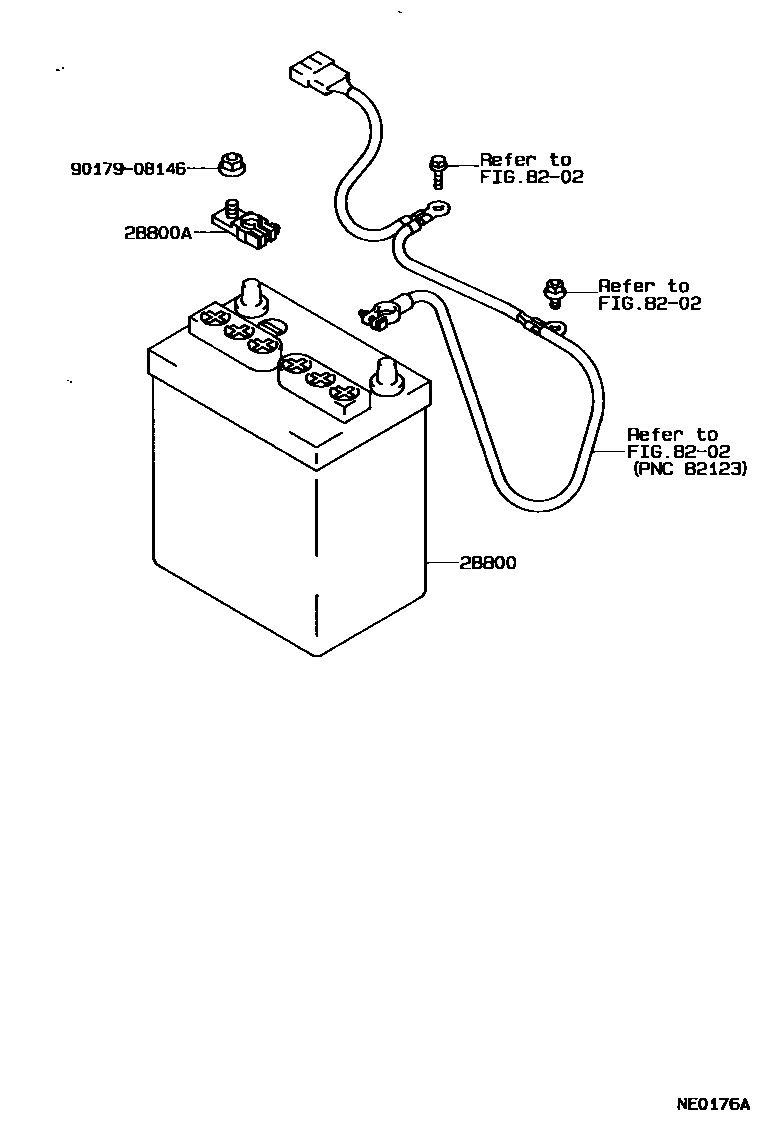

Toyota COROLLA 蓄电池和蓄电池电缆 EPC diagram — NE0176A
蓄电池和蓄电池电缆 — NE0176A (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800battery28800-11060 · 28800-11100 · 28800-11130 · 28800-31021 · 28800-31080 · 28800-70011 · 28800-74060
28800Abattery positive terminal90982-05034 · 90982-05035 · 90982-05036 · 90982-05037
