Toyota COROLLA 高位刹车灯 — Figure 8117

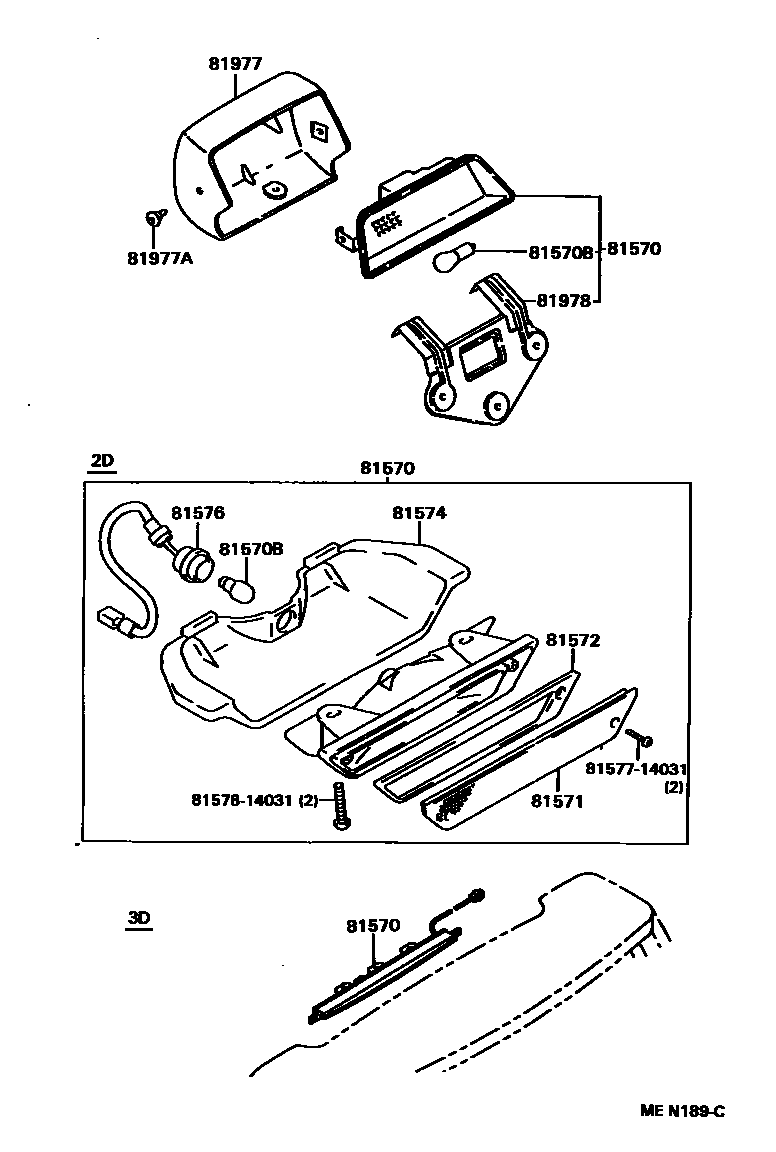

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-12130 · 81570-12150 |
| 81570B | Bulb (for center brake light) | 90981-11039 · 99132-11270 |
| 81571 | central brake light cover | 81571-14031 |
| 81572 | Center brake light gasket | 81572-14031 |
| 81576 | Central brake light holder and wiring harness | 81576-12080 |
| 81978 | Central brake light bracket | 81978-12020 |
